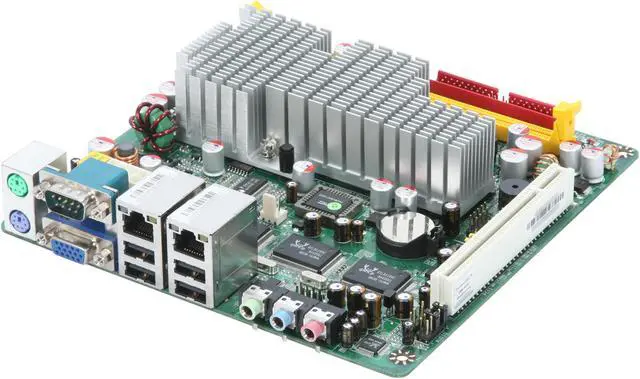

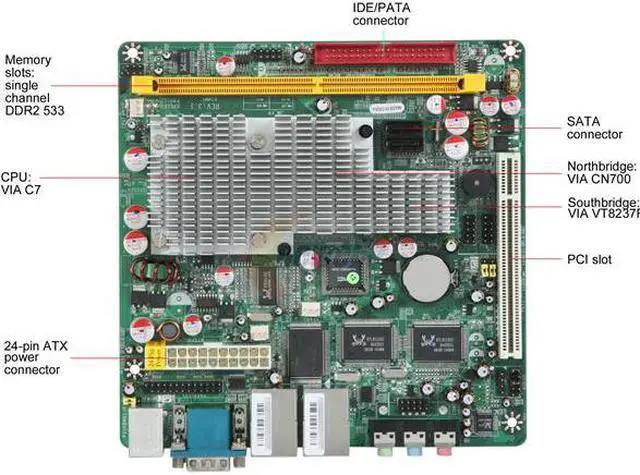

JetWay J7F4K1G2ES-LF VIA NanoBGA C7 Processor @ FSB 400/800MHz Support 800 MHz to 2.0 GHz Core Clock and Low Voltage Edition Included VIA NanoBGA2 VIA CN700 Mini ITX Motherboard / CPU Combo
- VIA C7
- DDR2 533
- VIA UniChrome Pro
Specs
Reviews (13)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the JETWAY J7F4K1G2ES-LF
| Brand | JetWay |
|---|---|
| Model | J7F4K1G2ES-LF |
| Combo Type | Motherboard / CPU Combo |
| CPU | VIA NanoBGA C7 Processor @ FSB 400/800MHz Support 800 MHz to 2.0 GHz Core Clock and Low Voltage Edition Included |
|---|---|
| With Cooler | Yes |
| CPU Socket Type | VIA NanoBGA2 |
|---|---|
| CPU Type | VIA C7 |
| FSB | 800/400 MHz |
| North Bridge | VIA CN700 |
|---|---|
| South Bridge | VIA VT8237RP |
| Number of Memory Slots | 1x240pin |
|---|---|
| Memory Standard | DDR2 533 |
| Maximum Memory Supported | 1GB |
| PCI Slots | 1 x PCI Slot |
|---|
| PATA | 2 x Ultra DMA 133 / 100 / 66 IDE Devices Support |
|---|---|
| SATA | 2 x SATA 1.5Gb/s |
| SATA RAID | 0/1 |
| Onboard Video Chipset | VIA UniChrome Pro |
|---|
| Audio Chipset | Realtek ALC655 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8110SC |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Realtek 8110SC |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |

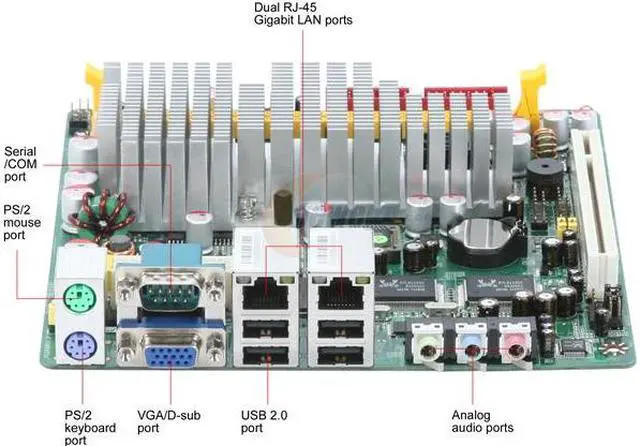

| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x High Speed USB Connectors @ 480 Mbit / s for 4 USB 2.0 Ports |
|---|
| Form Factor | Mini ITX |
|---|
| First Listed on Newegg | July 06, 2009 |
|---|
