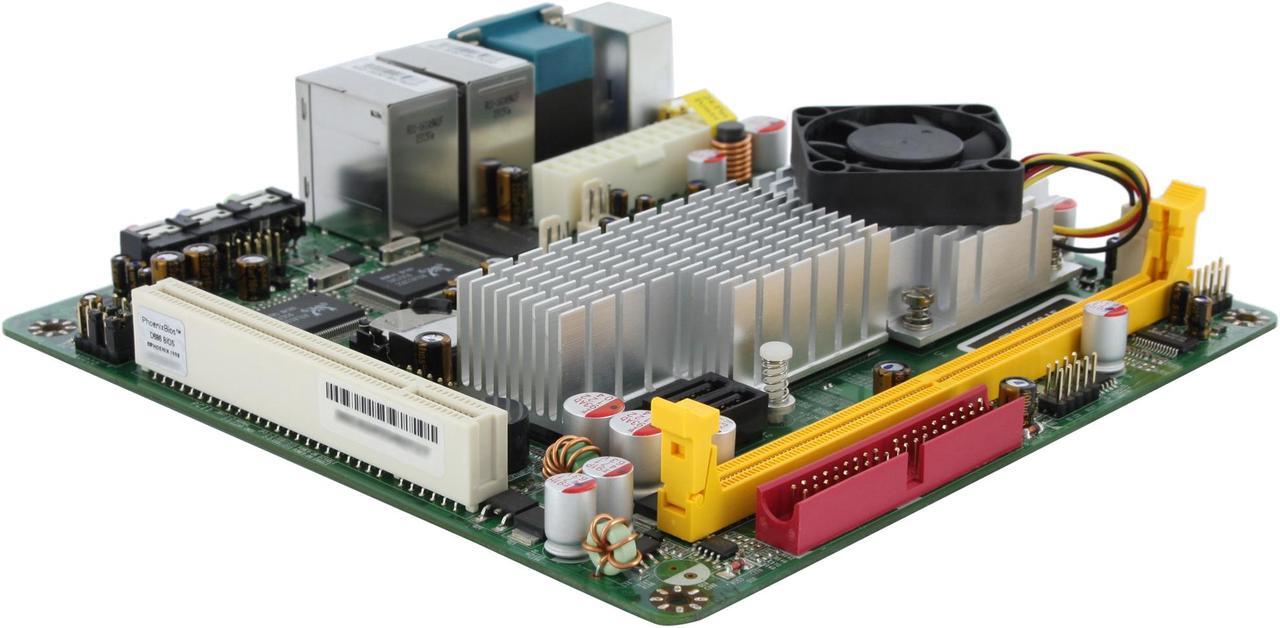

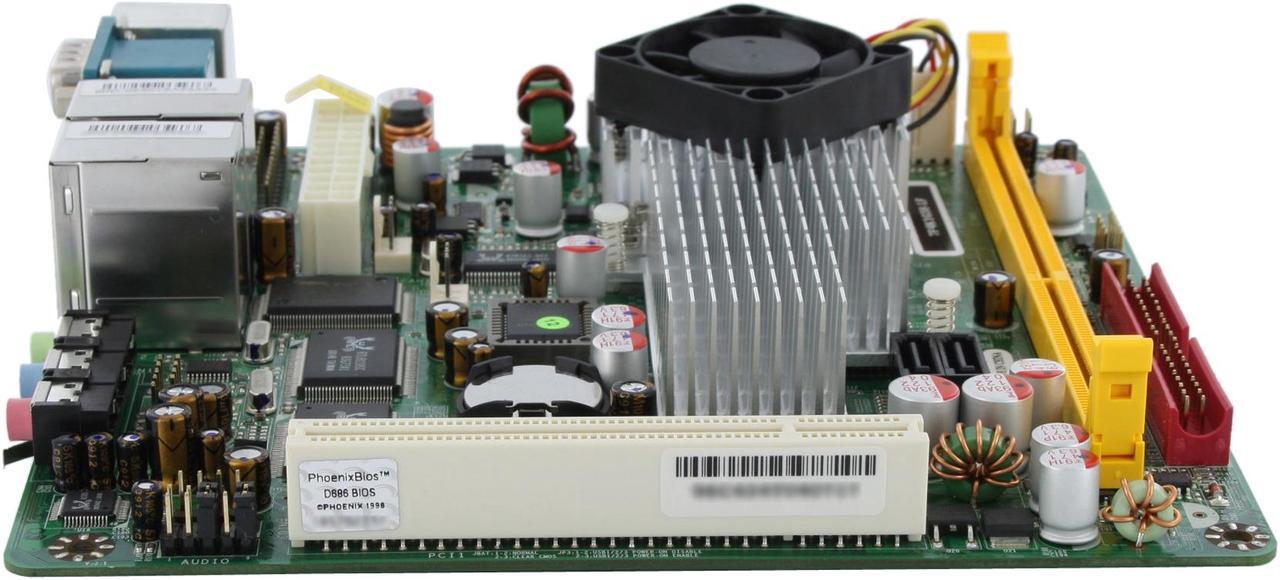

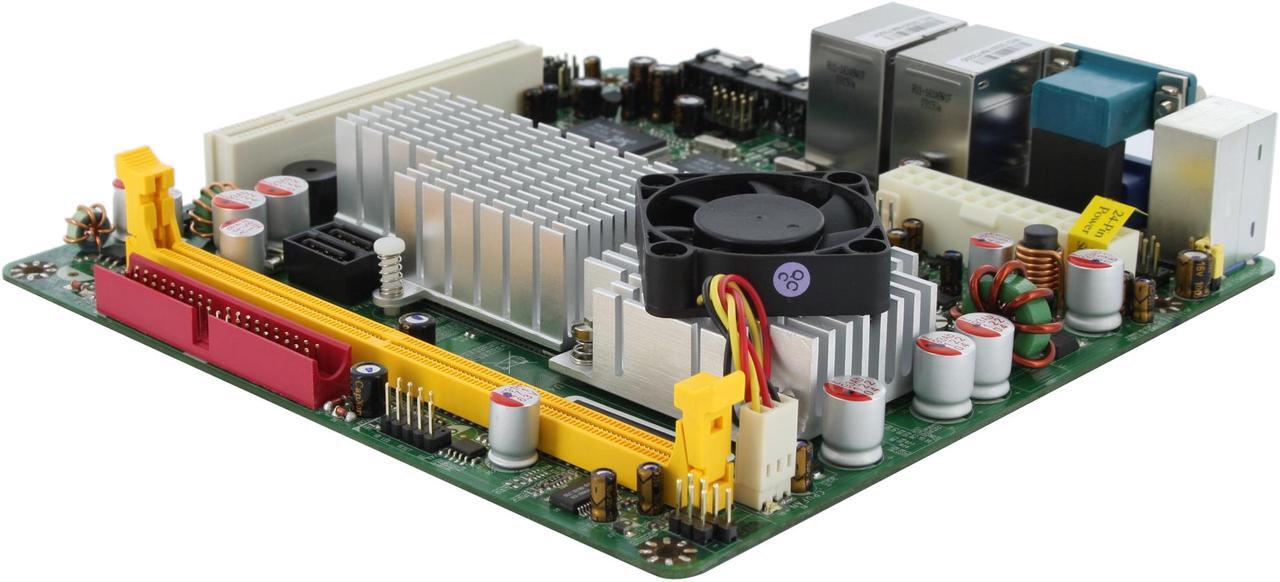

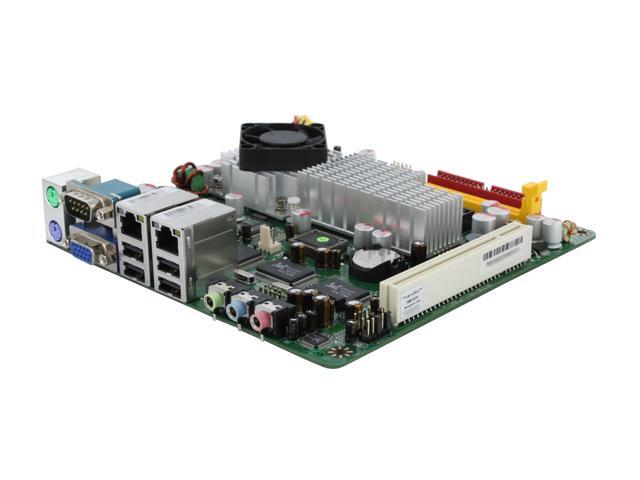

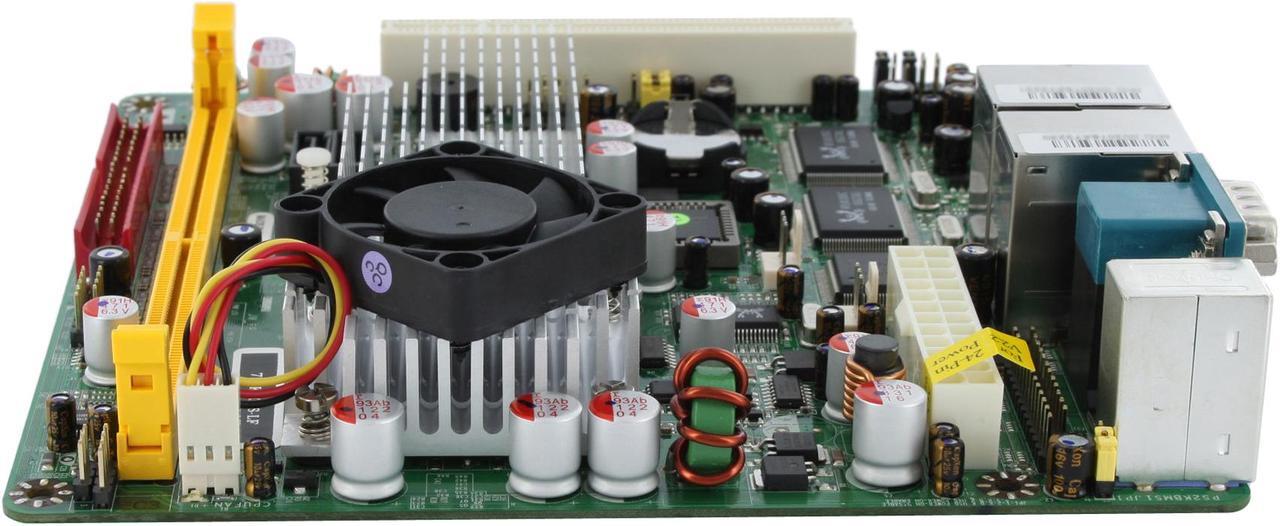

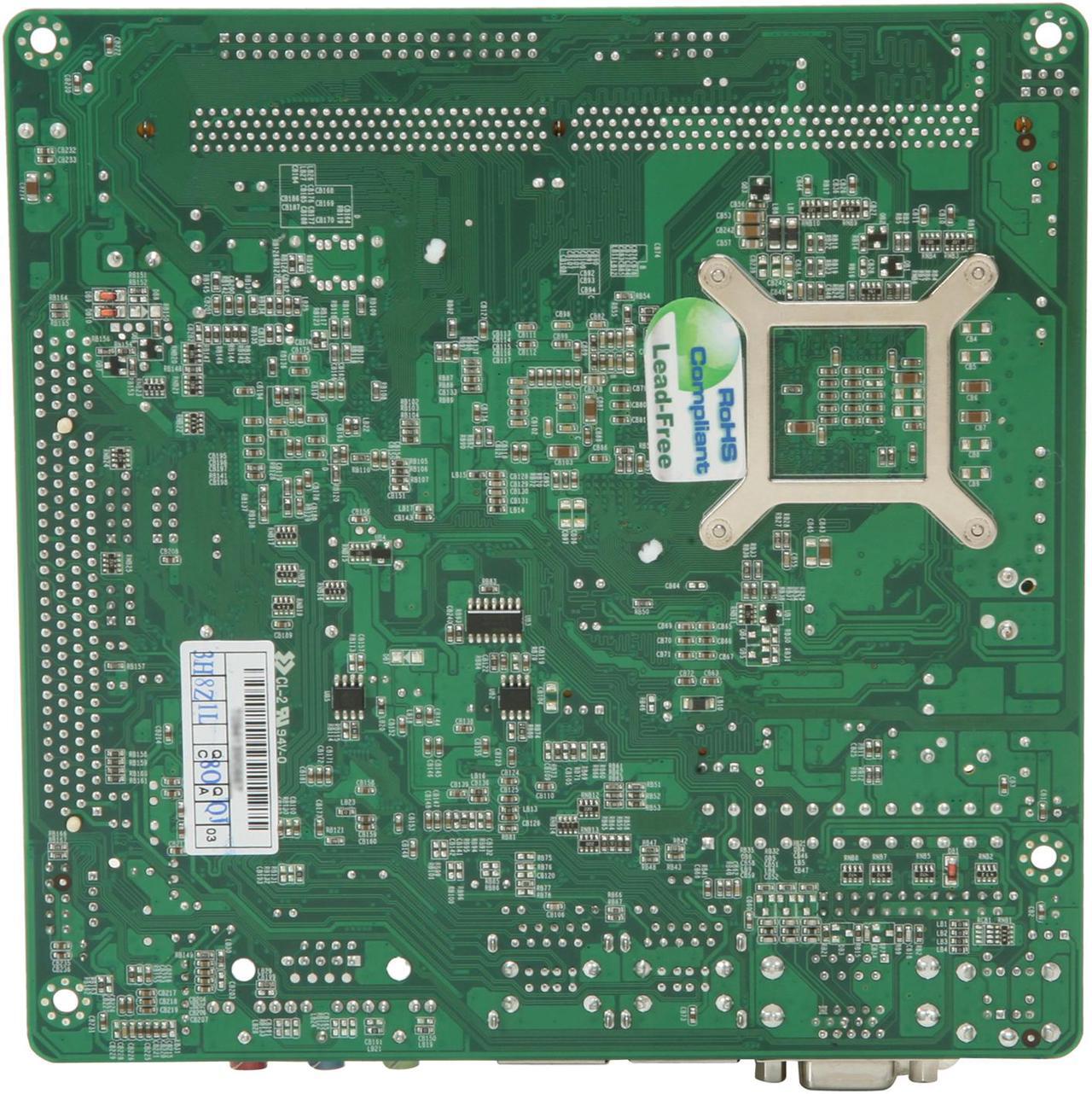

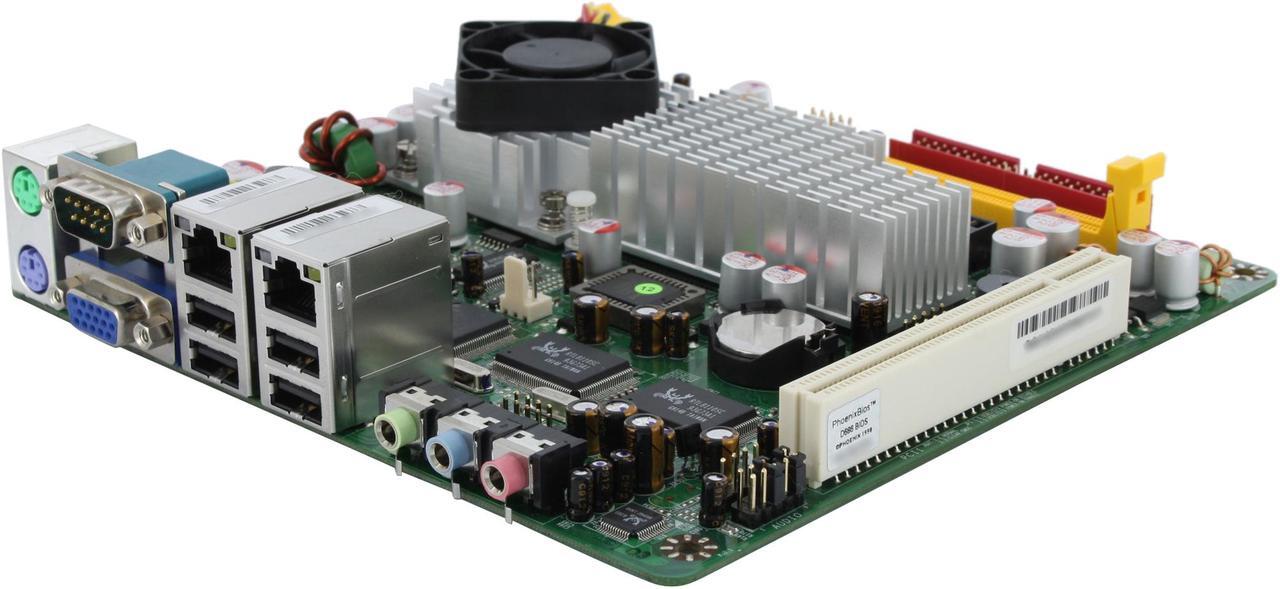

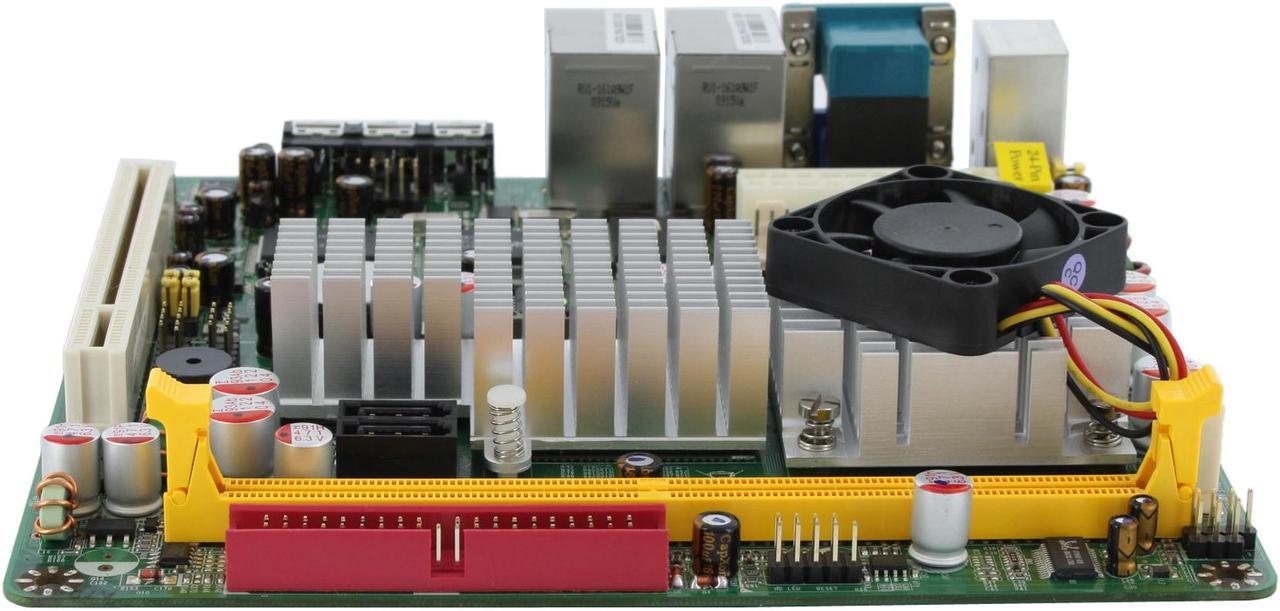

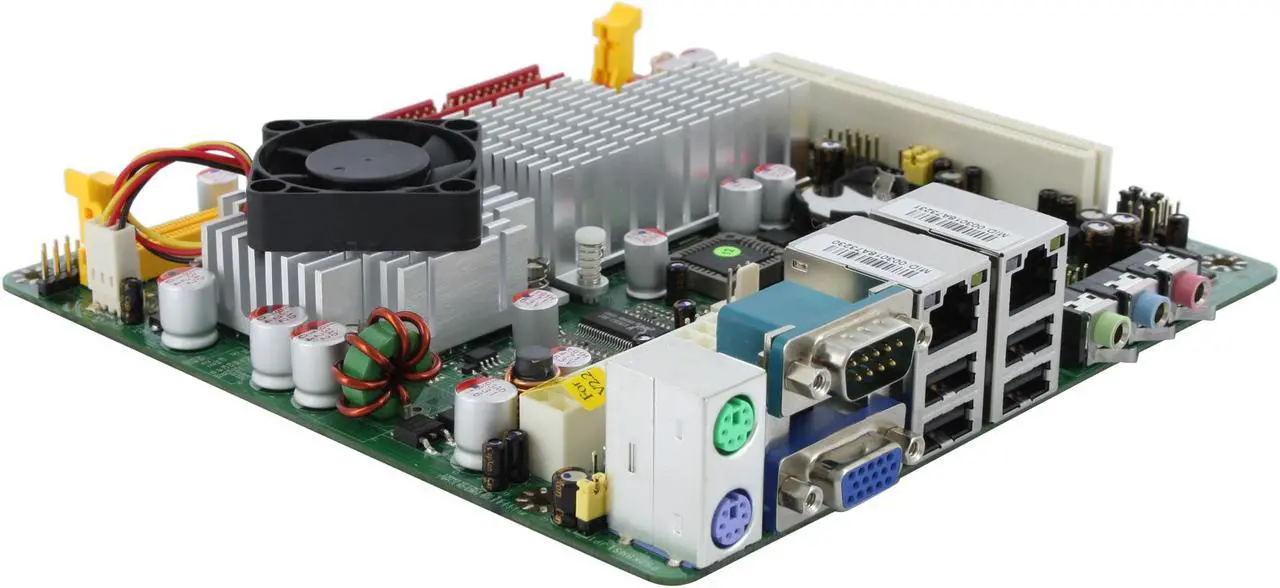

JetWay J7F4K1G5S-LF VIA C7 VIA NanoBGA2 VIA CN700 Mini ITX Motherboard / CPU Combo
- VIA C7
- DDR2 533
- VIA UniChrome Pro
Specs
Reviews (13)
Learn more about the JETWAY J7F4K1G5S-LF
| Brand | JetWay |
|---|---|
| Model | J7F4K1G5S-LF |
| Combo Type | Motherboard / CPU Combo |

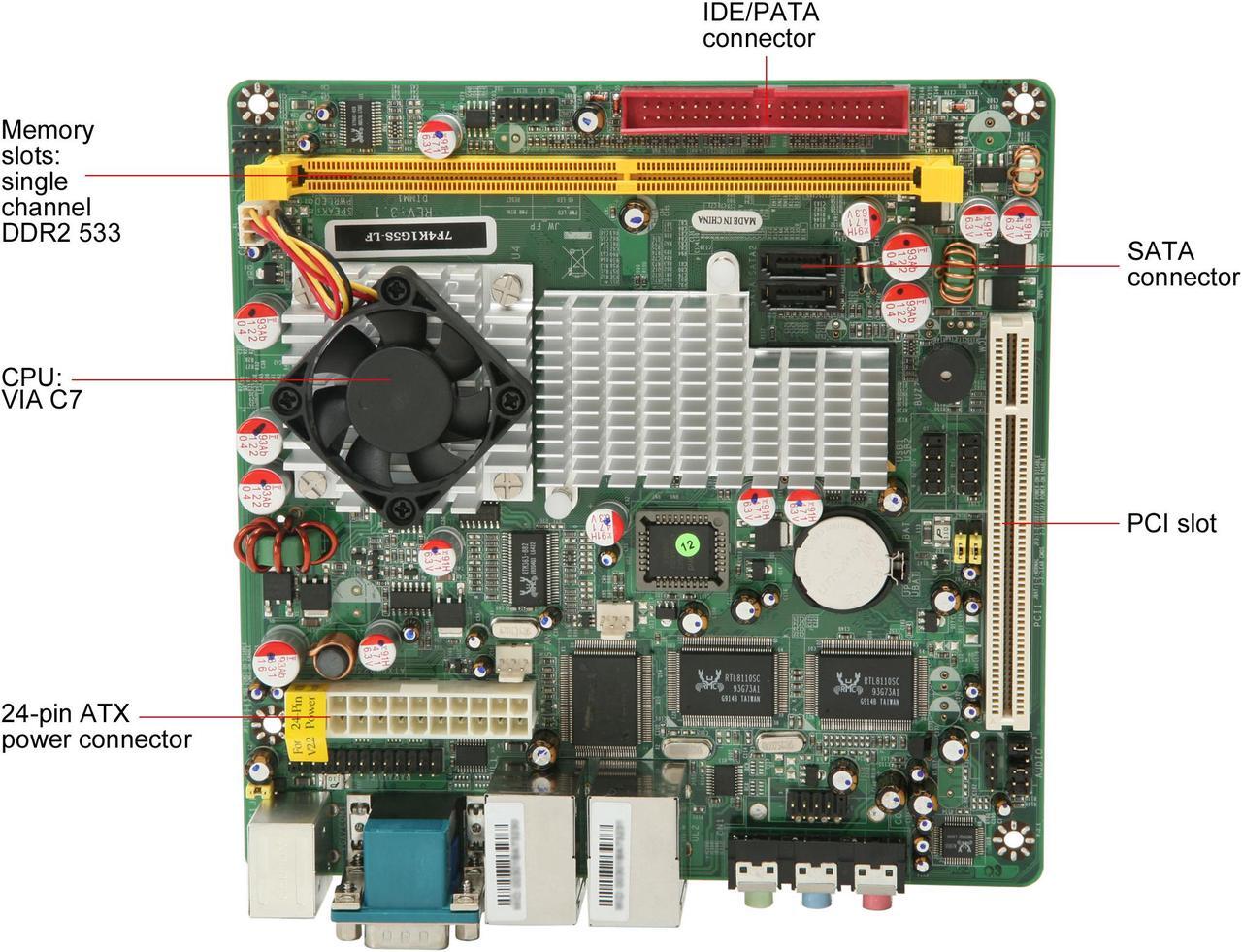

| CPU | VIA C7 |
|---|---|
| With Cooler | Yes |
| CPU Socket Type | VIA NanoBGA2 |
|---|---|
| CPU Type | VIA C7 |
| FSB | 800MHz |
| North Bridge | VIA CN700 |
|---|---|
| South Bridge | VIA VT8237RP |
| Number of Memory Slots | 1x240pin |
|---|---|
| Memory Standard | DDR2 533 |
| Maximum Memory Supported | 1GB |
| PCI Slots | 1 x PCI Slot |
|---|
| PATA | 1 x ATA 133 2 Dev. Max |
|---|---|
| SATA | 2 x SATA 3.0Gb/s |
| SATA RAID | 0/1 |
| Onboard Video Chipset | VIA UniChrome Pro |
|---|
| Audio Chipset | Realtek ALC655 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8110SC |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | VIA VT6103L |
| Second LAN Speed | 10/100Mbps |
| Max LAN Speed | 1Gbps + 100Mbps |

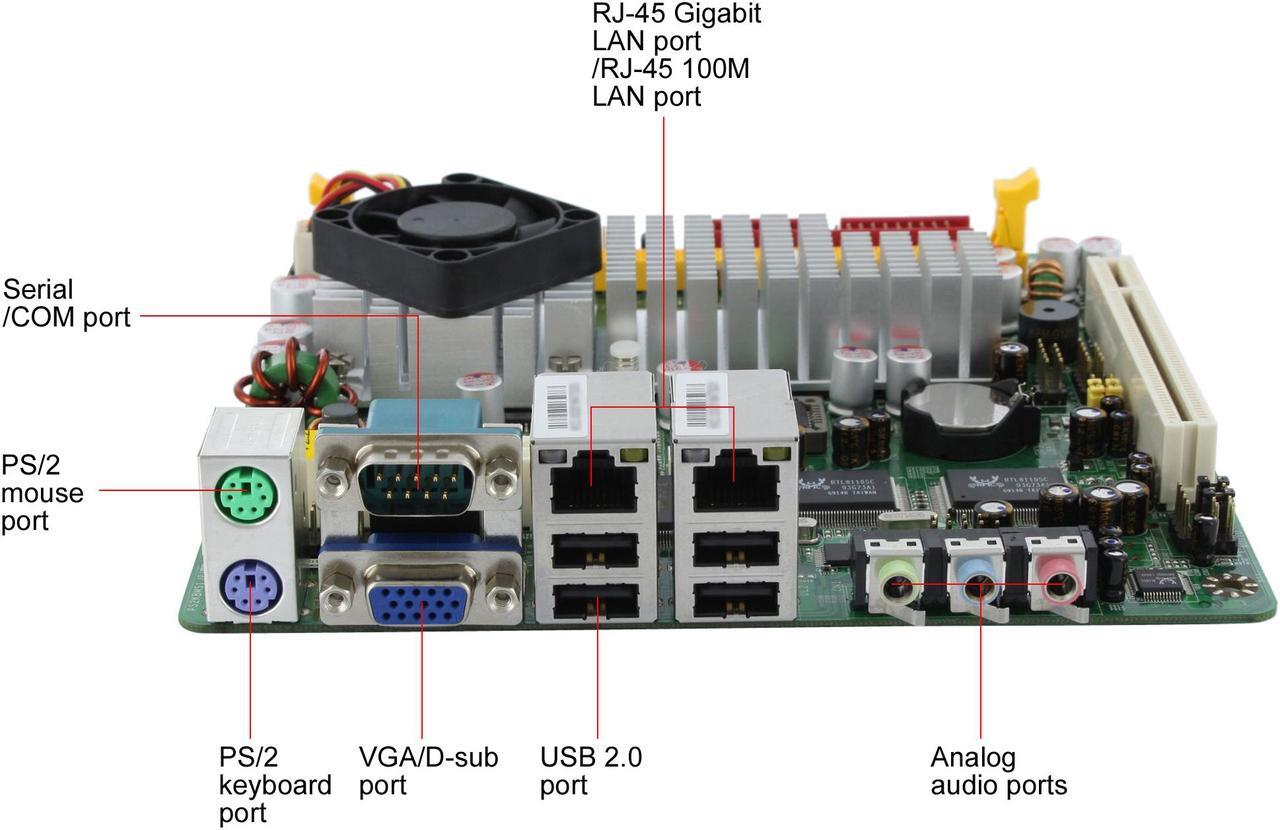

| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x High Speed USB Connectors @ 480 Mbit / s for 4 USB 2.0 Ports |
|---|
| Form Factor | Mini ITX |
|---|---|

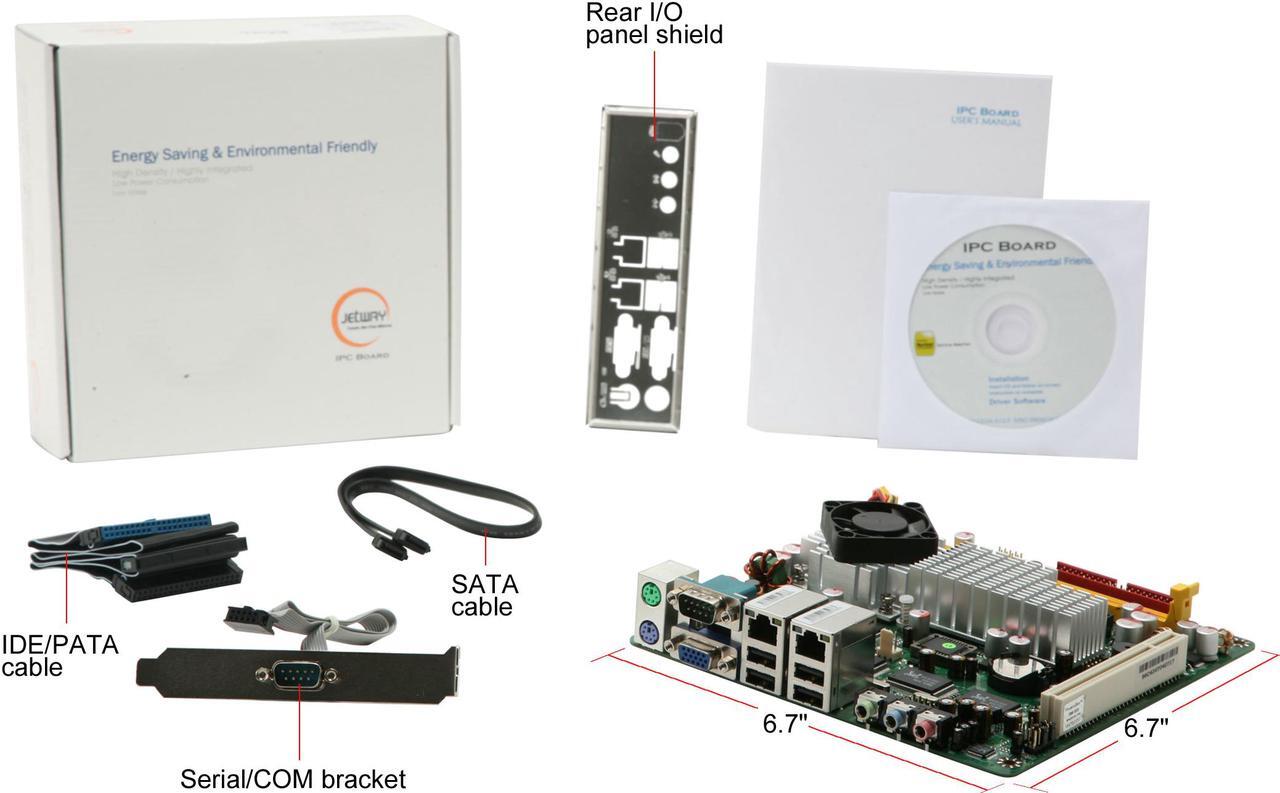

| Dimensions (W x L) | 6.7" x 6.7" |
| Date First Available | September 01, 2009 |
|---|
