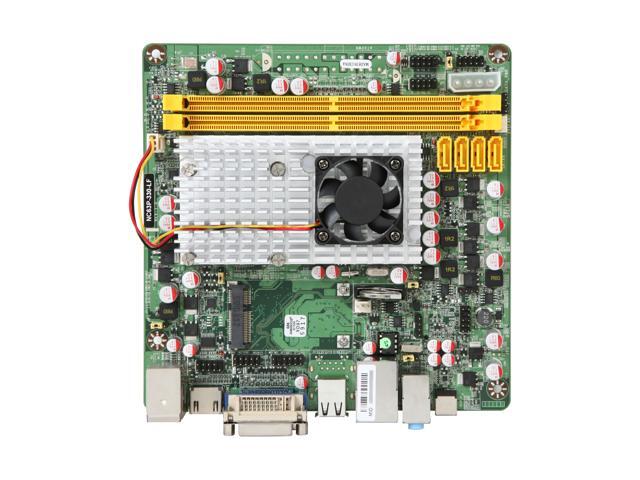

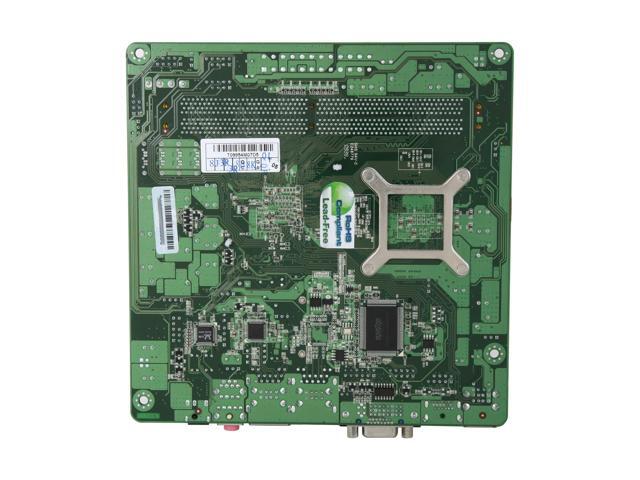

JetWay JNC63P-330-LF Intel Atom 330 1.6GHz Dual Core NVIDIA ION Mini ITX Motherboard / CPU Combo

  • Intel Atom
  • DDR2 800/667
  • NVIDIA GeForce 9400
Specs
Reviews (1)

Learn more about the JETWAY JNC63P-330-LF

Model
Brand JetWay
Model JNC63P-330-LF
Combo Type Motherboard / CPU Combo
Bundle
CPU Intel Atom 330 1.6GHz Dual Core
With Cooler Yes
Supported CPU
CPU Type Intel Atom
FSB 533MHz
Chipsets
North Bridge NVIDIA ION
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR2 800/667
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Onboard Video
Onboard Video Chipset NVIDIA GeForce 9400
Onboard Audio
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8111DL
Max LAN Speed 1Gbps

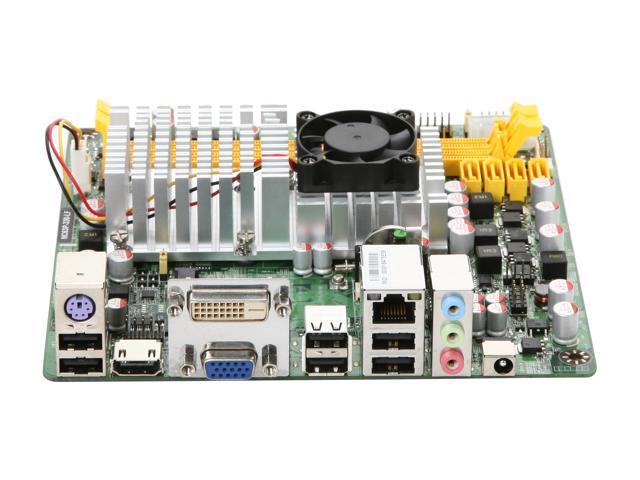

Rear Panel Ports
PS/2 1 x PS/2 Mouse & Keyboard Combined connector
Video Ports D-Sub + DVI
HDMI 1 x HDMI
USB 1.1/2.0 6 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0 headers for 4 USB 2.0 ports
Features
Features Support 8bit Watch Dog Technology
Onboard DC-DC Power supply
Physical Spec
Form Factor Mini ITX
Dimensions (W x L) 6.7" x 6.7"
Additional Information
Date First Available November 12, 2009
