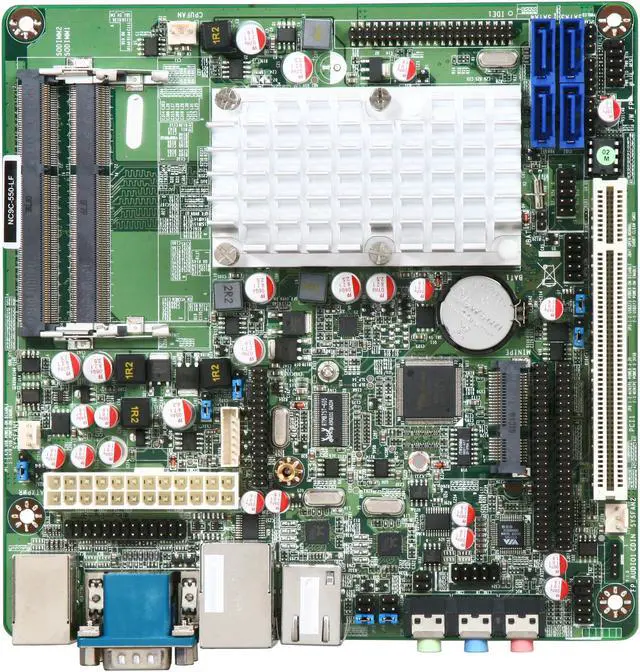

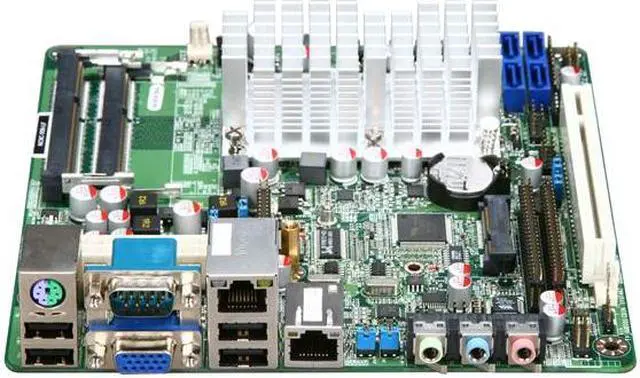

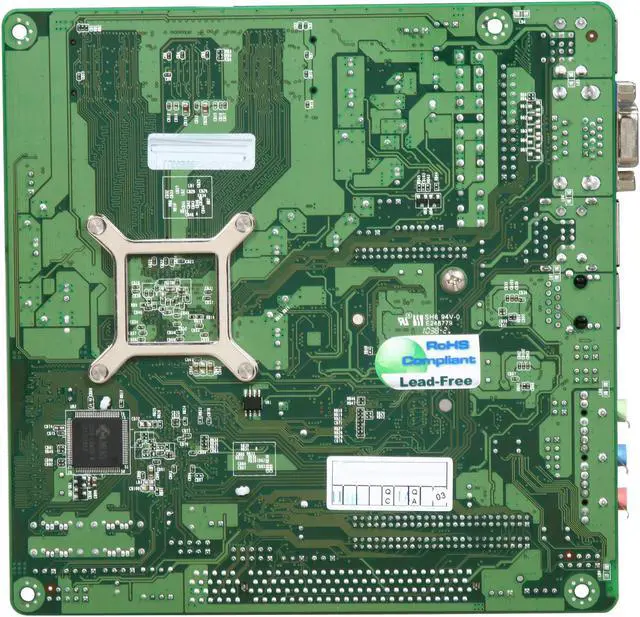

JetWay JNC9C-550-LF Intel Atom N550 (1.5GHz, dual-core) Intel NM10 Mini ITX Motherboard / CPU Combo

OPEN BOX Product Type
  • Intel Atom
  • DDR3 1333
  • Intel GMA 3150
Please note that this product is non-returnable and non-refundable.
Specs

Learn more about the JETWAY JNC9C-550-LF

Model
Brand JetWay
Model JNC9C-550-LF
Combo Type Motherboard / CPU Combo
Bundle
CPU Intel Atom N550 (1.5GHz, dual-core)
With Cooler Yes
Supported CPU
CPU Type Intel Atom
Supported CPU Technologies Hyper-Threading Technology
Chipsets
North Bridge Intel NM10
Memory
Number of Memory Slots 2x204pin SO-DIMM
Memory Standard DDR3 1333
Maximum Memory Supported 2GB
Expansion Slots
PCI Slots 1 x PCI Slot
Other Slots 1 x PCI-E socket
Storage Devices
SATA 4 x SATA 3.0Gb/s
SATA RAID 2 x SATA 3.0 Gb/s: 0/1 JBOD (by JMicron JMB363)
Onboard Video
Onboard Video Chipset Intel GMA 3150
Onboard Audio
Audio Chipset VIA VT1705
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Second LAN Chipset Realtek 8111E
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
PS/2 2
COM 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Physical Spec
Form Factor Mini ITX
Dimensions (W x L) 6.7" x 6.7"
Additional Information
First Listed on Newegg February 11, 2011
