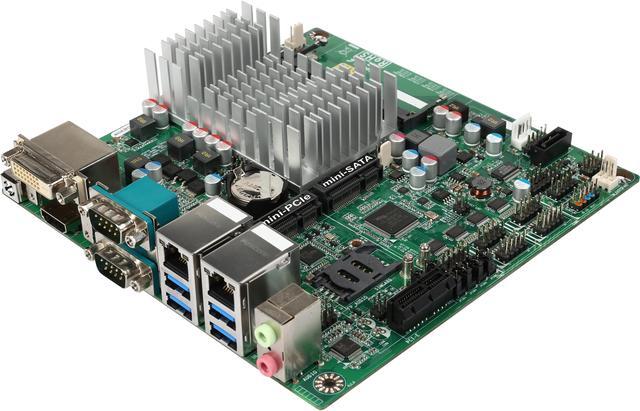

JetWay JNF596-3160 Fanless Intel Celeron N3160 SoC, HDMI + DVI + LVDS, mSATA + SATA3, Mini-ITX MB

Be the first to review this product...
  • Celeron
  • DDR3L 1600
  • Intel HD Graphics, 320 - 640 MHz
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the JETWAY JNF596-3160

Model
Brand JetWay
Model JNF596-3160
Combo Type Motherboard / CPU Combo
Bundle
CPU Fanless Intel Celeron N3160 SoC Processor, Quad-Core, 1.6 GHz, 2.24 GHz Burst
Supported CPU
CPU Socket Type BGA1170
CPU Type Celeron

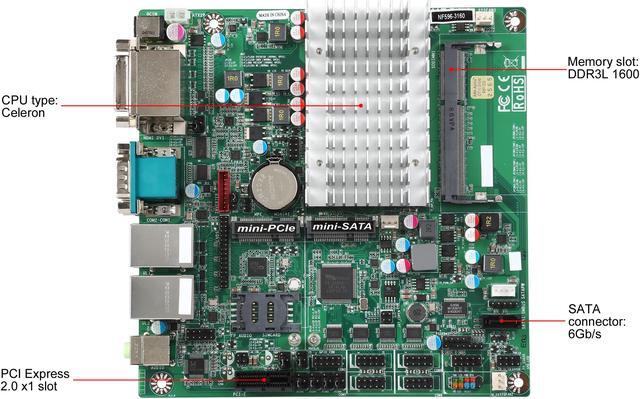

Memory
Number of Memory Slots 1x204pin SO-DIMM
Memory Standard DDR3L 1600
Maximum Memory Supported 8GB
Expansion Slots
PCI Express x1 1 x PCI Express 2.0 x1
Other Slots 1 x Full-size Mini-PCI Express slot, SIM Card Socket
Storage Devices
SATA 1 x SATA 6.0Gb/s
Onboard Video
Onboard Video Chipset Intel HD Graphics, 320 - 640 MHz
Onboard Audio
Audio Chipset Realtek ALC662
Onboard LAN
LAN Chipset Realtek RTL8111G
LAN Speed 10/100/1000Mbps
Second LAN Chipset Realtek RTL8111G
Second LAN Speed 10/100/1000Mbps
Max LAN Speed 2 x 1Gbps

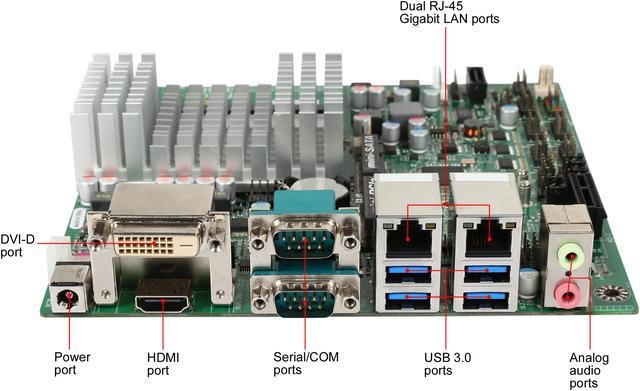

Rear Panel Ports
Video Ports 1 x DVI-D
HDMI 1 x HDMI
USB 3.0 4 x USB 3.0
Internal I/O Connectors
Onboard USB 2 x USB headers for 3 x USB 2.0 ports
Other Connectors 24-bit LVDS & Inverter
AT/ATX power switch mode
4 x Serial headers (4 x RS232)
SMBUS (I2C) header
8-bit GPIO header
Chassis Intrusion header
PS/2 KB/MS header
Alternate 2-pin internal power connector
Features
Features Industrial Embedded Motherboard with Planned Lifecycle Through Q1'2020

Fanless Intel Celeron N3150/N3160 SoC Processor, Quad-Core, Braswell-M, 6W TDP

Supports 1.35V DDR3L-1600 SODIMM up to 8GB Total

Up to 3 Displays, DVI-D, HDMI, 24-bit LVDS

2 x Gigabit LAN Ports, HD Audio

1 x SATA3 6Gb/s Port, 1 x Full-size mSATA Slot

1 x PCI Express 2.0 x1 Slot, 1 x Full-size mini-PCIE Slot

4 x USB 3.0 Ports, 3 x USB 2.0 Ports, SIM Socket

6 x Serial Ports (1 x RS232/422/485, 5 x RS232)

GPIO, Watchdog Timer, AT/ATX Power Switch Mode

12V DC-in or Alternate 2-pin Internal Power Connector

Compatible with Windows 7, 8.1, 10, Linux

Mini-ITX Form Factor (170mm x 170mm)
Physical Spec
Form Factor Mini ITX
Dimensions (W x L) 6.69" x 6.69"

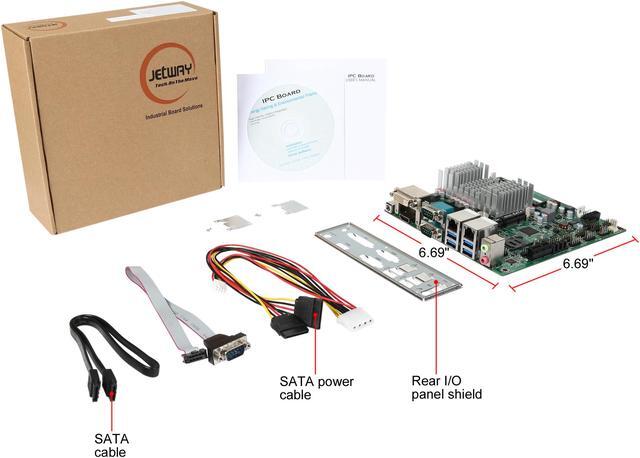

Package Contents
Package Contents NF596 Motherboard, SATA Cable, Power Cable, COM cable, Manual, DVD Driver Disk, I/O Shield
Additional Information
Date First Available August 07, 2017
