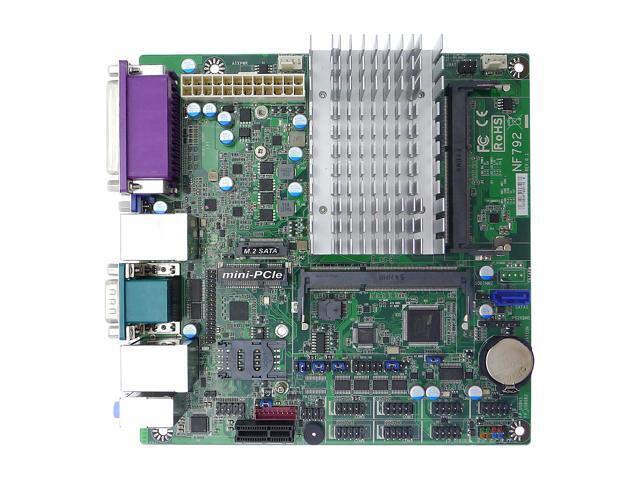

JetWay JNF792T2-3160 Mini ITX Motherboard / CPU Combo

OUT OF STOCK.
  • Fanless Intel Celeron N3160 SoC, 1.60 - 2.24 GHz Burst, Quad-Core, 6W TDP/4W SDP, with AES-NI support
  • DDR3L 1600
  • * 1600MHz memory will run at 1600MHz
  • * 1333MHz memory will run at 1066MHz
  • * 1066MHz memory not supported
  • Intel HD Graphics 400, 320MHz - 640MHz
Specs
Reviews

Learn more about the JETWAY JNF792T2-3160

Model
Brand JetWay
Model JNF792T2-3160
Combo Type Motherboard / CPU Combo
Supported CPU
CPU Type Fanless Intel Celeron N3160 SoC, 1.60 - 2.24 GHz Burst, Quad-Core, 6W TDP/4W SDP, with AES-NI support
Memory
Number of Memory Slots 2x204pin SO-DIMM
Memory Standard DDR3L 1600
* 1600MHz memory will run at 1600MHz
* 1333MHz memory will run at 1066MHz
* 1066MHz memory not supported
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x1 1 x PCI Express x1
Mini Card Slots 1 x Full size mini PCI-E Slot
Other Slots SIM Card socket
Storage Devices
SATA 1 x SATA 6.0Gb/s
Onboard Video
Onboard Video Chipset Intel HD Graphics 400, 320MHz - 640MHz
Onboard Audio
Audio Chipset Realtek ALC662VD
Onboard LAN
LAN Chipset 2 x Realtek RTL8111H PCI-E Gigabit LAN
Max LAN Speed Dual 10/100/1000Mbps

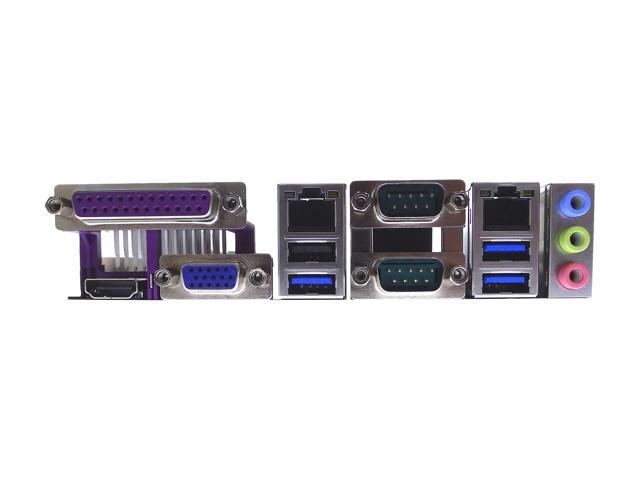

Rear Panel Ports
COM 2 x Serial port (1 x RS232/422/485, 1 x RS232)
LPT 1
Video Ports 1 x VGA (2560 x 1600 @ 60Hz)
HDMI 1 x HDMI 1.4b (3840 x 2160 @ 30Hz)
USB 1.1/2.0 1 x USB 2.0
USB 3.0 3 x USB 3.0
Audio Ports 3 x 3.5mm Audio Jacks
Internal I/O Connectors
Onboard USB 3 x USB 2.0 Pin Headers for up to 6 additional USB 2.0 Ports
Other Connectors 1 x M.2 SATA 2242/2260
4 x Serial Port Headers (RS232)
1 x Nuvoton TPM IC onboard "Optional: Onboard Nuvoton TPM 2.0 (JNF792T2-3160)"
1 x 30-pin LVDS / 8-pin Inverter Header (1920 x 1080 @ 60Hz)
1 x Chassis Intrusion Header
1 x AT/ATX Mode Jumper
2 x 2-pin LAN LED header
1 x 5-pin SMBUS Header
1 x 7-pin PS2 Keyboard/Mouse Header
1 x 9-pin Front Audio Header
1 x 9-pin Front Panel Header
1 x 10-pin GPIO Header
2 x Fan Header
1 x SIM Card Socket
1 x 24-pin ATX Power Connector
Features
Features Fanless Intel Celeron N3160 SoC Processor, Quad-Core, Braswell, 6W TDP

Supports 1.35V DDR3L-1600 SODIMM up to 8GB Total

Up to 3 Displays, HDMI, VGA, 24-bit LVDS

2 x Realtek LAN, HD Audio

1 x SATA3 6Gb/s Port, 1 x M.2 SATA 2242/2260 Slot

1 x PCI Express x1 Slot, 1 x Full-size mini-PCIE Slot

3 x USB 3.0 Ports, 7 x USB 2.0 Ports, SIM Card Socket

6 x Serial Ports (1 x RS232/422/485, 5 x RS232)

GPIO, Watchdog Timer, AT/ATX Power Switch Mode

Parallel Port, ATX Power Connector

Onboard TPM 2.0

Compatible with Windows 7, 8.1, 10, Linux

Mini-ITX Form Factor (170mm x 170mm)
Physical Spec
Form Factor Mini ITX
Dimensions (W x L) 6.7" x 6.7"
Additional Information
Date First Available November 09, 2017
