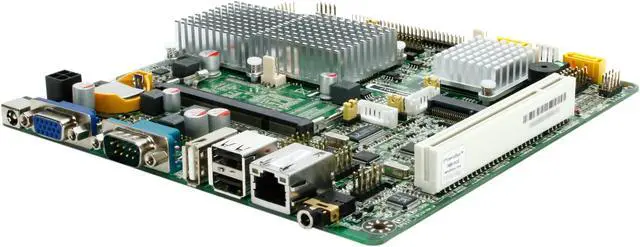

JetWay JNF95A-270-LF Intel Atom N270 PBGA437 Intel 945GSE Mini ITX Motherboard / CPU Combo
- Intel Atom
- DDR2 533/400
- Intel GMA 950
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the JETWAY JNF95A-270-LF
| Brand | JetWay |
|---|---|
| Model | JNF95A-270-LF |
| Combo Type | Motherboard / CPU Combo |
| CPU | Intel Atom N270 |
|---|---|
| With Cooler | Yes |
| CPU Socket Type | PBGA437 |
|---|---|
| CPU Type | Intel Atom |
| FSB | 533MHz |
| North Bridge | Intel 945GSE |
|---|---|
| South Bridge | Intel ICH7-M |
| Number of Memory Slots | 1x200pin SO-DIMM |
|---|---|
| Memory Standard | DDR2 533/400 |
| Maximum Memory Supported | 2GB |
| PCI Slots | 1 x PCI Slot |
|---|---|
| Mini Card Slots | 1 x Mini PCIe |
| PATA | 1 x ATA 100 2 Dev. Max |
|---|---|
| SATA | 2 x SATA 3.0Gb/s |
| Onboard Video Chipset | Intel GMA 950 |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 2 Channels |
| LAN Chipset | Realtek 8111DL |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 1Gbps |
| Video Ports | D-Sub + DVI |
|---|---|
| USB 1.1/2.0 | 3 x USB 2.0 |
| Audio Ports | 1 x 3.5mm Audio with S/PDIF out |
| Onboard USB | 2 x USB 2.0/1.1 headers for 4 USB 2.0 ports |
|---|
| Features | Atom N270 @ 2.5W (512K Cache, 1.60 GHz, 533 MHz FSB) Integrated LVDS support 24-bit TFT LCD Supports ACPI S3 Function Support Watchdog Technology |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| First Listed on Newegg | March 10, 2010 |
|---|
