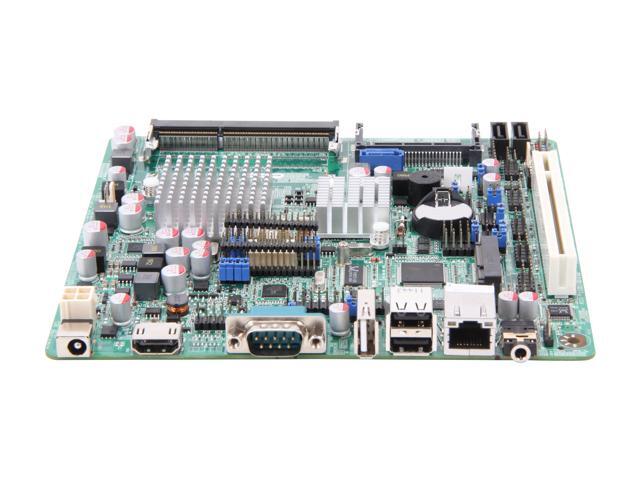

Brand | JetWay |
---|---|
Model | JNF9C-2600 |
Combo Type | Motherboard / CPU Combo |
CPU | Intel Atom N2600 (1.6GHz, Dual-Core) |
---|---|
With Cooler | Yes |
CPU Type | Intel Atom |
---|
North Bridge | Intel NM10 |
---|
Number of Memory Slots | 1x204pin SO-DIMM |
---|---|
Memory Standard | DDR3 800 |
Maximum Memory Supported | 2GB |
PCI Slots | 1 x PCI Slot |
---|---|
Mini Card Slots | 1 x Mini PCIe |
SATA | 1 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s |
---|
Onboard Video Chipset | Integrated PowerVR SGX 545 Graphics |
---|
Audio Chipset | Realtek ALC662 |
---|---|
Audio Channels | 2 Channels |
LAN Chipset | Realtek 8111EVL |
---|---|
LAN Speed | 10/100/1000Mbps |
Max LAN Speed | 10/100/1000Mbps |
COM | 1 |
---|---|
HDMI | 1 x HDMI |
USB 1.1/2.0 | 3 x USB 2.0 |
Audio Ports | 1 x Audio Port (Line-out) |
Onboard USB | 4 x USB 2.0 |
---|
Features | Embedded Long-life Series, 5 Year Availability Ultra Low-Profile Form Factor, Less than 2cm Height Next-Generation Intel Cedar Trail-M Platform Intel Atom N2600 Processor, 1.6GHz, Dual-Core, 32nm, 3.5W Integrated PowerVR SGX 545 Graphics, 400MHz Supports 1 x DDR3-800 SO-DIMM up to 2GB Supports 2 x SATA3 6Gb/s & 1 x SATA2 3Gb/s Devices 1 x CFast Embedded Storage Socket, 4 x Serial Ports Gigabit LAN with Enhanced Surge Protection HDMI and Dual 24-bit LVDS Video Outputs Dual Power Options: External 12V DC or Internal 4-pin ATX Mini-ITX Form Factor (170mm x 170mm) |
---|
Form Factor | Mini ITX |
---|---|
Dimensions (W x L) | 6.7" x 6.7" |
Date First Available | January 27, 2012 |
---|
