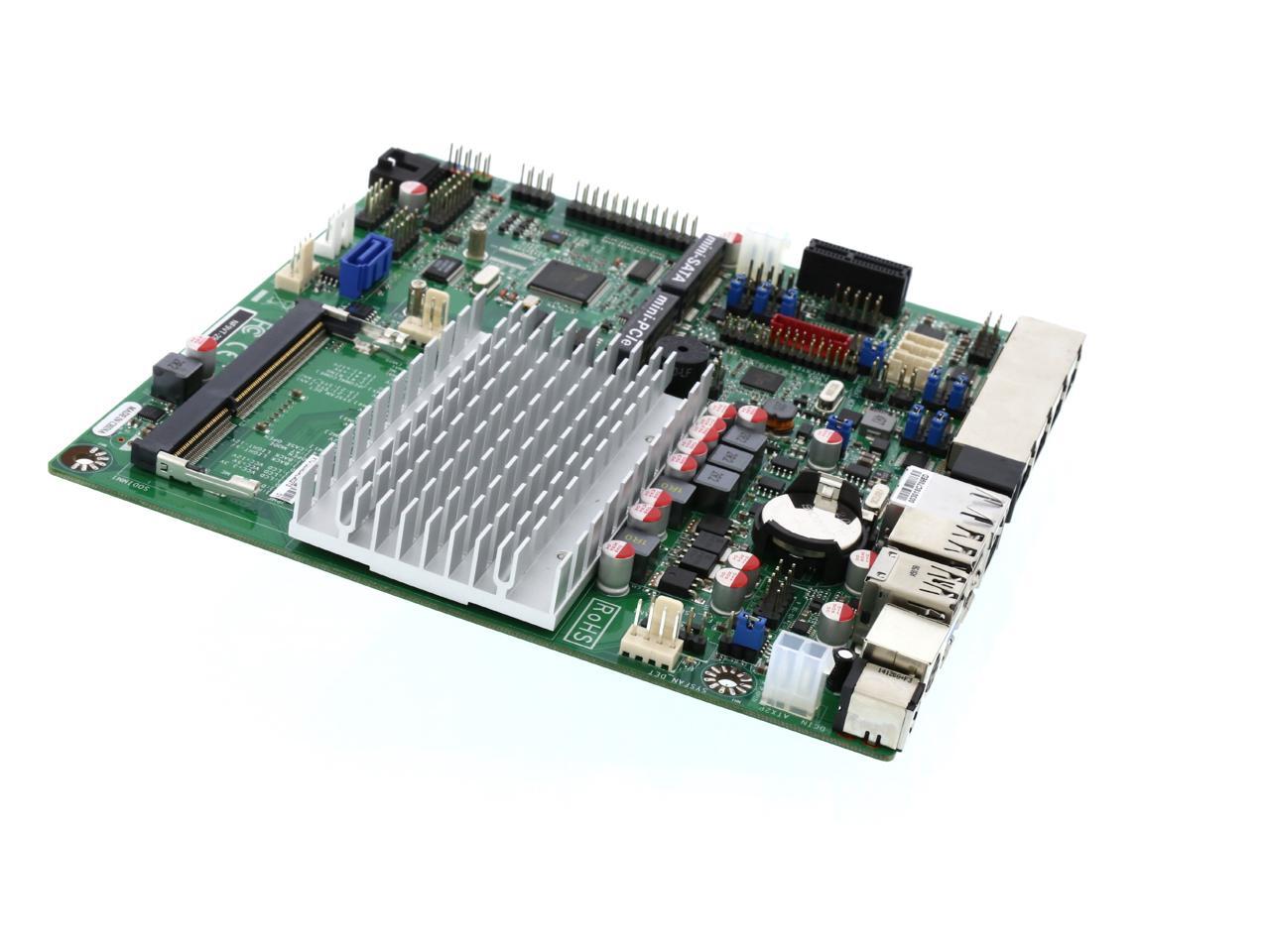

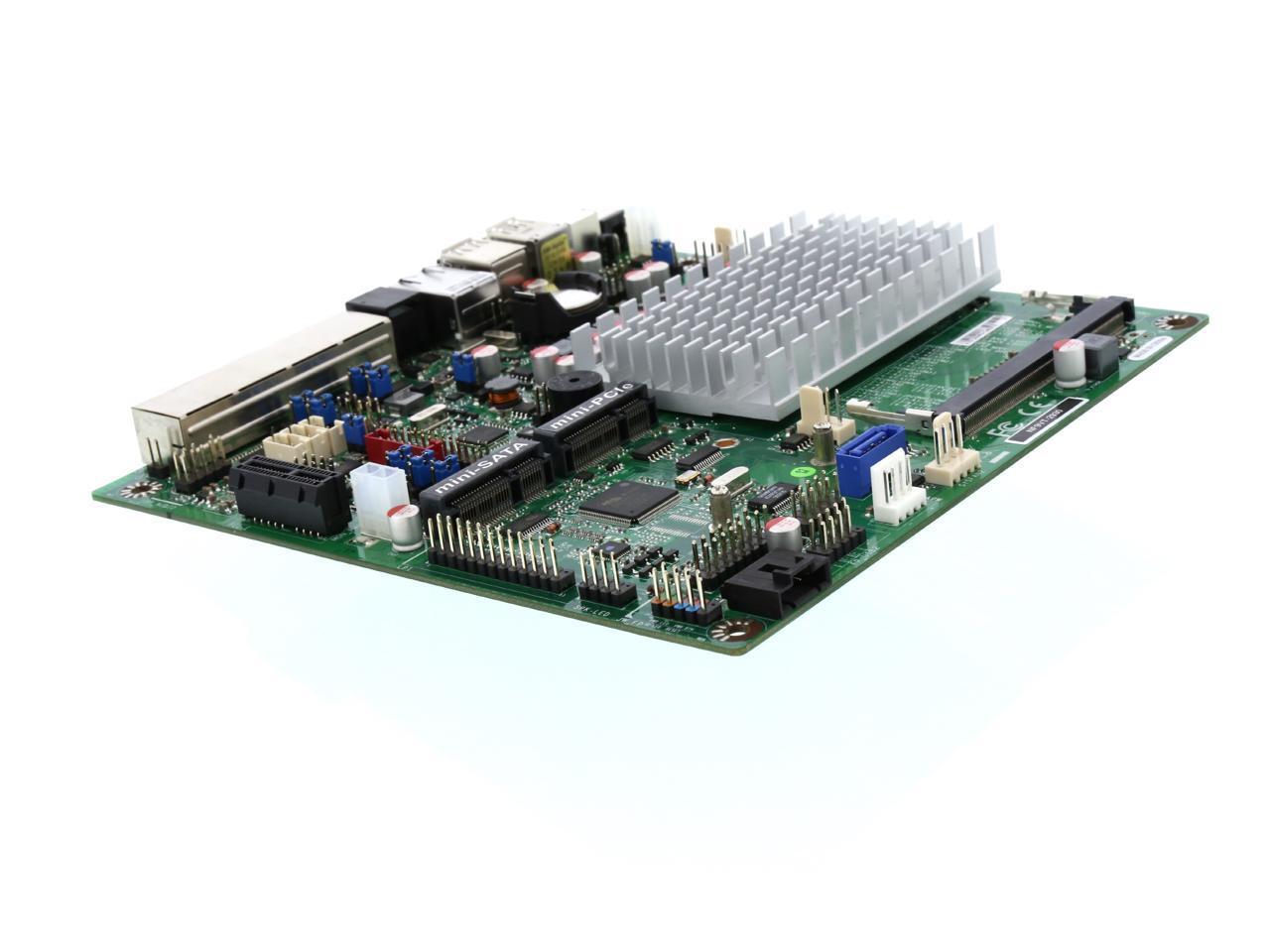

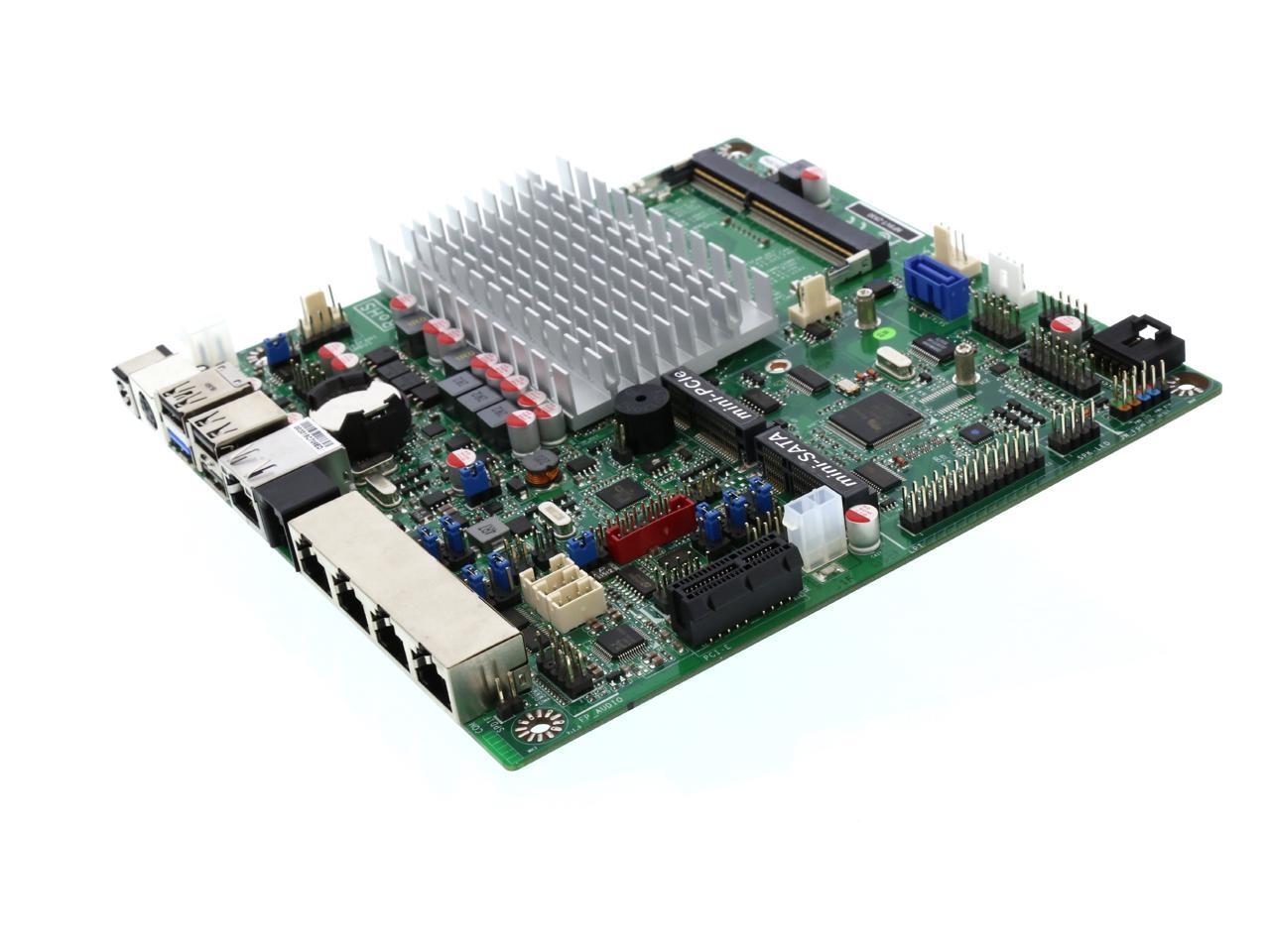

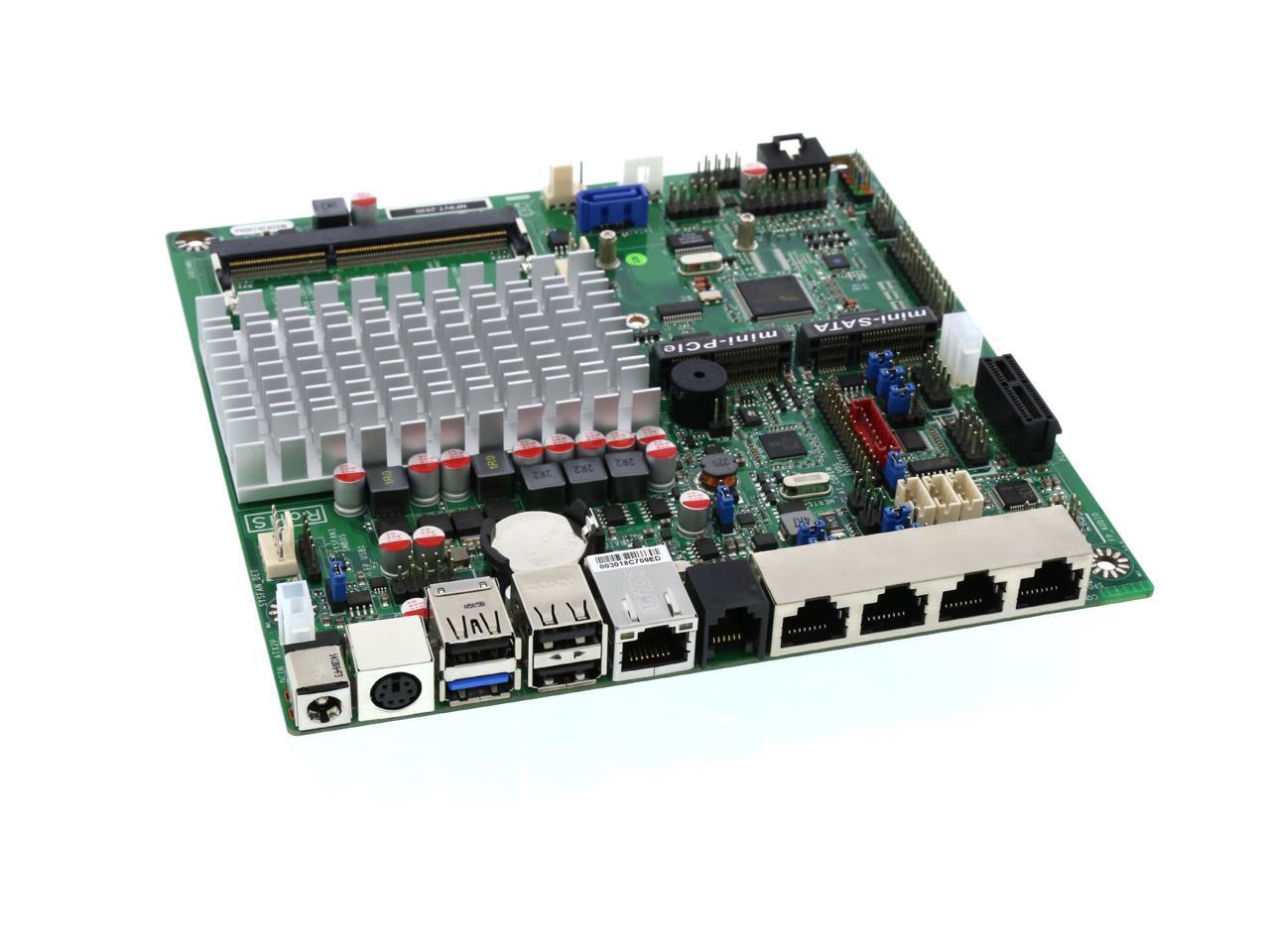

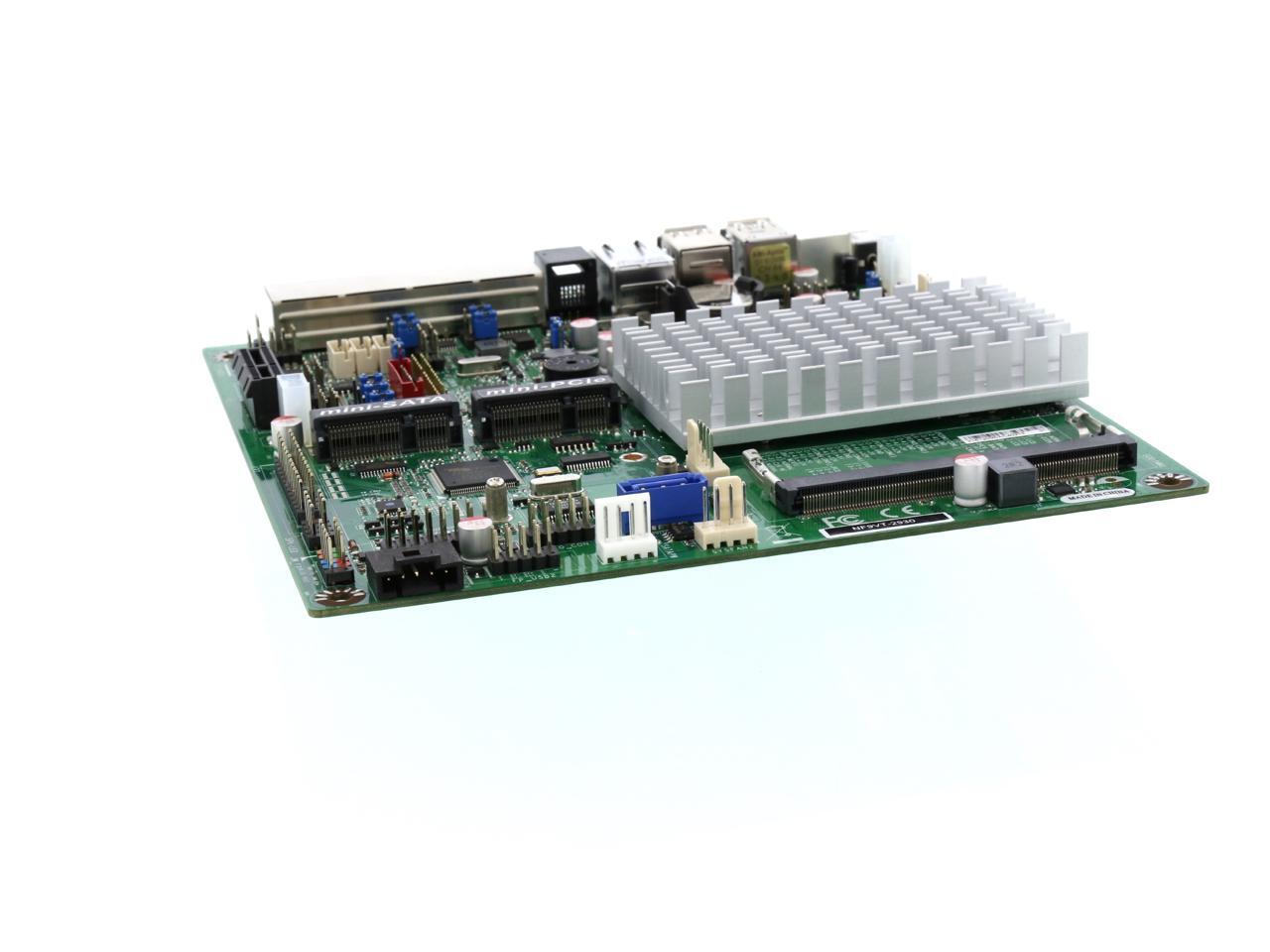

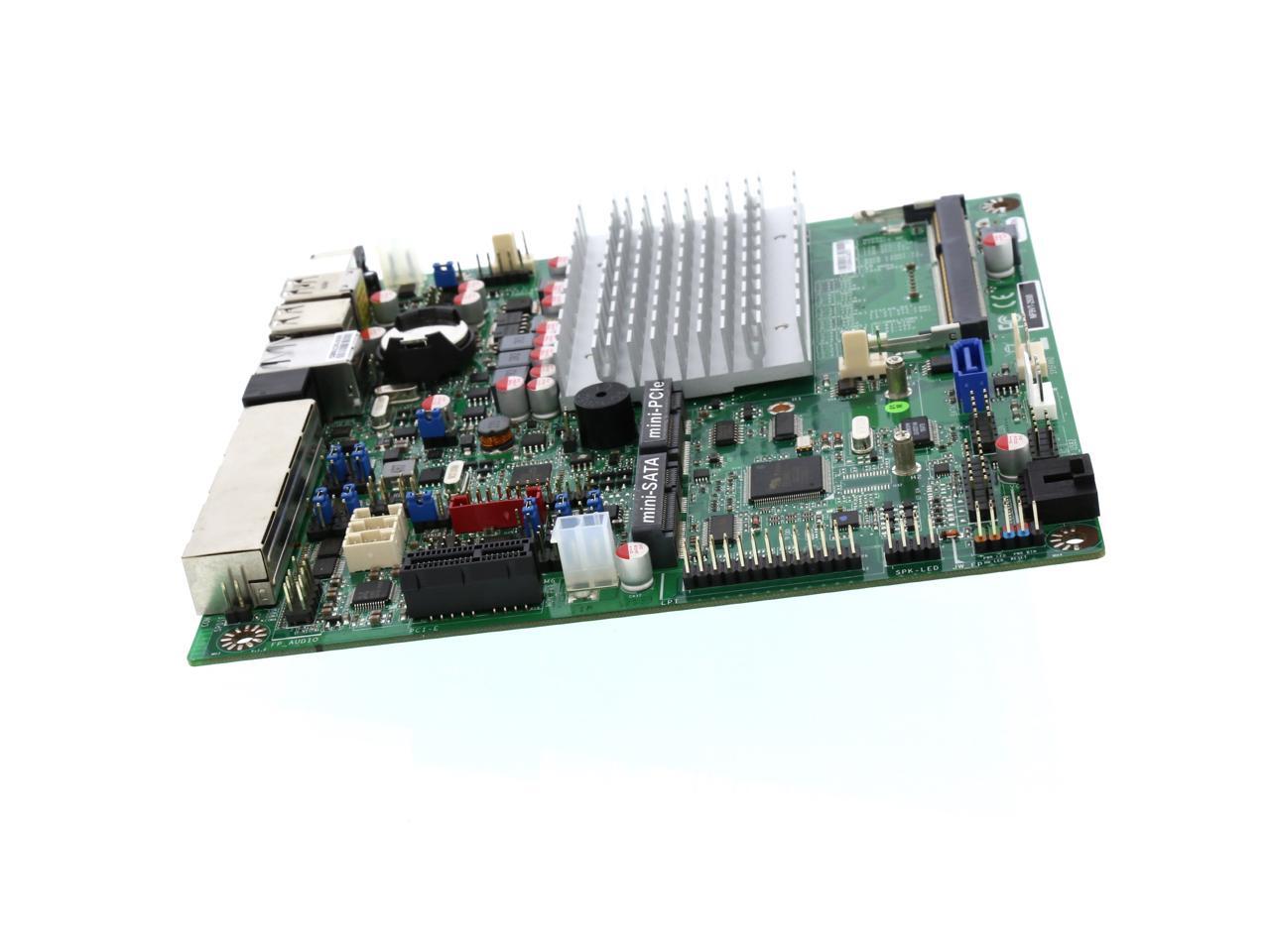

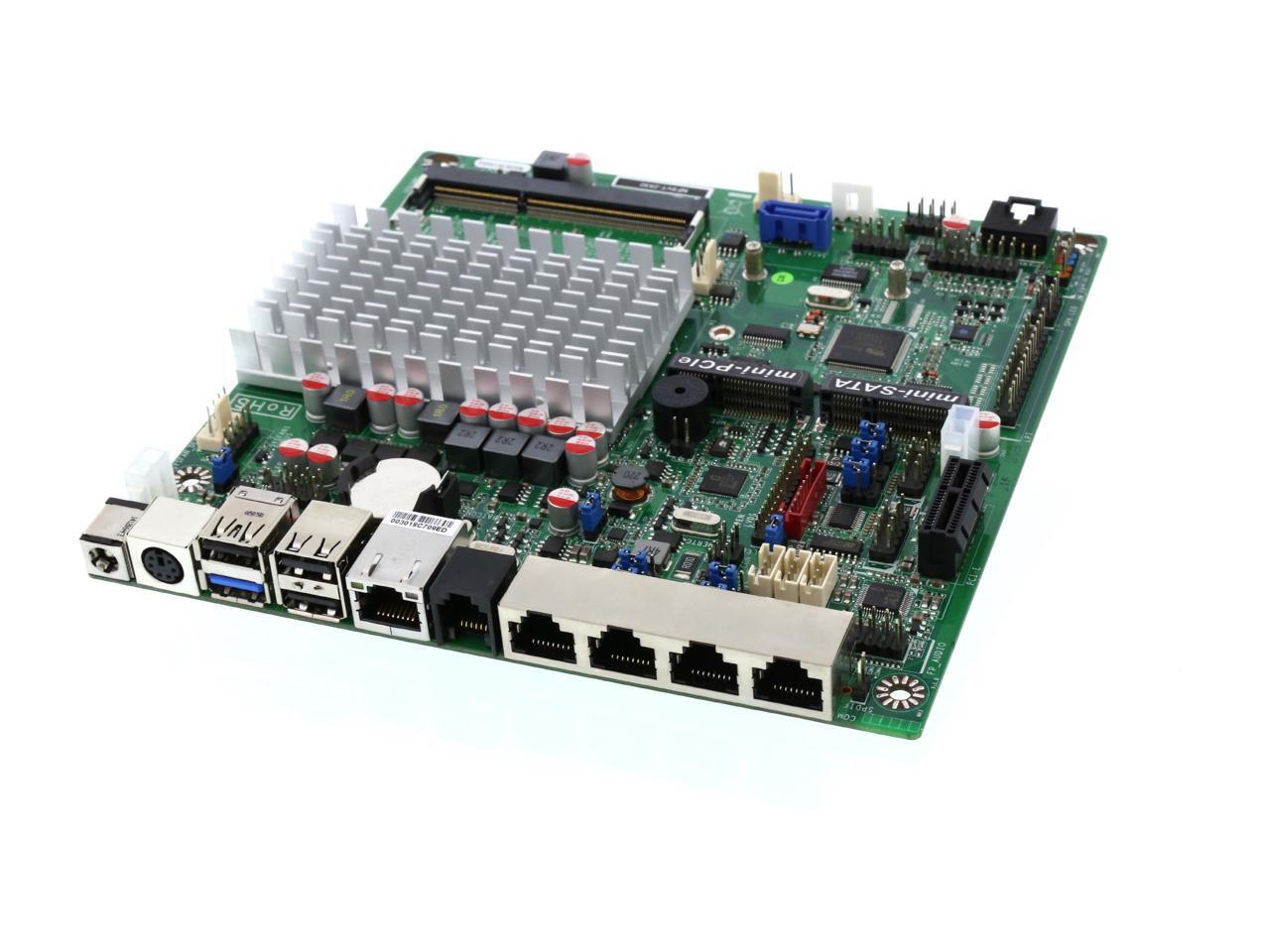

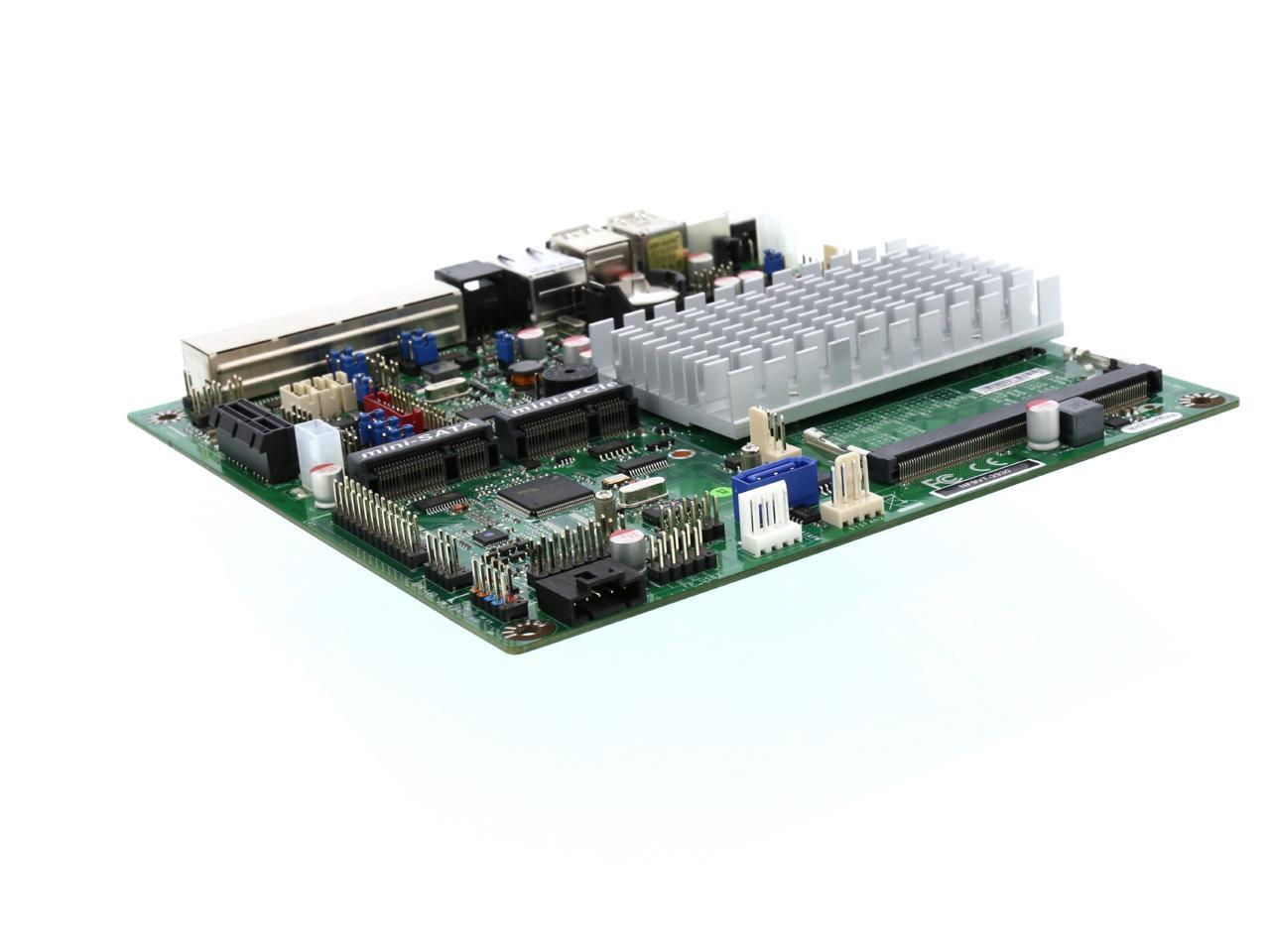

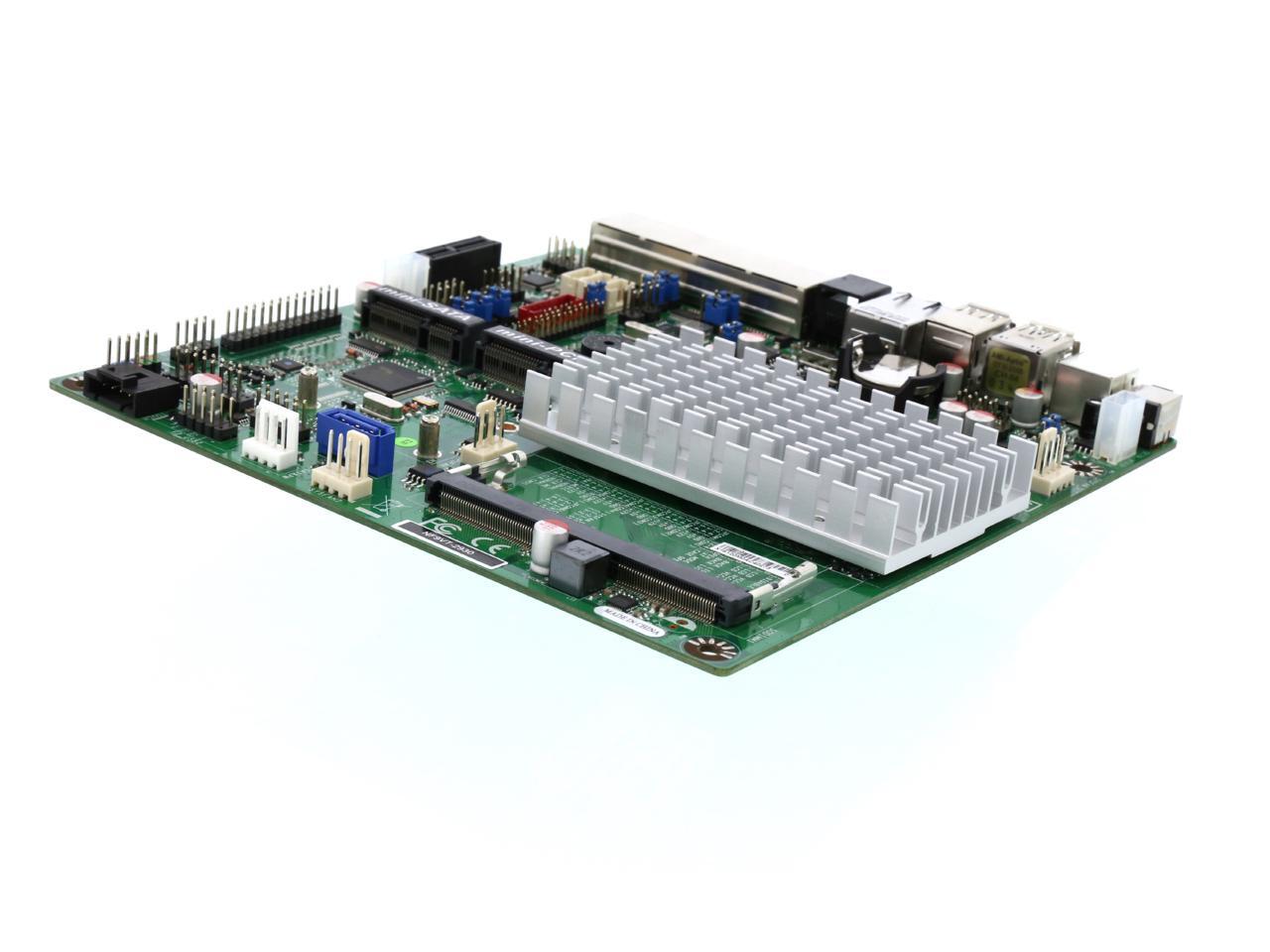

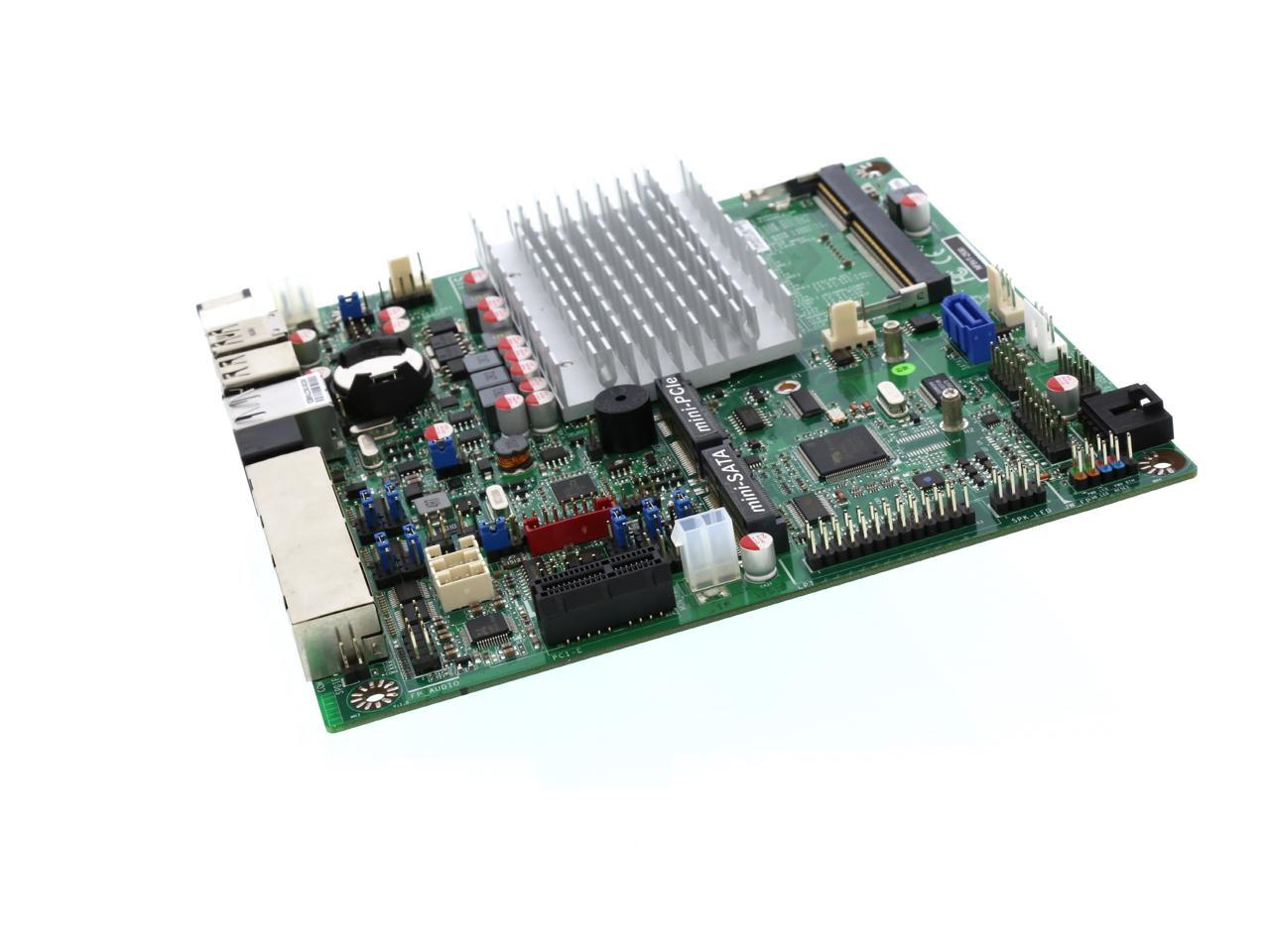

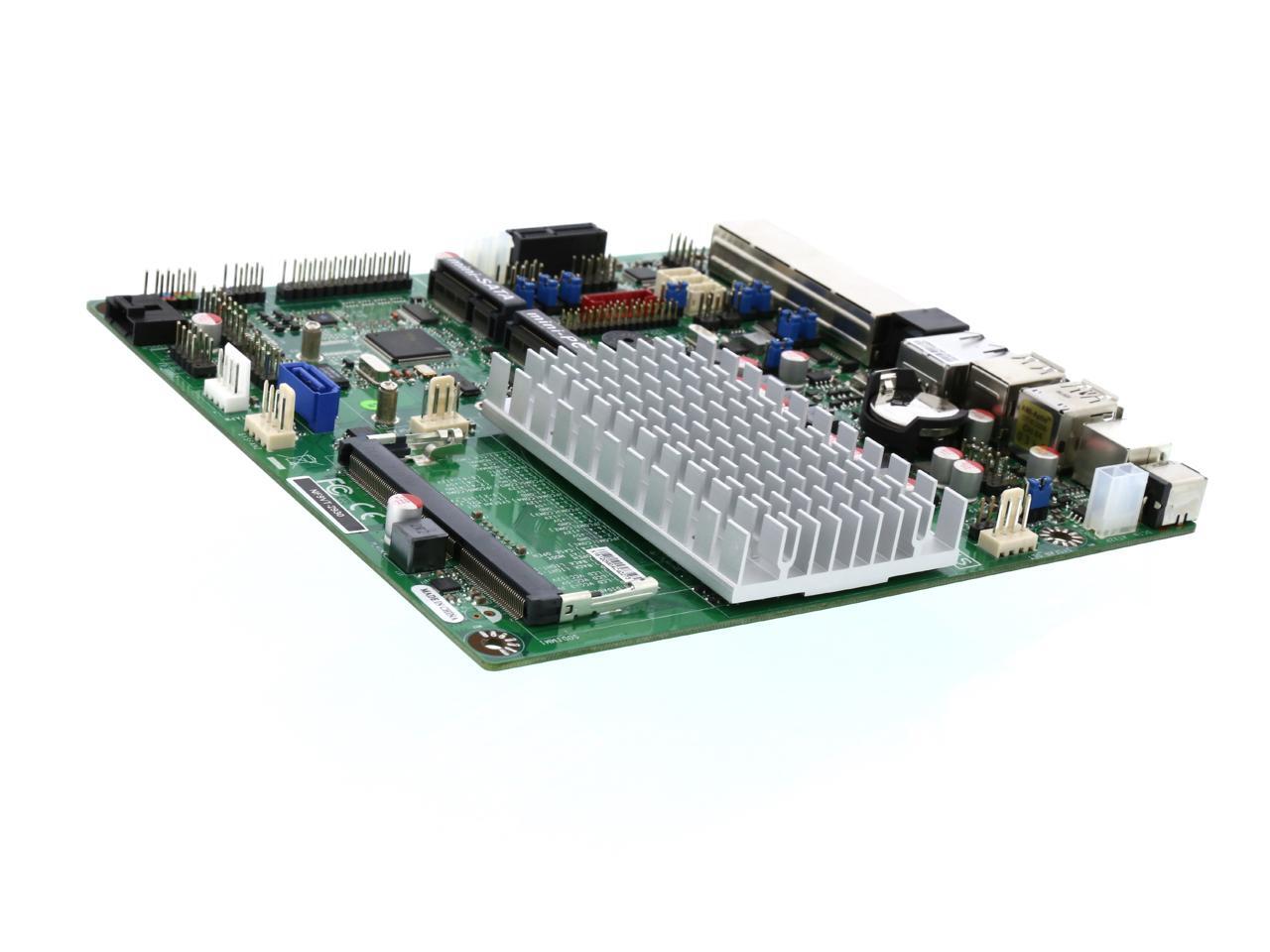

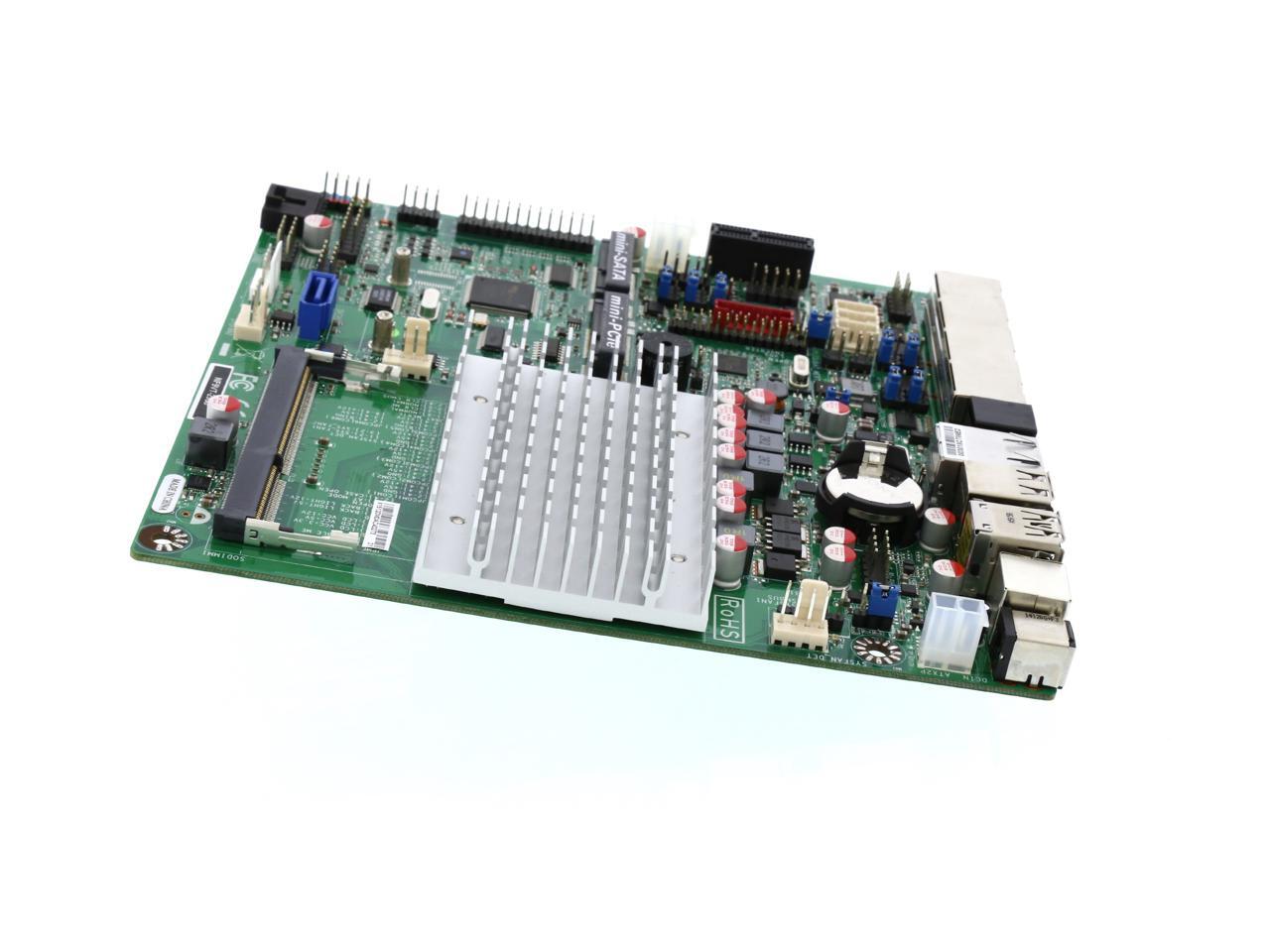

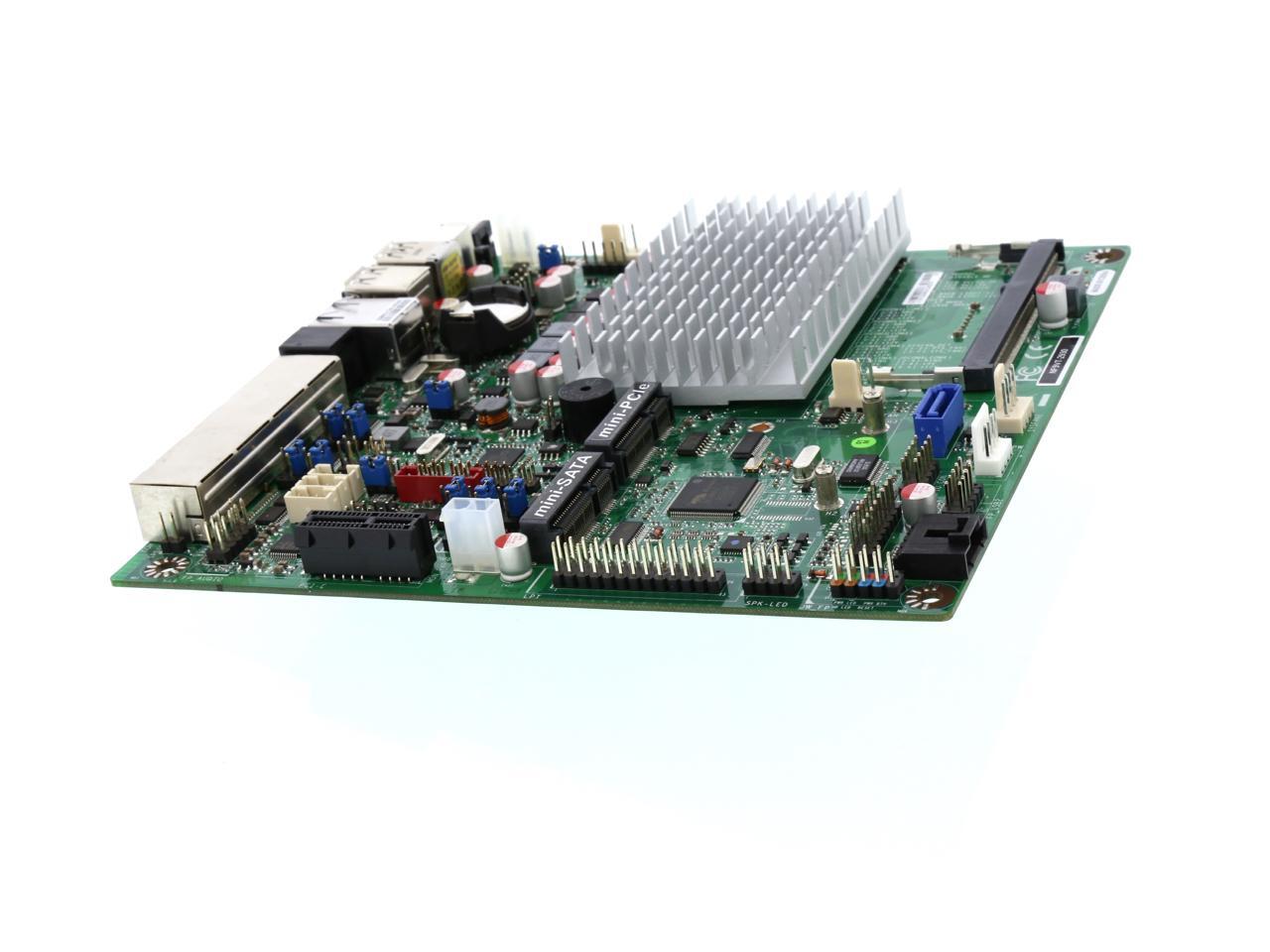

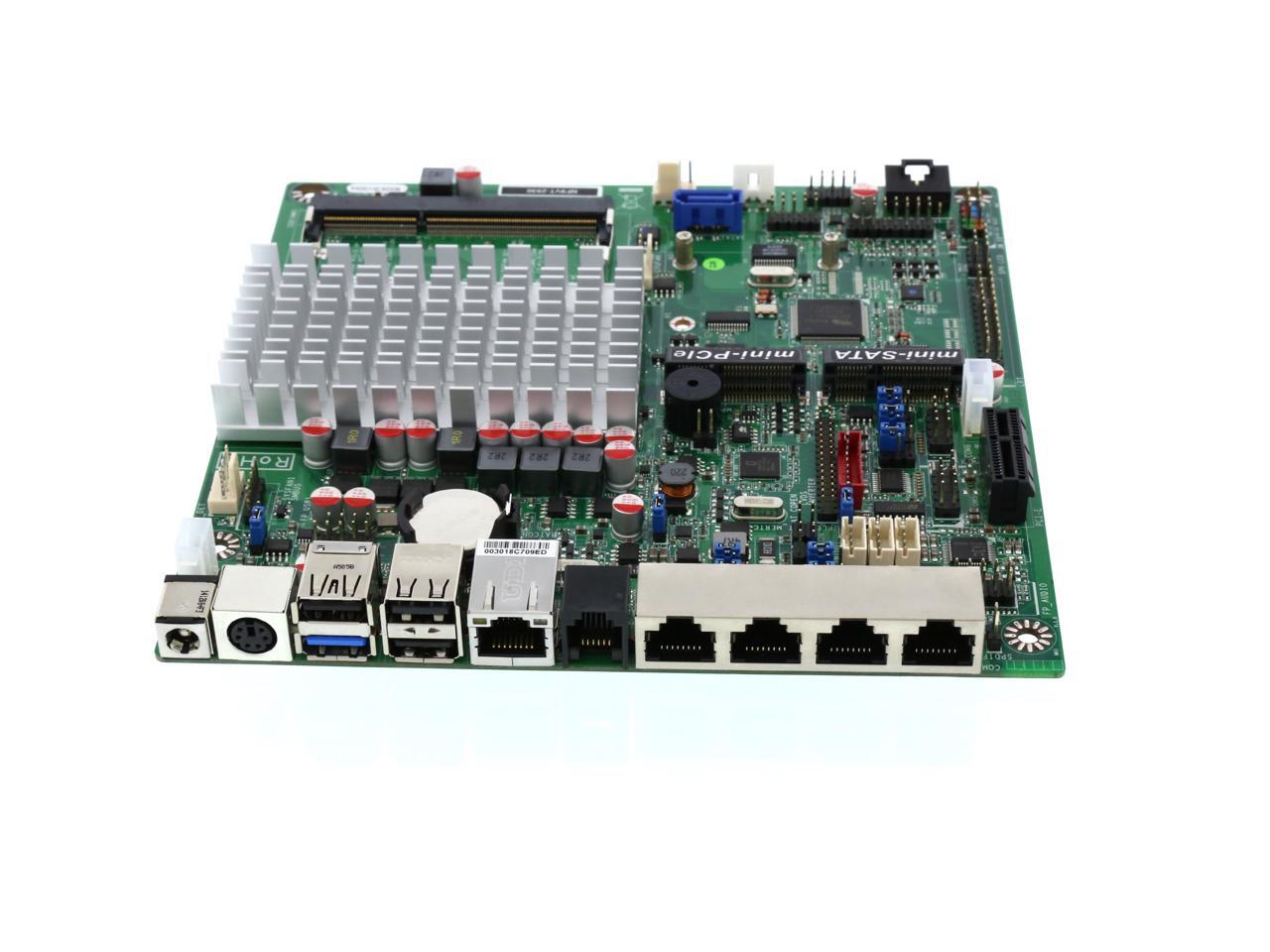

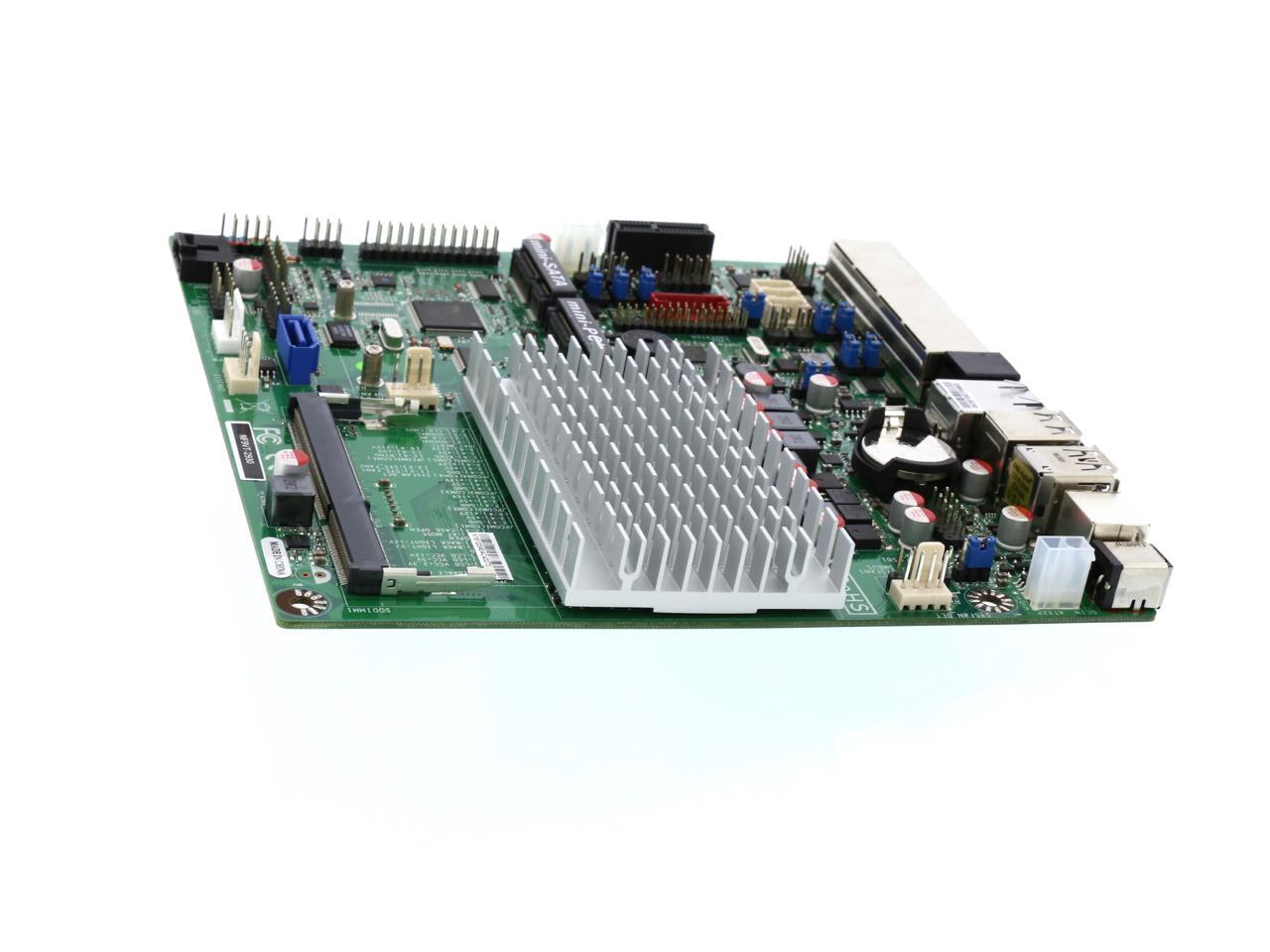

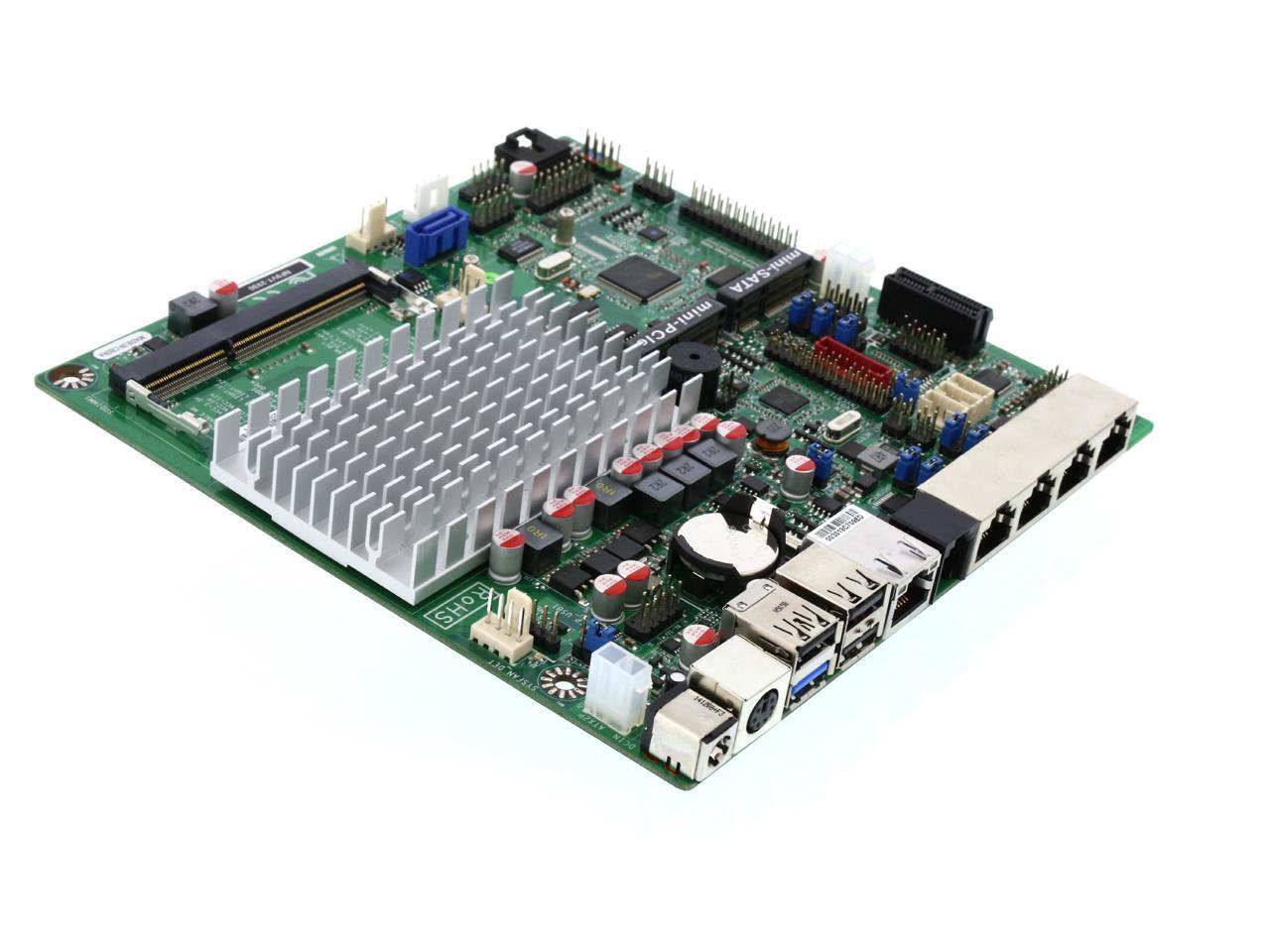

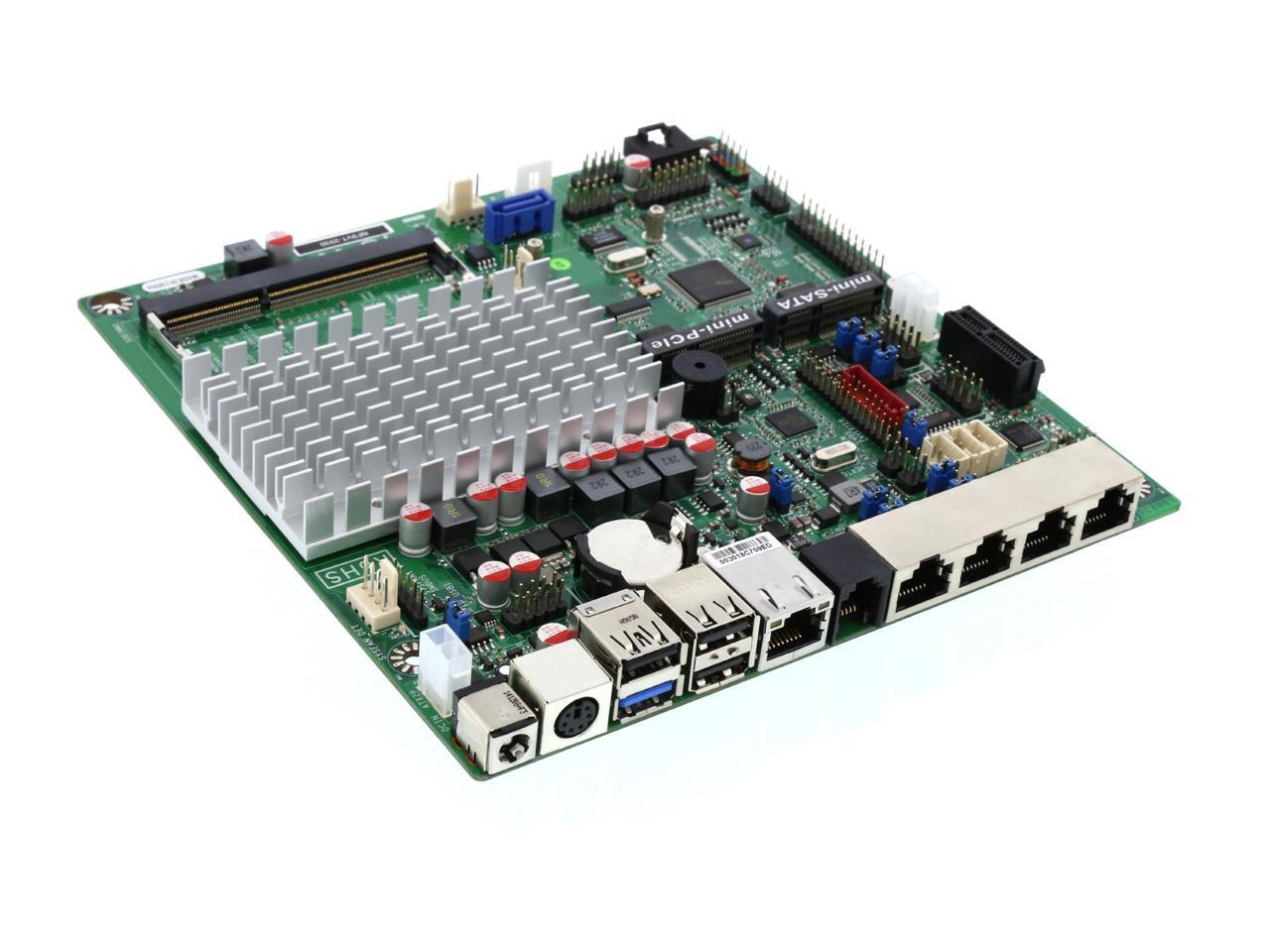

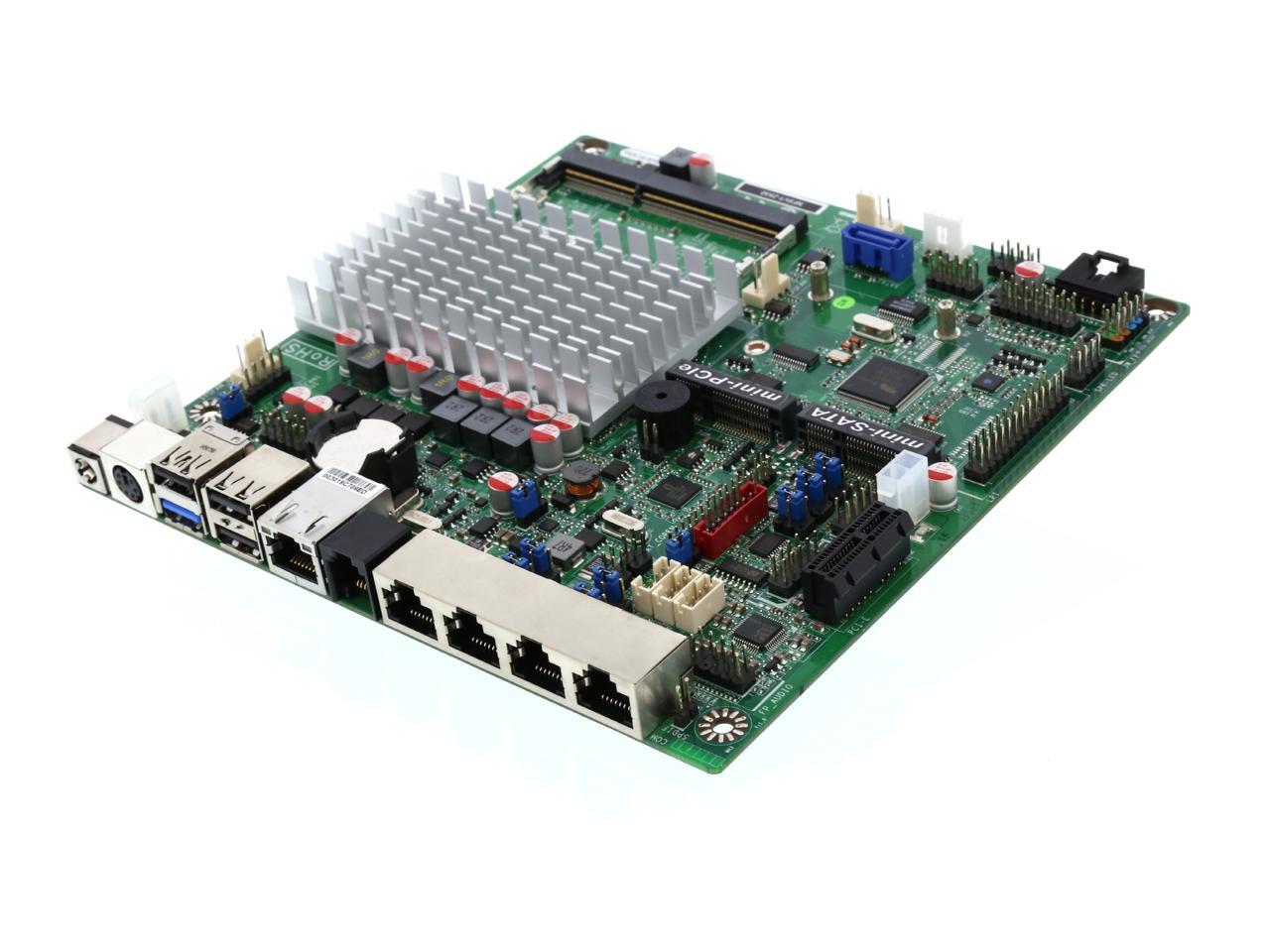

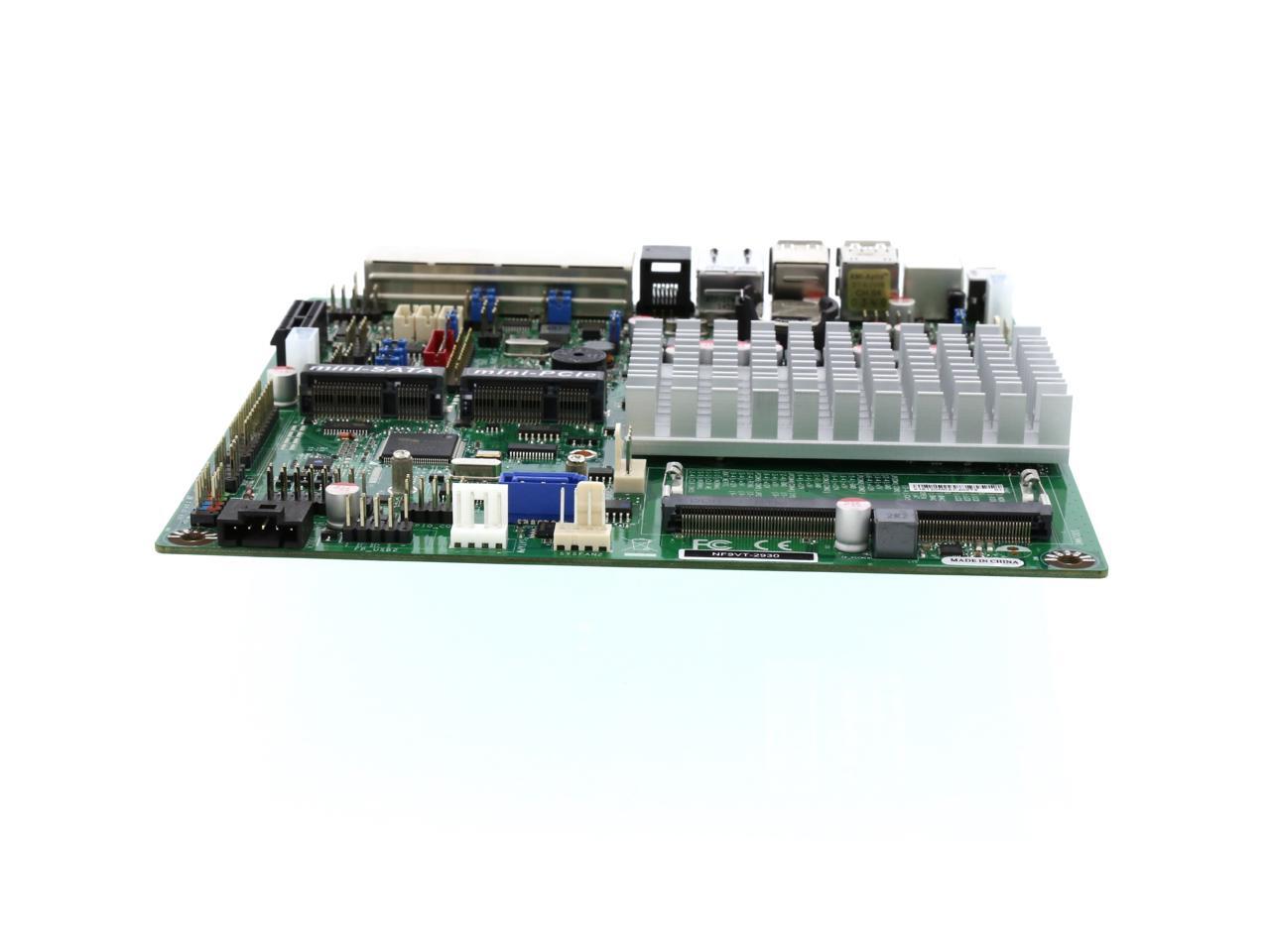

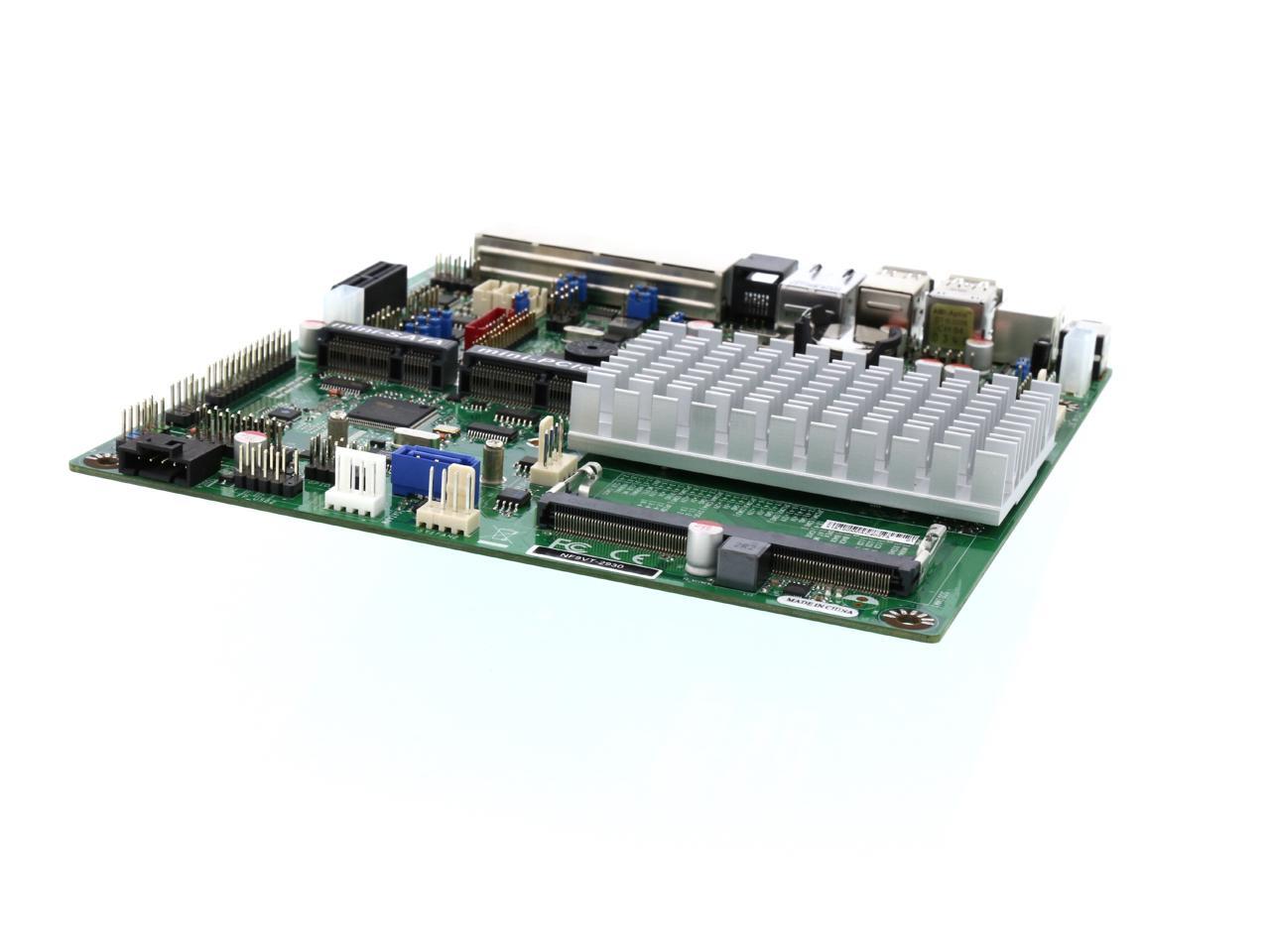

JetWay JNF9VT-2930 Intel Celeron N2930 SoC, Thin Mini-ITX w/ 4 x RJ45 Serial Ports + 1 x GBLAN Build in PenMount Touchscreen IC and RJ11 w/ 12V/+24V power for cash drawers
- DDR3L 1333
- Intel HD Graphics, 313MHz - 854MHz
Learn more about the JETWAY JNF9VT-2930
| Brand | JetWay |
|---|---|
| Model | JNF9VT-2930 |
| Combo Type | Motherboard / CPU Combo |
| CPU | Intel Celeron N2930 SoC, 1.83GHz - 2.16GHz Burst, Quad-Core, 7.5W TDP/4.5W SDP |
|---|
| Number of Memory Slots | 1x204pin SO-DIMM |
|---|---|
| Memory Standard | DDR3L 1333 |
| Maximum Memory Supported | 8GB |
| PCI Express x1 | 1 x PCI Express x1 |
|---|---|
| Mini Card Slots | 1 x Full size mini PCI-E Slot |
| SATA | 1 x SATA 3.0Gb/s |
|---|
| Onboard Video Chipset | Intel HD Graphics, 313MHz - 854MHz |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 2.1 Channels |
| LAN Chipset | Realtek 8111G |
|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| USB 1.1/2.0 | 3 x USB 2.0 |
| USB 3.0 | 1 x USB 3.0 |
| Onboard USB | 2 x USB Pin Headers for up to 4 additional USB 2.0 Ports |
|---|---|
| Other Connectors | 1 x Full size mSATA Slot 2 x Serial Port Headers (1 * RS232, 1 * RS232/422/485) 1 x 24-bits Dual Channel LVDS connector/Inverter 1 x PenMount C8051F321 Touch IC 5-wire Resistive 1 x AT/ATX power switch mode select jumper 1 x Chassis Intrusion Header 1 x VGA Header 1 x Parallel Header 1 x SMBUS (I2C) Header 1 x 8-bit GPIO Header 1 x 9-pin Audio Header 1 x 2-pin LAN LED Header 1 x Front Panel Header 3 x Speaker Header, Mic Header, Line-out Header 3 x Fan Headers 1 x 2-pin MON_PWR Out Connector 1 x 2-pin +12V Alternate Power Connector (Molex 5566-2) |
| Features | Intel Celeron N2930 SoC Processor Embedded Class Planned Lifecycle through Q1.2019 Built-in PenMount Touchscreen IC RJ11 Jack with +12V/+24V Power for Cash Drawers 4 x External RJ45 Serial Ports & 2 x Internal Serial Headers 12V DC-in or Alternate Internal 2-pin Power Connector ECO-design for EuP/ErP |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| First Listed on Newegg | July 12, 2016 |
|---|
