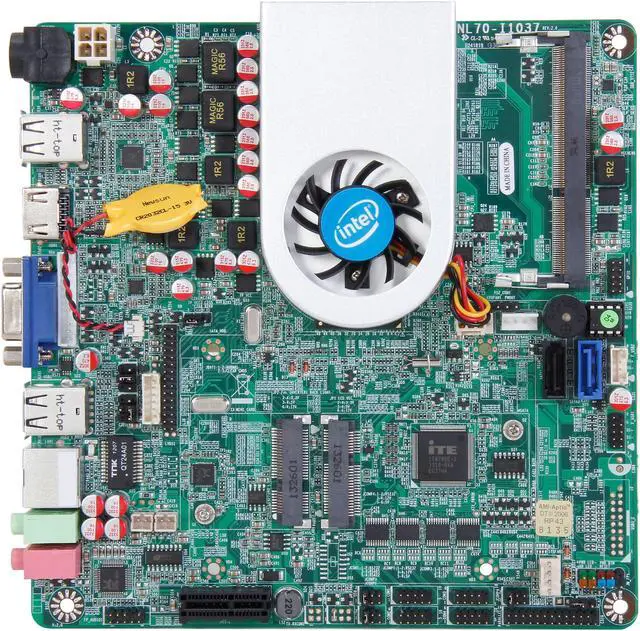

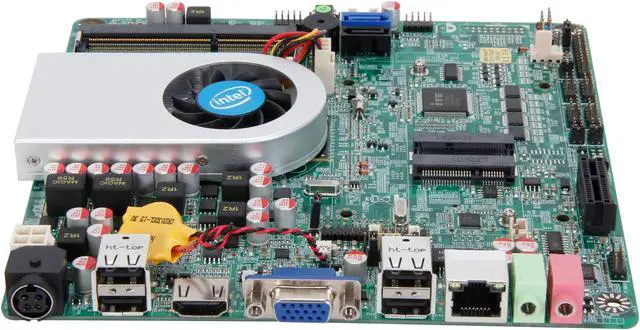

JetWay JNL70-I1037 Intel Celeron 1037U 1.80GHz Intel NM70 Mini ITX Motherboard / CPU / VGA Combo
- Celeron
- DDR3 1333/1066/800
- Intel HD Graphics
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the JETWAY JNL70-I1037
| Brand | JetWay |
|---|---|
| Model | JNL70-I1037 |
| Combo Type | Motherboard / CPU / VGA Combo |
| CPU | Intel Celeron 1037U 1.80GHz |
|---|---|
| With Cooler | Yes |
| CPU Type | Celeron |
|---|
| North Bridge | Intel NM70 |
|---|
| Number of Memory Slots | 1x204pin SO-DIMM |
|---|---|
| Memory Standard | DDR3 1333/1066/800 |
| Maximum Memory Supported | 8GB |
| PCI Express x1 | 1 x PCI Express x1 |
|---|---|
| Mini Card Slots | 1 x Mini PCIe |
| SATA | 1 x SATA 6Gb/s 1 x SATA 3Gb/s 1 x mSATA |
|---|
| Onboard Video Chipset | Intel HD Graphics |
|---|
| Audio Chipset | Realtek ALC887 |
|---|
| LAN Chipset | Realtek 8111F |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Video Ports | 1 x VGA |
|---|---|
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 2 Ports |
| Onboard USB | 2 x USB 2.0 |
|---|---|
| Other Connectors | 2 x CPU / Chassis Fan connectors 4 x COM headers 1 x Parallel header 1 x PS2/KB header 1 x 4-pin ATX 12V Power connector 1 x 4-pin SATA Power connector 1 x 15-pin VGA header 1 x 24-bit Dual Channel LVDS header 1 x GPIO header 1 x Mini PCI-e connector 1 x M-SATA Connector 1 x Audio header 1 x Front panel audio header |
| Features | Support CPU Smart Fan Support Watch dog Technology Support GPIO Technology Support VGA header Support Power On board Support Slim Fan design Support Slim hard drive design Thunder Protection Function All Solid Capacitor design All Power Pack MOSFET design |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| First Listed on Newegg | December 06, 2013 |
|---|
