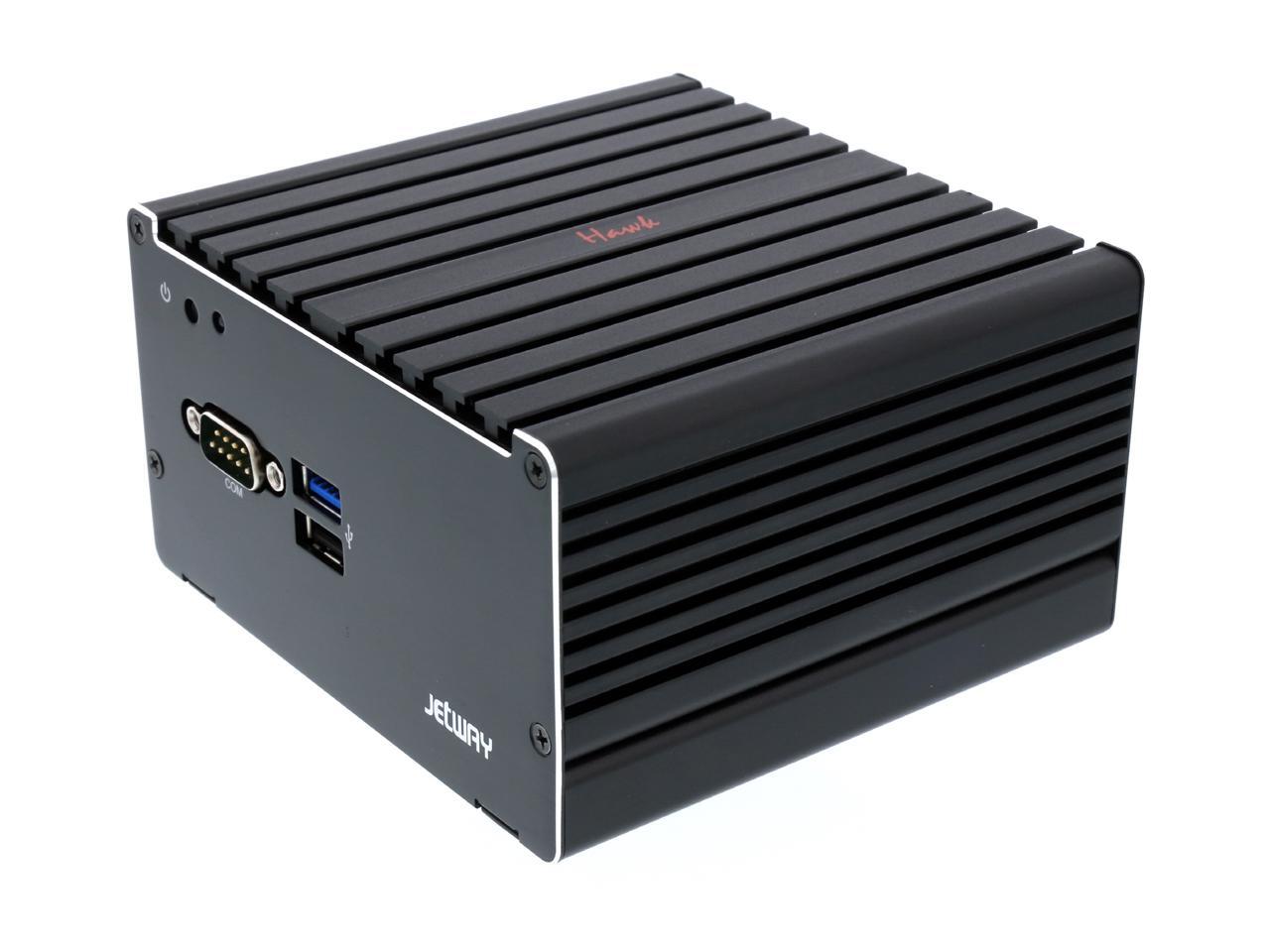

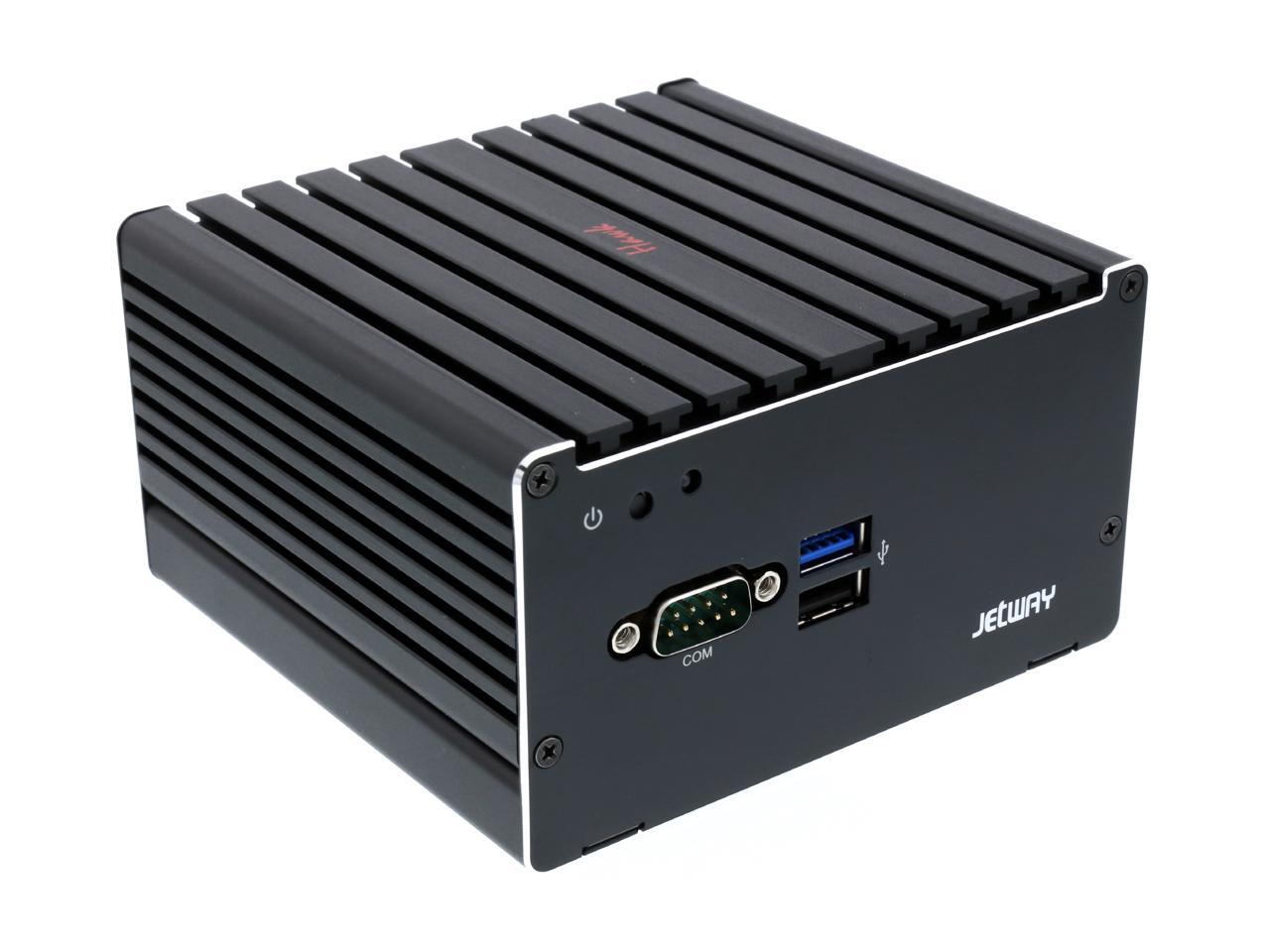

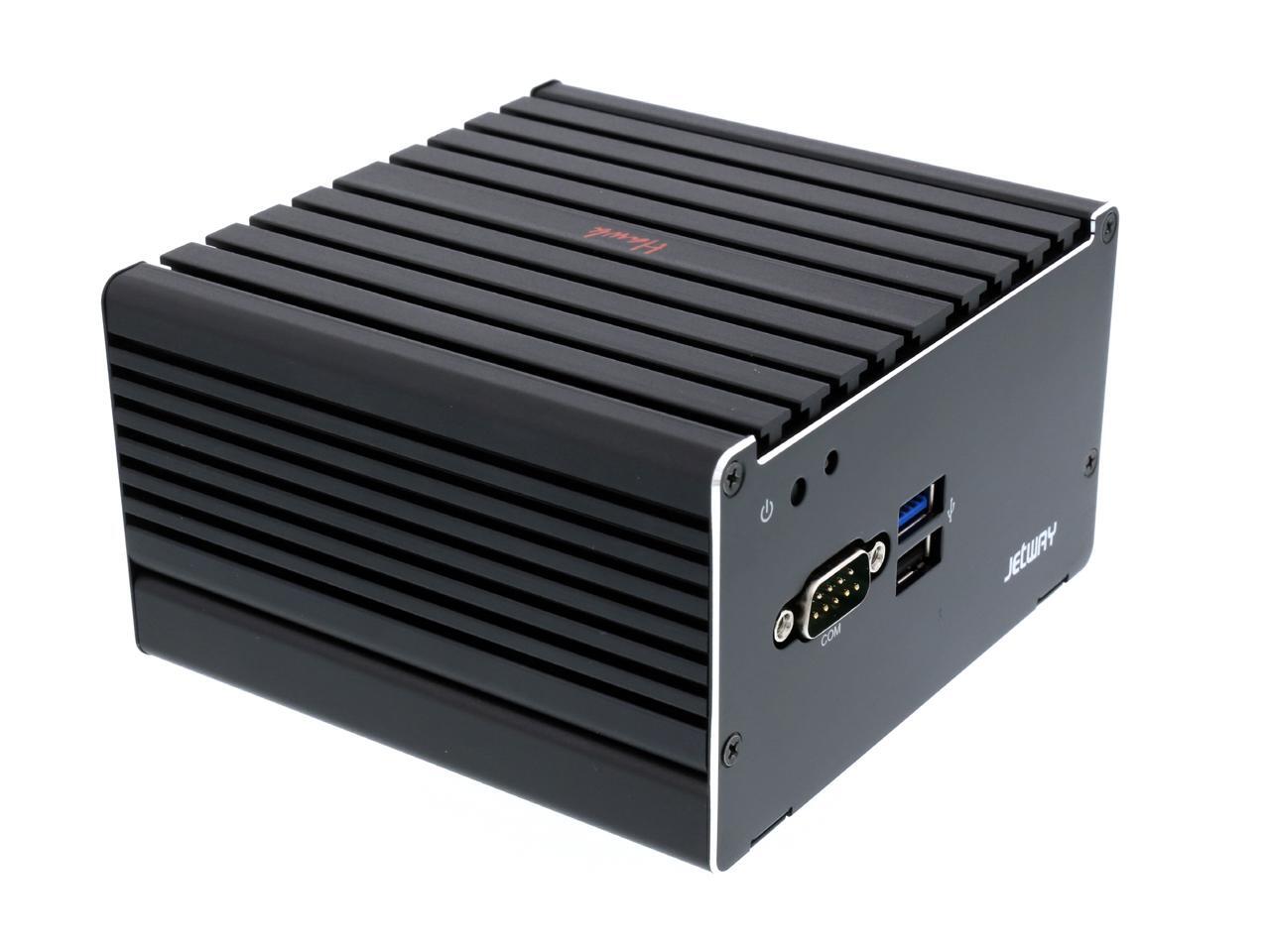

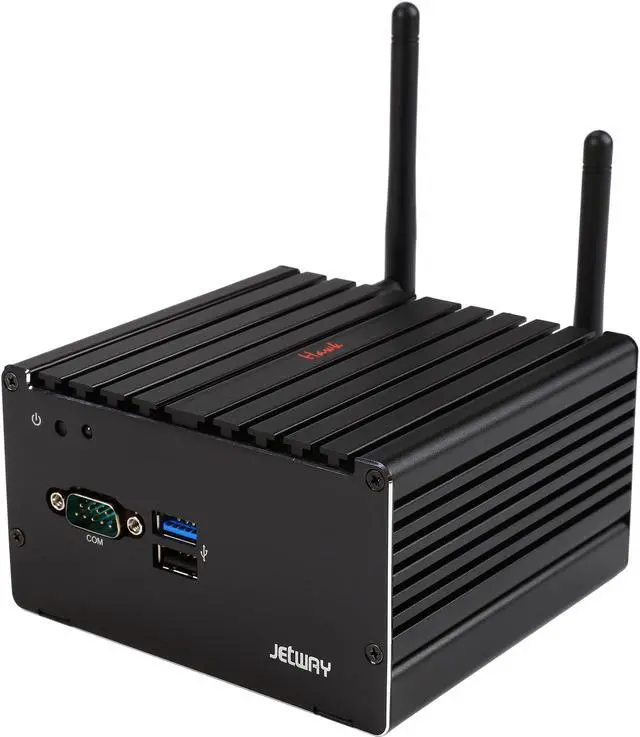

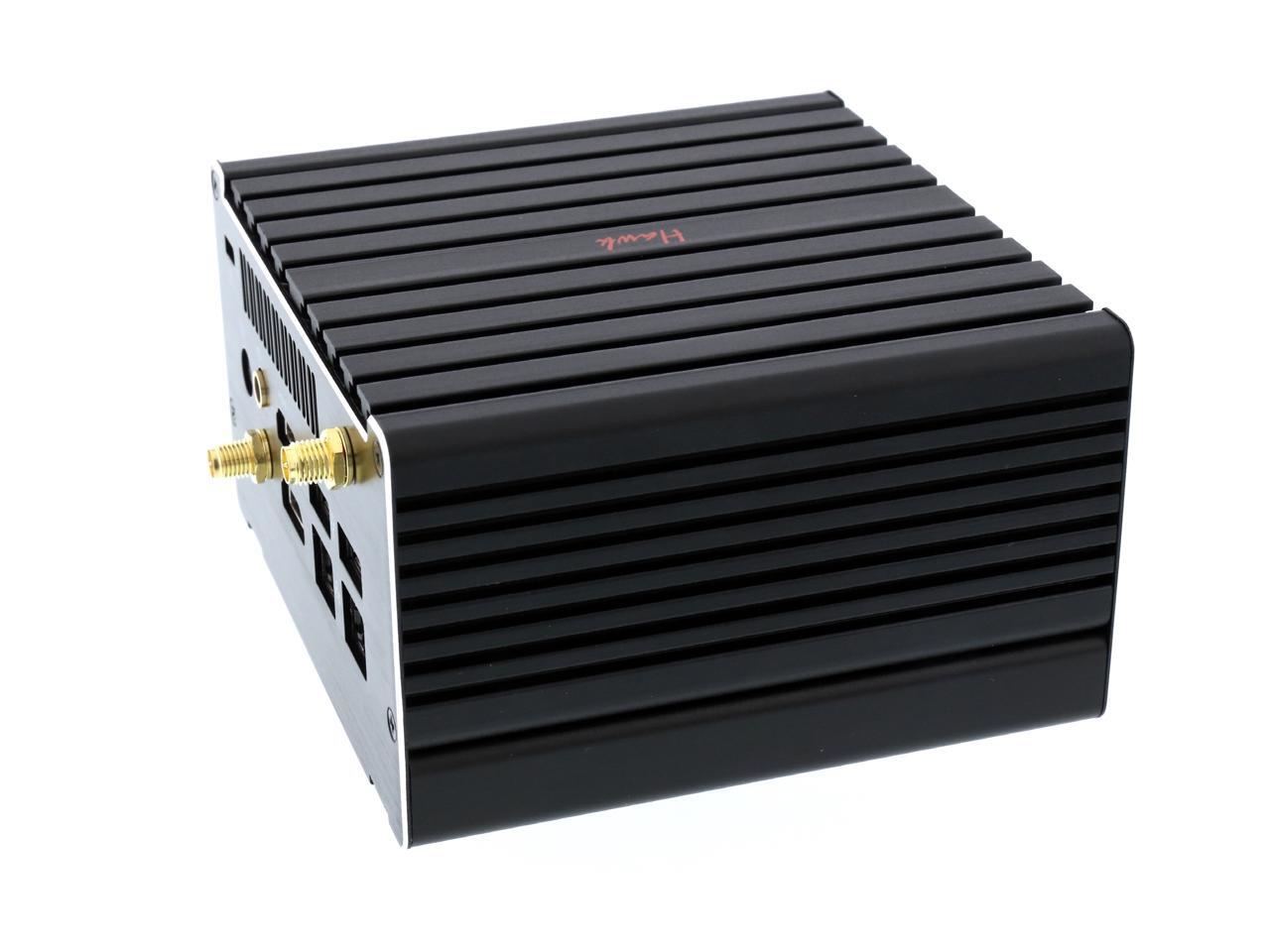

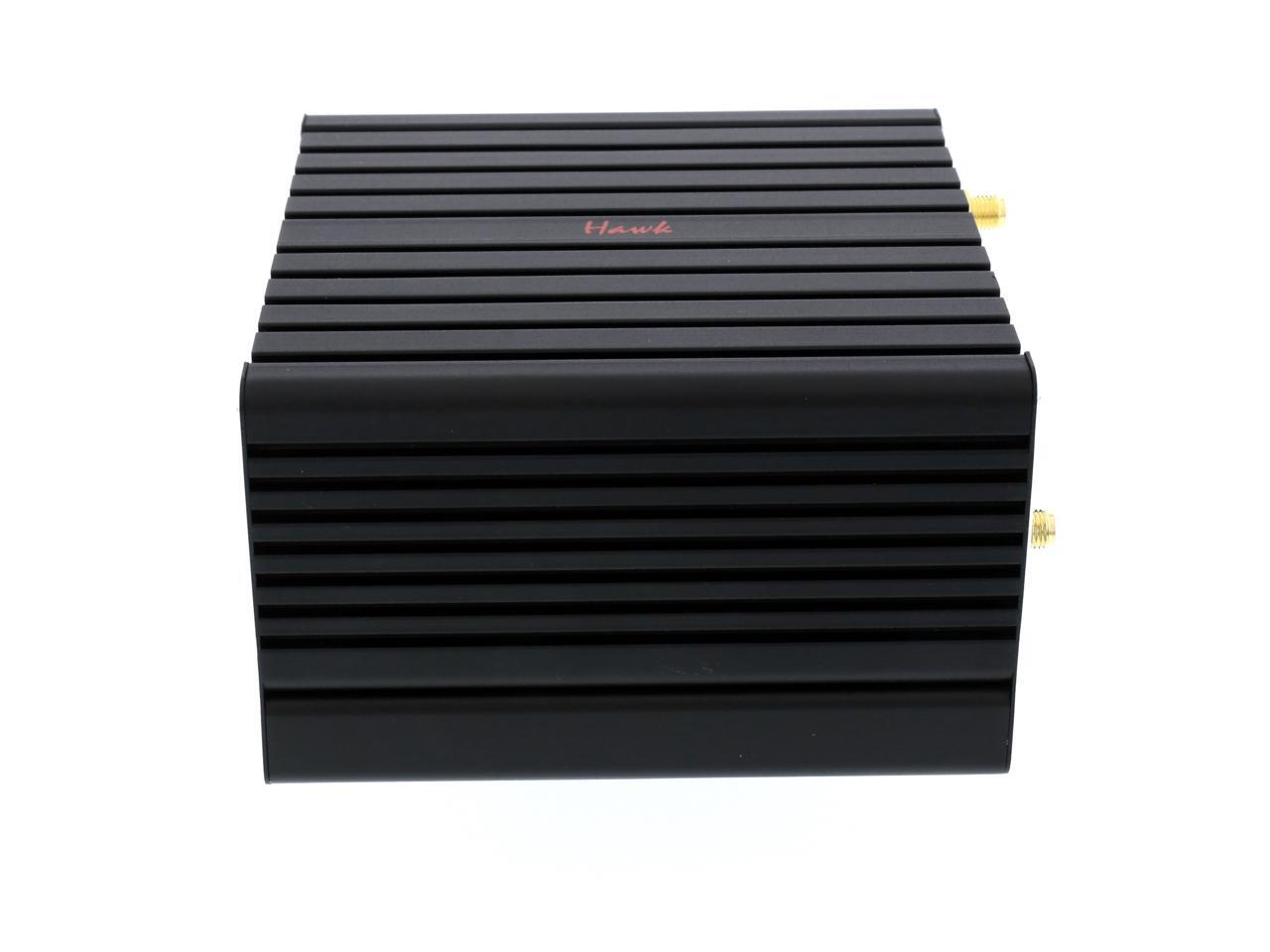

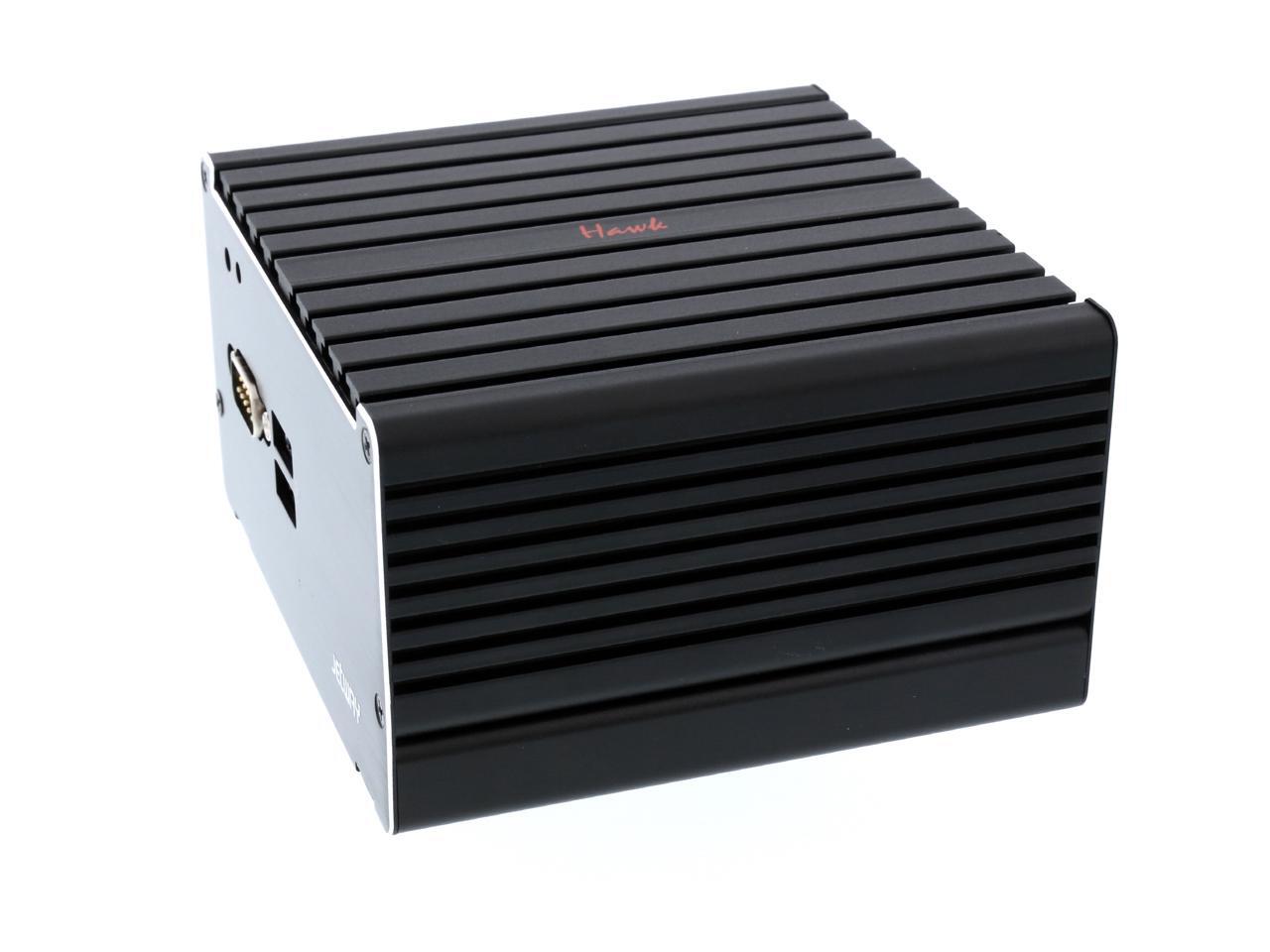

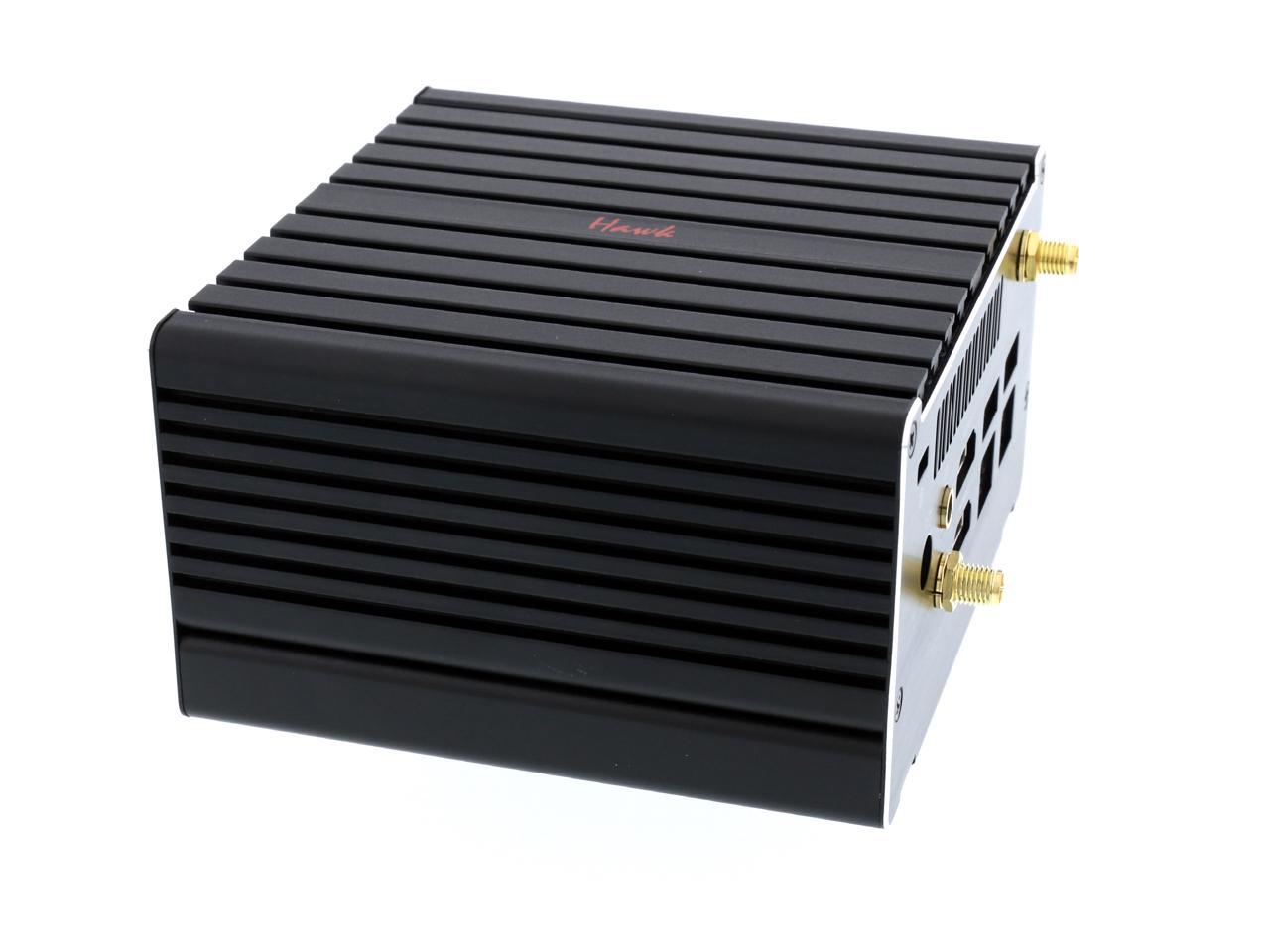

Jetway JBC320U93W-2930 1 x 204Pin SO-DIMM Intel HD Graphics, Dual LAN, Dual HDMI & Dual Storage (2.5” HDD & mSATA) Lightweigh Fanless Black Mini/Booksize Barebone System
- Fanless INTEL Bay Trail-M Celeron N2930 SoC Processor 1.83GHz, Quad-Core, 7.5W
- 1 x 204Pin SO-DIMM DDR3L-1333 (1.35V required)
Specs
Reviews (3)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the JETWAY HBJC320U93W-2930-B
| Brand | Jetway |
|---|---|
| Model | HBJC320U93W-2930-B |
| Color | Black |
|---|
| CPU Type | Fanless INTEL Bay Trail-M Celeron N2930 SoC Processor 1.83GHz, Quad-Core, 7.5W |
|---|
| Memory installed | No Memory |
|---|---|
| Memory slot | 1 x 204Pin SO-DIMM |
| Memory Type Supported | DDR3L-1333 (1.35V required) |
| Max Memory Supported | 4GB |
| Other | 1 x half size Mini-PCI Express Slot |
|---|
| Hard Drive Installed | No Hard Drive |
|---|---|
| Serial ATA | 1 x full size mSATA Slot 1 x SATA2 3Gb/s for 2.5" HDD |
| Intergrated Graphics | Intel HD Graphics |
|---|
| Onboard Audio | Realtek ALC887 Audio CODEC with SPDIF out |
|---|
| LAN | 2 x Intel 82583V Gigabit Ethernet |
|---|---|
| Max LAN Speed | Dual 10/100/1000Mbps |
| Wireless LAN | 802.11b/g/n |
| Bluetooth | Bluetooth 4.0 |
| 2.5" Internal Bays | 1 |
|---|
| Front USB | 1 * USB 3.0 1 * USB 2.0 |
|---|---|

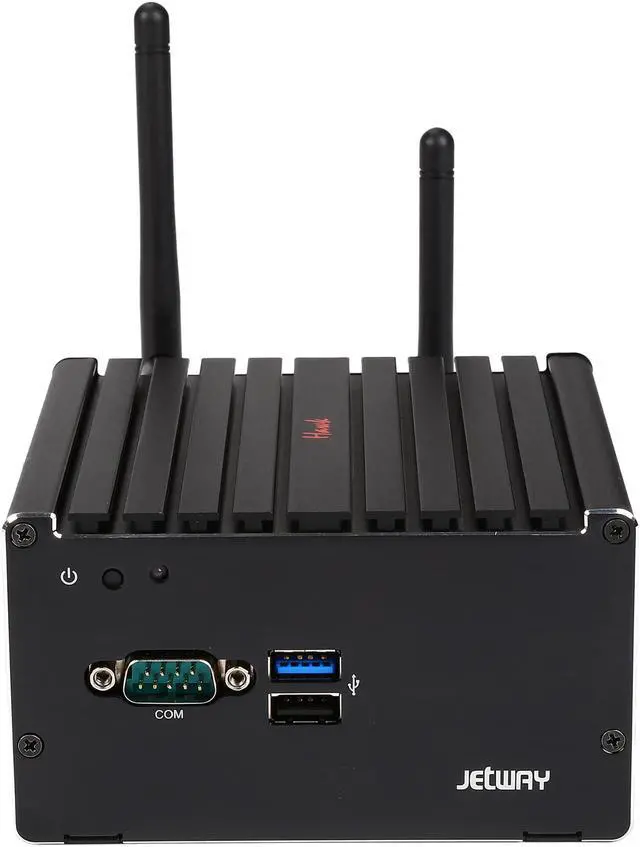

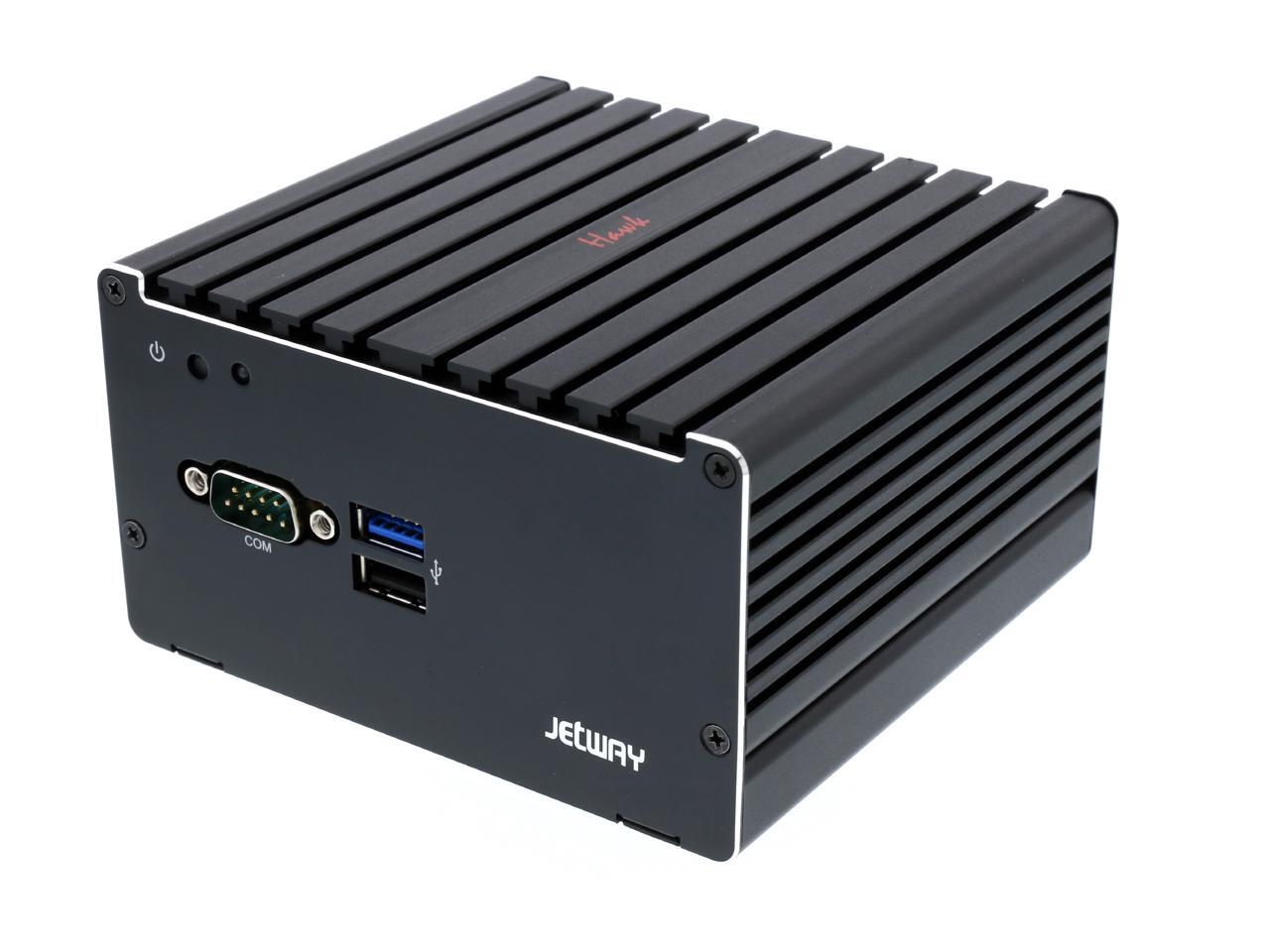

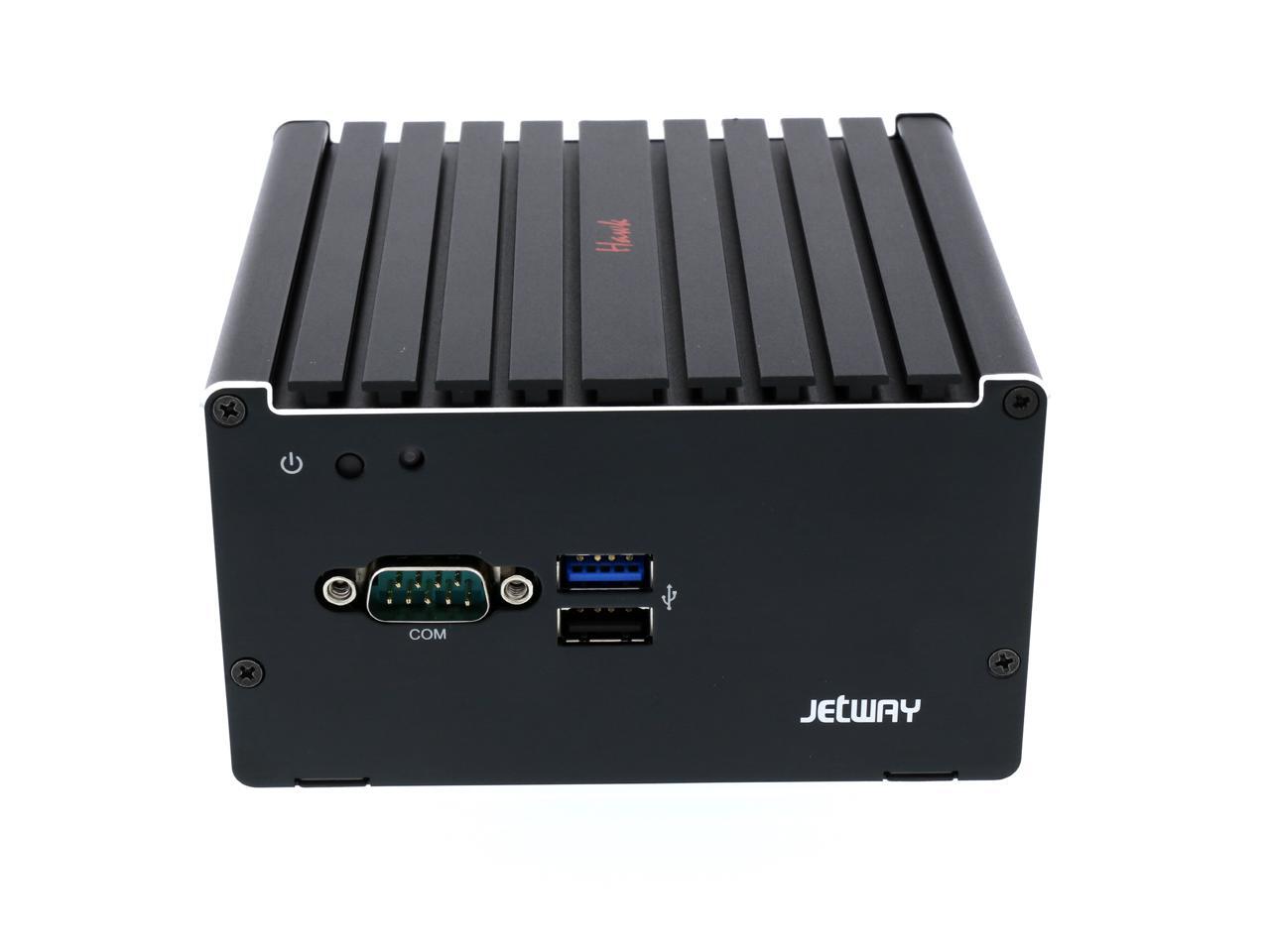

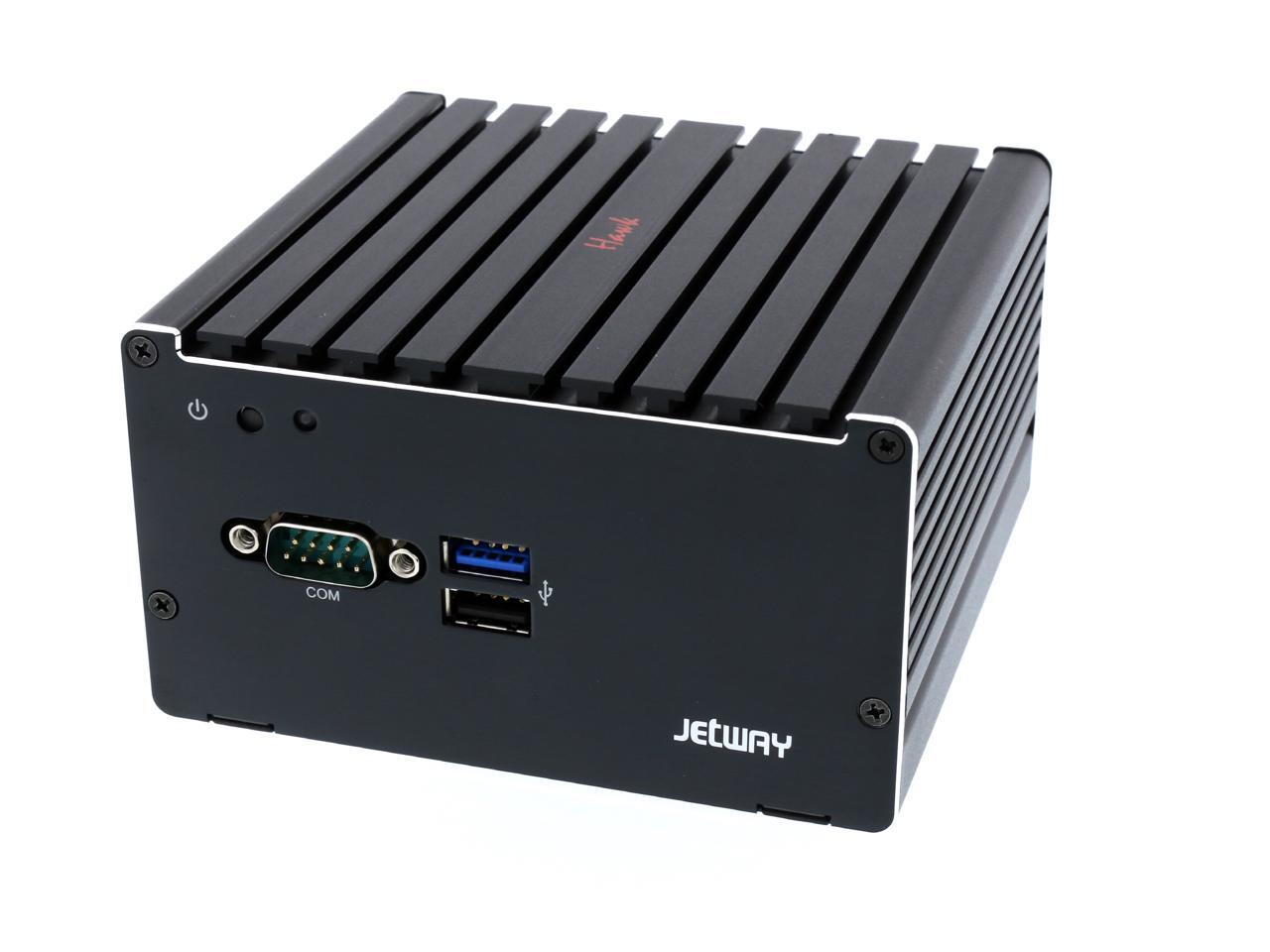

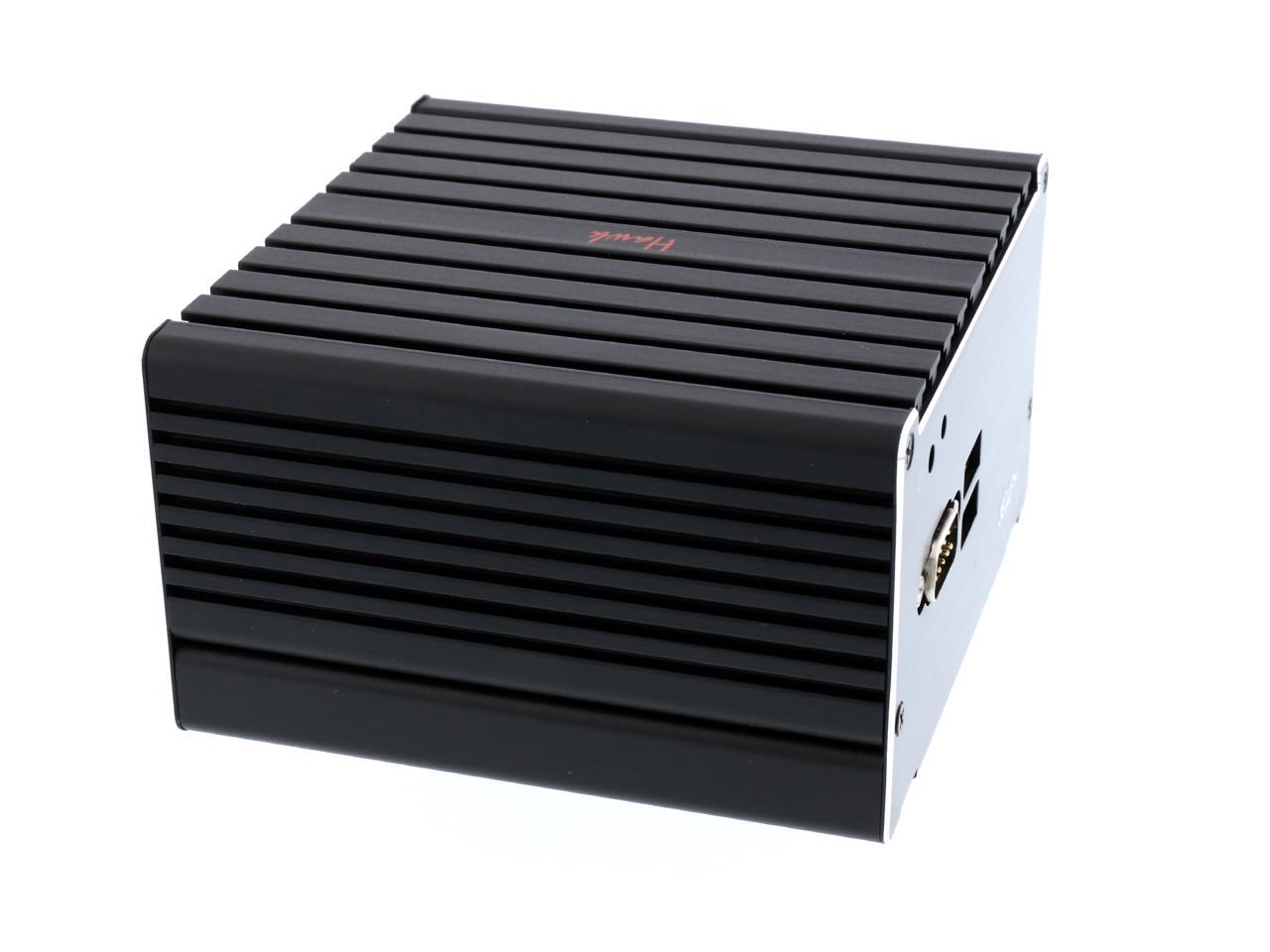

| Other Front Ports | 1 * Power Button 1 * Power LED 1 * RS232/422/485 COM port |
| HDMI | 2 |
|---|---|
| Rear USB | 2 * USB 2.0 ports |
| RJ45 | 2 |

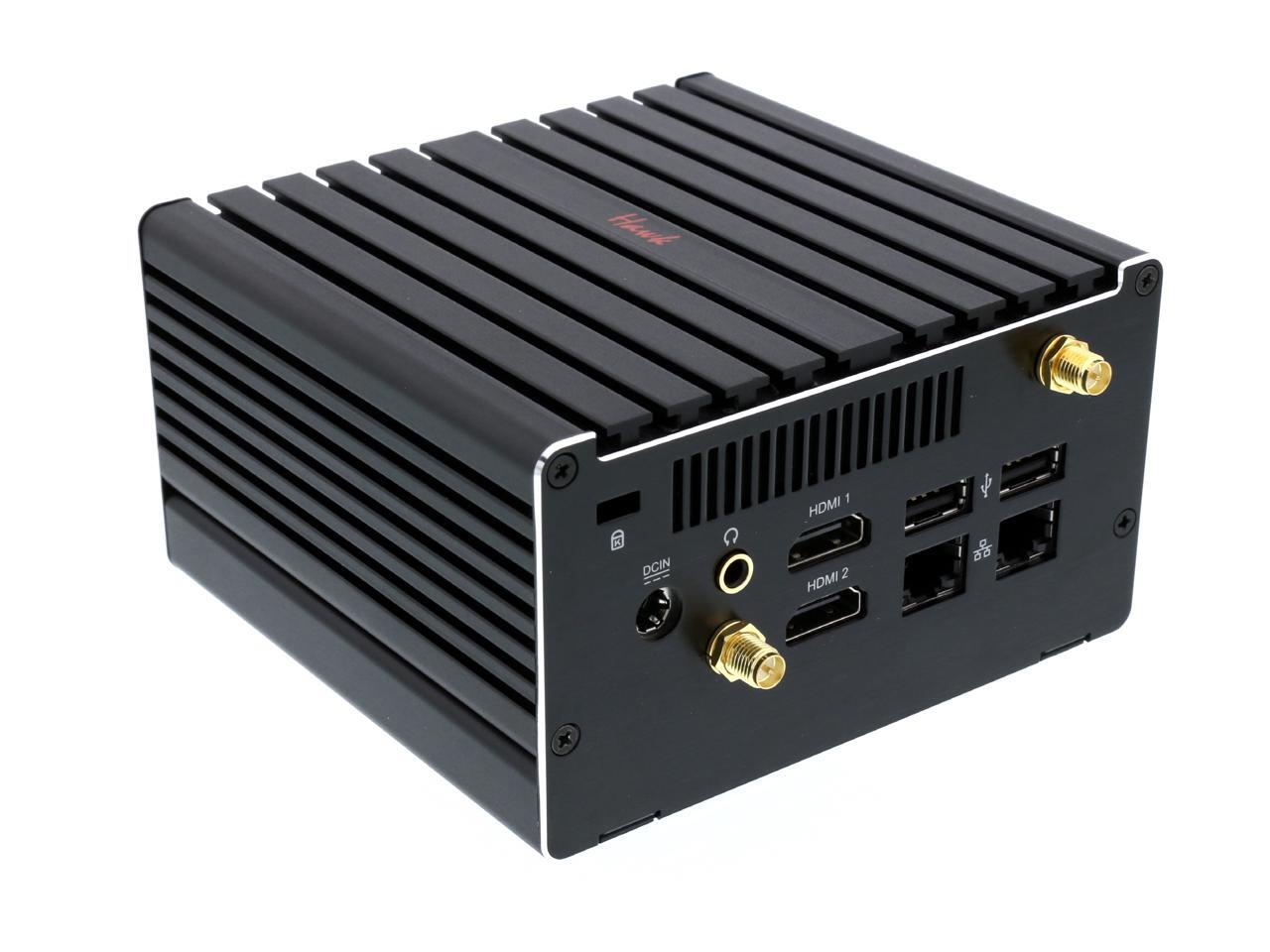

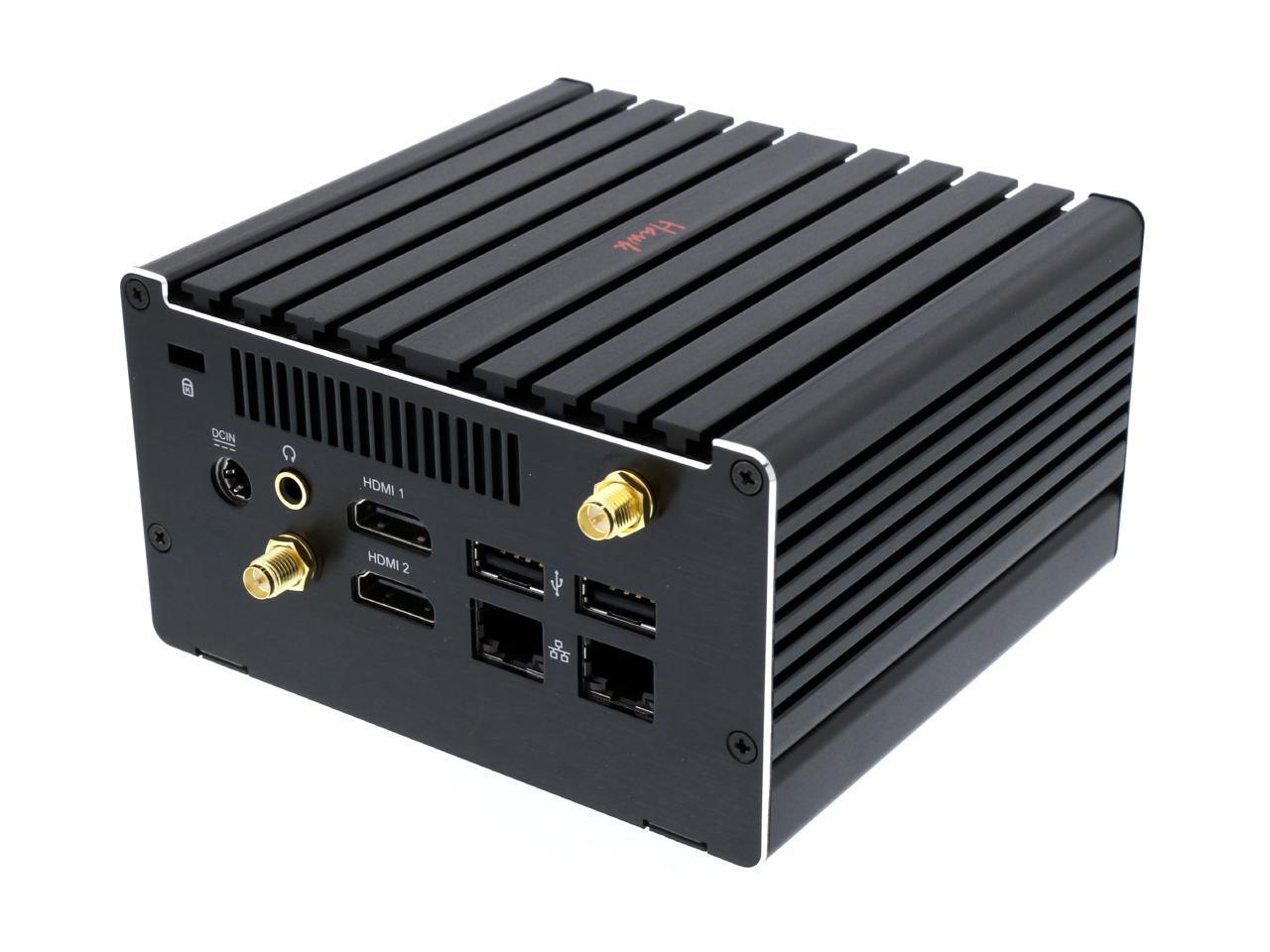

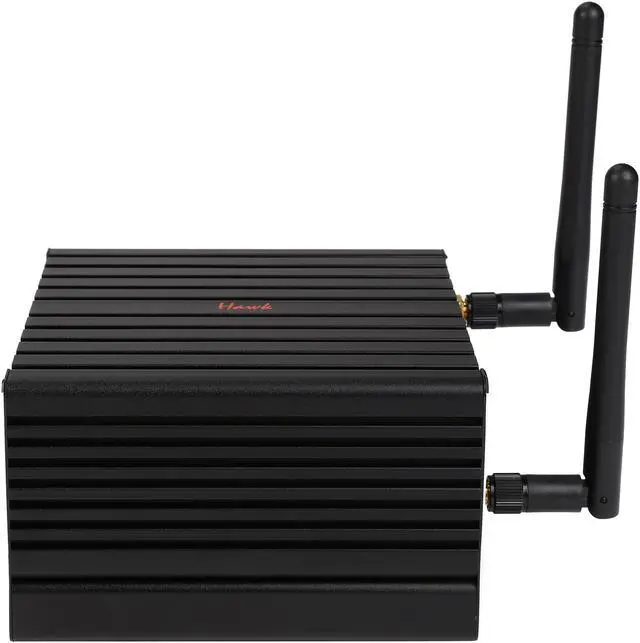

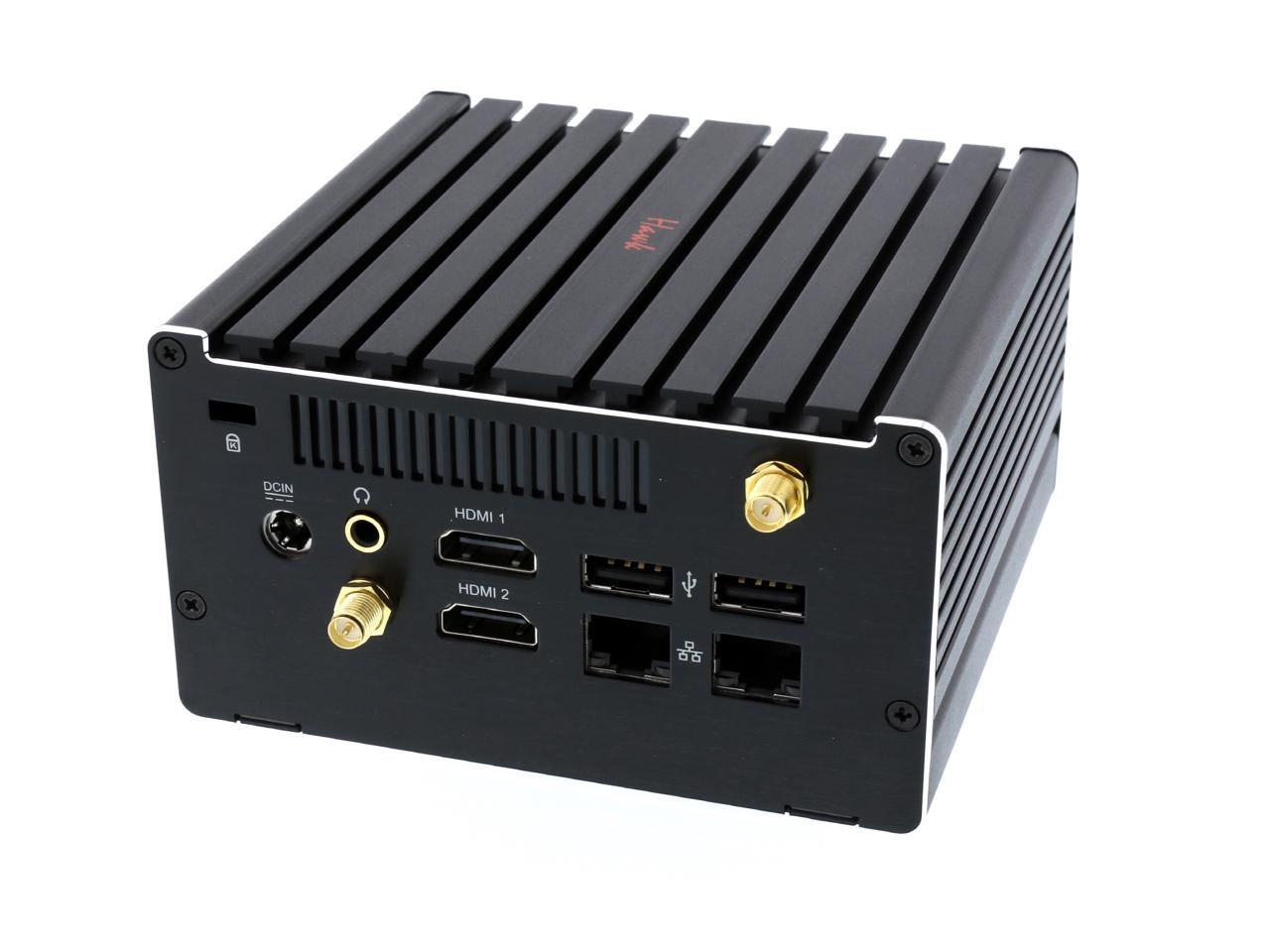

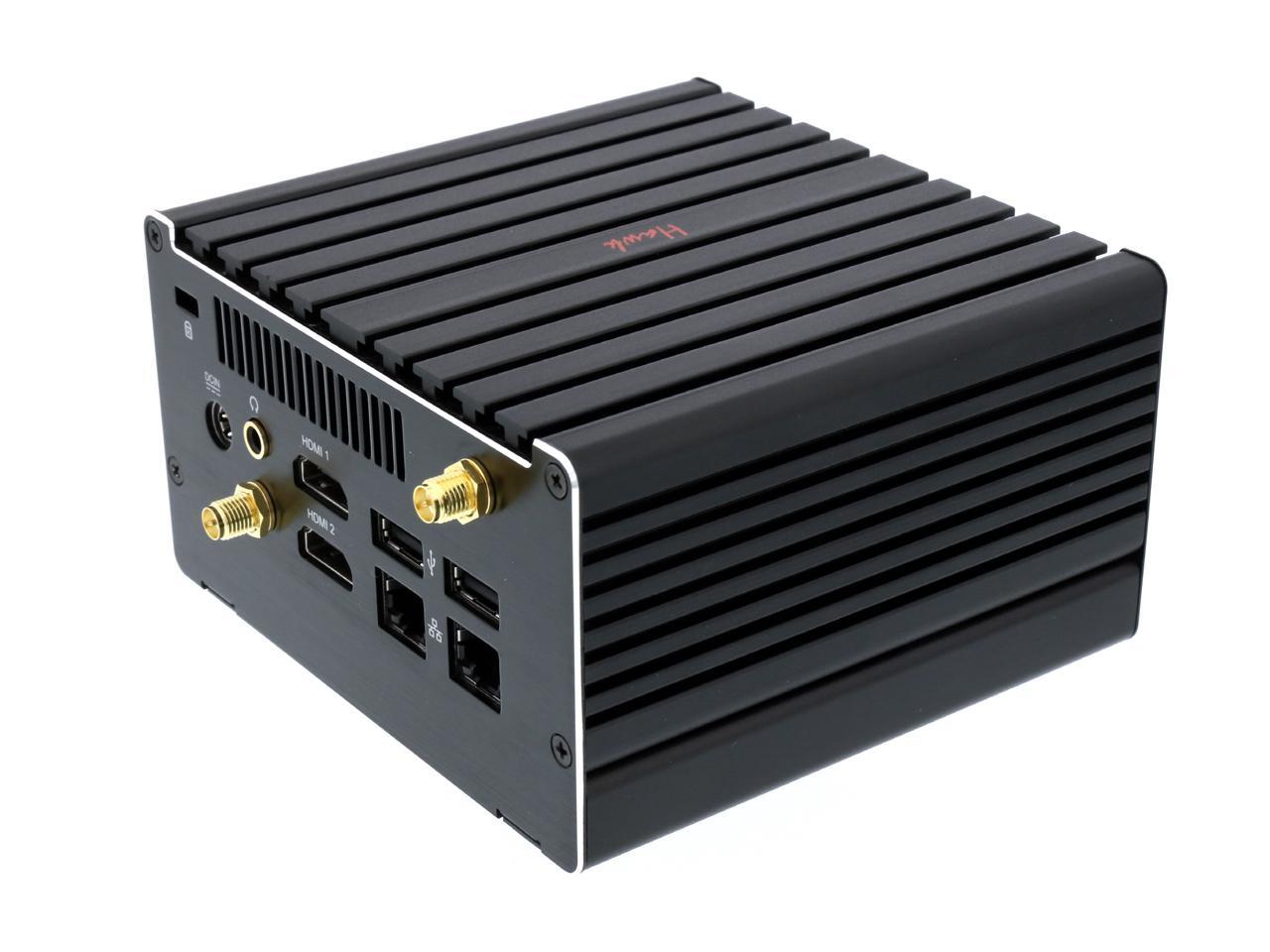

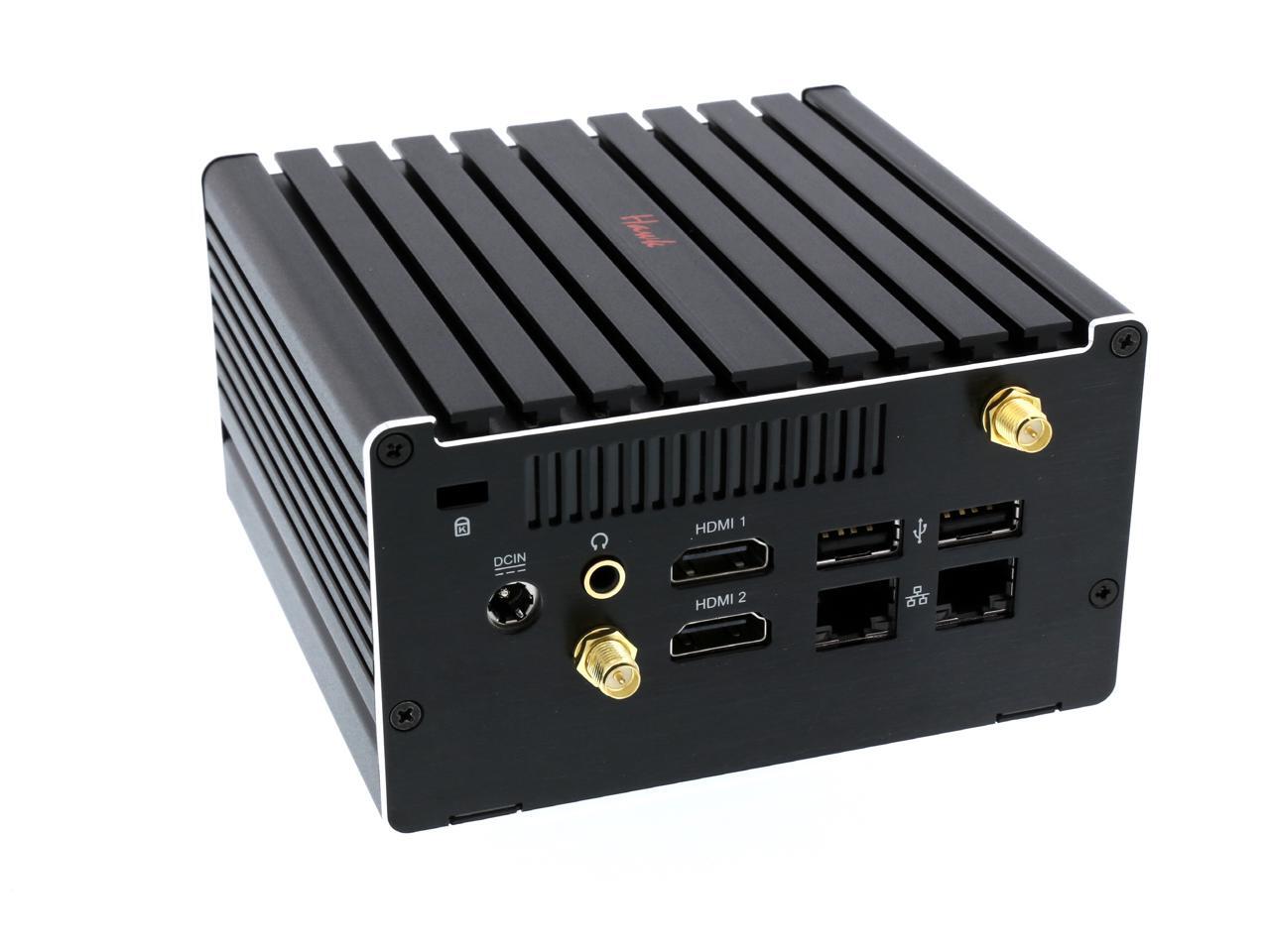

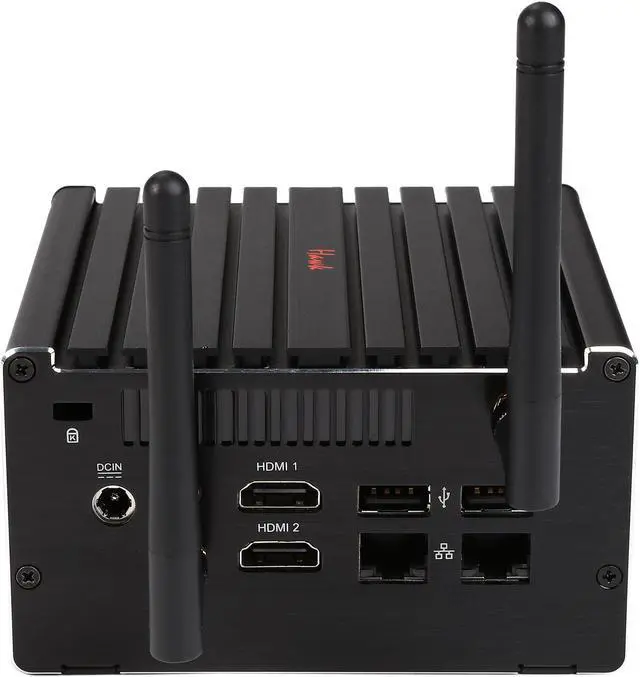

| Other Rear Ports | 1 * Audio line out with SPDIF out 1 * 9V ~ 24V DC-in jack 2 * SMA Connector for WiFi Antenna 1 * Kensington Lock Hole |
| Power Supply | Adapter : AC_90~240V / DC_12V_3A/36W |
|---|
| Dimensions | 4.57" x 4.33" x 2.56" |
|---|---|

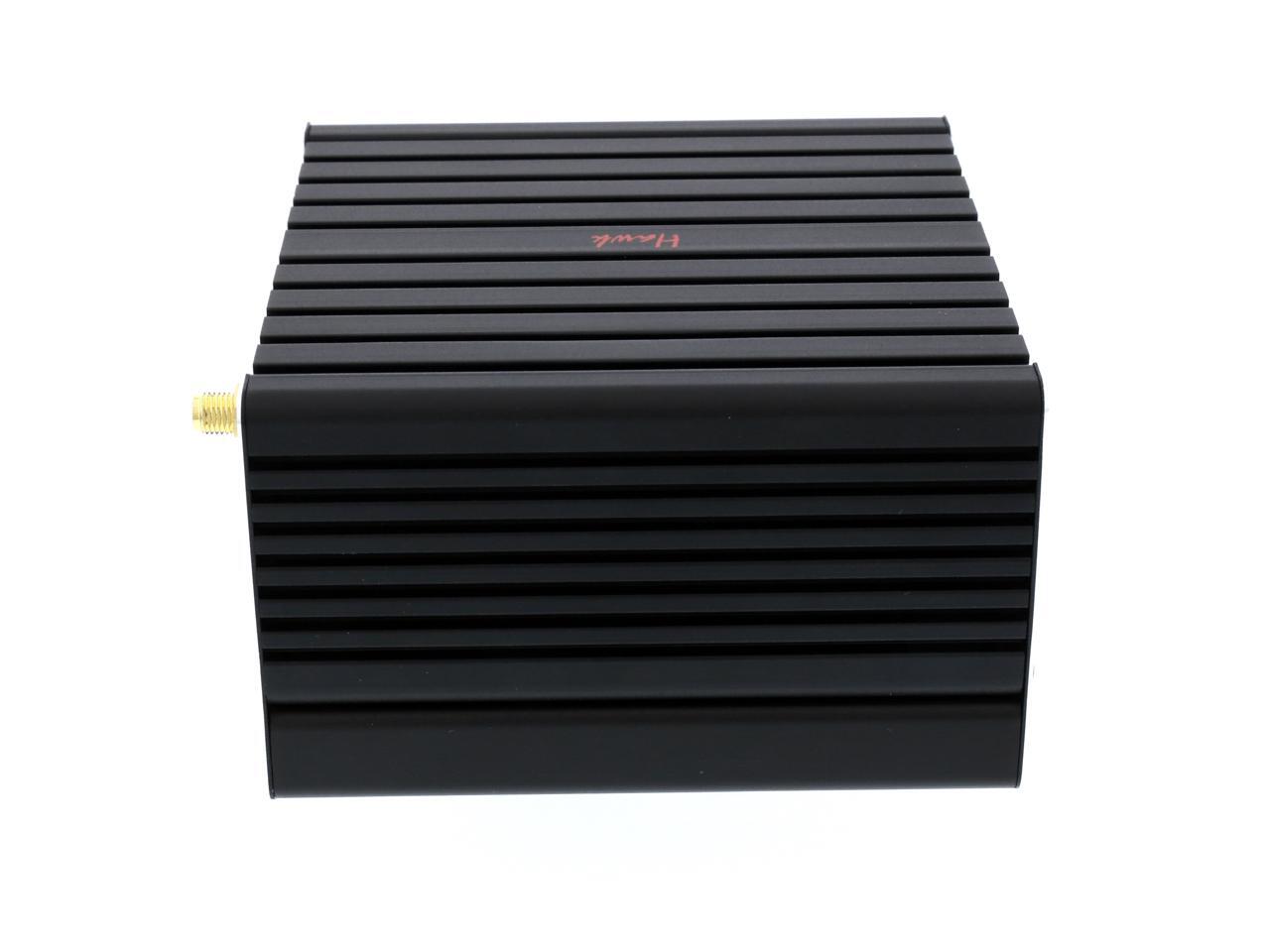

| Material | Lightweight aluminum alloy with extruded aluminum IO panel |
| Features | INTEL Bay Trail-M N2930 SoC Processor 1.83GHz, Quad-Core, 7.5W Embedded Long-life Series, 5 Year Availability NUC Form Factor (101mm X 101mm) Design for Fanless Systems 9V~24V DC jack on back panel for external power supply Additional 2.5" HDD Bay & 2 x HDMI & 2 x LAN ECO-design for EuP/ErP |
|---|

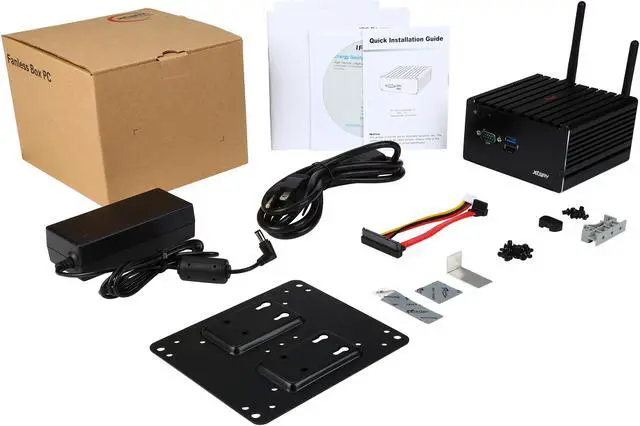

| Packaging | Standard Accessory - 36W AC Adapter x1 - Power Cord x1 - Screw pack x1 - DVD Disk x1 - Manual x1 - WALL + VESA + DIN rail mounting kit (Black) - Din Rail Clip |
|---|
| First Listed on Newegg | January 30, 2015 |
|---|
