Question 1

Has anyone been able to get this working with Windows 10?  I can get the install to go, but at the very end it fails stating that it can't update the Windows boot configuration or something.  Any ideas?

Accepted Answer

I spent a couple of hours trying to get it to work with Windows 10 but without any luck.  The problem isn't that it won't install from an ISO on a USB stick - its that once it installs, it won't complete the installation by writing the boot configuration.  I thought it might be UEFI related, so I changed BIOS settings for this but no matter what combination, the same problem comes up.  I may be able to get Windows 7 on it to work, which would probably be ok.  I just need to use this unit for displaying 2 x 1920x1200 monitors that show monitoring graphs and CCTV cameras for our site.  But would prefer to be using Windows 10 on it.  Was hoping that maybe a BIOS update would fix this, but it appears that I'm running the latest one.

Question 2

I am having issues with this device and the USB ports. When I have all 3 USB ports being used it seems to draw too much power and shuts off the device after a few hours. It took me a long time to figure out that this was the issue. I have 1 keyboard and 1 external hard drive plugged into the USB 2.0 ports. Once I plug in a USB 3.0 hard drive it shuts off after a few hours and will no turn back on until I unplug everything. Can anyone say if this is happening to them or have a solution to this?

Accepted Answer

Hello John,

I had this issue before with other types of PC's. and found it to be a Software problem withing the OS itself. Im not much of a Fan of running Portable HDD's in an Intel Atom machine to begin with, especially when its a little Brick. What you can do is try moving the portable HDD into a different USB slot. not all slot seem to be the same. I use Newer Dell Work stations at work. and 3 out of the 5 will give me a warnings. So that proves my theory there. I would only imagine that the Newer USB 3.0 port has a more tighter tolerance maybe to current level which is probably telling the PC to shut off or trip like a Circuit Breaker before something Bad happens. Another thing is the Brick. It could be the Brick has a rating of X amount. and after couple hrs of just sitting there, its already sitting at a Max output and when you try to bring it back (Example wake it up) it has to spin that HDD motor back up creating more of a Load at that particular point in time, that it can do anything but shut off. Thats just my Opinion. You can always try another brick with a Higher Rating to see if it does the same. Thats what i did. replace my 90w brick with a 120w.  Hope this Helps.

Question 3

Does this come with the CPU attached? Or do I need to plan on an extra purchase?

Accepted Answer

Yes The CPU does come already built into this. You would only Need to supply the RAM, HDD, or USB Flash-Drive depending on your Application.

Motherboard Specifications
Model No.	JBC310U91W2807-BN
Part No.	HBJC310U91W2807-BN
CPU	Fanless Intel Celeron N2807 Dual-core 1.58GHz, 2.16GHz Burst, 4.3W TDP/3.0W SDP, 22nm, Intel Gen7 HD Graphics
Memory	204-Pin DDR3L-1333 SO-DIMM Single Channel, up to 4GB (1.35V required)
VGA	Intel® HD Graphics
LAN	Intel® WG82574L Gigabit Ethernet
Audio	Realtek ALC887 Audio CODEC
Storage	Full size mSATA Slot
Wireless / Mini-PCIE Slot	Wireless 802.11 b/g/n + Bluetooth 4.0
Board Form Factor	NUC Form Factor (101mm X 101mm)
Chassis Specifications

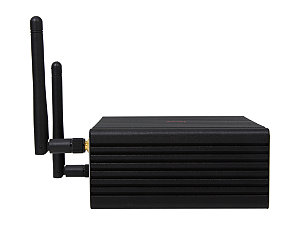

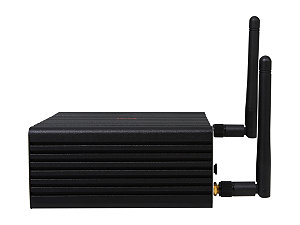

Product size	4.5 x 4.3 x 1.9 in. (116 x 110 x 49mm)
Material	Lightweight aluminum alloy with extruded aluminum IO panel
Color	Black and Sliver
HDD	NA

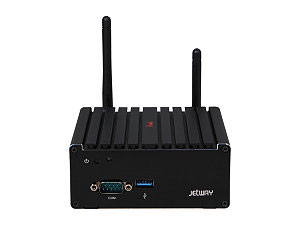

Front I/O Ports	Power Button Power LED COM Port USB 3.0 Port

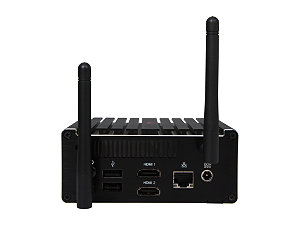

Rear I/O Ports	Two USB 2.0 ports Two HDMI One RJ-45 port Audio line out with SPDIF out 12V DC-in Jack SMA Connector for Wi-Fi Antenna Kensington Lock Hole
Power	Adapter: 90 ~ 240VAC / DC 12V 3A/36W
Environment	Operating Temperature: 32 - 104°F (0 ~ 40°C) with airflow Storage Temperature: -4 - 176°F (-20 ~ 80°C)
Standard Accessory	36W AC Adapter Power Cord Screw pack DVD Disk Manual WALL + VESA + DIN Rail Mounting Kit (Black) Din Rail Clip Wi-Fi antenna (with HBJC310U91W-2930 model)
Functional	Digital Signage, Set Top Box, Thin Client, Car Entertainment, Smart Mini PC, POS/POI, KIOSK, HTPC
Certificates	CE, FCC, ErP For Barebone CE, FCC, TUV, UL, CCC, CB, ErP For Power Adapter

Brand	Jetway
Model	JBC310U91 (HBJC310U91W2807-BN)

Memory slot	1 x 204Pin SO-DIMM
Memory Type Supported	DDR3L 1333
Max Memory Supported	4GB

LAN	1 x Intel 82574L
Max LAN Speed	1Gbps
Wireless LAN	802.11b/g/n
Bluetooth	Yes

Front USB	1 x USB 3.0
Other Front Ports	1 x Serial RS232 port

Jetway JBC310U91 (HBJC310U91W2807-BN) Mini / Booksize Barebone System

Jetway JBC310U91 204-Pin SO-DIMM Intel HD Graphics Integrated by CPU Mini / Bookshelf Barebones System
