Is the case compatible with all ATX motherboards, or are there specific models that fit best?

The case supports ATX, M-ATX, and ITX motherboards, indicating compatibility with a range of motherboard sizes rather than all ATX models specifically.

What are the dimensions of the JONSBO TK-3 BLACK case, and how much space does it require on a desk?

The dimensions of the JONSBO TK-3 BLACK case are 415 mm (H) x 288 mm (W) x 438 mm (D).

Questions & Answers: JONSBO TK-3 BLACK One-piece Curved Glass Case, One-piece Curved Glass, Support BTF MB/Dual 360 AIO/ATX PSU/40Series GPU, with 10 Fan Positions, 270 Degree Side View Display,Column-less,Black

Name: JONSBO TK-3 BLACK One-piece Curved Glass Case, One-piece Curved Glass, Support BTF MB/Dual 360 AIO/ATX PSU/40Series GPU, with 10 Fan Positions, 270 Degree Side View Display,Column-less,Black
Uploaded: 2026-04-24
Description: JONSBO TK-3 BLACK One-piece Curved Glass Case, One-piece Curved Glass, Support BTF MB/Dual 360 AIO/ATX PSU/40Series GPU, with 10 Fan Positions, 270 Degree Side View Display,Column-less,Black

(36)

double click image to zoom in

Top Rated Visit JONSBO Store

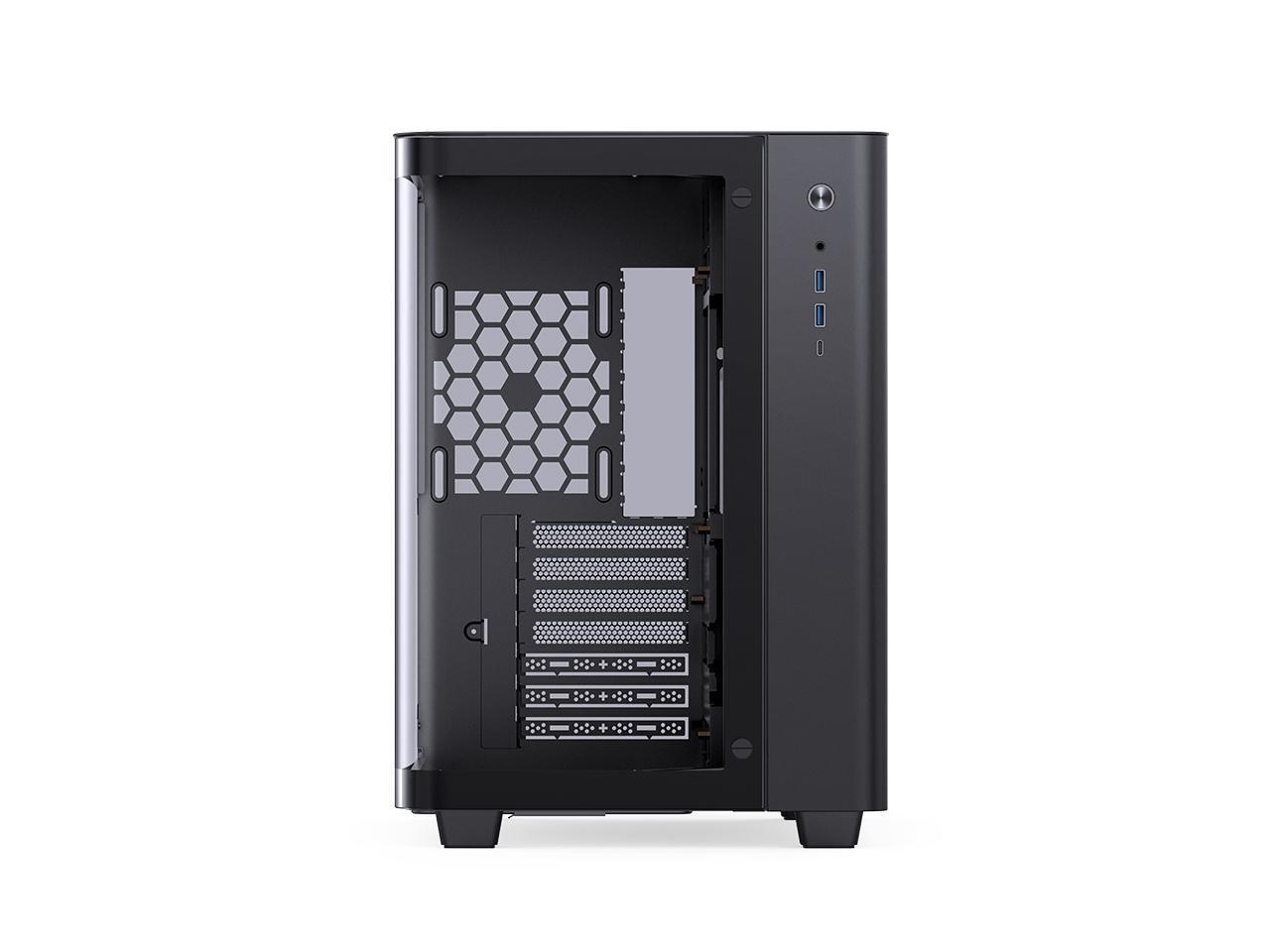

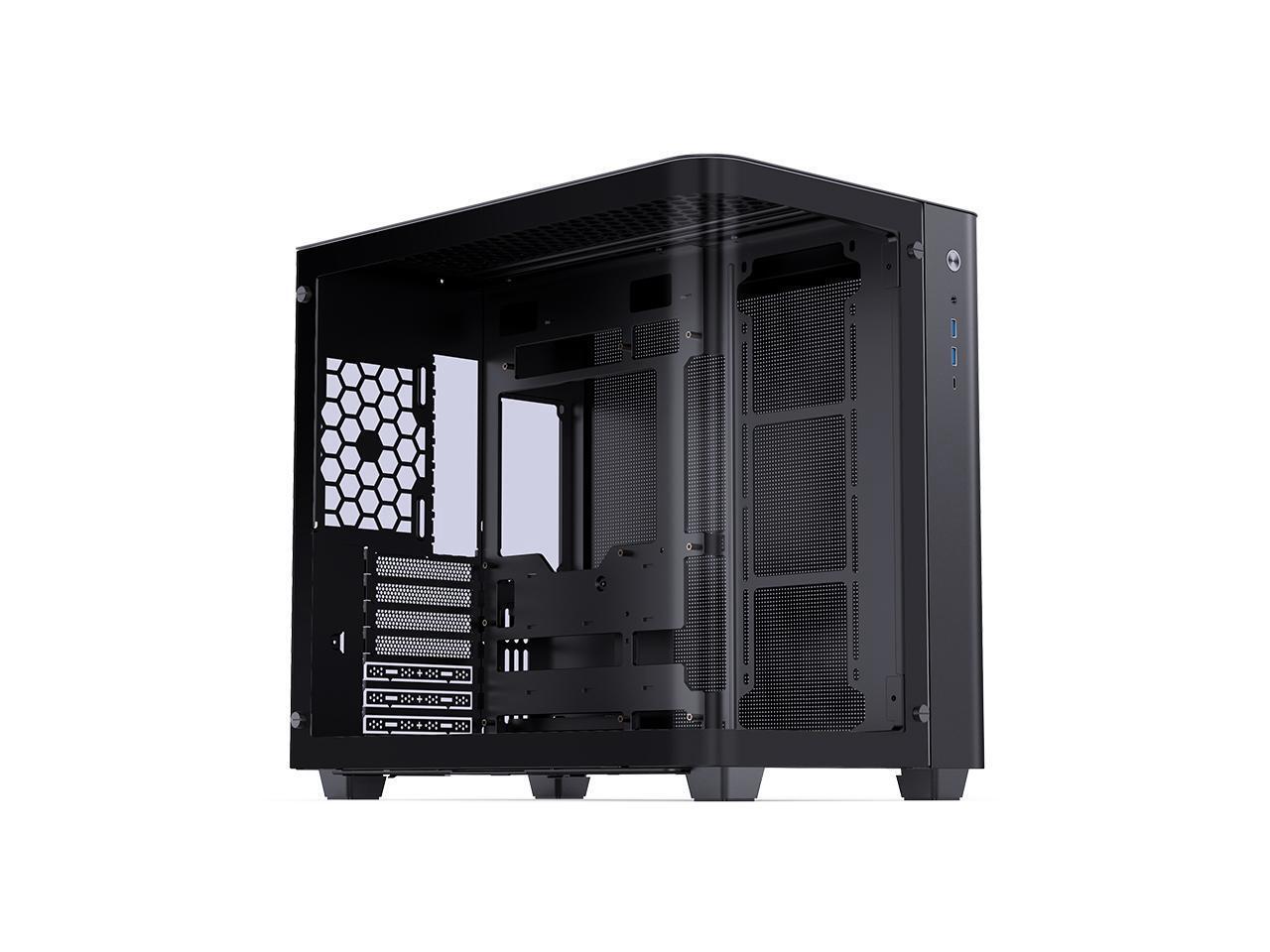

JONSBO TK-3 BLACK One-piece Curved Glass Case, One-piece Curved Glass, Support BTF MB/Dual 360 AIO/ATX PSU/40Series GPU, with 10 Fan Positions, 270 Degree Side View Display,Column-less,Black

JONSBO TK-3 integrated glass ATX case, separated cabinet case-

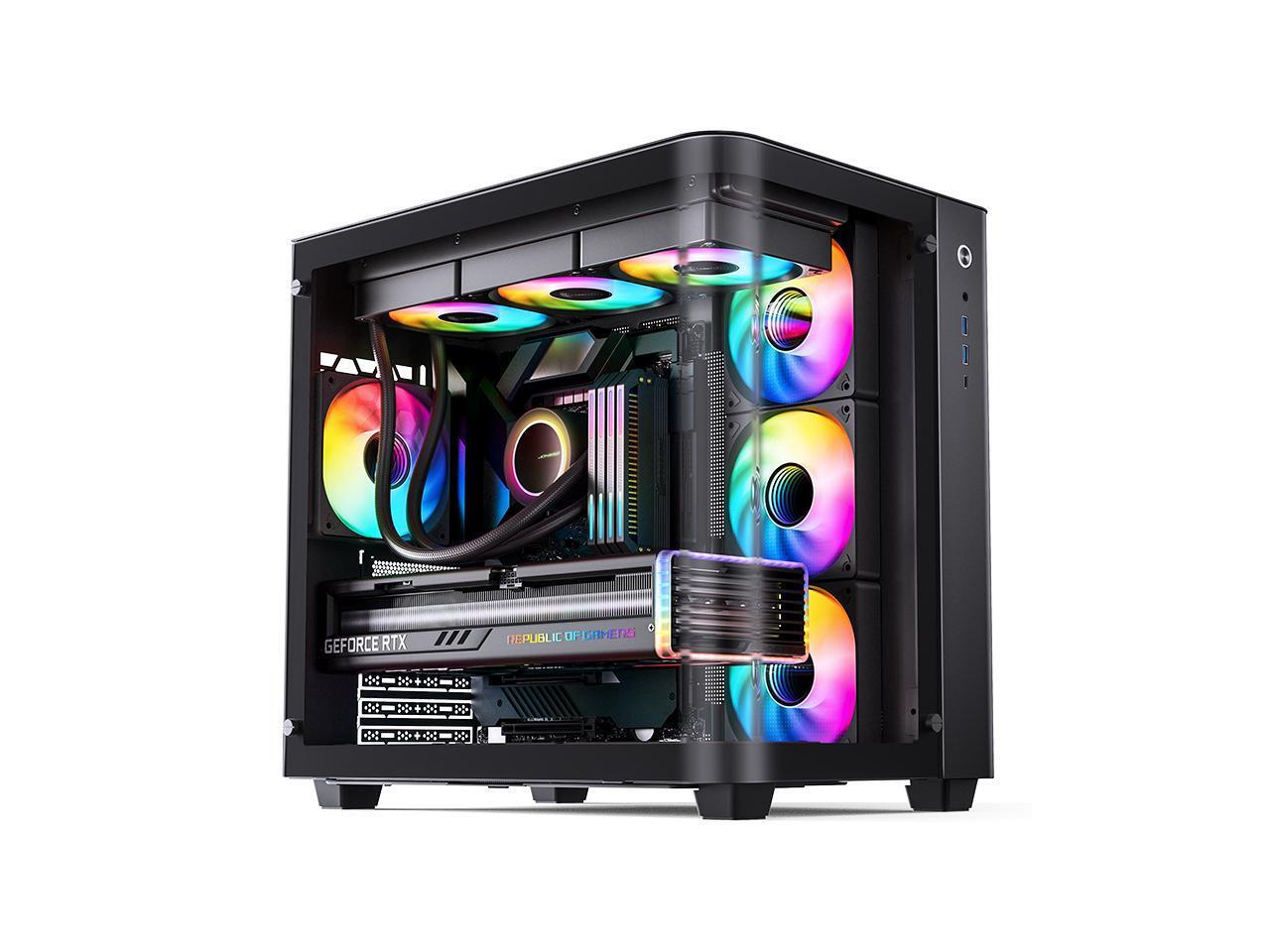

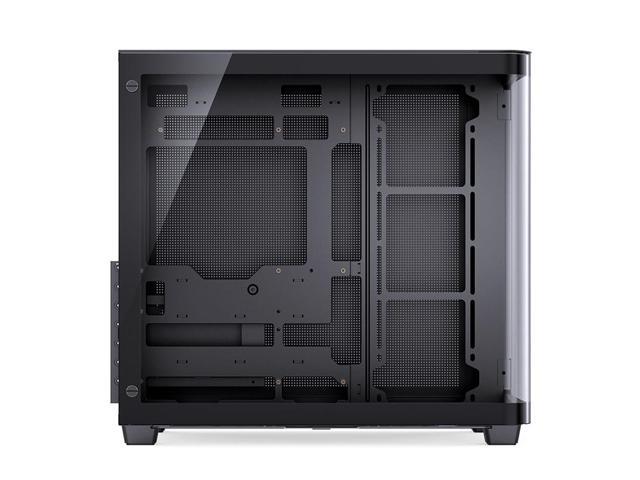

One-piece Curved Glass: 270 Degree Side View Display,column-less,full display of hardware
Tips: No tear off the curved-glass explosion-proof film

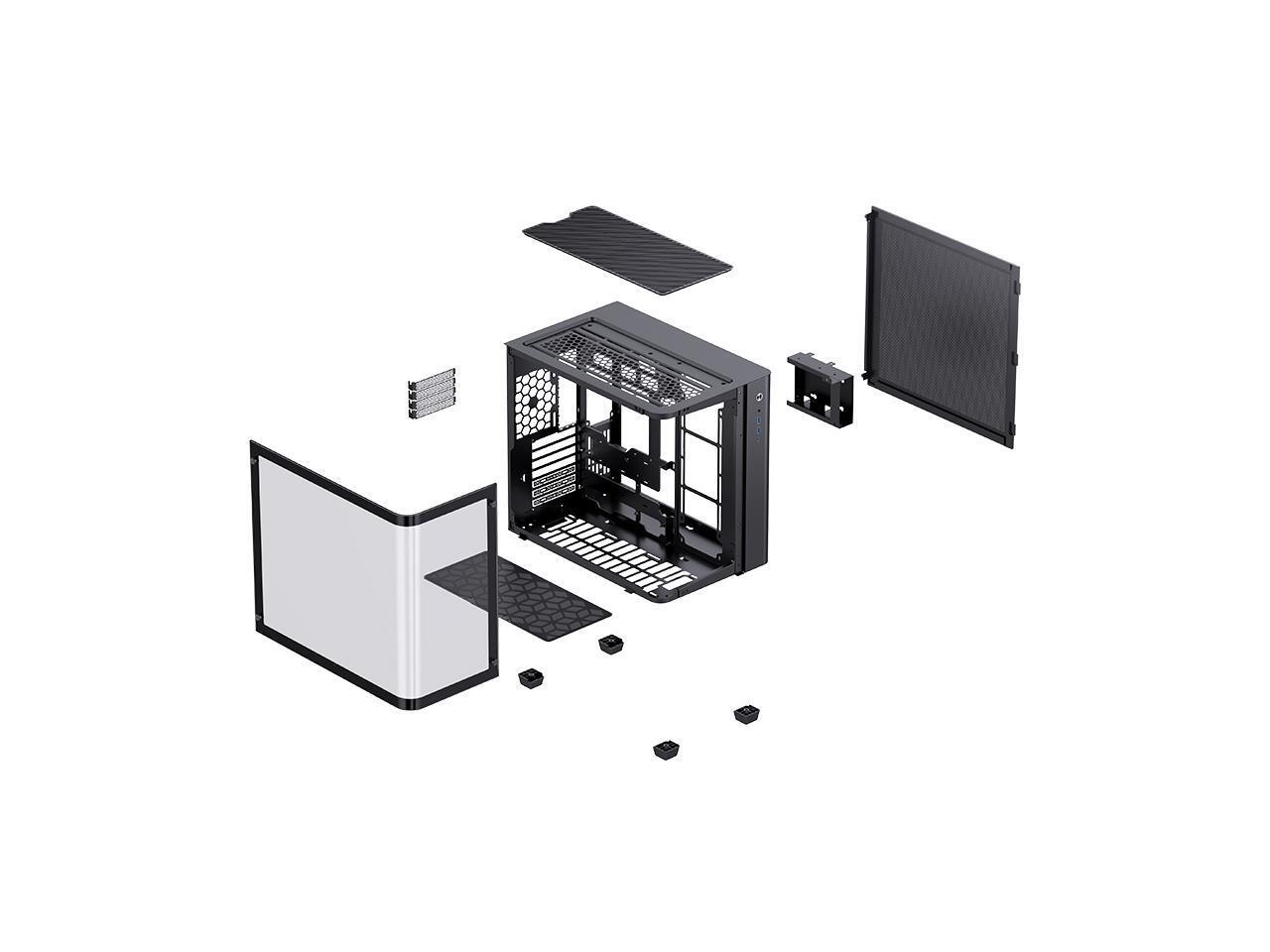

Separated cabinet case: Support back plane (BTF) motherboard
High compatibility: ATX PSU, 40series GPU, BTF MB
Cooling system : Support Dual 360 AIO (up/down)/10fan positions (Vertical upward path without heat accumulation)
Top Filter Decorative Plate, Bottom dustproof design
Specification-
Size:288mm(W) * 438mm(D) * 415mm(H) ( Included the foot)
Material: 0.7mm Steel
Drive Bay:2.5SSD*2 /3.5HDD*1 OR 3.5HDD*2/2.5SSD*1
Motherboard:ITX/M-ATX/ATX
PCI Expansion Slot:7
Front I/O Port:1*USB3.2 Gen2 Type-C/2*USB3.0
PSU Support: ATX220mm/8.66inch
Max. CPU Cooler:H165mm/6.49inch
Max. GPU:H 420mm/16.53inch
Cooling System: Top120mm*3/140mm*2(Optional)OR
AIO360x1 or 280x1
Bottom120mm*3(Optional)OR AIO 360mmx1
MB Side120mm*3(Optional)
Rear120mm*1(Optional)
N.W.:7.3kg
Color: Black
