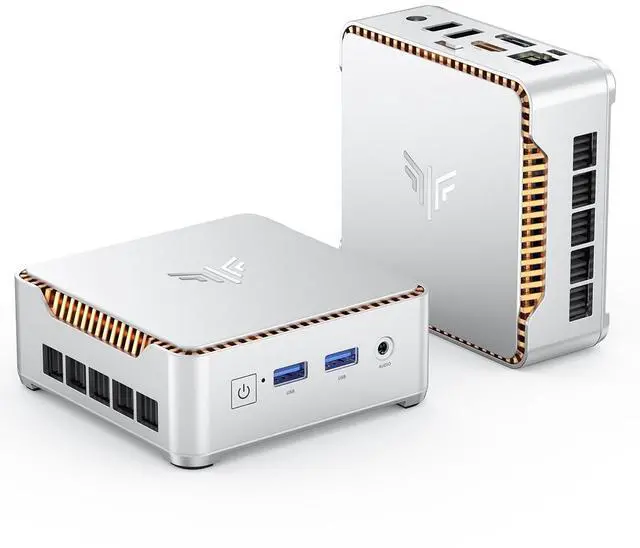

KAMRUI Hyper H2 Mini PC Intel Core i5-14450HX 16GB DDR4 512GB PCIe4.0 SSD Win11 Pro WiFi 6 3-Screen 4K Silver

Dimension: 128.2 x 128.2 x 44 mm

Color: Silver

Series: Hyper

Chassis Material: ABS+PC, Surface Spray Coating

Processor: Intel® Core i5-14450HX Processor (10 Cores: 6P+4E / 16 Threads, Intel 7 (10nm) Process, 20MB Intel® Smart Cache, Base Clock 2.4GHz, Max Boost Clock 4.8GHz)

CPU Socket: BGA 1964

TDP: 55W

GPU: Intel® UHD Graphics for 14th Gen Intel® Processors (Max Dynamic Graphics Frequency 1.5GHz, 16 Execution Units)

RAM: 16GB DDR4 3200MT/s (Single Stick, Non-Dual Channel)

Storage: 512GB M.2 2280 NVMe PCIe4.0×4 SSD

Wireless Connectivity: Wi-Fi 6 + Bluetooth 5.2 (M.2 2230)

Wired Network: 1x 10/100/1000Mbps RJ45 Gigabit Ethernet Port

Audio/Video Output: 1x HDMI 2.0 (4K@60Hz), 1x USB3.2 Gen 2 Type-C (10Gbps Data Transfer, DP1.4 (4K@60Hz), Supports PD15W Output), 1x DP1.4b (4K@60Hz) (Supports 3-Screen 4K Display)

Audio Input/Output: 1x 3.5mm Audio Jack

Interface Configuration:

1x 10/100/1000Mbps RJ45 Gigabit Ethernet Port 2x USB3.2 Gen2 Type-A Ports (10Gbps, Front) 4x USB3.2 Gen1 Type-A Ports (5Gbps, Rear) 1x USB3.2 Gen 2 Type-C (10Gbps Data Transfer, DP1.4 (4K@60Hz), PD15W Output) 1x DC IN (5.5*2.1mm) 1x HDMI 2.0 1x DP1.4b 1x 3.5mm Audio Jack 1x Power Button

Power Supply: DC 19V / 6.32A AC Adapter

Operating System: Windows 11 Pro (Supports multiple operating systems including Ubuntu, Linux, etc.)

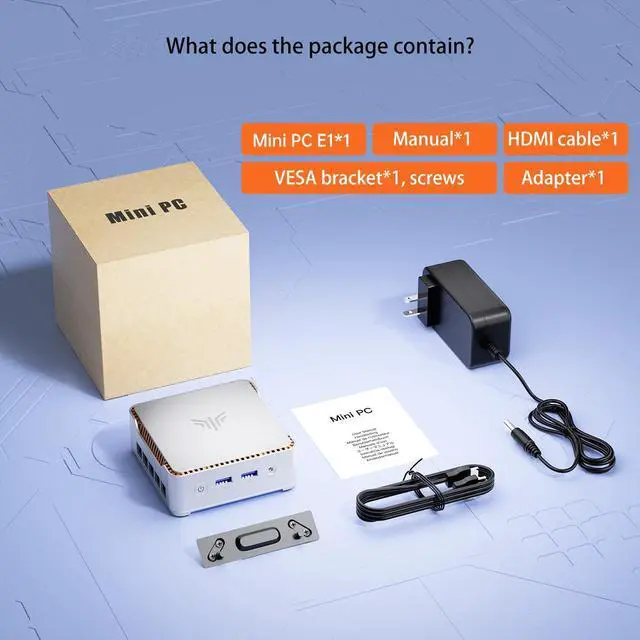

Package Included: Host, User Manual, HDMI Cable, Mounting Bracket, Screws, Power Adapter

Air Inlet/Outlet: Bottom Holes for Air Inlet, Right Side and Rear Holes for Air Outlet

Cooling System: Upgraded Quiet High-Speed Centrifugal Fan + 2 Heat Pipes + Dual Heat Fins + Optimized Dual Air Duct Design. 1. Dual Air Outlet Fan with Dual Fin Module Structure increases cooling area, improves fan air volume and enhances CPU cooling. 2. Power Devices on the Motherboard contact the copper sheet under the fins through high thermal conductivity silica gel sheets to enhance power supply cooling. 3. Full Copper Structure of Copper Sheet, Copper Plate and Copper Fins increases thermal conductivity of the cooling module. 4. SSD cools through a large aluminum sheet to ensure SSD temperature and reading speed.

Design Features: 14th Gen Intel Core i5-14450HX High-Performance Mobile CPU, Supports 3-Screen 4K Display, Newly Upgraded Cooling System (Max 55W Performance Release), Ultra-Compact Design, Rich I/O Interfaces, Pre-installed Windows 11 Pro, WiFi6/BT5.2 + 1.0Gbps Ethernet Port, Supports Tool-Free Expansion of DDR and SSD
