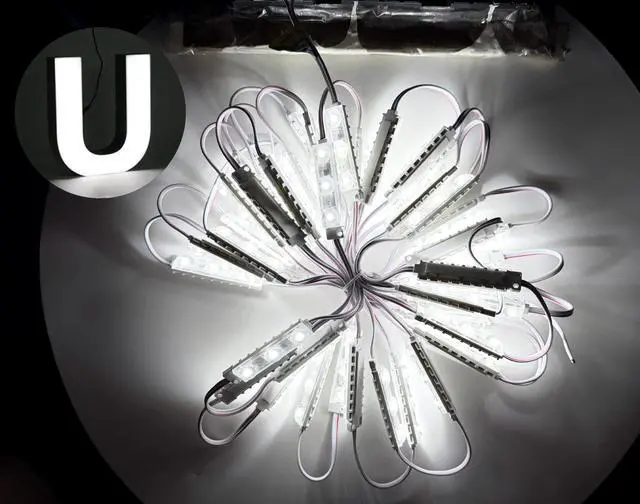

12VDC input voltage LED bright sign module strip lights, not including the power source1W single module.. Module dimensions: 64mm*19mm*11mm, cuttable spacing wire length 8.7cm, input/output wire length 8.6cm ..Emitting color6500-7000K Daylight White.
ou will receive 2 strings of 3-led modules, 50 modules per string, a total of 100 pcs LED modules(300 pcs LEDs)Each string is 50 watts, and one string can reach a maximum luminous output of 5750 lm...The quantity is sufficient to meet your daily use needs.

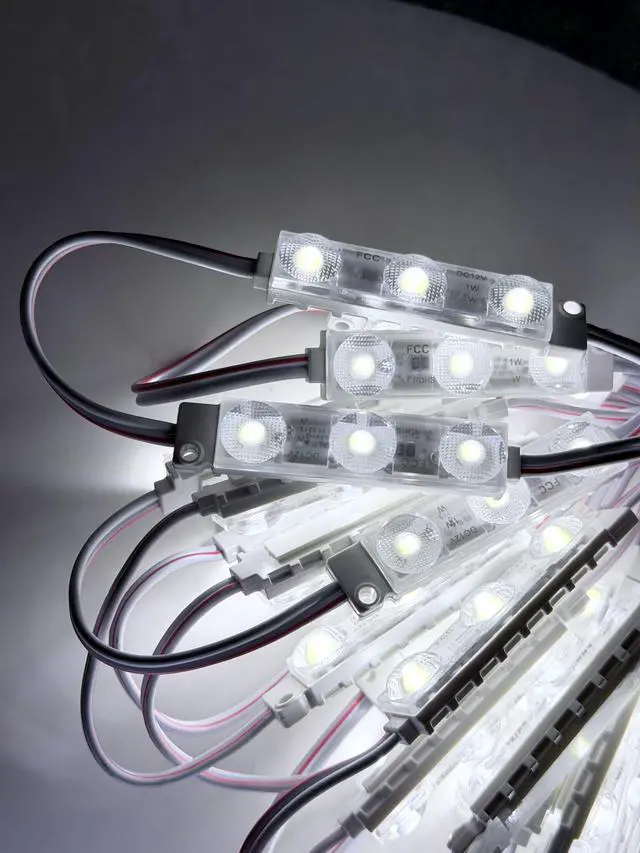

145°optic optional 300 pieces of large 2835 SMD LED chip with projection lens... Suitable for 5-25cm(2-10inchdepth channel letters & lighting boxes.
IP66 protection grade, outdoor suitable for outdoor applications. Also used in Christmas inflatable lights, window lights, lighting colorful life hotel decorative use, shopping malls and performance buildings decorative lighting, canopy and bridge edge lighting...
Anti-radiation; anti-seismic, anti-shock, no heat radiation, safe, stable, reliable; energy saving 70%The module comes with strong adhesive backing, and there are dedicated screw mounting holes on the LED module, making the combination more stable and less likely to fall off.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Description ( Model: KB-M205B-W)
Operating voltage: DC12V
Watt: 1.0W
Quantity leds: 3-led 2835 smd leds per LED module

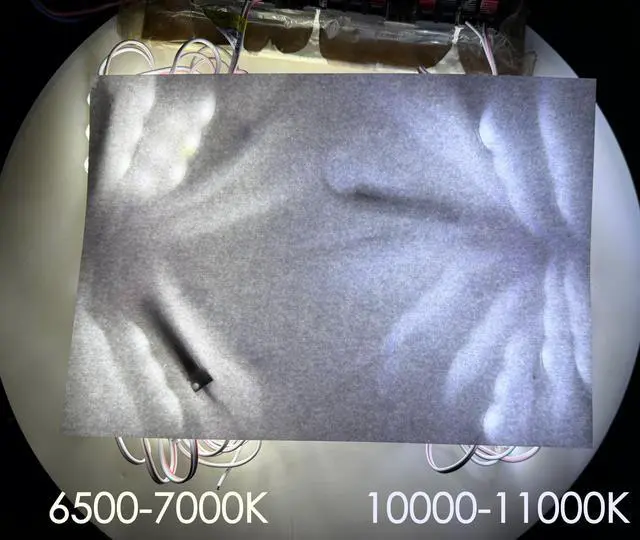

Emitting Color : 6500K-7000K Daylight white
Waterproof IP gradation: IP66
Size of module : 64*19*11mm
Length of wire(between 2 modules) : 8.7CM
Working temp: -20 ? ~ +45?
Storage temp: -30 ?~ +70 ?
Lifespan:> 50000 hours
Beam Angle : 145deg
Applications : Store, Restaurant, Coffee, Bar, Bank, Airport, Railway, public advertise and notice .Channel Letters Backlighting, Advertisement Signs, and Signage letters .
Package included: 100pcs/Package
Description ( Model: KB-M205B-W)
Operating voltage: DC12V
Watt: 1.0W
Quantity leds: 3-led 2835 smd leds per LED module
Emitting Color : 6500K-7000K Daylight white
Waterproof IP gradation: IP66
Size of module : 64*19*11mm
Length of wire(between 2 modules) : 8.7CM
Working temp: -20 ? ~ +45?
Storage temp: -30 ?~ +70 ?
Lifespan:> 50000 hours
Beam Angle : 145deg
Applications : Store, Restaurant, Coffee, Bar, Bank, Airport, Railway, public advertise and notice .Channel Letters Backlighting, Advertisement Signs, and Signage letters .
Package included: 100pcs/Package
100 PCS 3-LED Commercial Light Strip, 1W SMD2835 IP66 Waterproof, With Tape Adhesive Backside led lighting for Channel Letters Advertising Signs Box (Not include Adapter) (6500-7000K, Daylight White)
Learn more about the Generic Brand MA633E-W
Details
Brand
KBLED LAMP
Type
LED Light Fixtures
Lamp Type
LED
Shape
Strip Lights
Housing Color
Daylight White
Color Temperature
6500 kelvin
Temperature Range
6500 kelvin
Rated Life
3 year.
Compatibility/Fitment
MA633E-W
Voltage
12
Watts
1 watts
Standards/Certifications
IP66
Model
MA633E-W
Model
Part Number
MA633E-W
Details
Parts
3 Years
Labor
3 Years
Additional Information
First Listed on Newegg
August 05, 2026
