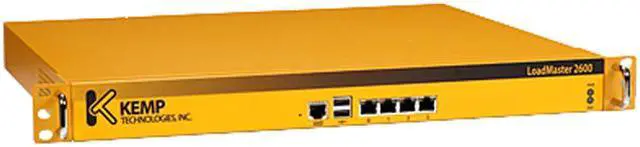

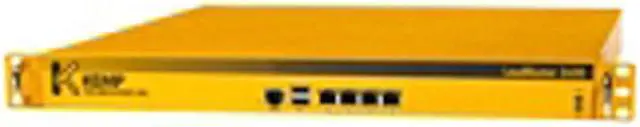

KEMP LM2600 LoadMaster 2600 Server Load Balancer

Be the first to review this product...

LM2600
Server Load Balancer

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

The LoadMaster 2600 is an advanced, 4 GbE-port server load balancing and Layer 7 content switching appliance with integrated ASIC-based SSL Acceleration. The LoadMaster intelligently and efficiently distributes Web traffic among Web servers so that your site's users get the best experience possible.

Model
Brand	KEMP
Model	LM2600

Details
Type	Server Load Balancer
Specifications	Standard: - Server Load Balancing (SLB) for TCP/UDP based protocols - SSL Acceleration/Offload in ASIC - Layer 7 Content Switching - Advanced, App-Transparent Caching Engine for HTTP/HTTPS protocols - Optimized Compression for Static and Dynamic HTTP/HTTPS Content - Layer 7 Intrusion Prevention System (IPS), SNORT-Rule Compatible - Up to 500 Virtual and 1000 Real Servers - NAT-based forwarding - Support for Direct Server Return (DSR) configurations - Support for MS Terminal Services with Session Reconnection Built-in - Configurable S-NAT support - VLAN Trunking (802.1Q) - Link Interface Bonding (Modes supported: 802.3ad, Link Failover) Performance: - Max Balancer L4 Throughput Up To 1.7Gbps - Max Balancer L7 Throughput Up To 1.5Gbps - Max Interface Throughput 4 X 949.2Mbps - 69,000 L7 (http) requests per second - 100,000 L7 concurrent connections Sticky (Persistence) Connection Options: - Source IP (L4) - SSL SessionID (L4) - HTTP/HTTPS Browser-session (L7) - HTTP/HTTPS WebClient-session (L7) - RDP Login ID (L7) - Port Following for mixed HTTP/HTTPS sessions Security Functionality: - Layer 7 Intrusion Prevention System (IPS), SNORT-Rule Compatible - Black List (Access Control List system) - IP address filtering - Firewall filtering (everything forbidden except VS's) - DDoS mitigation Hardware Platform: - Intel Dual Core Processor - 4 X GbE Auto-negotiating, Full Duplex Eth. Ports - Bootable DOM (No Hard Disks) - 2 GB RAM - Local admin via console/VGA and USB - Dimensions: 427 x 458 x 44 mm - Weight: 28.66bs (13kg) - 350W ATX power supply - Certifications: CE/FCC Class A, UL Listed, RoHS Compliant

Features
Features	Server Load Balancing - Layers 4 and 7 4 X GbE ports Up to 256 Virtual and 1000 Real Servers SSL Acceleration Layer 7 Content Switching Caching, Compression and IPS IP and Layer 7 Persistence (sticky) High Availability - 99.999% (Hot Standby) Server and Application Health Checking Intuitive Web User Interface Ultra-Low Power Consumption

Additional Information
First Listed on Newegg	August 13, 2014

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.
