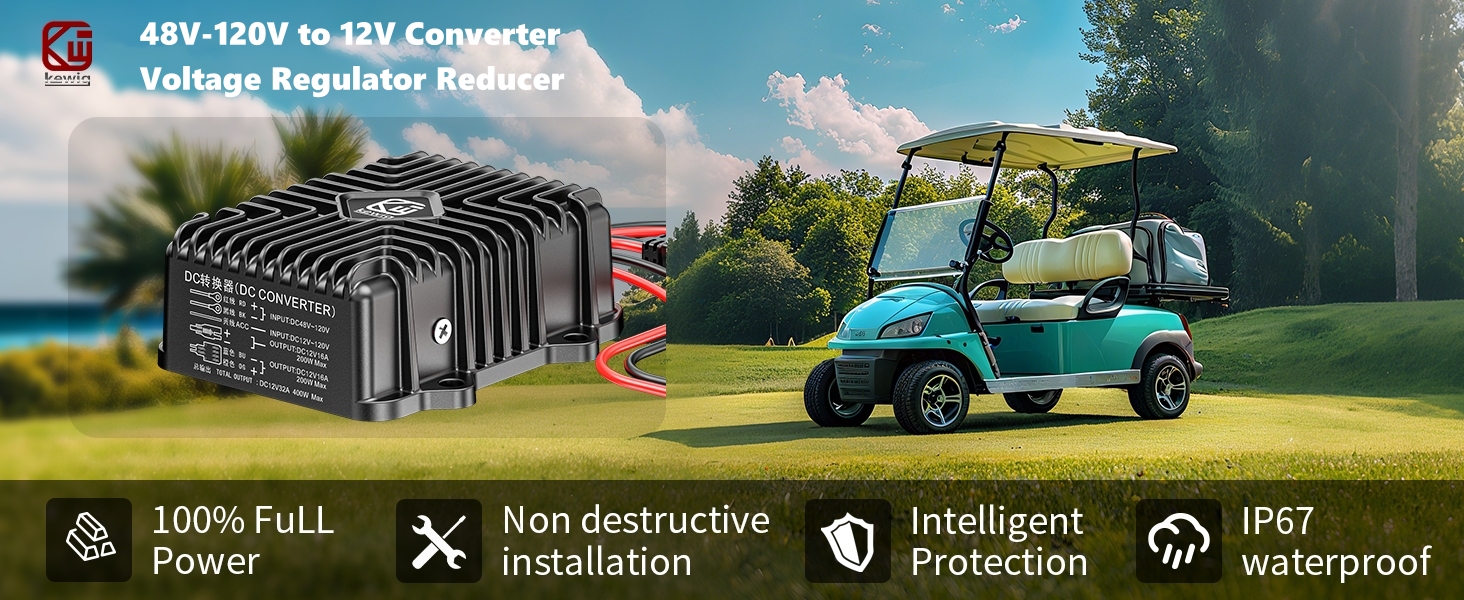

400W 32A 12V Golf Cart 48V-120V to 12V Converter Voltage Regulator Reducer Transformer with Fuse DC Convert Regulator Power Supply Buck Transformer Module for Motorcycle Golf Cart Scooters

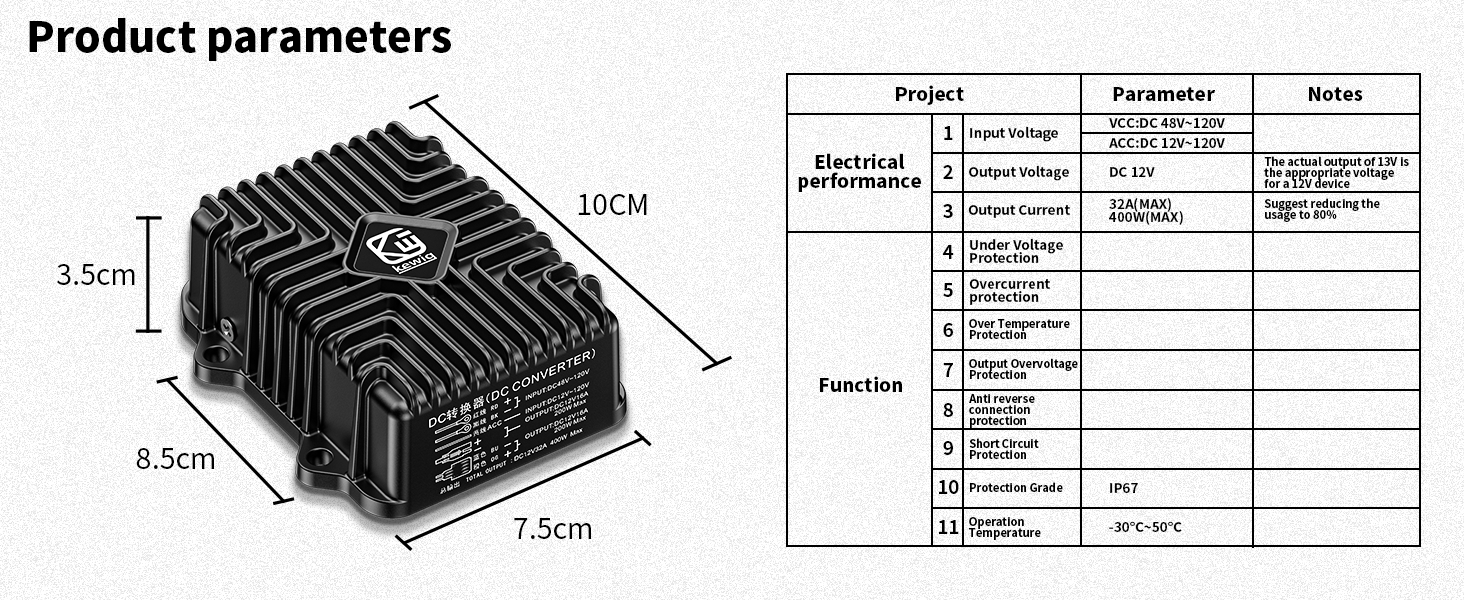

- DC 48V-120V to 12V Converter: Input Voltage Range: VCC: DC 48V-12V, ACC: DC 12V- 120V; Output voltage: DC 12V; Output current: 32A(Max); Output power: 400W (Max) When only use one port total power: 400W; When use two port at time, each port power is: 200W NoteThe Yellow Wire Must need to connect ACC Or the "+ postive pole of the battery

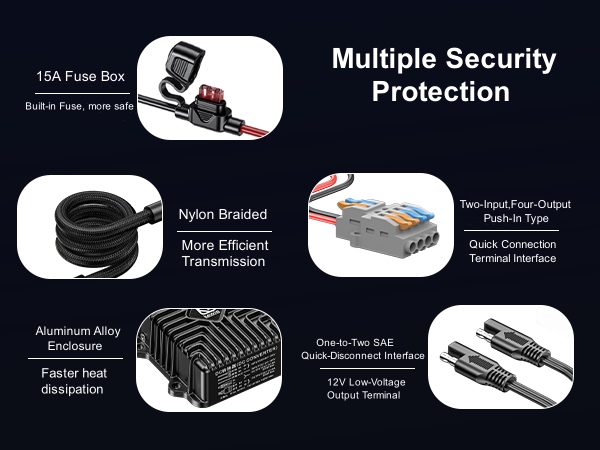

- Intelligent Protection, Safer to Use: Built in with smart chip and fuse can provides full protection overload, overcurrent, overtemperature,Output overvoltage, Reverse polarity and Output short circuit protection

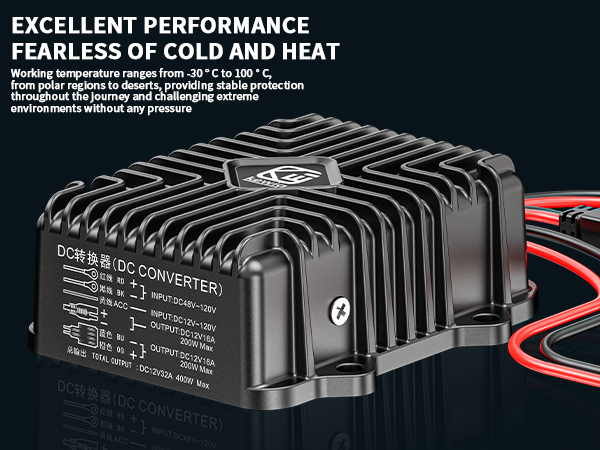

- Conversion High Efficiency: Our converter is built to last with a sturdy die-cast aluminum shell and high-quality design, the synchronous rectification technology make step down converter's conversion efficiency up to 98% with stability, also the aluminum shell is conducive to accelerate heat dissipation and prevent overheating

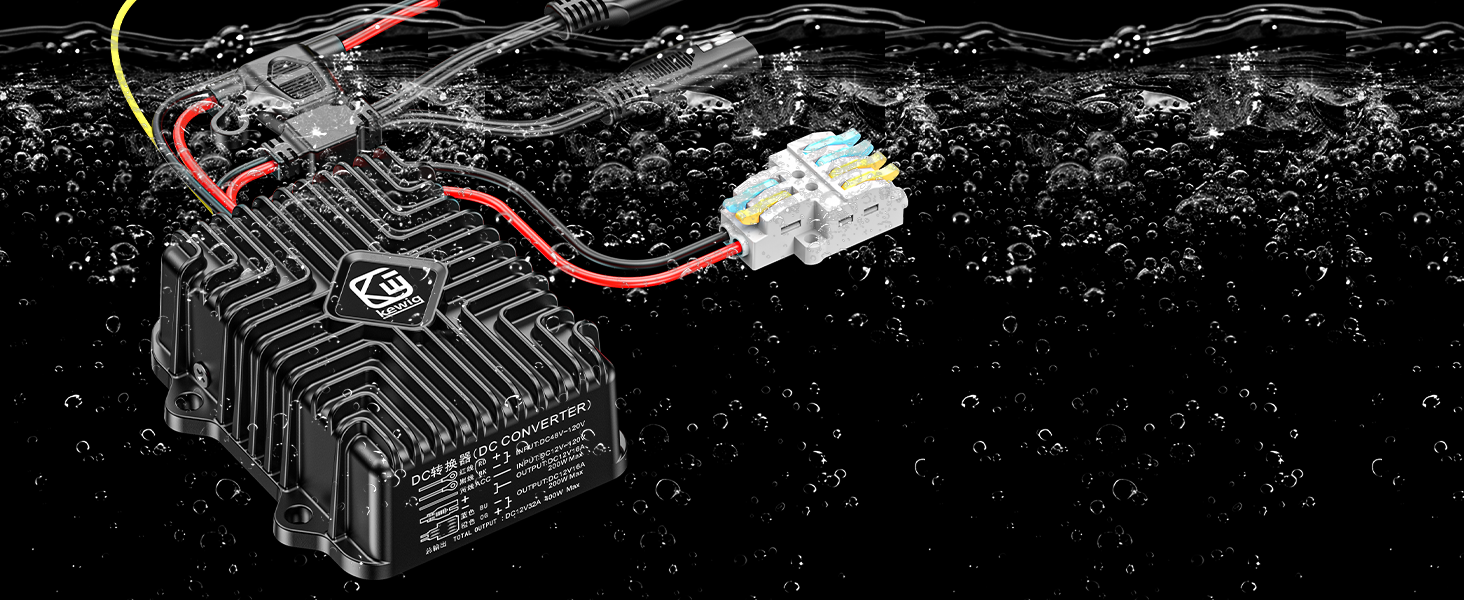

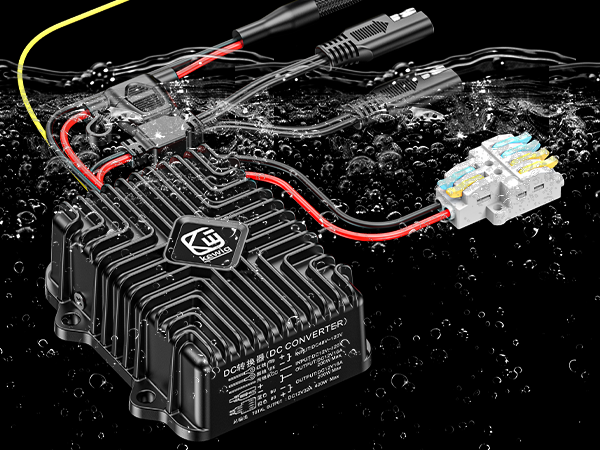

- Waterproof & Anti-Shock Protection: Designed with aluminum shell and silicone sealed, Excellent IP 67 rating waterproof, dustproof, explosion-proof, shock-resistant properties and adapt to a variety of harsh environment

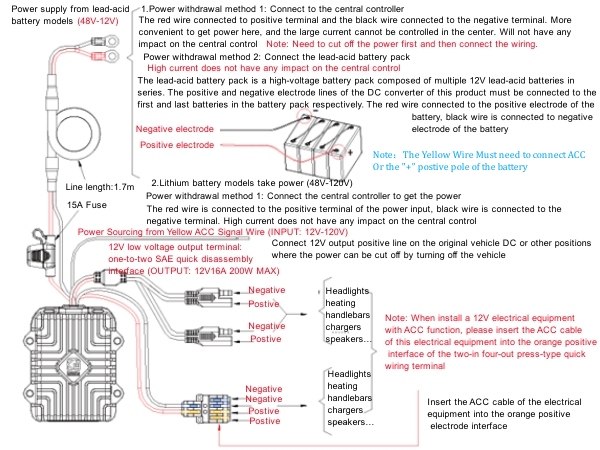

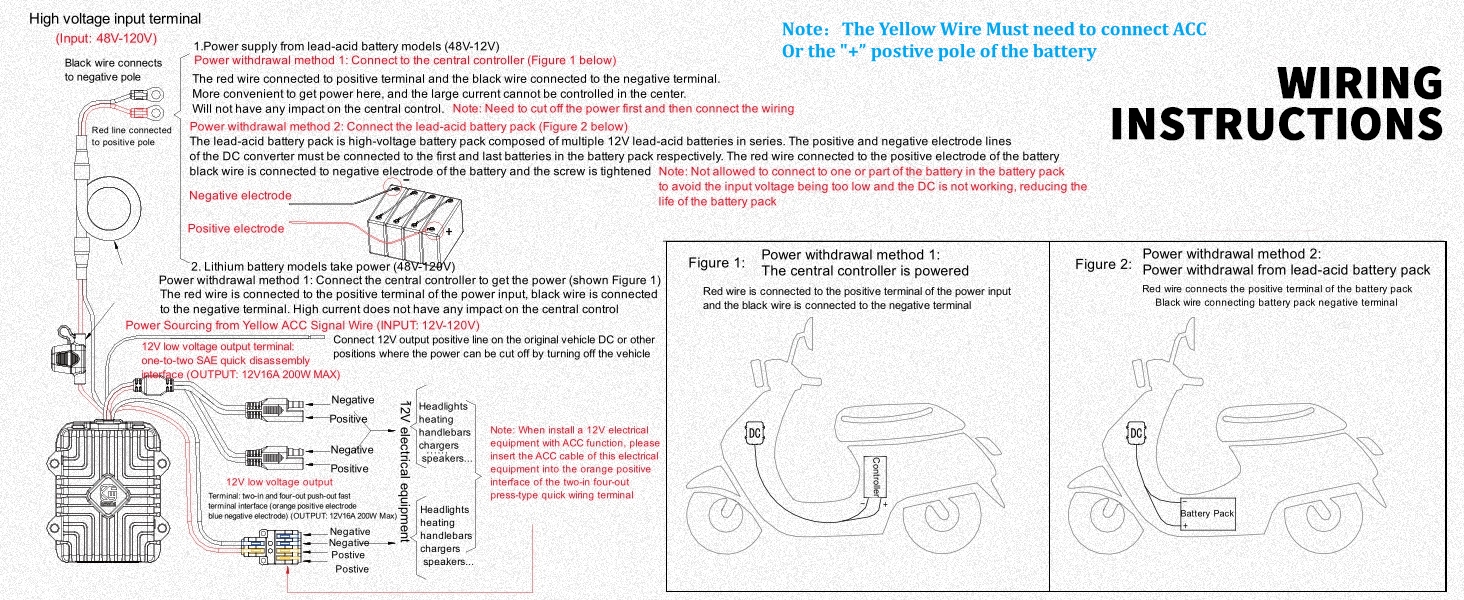

- Connect Way: The Red Wire Connect to the "+" postive pole of battery; Black Wire Connect to the "-" negative pole of battery; Yellow Wire need to connect to the ACC or "+" postive pole of the battery; Note: If connect to auto/golf cart, the Yellow Wire suggest connect to ACC, If only test, the Yellow Wire must need to connect to the "+" postive pole of the battery
+
+
