Kingston - KSM26SED8/16ME - Kingston 16GB DDR4 SDRAM Memory Module - 16 GB - DDR4-2666/PC4-2666 DDR4 SDRAM - CL19 - 1.20

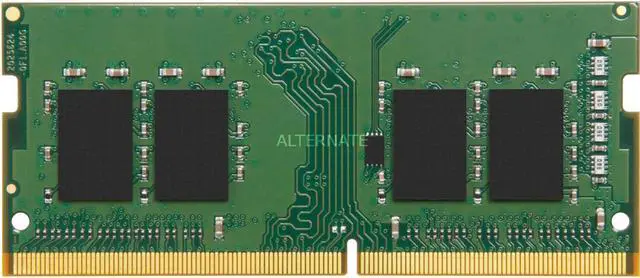

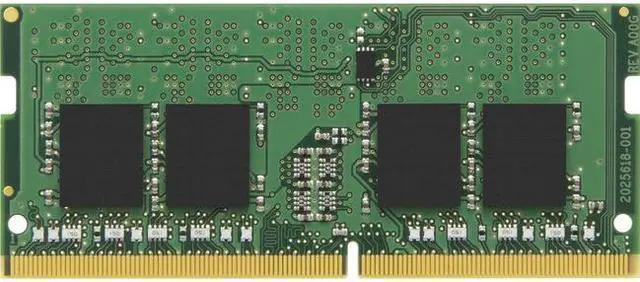

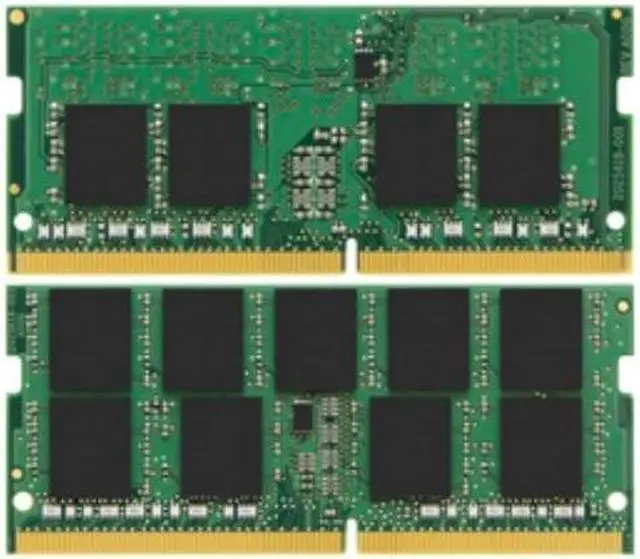

Kingston's KSM26SED8/16ME is a 2G x 72-bit (16GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM) w/ parity, 2Rx8, ECC, memory module, based on eighteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 260-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows: FEATURES •
Power Supply: VDD = 1.2V • VDDQ = 1.2V • VPP = 2.5V • VDDSPD = 2.20V to 3.60V • Functionality and operations comply with the DDR4 SDRAM datasheet • 16 internal banks • Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available •
Data transfer rates: PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600 • Bi-Directional Differential Data Strobe • 8 bit pre-fetch • Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop) • Supports ECC error correction and detection • On-Die Termination (ODT) • Temperature sensor with integrated SPD • This product is in compliance with the RoHS directive. • Per DRAM Addressability is supported • Internal Vref DQ level generation is available • Write CRC is supported at all speed grades • CA parity (Command/Address Parity) mode is supported • RoHS Compliant and Halogen-Free
Product Type: RAM
Module CAS Latency: CL19
Device Supported: Server
Error Checking: ECC Number of
Pins: 260-pin
Signal Processing: Unbuffered
Product Type: RAM
Module CAS Latency: CL19
Device Supported: Server
Error Checking: ECC Manufacturer
Part Number: KSM26SED8/16ME Number of
Pins: 260-pin
Signal Processing: Unbuffered
Form Factor: SoDIMM
Memory Speed: 2666 MHz
Form Factor: SoDIMM
Manufacturer: Kingston
Technology Company Memory Speed: 2666 MHz
Product Name: 16GB DDR4 SDRAM
Memory Module Memory Size: 16 GB
Brand Name: Kingston
Memory Size: 16 GB
Brand Name: Kingston
Memory Technology: DDR4 SDRAM
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2666/PC4-2666
Memory Standard: DDR4-2666/PC4-2666
Memory Voltage: 1.20 V
Memory Voltage: 1.20 V
