Schematic diagram of crimping, if you are not sure, you can watch the video.
1
First strip the wire and thread it into the ferrule.
2

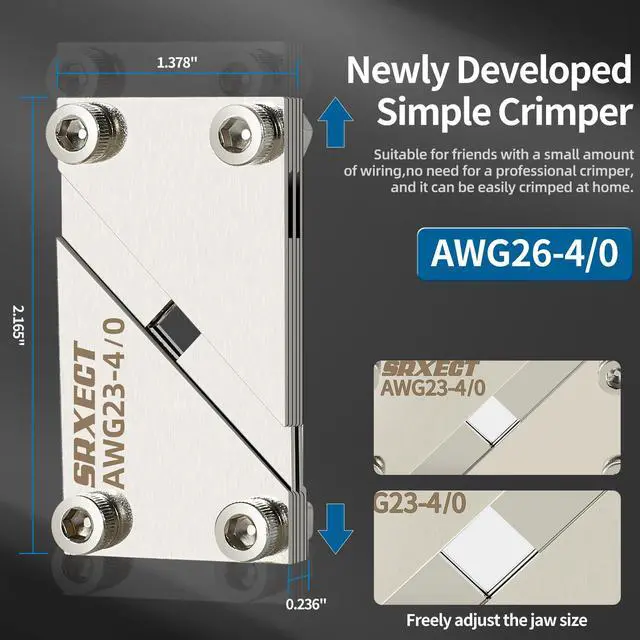

Turn on the crimping tool and adjust it to the size suitable for the ferrule.
3

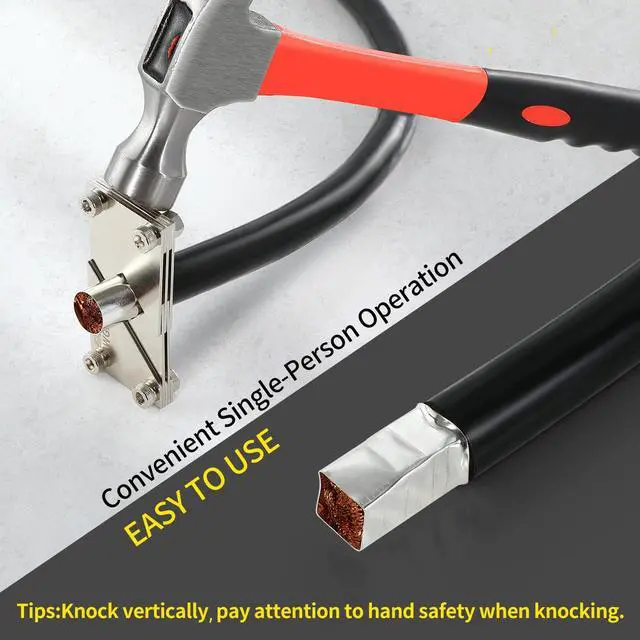

Place the ferrule into the pliers' jaws, hold the crimping pliers with one hand, and strike with a hammer using the other hand.
Tip: After striking at one position, move the ferrule and strike again until it becomes square.

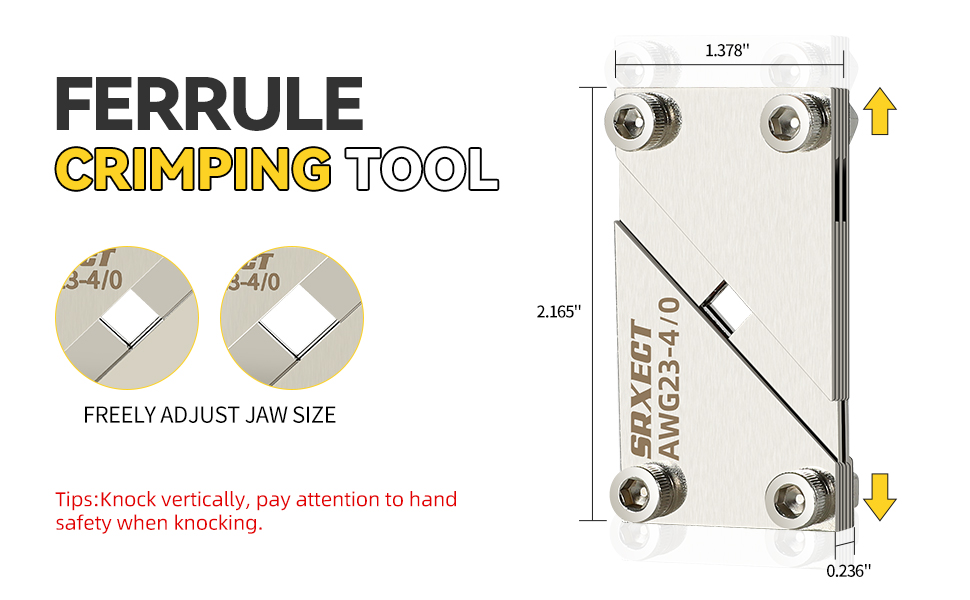

Strike vertically, and be cautious about hand safety during the striking process!
4
When the ferrule turns into a square, it is completed, and it can be placed on the heat shrinkable tube as needed.
Tips:According to the needs, decide whether the ferrule needs to be crimped, because the shape changes after crimping, and the ferrule cannot be inserted in some places.
