KuWFi A770 Ceiling Mount Wireless Access Point, Dual Band Wireless Wi-Fi AP Router with 48V POE Long Range Wall Mount Ceiling Router supply a stable wireless coverage

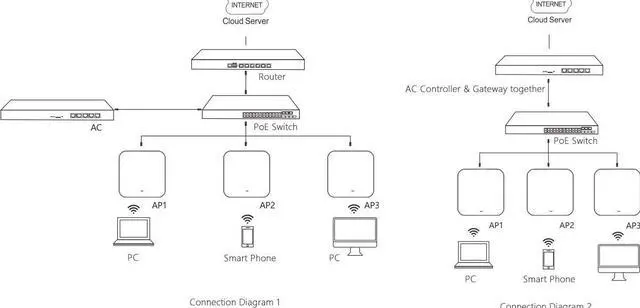

Description: A770 is an 11ac dual band indoor ceiling mount wireless access point for hotels, cafe, hospital, school, shopping mall and home. Comply IEEE 802.11 ac MIMO Technology, 750Mbps high speed, integrated 48V Passive PoE (Power over Ethernet), it can be installed in areas where power outlets are not readily available, easy installation and lower cost; Housed in a ceiling mountable case, the A770 can be installed on a wall or ceiling to blends in nicely with most interior decorations in the house, to extend optimum wireless signal. Work with WLAN Controller, centralized configuration and management, easy to achieve Wi-Fi Coverage and maintenance, access into Cloud Server to do remote monitor and Captive Portal authentication for more business value. 750Mbps dual 2.4GH z and 5.8GH z high performance ceiling mount wireless access point with Qualcomm Chipset, 5dBi omni antenna, with, then 48V Passive PoE support for easy install. PCB board with external PA, LNA circuit, more RF Power and higher receive sensitivity, improved the wall-pass-through capacity and increased Wi-Fi range. Power over Ethernet (PoE) -Integrated 48V Passive Power over Ethernet (PoE), work with 48V passive PoE switch or PoE adapter, plug and play, installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.

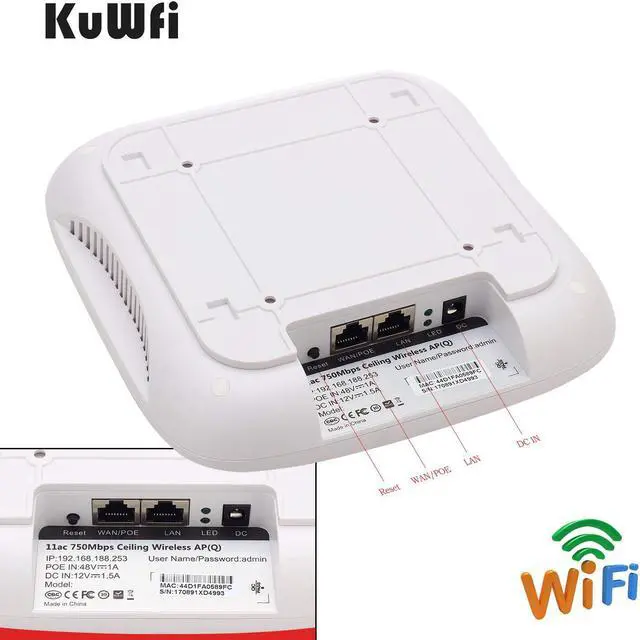

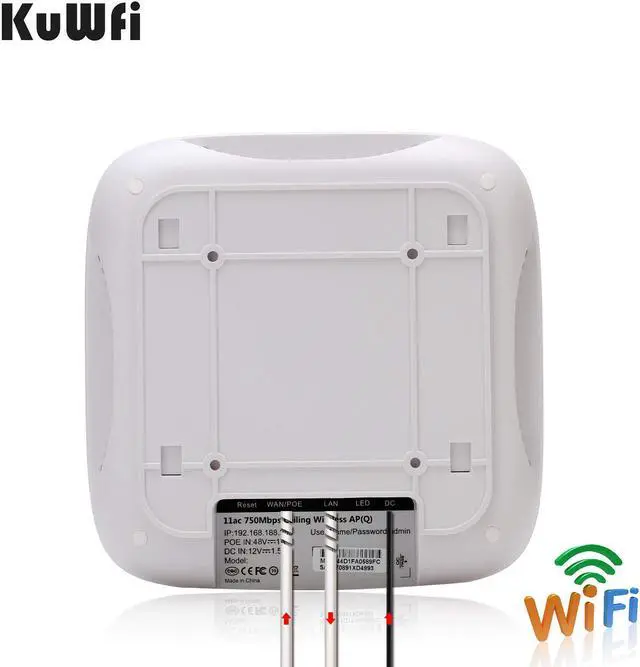

Build in Wi-Fi Channel Analysis Tool for best channel-Build in Smart Channel Analysis Tool, help to select the less Wi-Fi Interference channels, ensure the stability wireless signal supply a stable wireless coverage. Multiple SSID and Tag VLAN Support-It support multiple SSID up to 4, different SSID can banding different VLAN ID to achieve user isolation and data security. Work with Cloud Server for Remote Management and Captive Portal-Access into cloud server, easy to do remote management and maintenance features: Wireless 802.11 ac, 750Mbps MIMO Technology Interface 2*10/100Mbps RJ45 Ports 1* Reset Button to restore factory default 1*DC
Port Antenna: 2.4GH z High Gain omni 5dBi Internal Antenna; 5.8GH z 5dBi
Internal Power: DC 12V/1A;
PoE: 48V Passive
PoE Size: 188mmX188mmX50mm
Data Rate: 2.4G 300Mbps, 5G: 450Mbps
Operation Mode: Gateway, Repeater,
Wireless AP Network Protocol: IEEE
802.3 (Ethernet): IEEE
802.3 u (Fast Ethernet): IEEE 802.11 ac/n/g/b Applicable to the Hotel Familia office and Restaurant
