LevelOne GSW-0807 Gigabit Switch
- Compact size 8-port Gigabit Network Switch
- Supports MDI / MDI-X auto crossover
- Supports half-duplex and full-duplex auto-detection
- Provides wire-speed packet filtering and data forwarding
- Supports back-pressure and flow control
- Features Store-and-Forwarding architecture
- Supports 8k MAC address entries, 144KB buffer memory and 9K Jumbo frame rate

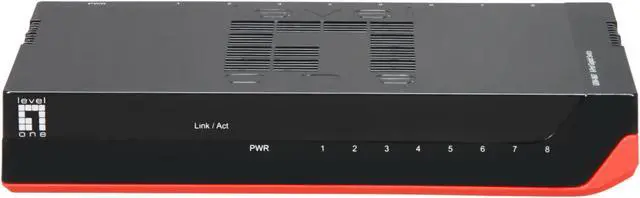

- Extensive LED indicators for network diagnostics
- Save up to 84% power compare to non Green Switch with similiar functions
Overview
Specs
Reviews (41)
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Overview
The LevelOne GSW-0807 Gigabit Ethernet Switch is designed for reliable high-performance networking. With its non-blocking switching fabric in full-duplex mode, this switch can deliver up to 2000Mbps per port, while the Store-and-Forward service brings low latency and error-free packet delivery. This highperformance Gigabit Ethernet switch is perfect for fulfilling the demands of online gaming and multimedia streaming. Moreover, this switch also supports IEEE 802.3az Energy Efficient Ethernet which helps reduce power consumption.Power Saving Features
The GSW-0807 supports IEEE 802.3az Energy Efficient Ethernet to provide power-saving benefits without compromising performance. One of the ways it does this is by automatically detecting the length of connected cables and can adjust power usage by saving energy on shorter cable connections.
Compact and Stylish Design
The stylish, compact wall-mountable housing of GSW-0807 fits any working environment. It comes with 8 10/100/1000Mbps ports to meet SOHO and home network expansion needs.Easy to Use
The GSW-0807 features plug-and-play for easy installation. No configuration is required. Autonegotiation on each port senses the link speed of a network device and adjusts for compatibility and optimal performance.
Save Power With LevelOne Green Technology
Active Link Detection:
A LevelOne Green device can tell if there is activity on each individual LAN port. If a 5-port switch only has 3 active devices connected to it, power is saved because no traffic is routed to the 2 inactive ports.
A LevelOne Green device can tell if there is activity on each individual LAN port. If a 5-port switch only has 3 active devices connected to it, power is saved because no traffic is routed to the 2 inactive ports.
Cable Length Detection:
The switch is able to detect the distance of the connected device and adjust its power accordingly. For example, if you have a LevelOne Green switch a computer connected to a 10-meter cable will consume less power than a computer connected to a 100-meter cable.
The switch is able to detect the distance of the connected device and adjust its power accordingly. For example, if you have a LevelOne Green switch a computer connected to a 10-meter cable will consume less power than a computer connected to a 100-meter cable.
Sleep Mode:
The device will enter sleep/standby mode when the connected devices are powered down and no active links are detected. This helps save energy consumption during extended periods of network inactivity, such as nights, weekends and holidays.
The device will enter sleep/standby mode when the connected devices are powered down and no active links are detected. This helps save energy consumption during extended periods of network inactivity, such as nights, weekends and holidays.
Key Features
- 8 x 10/100/1000Mbps Auto-negotiation Gigabit Ethernet ports
- Auto MDI/MDI-X for each port
- Supports full-/half-duplex transfer modes
- Supports 8K absolute MAC addresses
- Supports 128KBytes RAM for data buffering
- Supports IEEE 802.3x full-duplex / half-duplex backpressure flow control
- Supports 9KB Jumbo Frames
- Supports IEEE 802.3az Energy Efficient Ethernet

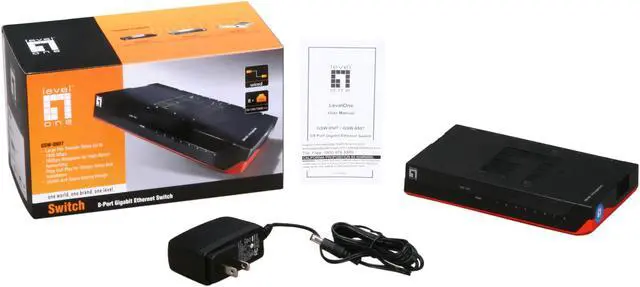

Package Contents
- GSW-0807
- Power Adapter
- Quick Installation Guide
- Wall-Mount Kit
| Model # | GSW-0507 | GSW-0807 | GSW-0509 | GEU-1621 | GEU-2429 | GSW-2457 |
| Ethernet Port | 5 x 10/100/ 1000Mbps |
8 x 10/100/ 1000Mbps |
5 x 10/100/ 1000Mbps |
16 x 10/100/ 1000Mbps |
24 x 10/100/ 1000Mbps |
24 x 10/100/ 1000Mbps |
| Fiber Port | - | - | - | - | - | - |
| Fiber Slot | - | - | - | - | 4 x 1000BASE-X SFP | - |
| Expansion Slot | - | - | - | - | - | - |
| MAC Table | 8K | 8K | 8K | 8K | 16K | 8K |
| Buffer Memory | 128KB | 128KB | 125KB | 256KB | 448KB | 512KB |
| Jumbo Frame | 9KB | 9KB | 9KB | 9KB | 9KB | 10KB |
| Power Supply | External | External | Internal | Internal | Internal | Internal |
| Green Technology | Yes | Yes | No | No | Yes | No |
The LevelOne GSW-0807 is a high-performance 10/100/1000Mbps Gigabit Ethernet switch with 8 Gigabit Ethernet ports. It provides for flexible network architecture where users can utilize a Gigabit LAN network without bandwidth limitations.
The GSW-0807 is ideal for micro-segmenting large networks into smaller, connected subnets for improved performance, enabling the bandwidth demanding multimedia and imaging applications. It is 1000BASE-T compliant and supports full- and half duplex auto-detection modes. It further supports MDI/MDI-X auto crossover and IEEE802.3x flow control.
Gigabit LAN ConnectivityThe GSW-0807 is ideal for micro-segmenting large networks into smaller, connected subnets for improved performance, enabling the bandwidth demanding multimedia and imaging applications. It is 1000BASE-T compliant and supports full- and half duplex auto-detection modes. It further supports MDI/MDI-X auto crossover and IEEE802.3x flow control.
Optimized Network PerformanceThe switch makes use of Store-and-Forward switching for faultless data packet transmissions. It provides 9K bytes jumbo frames for enhances network performance. The GSW-0807 Gigabit Switch is plug-n-play and doesn’t require any software installation or configuration.
Compact SizeThe GSW-0807 is hosted in a compact and fan-less metal enclosure for easy use on a desktop or in space limited environments.
Gigabit LAN ConnectivityThe GSW-0807 is ideal for micro-segmenting large networks into smaller, connected subnets for improved performance, enabling the bandwidth demanding multimedia and imaging applications. It is 1000BASE-T compliant and supports full- and half duplex auto-detection modes. It further supports MDI/MDI-X auto crossover and IEEE802.3x flow control.
Optimized Network PerformanceThe switch makes use of Store-and-Forward switching for faultless data packet transmissions. It provides 9K bytes jumbo frames for enhances network performance. The GSW-0807 Gigabit Switch is plug-n-play and doesn’t require any software installation or configuration.
Compact SizeThe GSW-0807 is hosted in a compact and fan-less metal enclosure for easy use on a desktop or in space limited environments.Warranty & Returns
