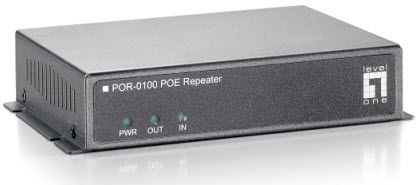

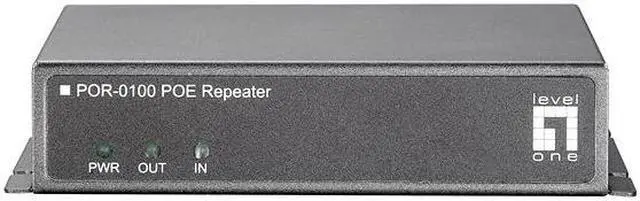

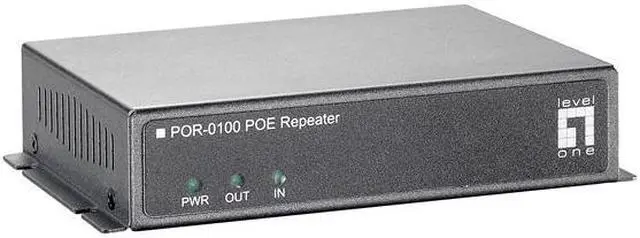

LevelOne POR-0100 PoE Repeater

Extend the reach of your PoE devices

For system integrators looking for a professional solution to help extend their PoE network, POR-0100 is the perfect accessory to increase your Power over Ethernet network performance.
Normal cable runs only reach 100 meters, but with POR-0100 installers can extend the PoE network performance up to 200 meters!

Simple yet durable, no software required

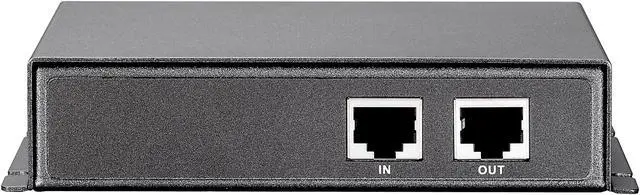

As a PoE Repeater, POR-0100 receives all power from the Power Sending Equipment (PSE), for example, a PoE switch. This means that POR-0100 uses no external power supply, making it the most flexible option for system integrators looking for an easy, affordable solution to increase the distance to the attached devices. POR-0100 has 2 RJ-45 ports for easy deployment, the "IN" port that accepts the power and data for the first 100 meters, and the "OUT" port that boosts and extends the power and data an additional 100 meters. With a durable metal housing, POR-0100 fits into any tight deployments.

Applications

POR-0100 works great for large IP surveillance networks with many cameras deployed throughout a building or campus. It is also an ideal solution for outdoor access points that are located far from the network control center.

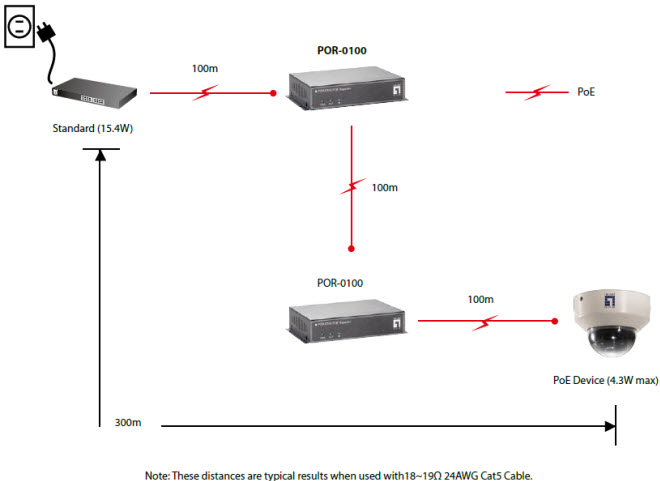

POR-0100 can also work together with LevelOne's high-power PoE injector, POI-4000. This can extend Ethernet connectivity an additional 100 meters for high power PD devices, such as 18 W IP Cameras or other devices that require power greater than 15.4 W.

Key Features

• Extends Cat.5 cable installations to beyond 100 meters
• Forwards power over Ethernet(PoE) to remote device
• No Power required
• Fully transparent no restrictions to network traffic
• Simple to install, works instantly

Package Contents

• POR-0100 x 1
• Quick Installation Guide x 1

---

PoE Repeater Comparison

Model #	POR-0100	POR-0102	POR-1100	POR-1102	POR-0120	POR-0122
RJ-45 Input Port	1 x 10/100Mbps	1 x 10/100Mbps	1 x 10/100Mbps	1 x 10/100Mbps	1 x 10/100/ 1000Mbps	1 x 10/100/ 1000Mbps
RJ-45 Output Port	1 x 10/100Mbps	2 x 10/100Mbps	1 x 10/100Mbps	2 x 10/100Mbps	1 x 10/100/ 1000Mbps	2 x 10/100/ 1000Mbps
RJ-11 Input Port	-	-	-	-	-	-
RJ-11 Output Port	-	-	-	-	-	-
PoE	Yes	Yes	Yes	Yes	Yes	Yes
Power Supply	PoE	PoE	PoE	PoE	PoE	PoE
IP-Rating	-	-	IP65	IP65	-	-
