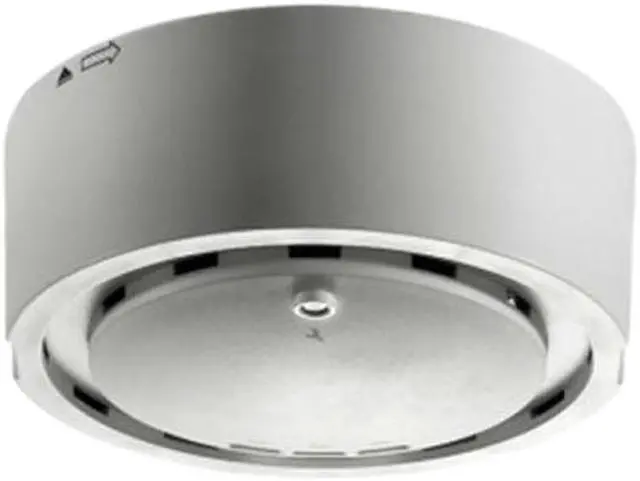

LevelOne WAP-3101 108Mbps Wireless Ceiling PoE Access Point
- Up to 108Mbps Wireless Data Rates
- IEEE 802.11b/g
- Ethernet Port
- 2.4 GHz - 2.484 GHz
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the LevelOne WAP-3101
| Brand | LevelOne |
|---|---|
| Model | WAP-3101 |
| Standards | IEEE 802.11b/g |
|---|---|
| Wireless Data Rates | Up to 108Mbps |
| Security | WEP-64/128 bit WPA WPA-PSK WPA2 WPA2-PSK 802.1x Authenticator Disable SSID Broadcast MAC address filtering |
| Frequency Band | 2.4 GHz - 2.484 GHz |
| Channels | 11 CH (US, Canada), 13 CH (EU), 14 CH (Japan) |
| Antenna | Internal Antenna |
| Transmitted Power | 802.11b/g: 16 ~ 18dBm |
| Receiver Sensitivity | 802.11g: -74dBm @ 108Mbps -92dBm @ 6Mbps 802.11b: -89dBm @ 11Mbps -97dBm @ 1Mbps |
| Modulation | 802.11g: OFDM 802.11b: CCK, QPSK, BPSK |
| System Requirements | Windows 2000, XP ,Vista |
| Interface | Ethernet Port |
| LEDs | Power LAN WLAN |
| Power Supply | DC 12V, 1A |
| Temperature | 0°C - 45°C (32°F - 113°F) |
|---|---|
| Humidity | 5% - 95%, Non-Condensing |
| Features | Complies wireless network speed up to 108Mbps with Super G and backward compliant with 802.11b/g standards Support Multi-SSID function (4-SSID) in AP mode Embeded 2 4dBi directional antennas in MIMO configuration Compliant with IEEEP 802.3af PoE standard Browser-based interface configuration and management Support QoS (WMM) to enhance user performance and density |
|---|
| First Listed on Newegg | August 04, 2010 |
|---|
