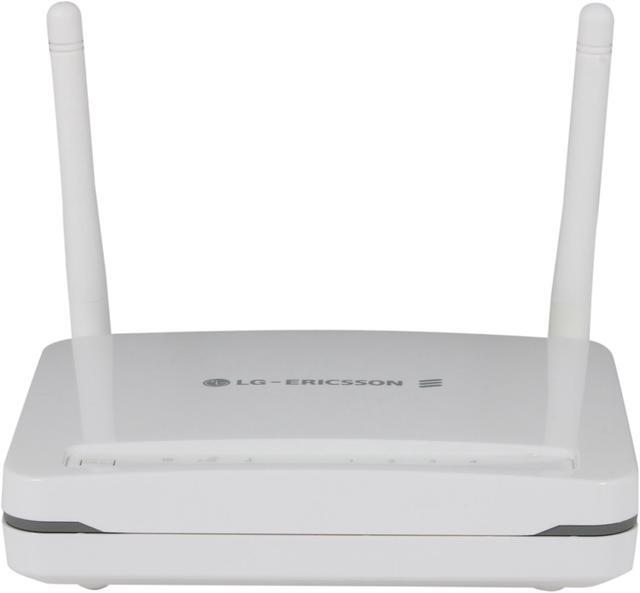

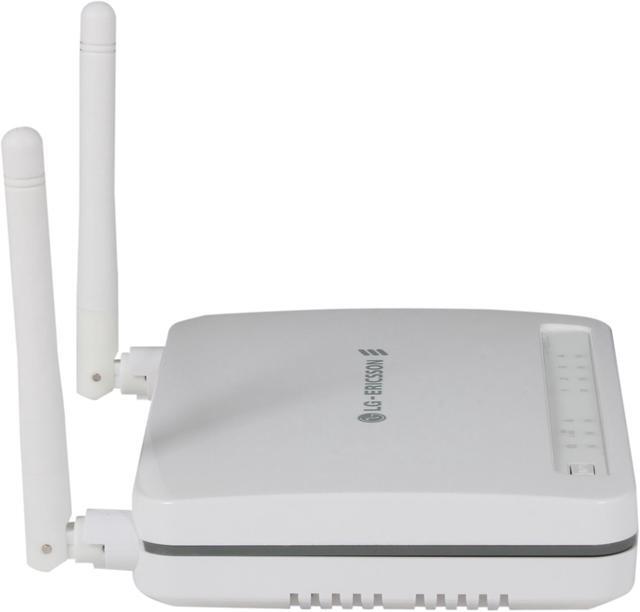

LG-Ericsson WBR-3020 Wireless Broadband Router IEEE 802.3/3u, IEEE 802.11b/g/n

Name: LG-Ericsson WBR-3020 Wireless Broadband Router
Brand: LG-Ericsson
SKU: N82E16833218026
Rating: 2 (22 reviews)

Specs

Reviews (22)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the LG-Ericsson WBR-3020

Model
Brand	LG-Ericsson
Model	WBR-3020

Details
Standards	IEEE 802.3/3u, IEEE 802.11b/g/n
Device Management	Web-Based
Security	WEP, WPA and WPA2 Personal, WPA and WPA2 Enterprise Wi-Fi Protected Setup (WPS) 802.1x authentication
WPA	WPA2

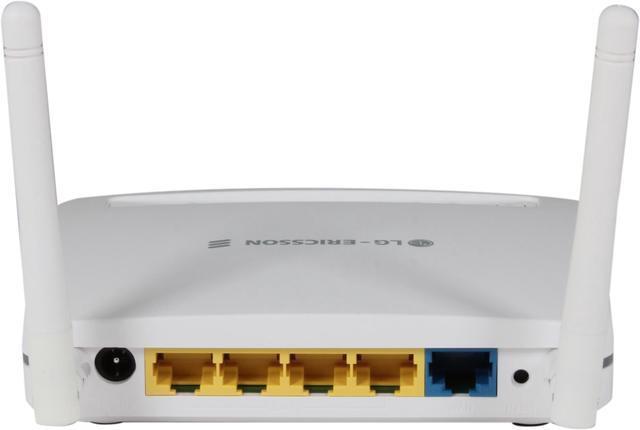

WAN Ports	1 x 10/100M
LAN Ports	4 x 10/100M
LEDs	Power, WAN (Internet), Wireless LAN, LAN (Ports 1-4)
Buttons	Reset, WPS
Wireless Data Rates	Up to 300Mbps
Modulation	OFDM: BPSK, QPSK, 16-QAM, 64-QAM
Frequency Band	2.4 GHz - 2.484 GHz
Antenna	2 x Fixed External Antenna
Transmitted Power	2.4GHz @ 11b: 18 dBm 2.4GHz @ 11g: 16 dBm 2.4GHz @ 11n: 16 dBm
Receiver Sensitivity	-90 dBm @ 11b (2.412 - 2.472 GHz) -90 dBm @ 11g (2.412 - 2.472 GHz) -82 dBm @ 11n (2.412 - 2.472 GHz)
Interface	Ethernet Port
VPN support	VPN Pass Through
Power Supply	5V 1A
Wireless Adapter included	No
System Requirements	Minimum: Windows, MAC OS, or Linux Operating Systems. Broadband Internet service (Cable/DSL) and modem with Ethernet connection. Computer with 802.11b/g/n 2.4GHz Wireless Network Function. Internet Explorer, Firefox or Safari Web-Browser Software.
Dimensions	4.92" x 4.72" x 0.87"
Weight	10.93 oz.
Temperature	0°C - 40°C (32°F - 104°F)
Humidity	15% - 95%, Non-Condensing

Features
Features	Security Features: WEP, WPA and WPA2 Personal, WPA and WPA2 Enterprise Wi-Fi Protected Setup (WPS) 802.1x authentication Disable SSID broadcast SPI firewall MAC address filtering IP filtering URL filtering Denial-of-Service (DoS) attack prevention VPN pass through Wireless Features: Supports up to 4 SSIDs QoS - Priority Queue and WMM (Wi-Fi Multi Media) Management: Web-based management interface(HTTP) Remote management Firmware upgrade Backup/restore settings Network diagnosis Network traffic monitoring

Packaging

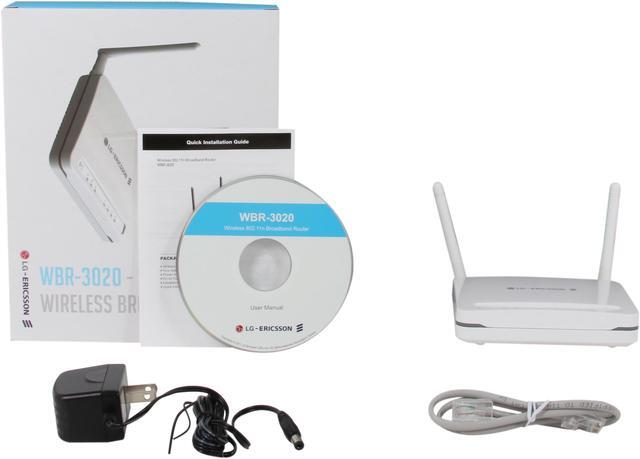

Package Contents	LG-Ericsson WBR-3020 Wireless 802.11n Broadband Router Power adapter (5V 1A) RJ-45 Ethernet cable Quick installation guide Smart Wizard Installation CD

Additional Information
Date First Available	August 10, 2011
