To ensure user can put everything together easily, Lian Li has designed the Mini-Q PC-Q08 to house all standard PC components inside: standard Mini-ITX motherboard, standard 5.25" optical drive, standard 3.5" hard drives, standard ATX PS/2 power supply units and a long graphics card. The parts are easy to get on current market, and it would be easy to upgrade and server in the future. The PC-Q08 supports up to six 3.5-inch and one 2.5-inch HDDs and long graphics card up to 300mm when HDD cage is removed.
Standard PC ComponentsThe LIAN LI PC-Q08A supports a standard Mini-ITX motherboard, 5.25-inch optical drive, 3.5-inch / 2.5-inch hard drives, standard ATX PS/2 PSU. Easy to upgrade and service.
Thermal-FlowOne 140mm LED fan (front) and one 120mm fan (top) keep hot air from damaging your hardware.

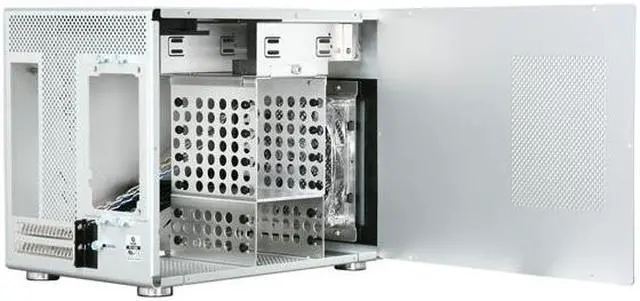

Six 3.5-inch and One 2.5-inch HDDsThe Mini-Q PC-Q08A supports six 3.5-inch and one 2.5-inch HDDs, held in place by thumb screws with rubber suspension.
Standard ATX PS/2 PSUThe LIAN LI PC-Q08A supports a standard ATX PS/2 PSU with a 120mm cooling fan.
Learn more about the Lian Li PC-Q08A
Model
Brand
LIAN LI
Model
PC-Q08A
Details
Type
Mini-ITX Tower
Color
Silver
Case Material
Aluminum
With Power Supply
No
Power Supply Mounted
Bottom
Motherboard Compatibility
Mini-ITX / Mini-DTX
Expansion
External 5.25" Drive Bays
1
Internal 3.5" Drive Bays
6
Expansion Slots
2
Front Panel Ports
Front Ports
USB3.0 x 2 / HD Audio
Cooling System
120mm Fans
1 x 120mm top fan
140mm Fans
1 x 140mm blue LED front fan
Dimensions & Weight
Dimensions (H x W x D)
13.60" x 8.90" x 10.70"
Weight
6.02 lbs.
Additional Info
Features
Lian Li Fine Craftmanship Product
To ensure user can put everything together easily, Lian Li designer decided to use only standard PC component inside the Mini-Q PC-O08, standard Mini-ITX motherboard, standard 5.25" optical drive, standard 3.5" hard drives, standard ATX PS/2 power supply units and standard graphics card. The parts are easy to get on current market, and it would be easy to upgrade and server in the future.

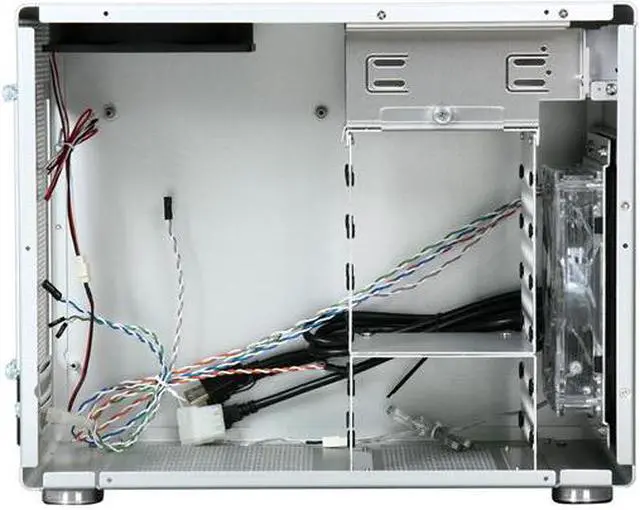

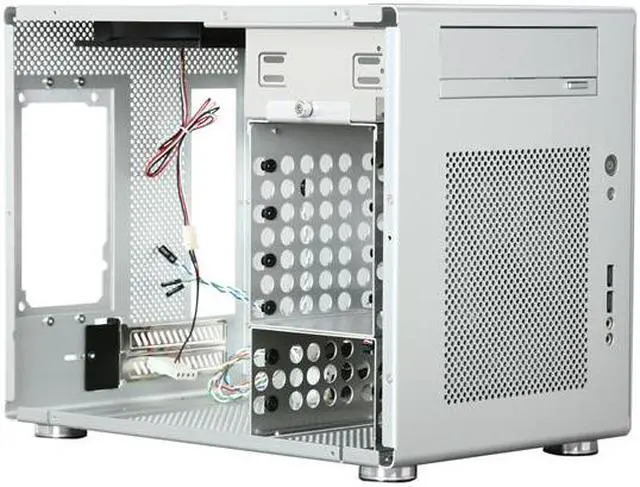

The HDD mounting cage at bottom of case is removable, allow user adding in standard graphics card, Maximum Video Card Size up to 300mm.
Mini-Q PC-Q08 supports up to six of 3.5" HDDs, The modular HDD cage can be removed, simply un-do the thumb screw, ideal for easy HDD installation and services.
