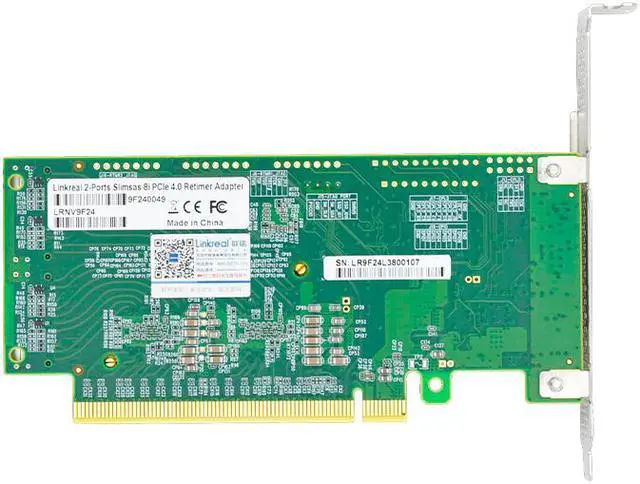

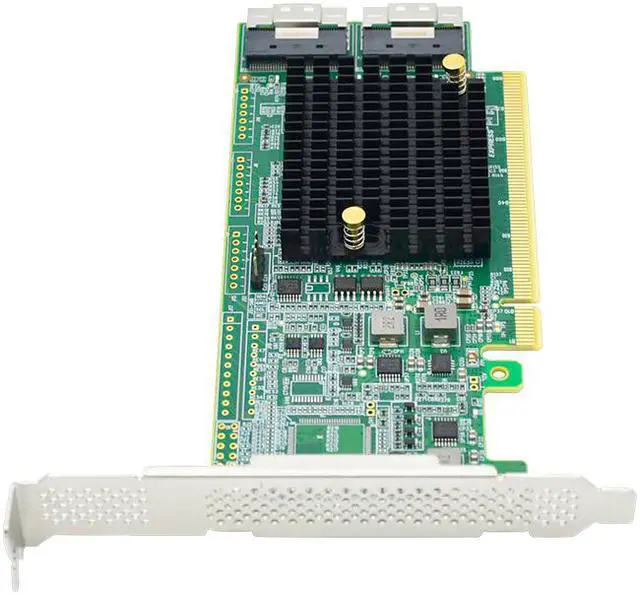

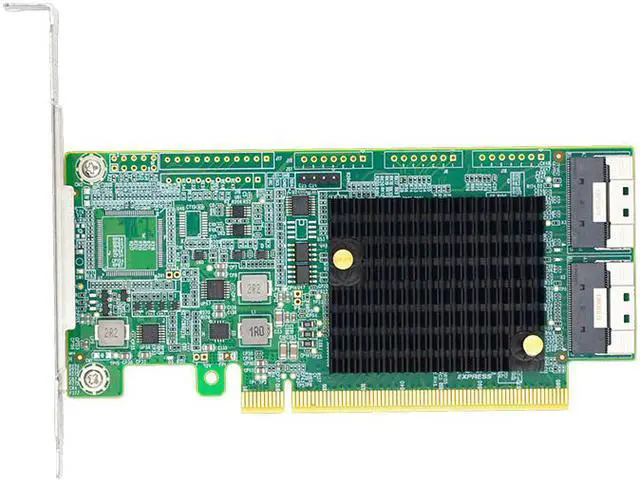

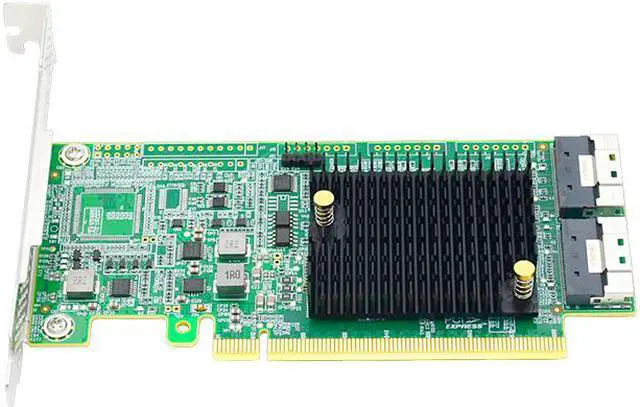

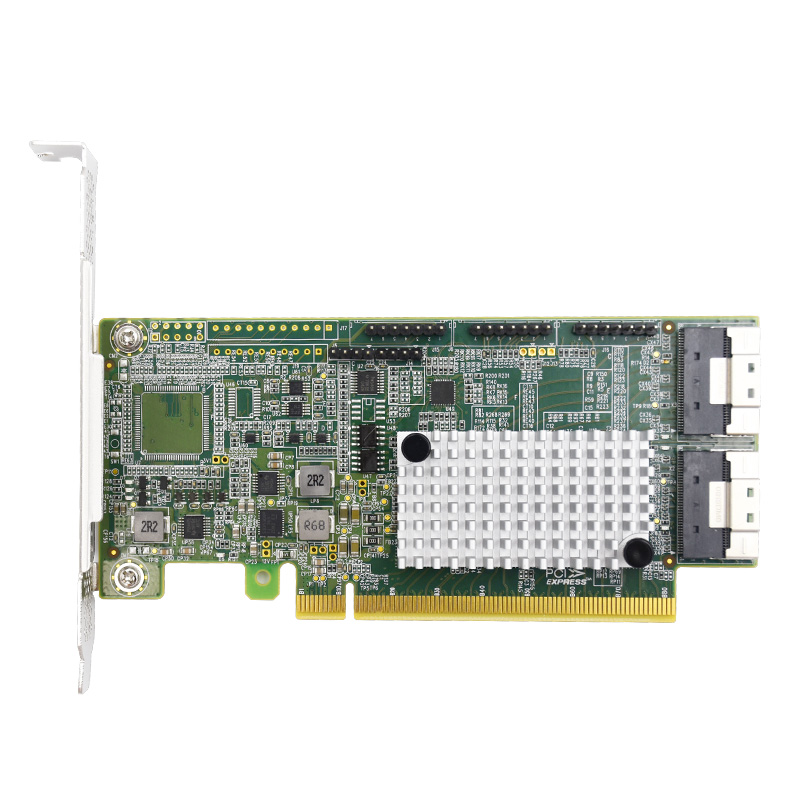

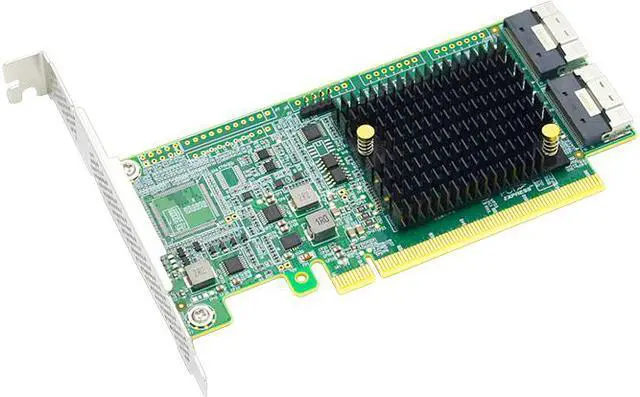

Product Name:PCI Express 4.0 x16 to Two SlimSAS SFF-8654 8i Retimer Adapter
Interface Type:2*Slim SAS SFF-8654 8i
Support Equipment: Up to 4* PCIe 4.0 U.2 NVMe SSD
Host Bus Type: PCIe 4.0 x 16
Ps. Motherboards and BIOS Support Bifurcation required
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features
High Performance Retimer - Compensate for channel loss up to 30dB by comprising PCB, connector and cable - Eliminate deterministic and random jitter
PCIe Standards and Compatibility Supplemental Features and Standard BGA
Clocking - Use standard 100MHz reference clock - Supports the optional SRIS feature (Separate Reference Clock Independent Spreading) - Support 100MHz reference clock output
Directly connected to PCIe 4.0 U. 2 NVMe SSD by SFF-8654 8i to 2x SFF-8639 cable
Support bifurcated in quad x4 data link width configuration (CPU and BIOS both support)
Support bifurcated in two x8 data link width configuration (CPU and BIOS both support)
Build in SlimSAS(SFF-8654) 8i connector 2 sets, pin-out defined by SFF-9402 for high-performance storage connectivity
Eight internal lanes per SlimSAS 8i port, 12GB/s per port,
PCIe Standard Full-profile bracket pre-installed and also a low-profile bracket for small form factor computer. Operating System support
The adapter does not require a driver for operation or communication to attached NVMe drives. The drives are presented natively to the host and use the native NVMe drivers.
Redhat Free BSD Vmware Linux Windows
Application Suitable for higher performance of PCIe Gen4 connections for Storage Servers, Data Center, Servers RAID and Controllers.
PCIe 4.0 x16 to Two SlimSAS SFF-8654 Retimer Adapter
Interface Type:2*Slim SAS SFF-8654 8i Support Equipment: Up to 4* PCIe 4.0 U.2 NVMe SSD Host Bus Type: PCIe 4.0 x 16 Ps. Motherboards and BIOS Support Bifurcation required
PCIe 4.0 Retimer Adapter for 4 U.2 NVMe SSD by SFF-8654 to 2* SFF-8639 Cable
Applications
It is targeted for meeting the higher performance PCIe Gen4 interconnection needs of the following end applications:
Servers Storage Appliances Hardware Accelerators
The Motherboard with CPU and BIOS needs to support bifurcation to ensure PCIe x16 link width to bifurcate two x8 link width or four x4 link width for NVMe SSD, Otherwise this card can only support PCIe x16 link width.
PCI Express 4.0 x16 to Two SlimSAS SFF-8654 8i Retimer Adapter
Features
High Performance Retimer
PCIe Standards and Compatibility Supplemental Features and Standard BGA
Clocking Use standard 100MHz reference clock Support 100MHz reference clock output
Directly connected to PCIe 4.0 U.2 NVMe SSD by SFF-8654 8i to 2x SFF-8639 cable
Support bifurcated in quad x4 data link width configuration(CPU and BIOS both support)
Support bifurcated in two x8 data link width configuration (CPU and BIOS both support)
Build in SlimSAS(SFF-8654) 8i connector 2 sets, pin-out defined by SFF-9402 for high-performance storage connectivity
Eight internal lanes per SlimSAS 8i port, 12GB/s per port
PCIe Standard Full-profile bracket pre-installed and also a low-profile bracket for small form factor computer.
Application
Suitable for higher performance of PCIe Gen4 connections for Storage Servers, Data Center, Servers RAID and Controllers.
Learn more about the Shenzhen Lianrui Information Technology LRNV9F24
Model
Brand
Linkreal
Series
PCIe 4.0 X16 to Slimsas SFF-8654 Card
Model
LRNV9F24
Details
Type
PCI Express Controller Card
Additional Information
Date First Available
August 26, 2021
