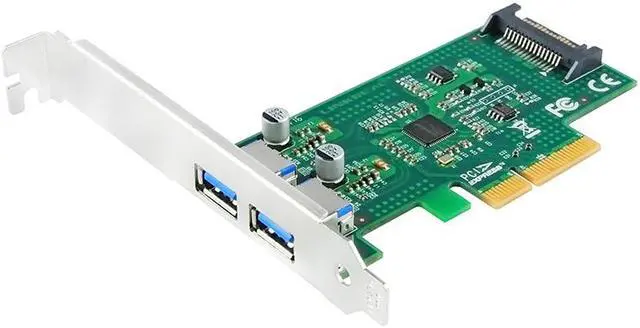

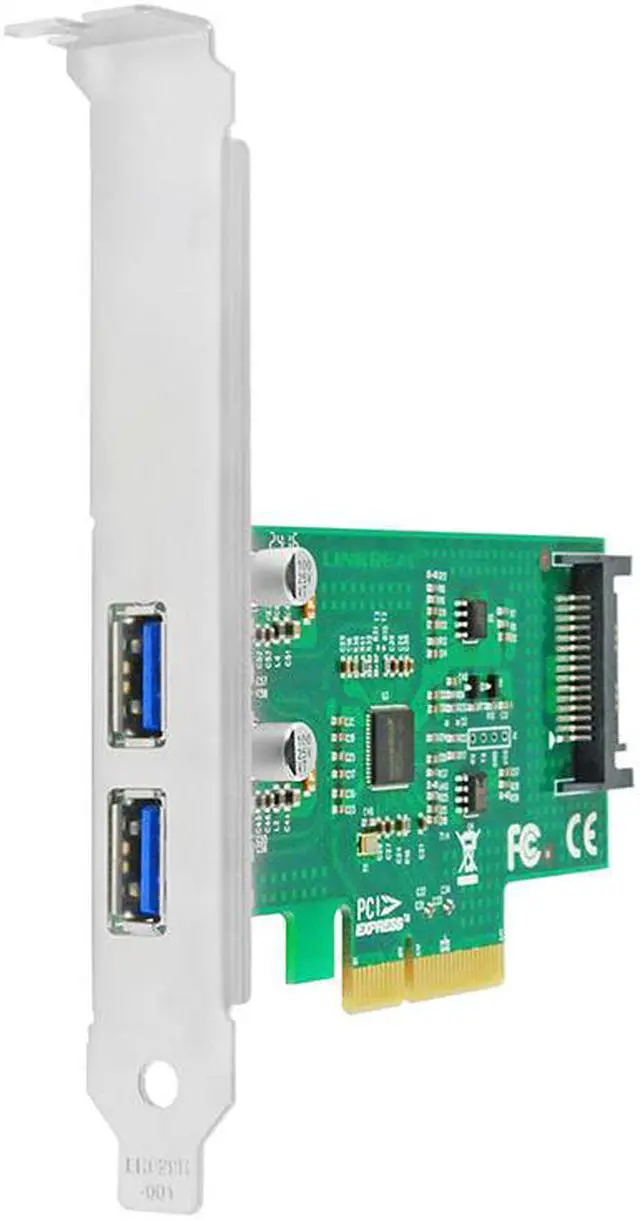

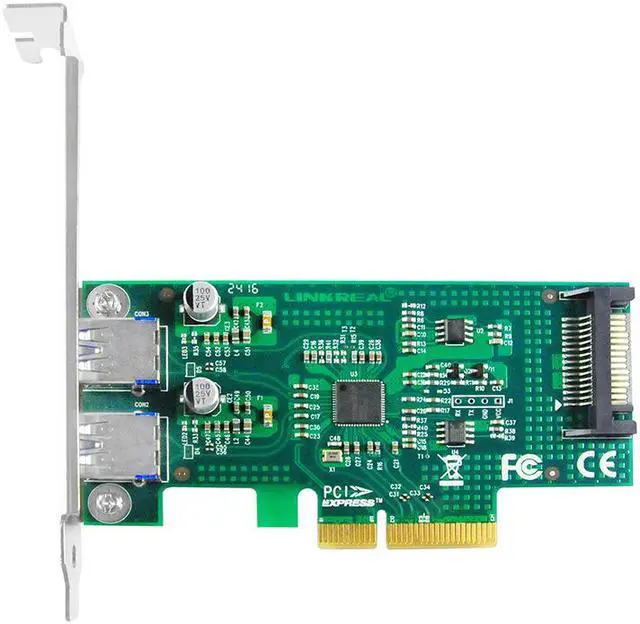

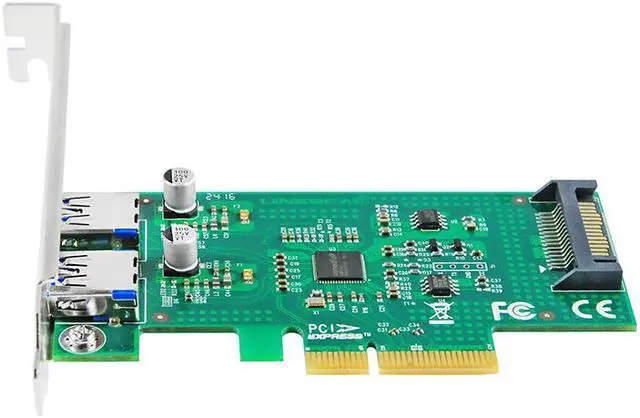

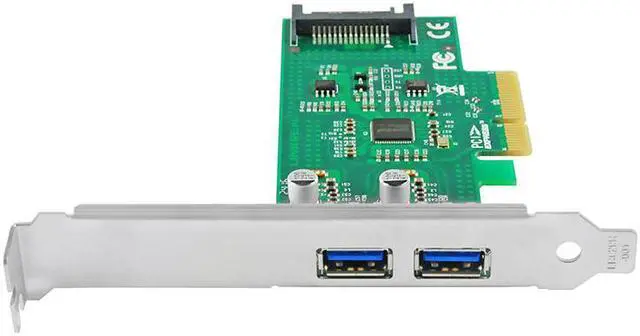

Linkreal 2 Port USB3.1 Type-A PCIe Expansion Card Super speed 10 Gbps with 15 Pin SATA Power Connector for Servers Chipset ASM 3142
- 2 Port 10Gb/s PCIe x4 USB 3.1 Type A Expansion Card
- Chipset:ASMedia 3142
- Interface Type:2*USB3.1 Type-A
- Host Bus Type:PCIe 3.0 x4
- Transfer Speed: 10Gb/s
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
LRSU3A42-2A is a new product developed on the basis of the chip scheme ASM3142, it’s a PCIe to 2 port USB3.1, xHCI Host controller, supporting PCIe 3.0 and USB 3.1specifications, and up to 10Gbps high speed.
Functional Characteristics
• ASM3142 chip, USB3.1 Host controller, bridge PCI Express to 2 port USB3.1.
• Up to 10Gbps bandwidth performance.
• Backward compatible with USB2.0 function and device.
• PCIe x4 interface, compatible with slot x8 and x16.
• 2 standard USB3.1 Type-A interfaces, support 10G/5G/480M USB data transfer rate.
• Compliant with USB 3.1 Gen2.
• Support multiple USB devices operating at the same time.
• Each USB port provides the maximum output of +5VDC/900mA.
• Support Wake On LAN of USB keyboard or mouse devices.
• Input power: 15-pin SATA CD-ROM power connection.
• Support Control, Bulk, Stream, Interrupt, Isochronous.
• Support USB device hot-plugging.
Technical Specification
Model: LRSU3A42-2A
Controller: ASM3142
Host Bus: PCIe x4
Power dissipation: 1.5W
SATA Supply voltage: 12V±8% 5V±9%
Operating Temperature: 0°C – 60°C (32°F - 140°F)
Storage Temperature: -20°C–70°C
Humidity: 5% – 95%
Dimension: 106*56mm
Weight: 60g
Warranty: 2 Years
WHAT'S IN THE BOX
1 - PCIe USB3.1 Type-A Host Bus Adapter
1 - low-profile bracket
1 - full-height bracket(installed)
1 - Warranty Card
Functional Characteristics
• ASM3142 chip, USB3.1 Host controller, bridge PCI Express to 2 port USB3.1.
• Up to 10Gbps bandwidth performance.
• Backward compatible with USB2.0 function and device.
• PCIe x4 interface, compatible with slot x8 and x16.
• 2 standard USB3.1 Type-A interfaces, support 10G/5G/480M USB data transfer rate.
• Compliant with USB 3.1 Gen2.
• Support multiple USB devices operating at the same time.
• Each USB port provides the maximum output of +5VDC/900mA.
• Support Wake On LAN of USB keyboard or mouse devices.
• Input power: 15-pin SATA CD-ROM power connection.
• Support Control, Bulk, Stream, Interrupt, Isochronous.
• Support USB device hot-plugging.
Technical Specification
Model: LRSU3A42-2A
Controller: ASM3142
Host Bus: PCIe x4
Power dissipation: 1.5W
SATA Supply voltage: 12V±8% 5V±9%
Operating Temperature: 0°C – 60°C (32°F - 140°F)
Storage Temperature: -20°C–70°C
Humidity: 5% – 95%
Dimension: 106*56mm
Weight: 60g
Warranty: 2 Years
WHAT'S IN THE BOX
1 - PCIe USB3.1 Type-A Host Bus Adapter
1 - low-profile bracket
1 - full-height bracket(installed)
1 - Warranty Card
