Standards | IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac MU-MIMO 802.11r and 802.11k Power over Ethernet Plus (PoE+) IEEE 802.3at |
---|
Security | Multiple SSIDs (16) SSID Broadcast SSID to VLAN Mapping Wi-Fi Protected Access (WPA / WPA Mixed, WPA2) Personal and Enterprise RADIUS IP and Mac-Based Access Control Rogue AP Detection 802.1X Supplicant |
---|
Frequency Band | 2.4 GHz / 5 GHz |
---|
Antenna | Internal PCBA Antenna |
---|
Receiver Sensitivity | 802.11b @ 11 Mbps: -85 dBm 802.11a/g @ 54 Mbps: -73 dBm 802.11n @ HT20 MCS7: -67 dBm 802.11n @ HT40 MCS7: -65 dBm 802.11n @ HT40 MCS7: -65 dBm |
---|

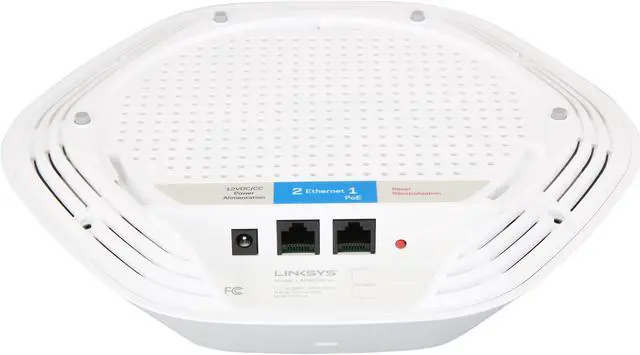

Interface | 1 x Primary Gigabit LAN Port with IEEE 802.3at PoE+ 1 x Secondary Gigabit LAN Port for Link Aggregation 1 x 12V/2.5A power port |
---|
LEDs | 1 x System LED |
---|
Buttons | Reset Button |
---|
Power Supply | 24W |
---|
