    Gigabit Outdoor PoE Extender, Waterproof PoE Ethernet Repeater, IEEE802.3af/at, Extend Extra 330ft PoE and Ethernet for IP Cameras, VoIP Phone, AP

    Be the first to review this product...

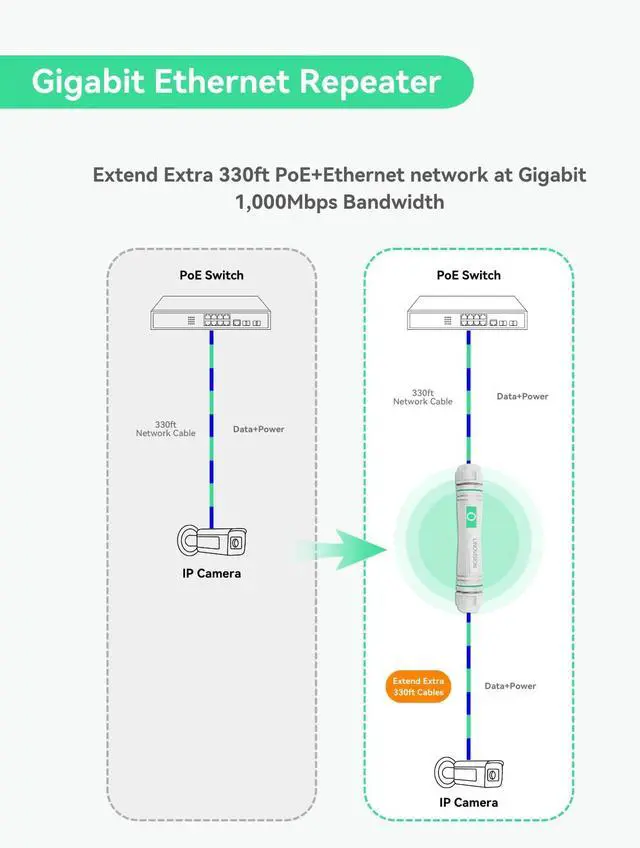

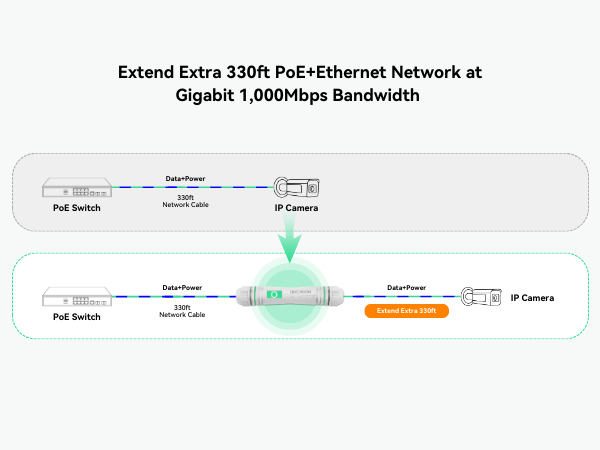

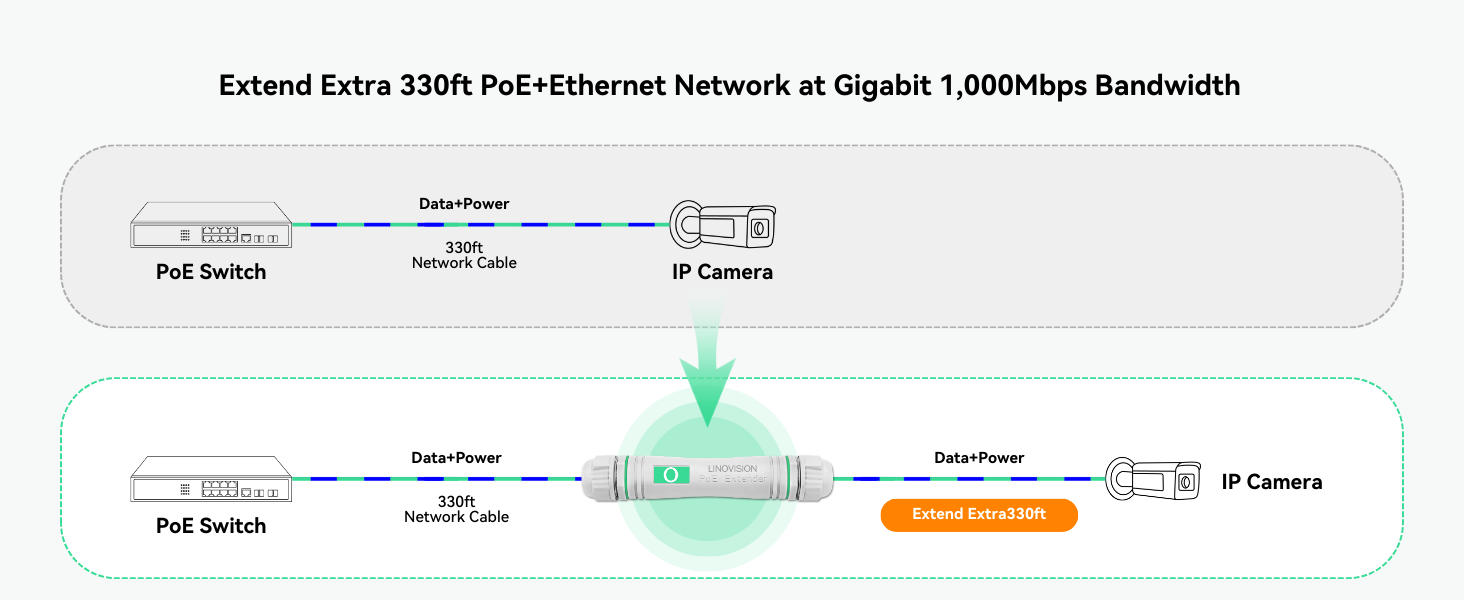

    • GIGABIT PoE EXTENDER - Extend extra 330ft POE + Ethernet network at Gigabit 1000Mbps bandwidth. Used with cascade deployment, up to 1,300ft PoE + Data transmission.

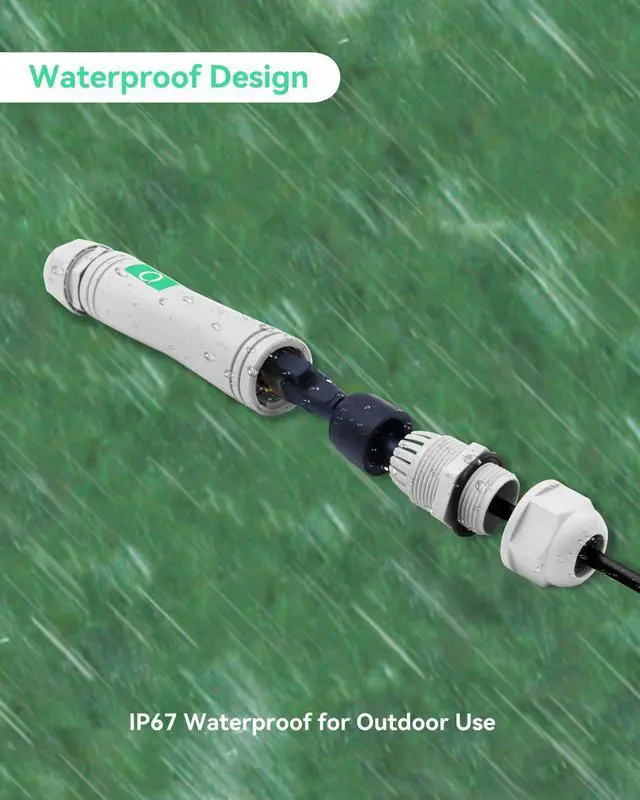

    • OUTDOOR RATED - IP67 waterproof standard, wide temperature range -10°C ~50°C (14°F122°F), designed for harsh outdoor environments.
    • COMPLIANT to IEEE802.3af/at STANDARD - The PoE input and output ports are compliant with IEEE802.3af/at standard. The PoE output supply PoE Power up to 30W for standard PE devices (44V-57V PoE, don't support 24V PoE Devices) , like PoE IP camera/IP phone/IP speaker.

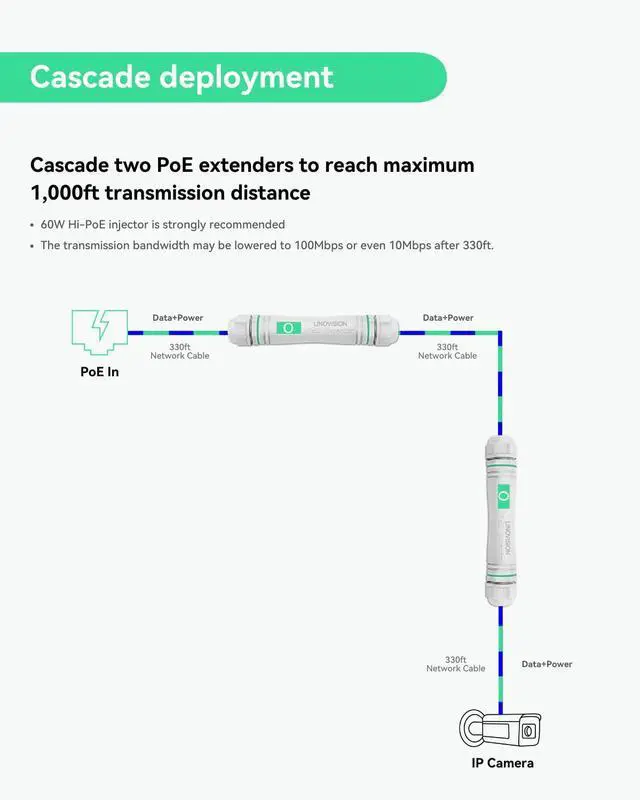

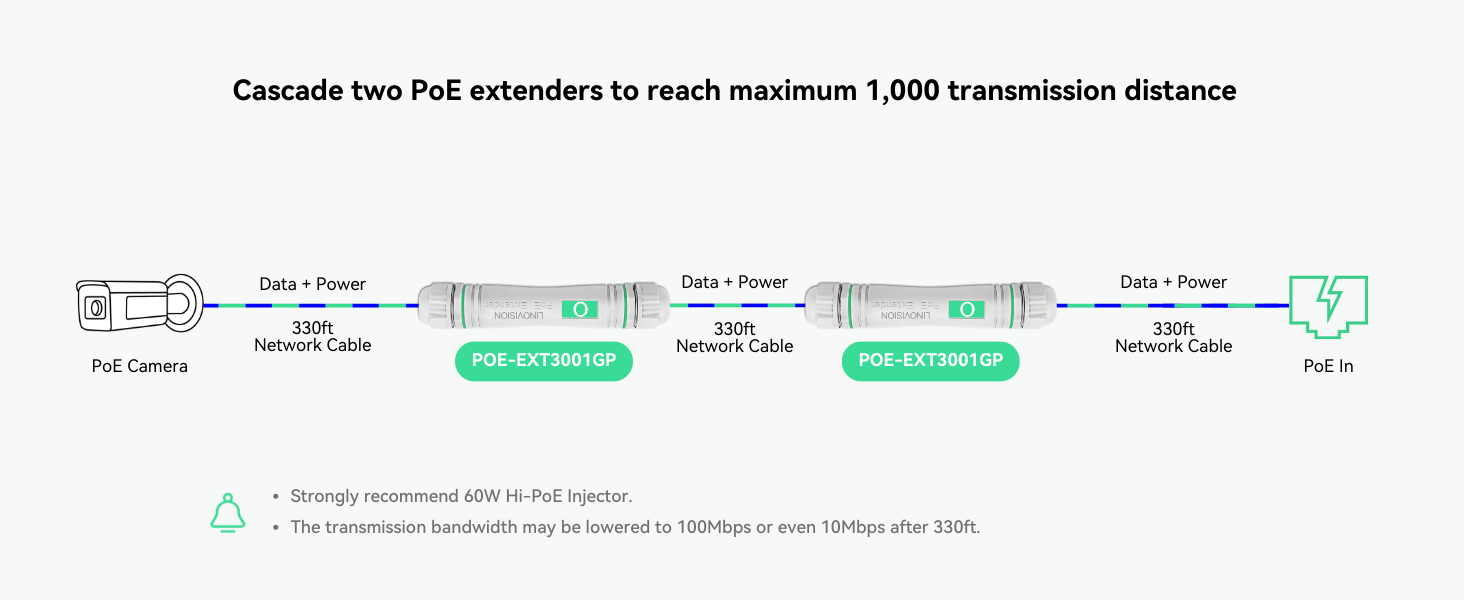

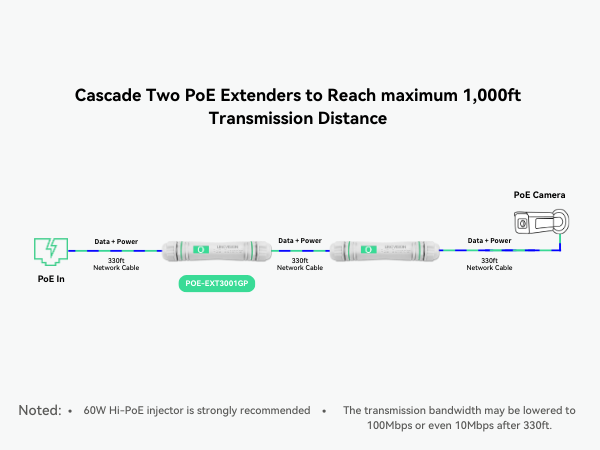

    • CASCADE DEPLOYMENT - Supports two levels cascade deployment, therefore total 1,300ft POE + Data transmission is provided. Bandwidth will be lowered to 10Mbps over 850ft (Based on Cat5e Cable). The longer the distance, the lower the bandwidth.
    • EASY to USE - Plug-n-Play, no configuration is required
    • Note: This PoE extender is designed to extend PoE & Data transmission for PoE Device only. To use it with Non-PoE device, please activate this PoE Extender by connecting a standard PoE device first.
    • 24/7 US LOCAL + GLOBAL TECH SUPPORT - 1-year warranty and life-time 24/7 US Local + GLOBAL Technical Support. Ready and willing to help in anytime.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    hero-video

    Merchant Video

    Outstanding Features

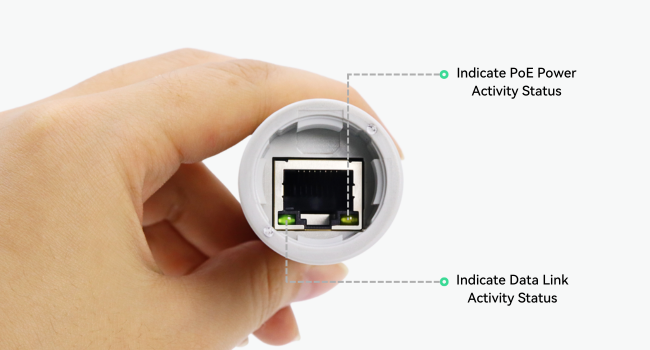

    LED Indicator

    LED Indicator

    In working mode:

    PoE indicator (Yellow): Always on;

    Data Link indicator(Green): Flashes.

    If the product does not work, please check whether the indicator is normal.

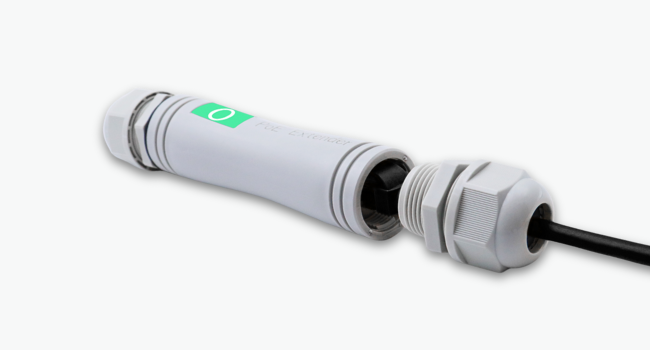

    Plug and Play

    Plug and Play

    Plug-n-Play, there is no configuration is required, easy to use.

    No local power adapter is required.

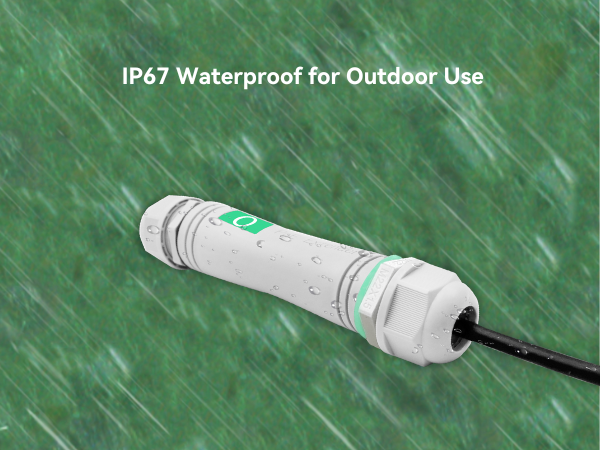

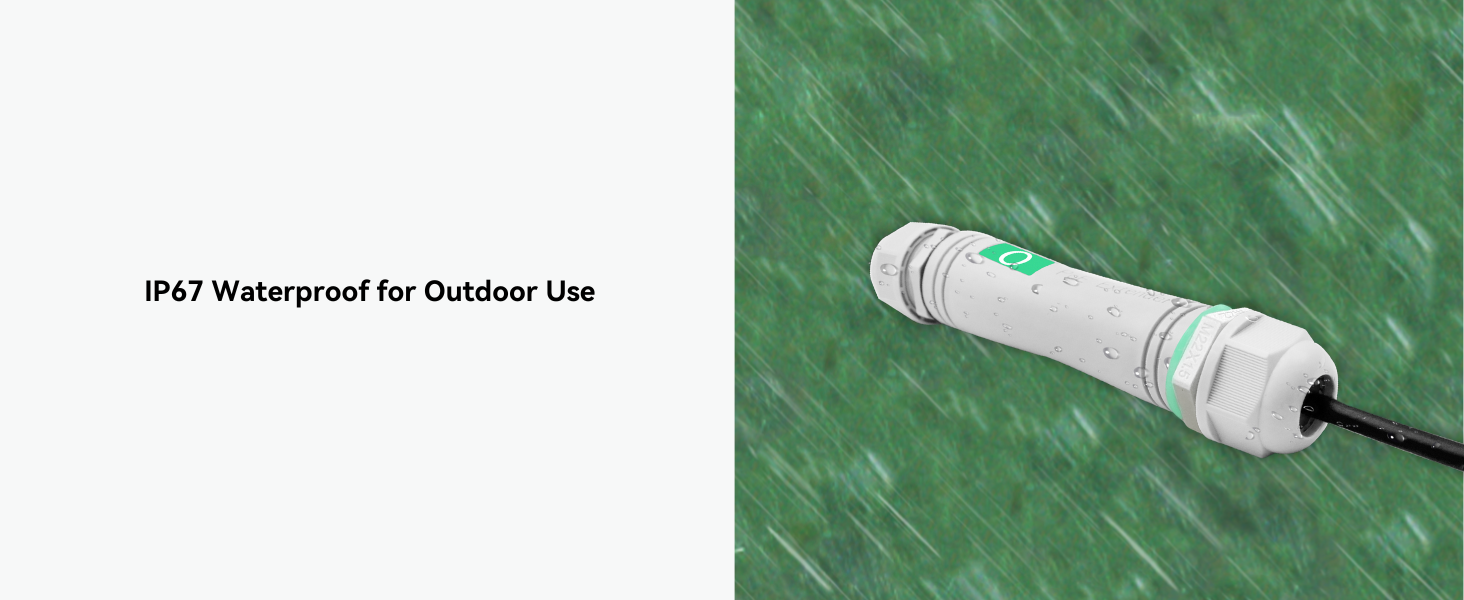

    waterproof

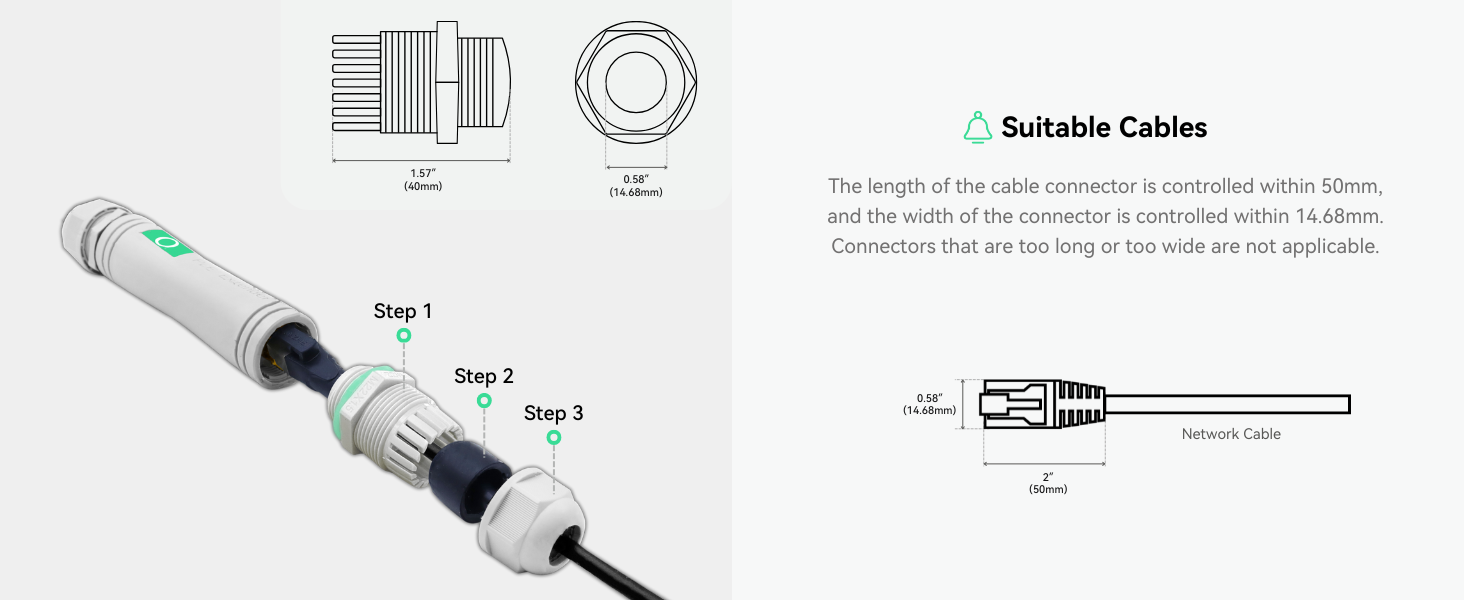

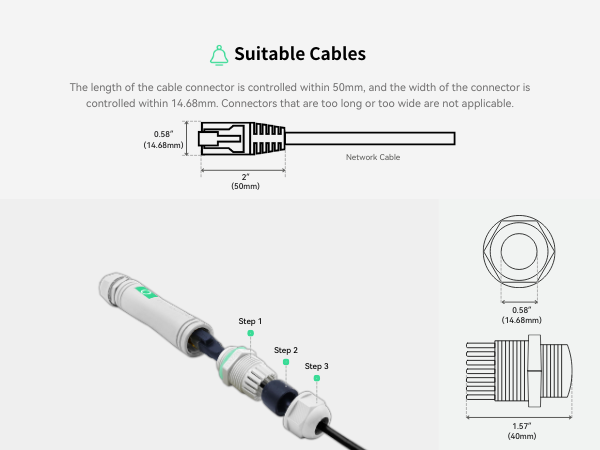

    Installation

    Installation

    Key Specification

    Model POE-EXT3001GP
    PoE Input 1*10/100 Base-T RJ45 port; Compliant to IEEE802.3af/at standard
    PoE Output 1*10/100 Base-T RJ45 port; Compliant to IEEE802.3af/at standard
    PoE Status Indicator Green LED:Ethernet Data Link Status; Yellow LED: PoE Power Act Status
    PoE Pin Assignment(PoE Input) Support PoE Mode A and Mode B: Both 1/2(-), 3/6(+) and 7/8(-), 4/5(+)
    PoE Pin Assignment(PoE Output) Support PoE Mode A: 1/2(-), 3/6(+)
    Waterproof IP67
    Working Temperature -10°C ~50°C(14°F ~122°F)
    Working Humidity 10% ~ 90%
    Dimension 156.5*29*29mm (6.16”* 1.14” * 1.14”)

    Selection Guide of Linovision PoE Extender

    https://m.media-amazon.com/images/S/aplus-media-library-service-media/05e6ef82-40b3-4a25-8964-9669d0fd36bd.__CR0,0,600,675_PT0_SX200_V1___.png

    POE-EXT3001GP

    		https://m.media-amazon.com/images/S/aplus-media-library-service-media/9485107e-bb94-439d-8a58-268933a38c5a.__CR0,0,200,225_PT0_SX200_V1___.png

    POE-EXT3001LP(2 Pack)

    		https://m.media-amazon.com/images/S/aplus-media-library-service-media/4cc0f141-af3e-4847-9a34-9b944bae7506.__CR0,0,600,675_PT0_SX200_V1___.png

    POE-EXT6002GP

    		https://m.media-amazon.com/images/S/aplus-media-library-service-media/864a1ae5-56ae-4a5e-a6f4-114f3ee6d28a.__CR0,0,400,450_PT0_SX200_V1___.png

    POE-EXT02G

    		https://m.media-amazon.com/images/S/aplus-media-library-service-media/762ec2d1-0751-4d5a-b6ab-ec183ef7cca2.__CR0,0,200,225_PT0_SX200_V1___.png

    POE-Extender02

    		https://m.media-amazon.com/images/S/aplus-media-library-service-media/4a508392-91ab-4dc4-8f06-4ef9213f0047.__CR0,0,200,225_PT0_SX200_V1___.png

    POE-Extender02WP2

    		https://m.media-amazon.com/images/S/aplus-media-library-service-media/79327861-f89e-4f0b-bac0-577b35806968.__CR0,0,200,225_PT0_SX200_V1___.png

    POE-EXT04

    Customer Reviews
    		———————
    Price
    		———————
    PoE Input
    		Max 30W Max 30W Max 90W Max 30W Max 30W Max 30W Max 90W
    PoE Output
    		1x 30W 1x 30W 1 x 60W + 1 x 30W 2x 30W 1 x 16W + 1 x 8W 1 x 16W + 1 x 8W 4x 30W
    Total PoE Budget
    		30W 30W 90W 30W 30W 30W 80W
    PoE Standard
    		IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at/bt IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at/bt
    Ethernet Speed
    		Gigabit 10/100Mbps Gigabit Gigabit 10/100Mbps 10/100Mbps Gigabit
    Extend Data Transmission Range
    		330ft (100m) Max.2600ft(800m), Paired mode 330ft (100m) 330ft (100m) 330ft (100m) 330ft (100m) 330ft (100m)
    Waterproof
    		? ? ? ? ? ? ?
    Installation Method
    		/ / Wall Mount Din Rail Mount Wall/Din Rail Mount Wall Mount /
