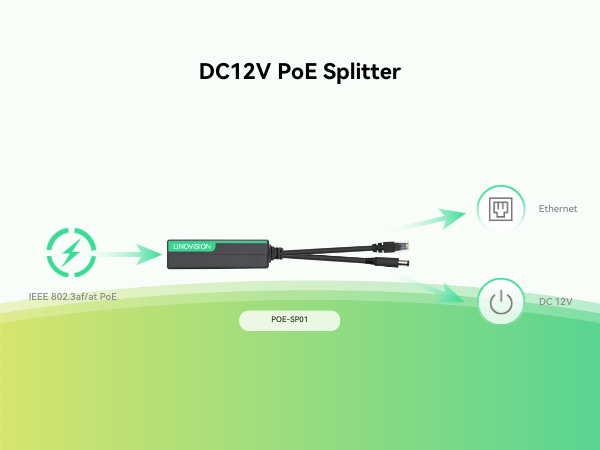

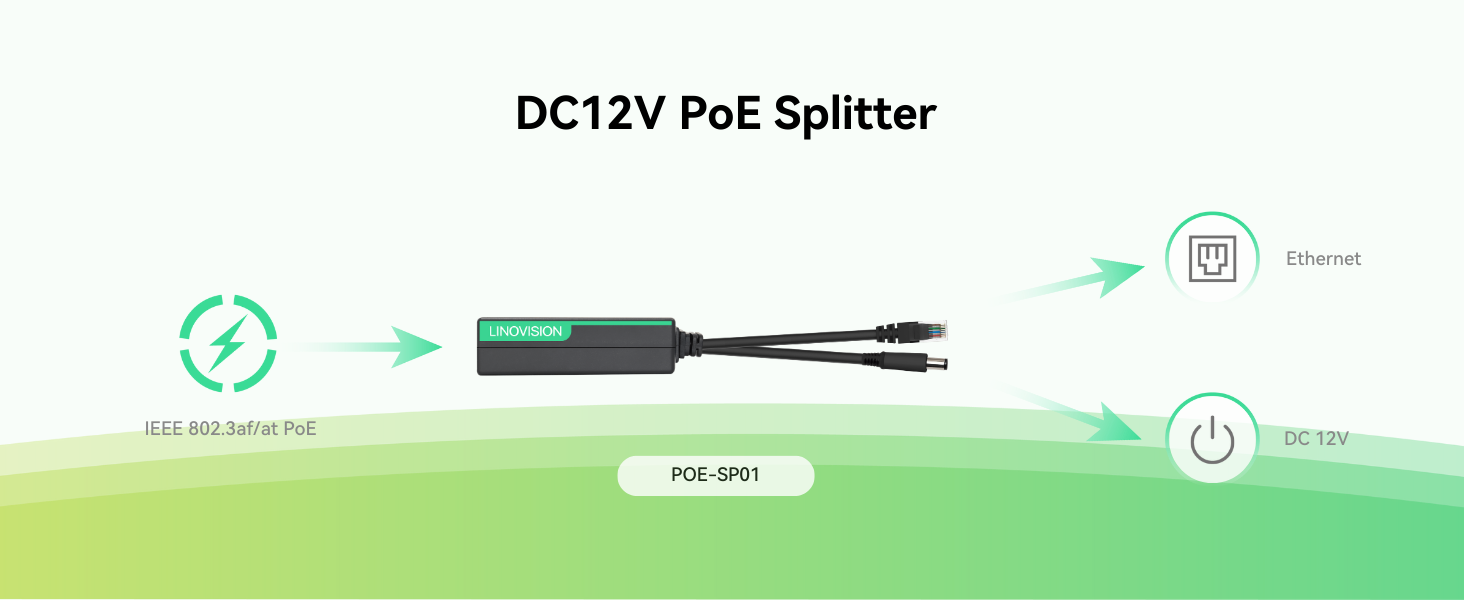

LINOVISION POE Splitter with DC12V 2A Output, 10/100Mbps Power Over Ethernet Splitter, IEEE802.3af/at POE to DC Power Supply for Security Cameras, Speaker, Wireless AP, VoIP Phone.
Outstanding Feature

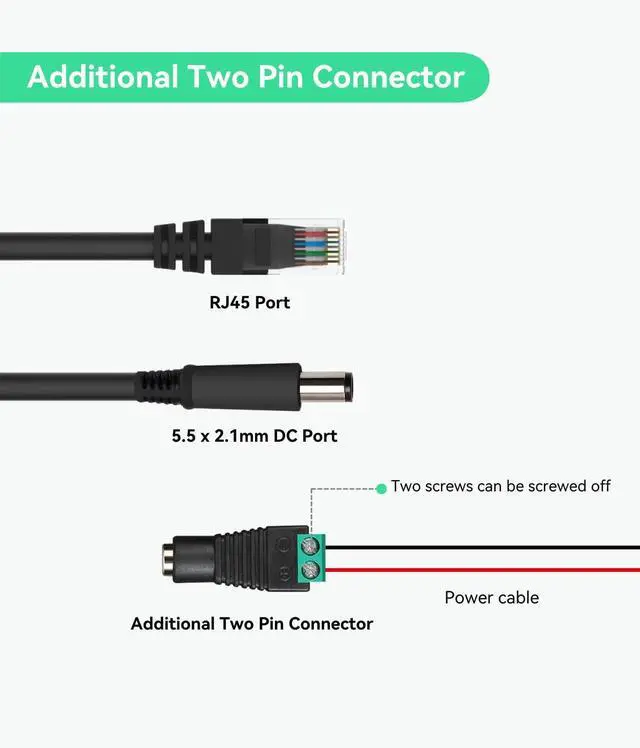

DC Output with DC Connector
Comes with a DC12V connectors for connecting devices of different DC port.

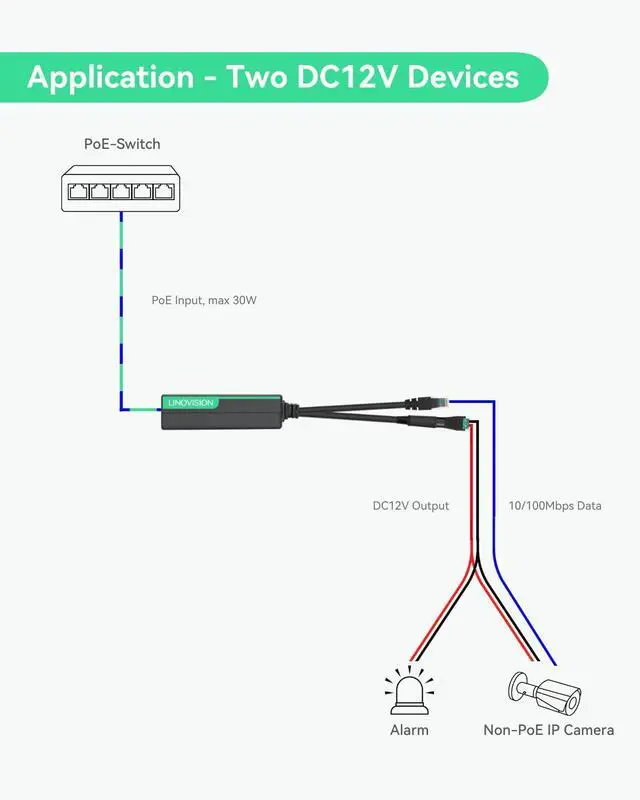

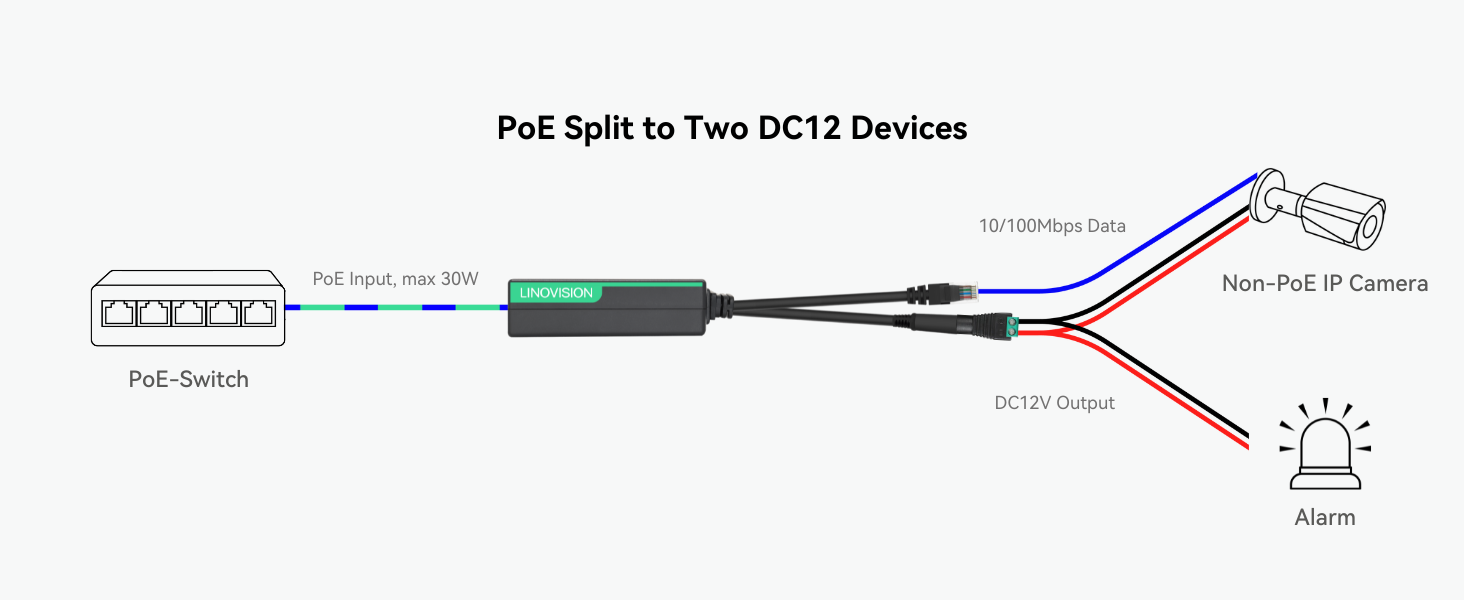

DC Connector can also power 2 DC12V devices at the same time

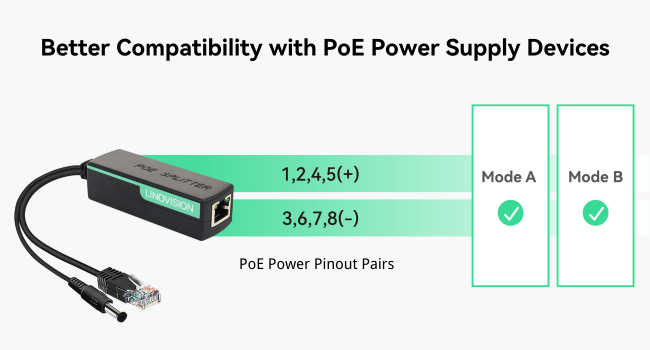

Compatible with more POE Supply Devices
This PoE Splitter uses all 8 pins to transmit PoE Power, so it is compatible to both PoE Mode A and PoE Mode B, while some PoE Splitter are working with one mode of PoE Power Supply Devices.

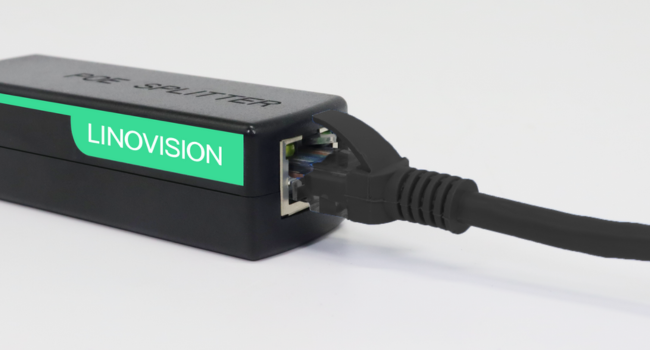

Plug & Play
Plug-n-Play, there is no configuration is required, easy to use.
No local power adapter is required.
Run your DC devices more stable and safer
4KV surge protection, Support short circuit, over current and over temperature protectio, 3500V high-voltage isolation, the splitters could run your devices more stable and safer.
Specifications
Selection Guide of Linovision POE Splitter
 POE-SP01(2 pack) |  POE-SP01P(2 pack) |  POE-SP01C |  POE-SP30 |  POE-SP1224POE |  POE-SP02BT-POE |  POE-USBC01 | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
PoE Input | IEEE 802.3af/at, Max 30W | IEEE 802.3af/at, Max 30W | IEEE 802.3af, Max 15W | IEEE 802.3af/at, Max 30W | IEEE 802.3af/at, Max 30W | IEEE802.3af/at/bt, Max 90W | IEEE 802.3af/at, Max 30W |
PoE Output | / | / | / | / | Passive PoE 12V/24V | IEEE802.3bt/at/af PoE | / |
DC Output | DC12V 2A | DC12V 1A | DC5V 2.4A | DC 5/9/12/18V | DC12/24V | DC 5/9/12/24V | 9V/2.22A or 5V/2A |
DC Output Interface | DC Jack | DC Jack | USB C | DC Jack | DC Jack/Terminal blocks | Terminal blocks | 2-in-1 USB C |
Network Speed | 10/100Mbps | 10/100Mbps | 10/100Mbps | Gigabit | Gigabit | Gigabit | 10/100Mbps |
Waterproof | ? | ? | ? | ? | ? | ? | ? |
Installation Method | Desktop | Desktop | Desktop | Wall Mount | DIN-Rail | DIN Rail | Desktop |
LINOVISION POE Splitter with DC12V 2A Output, 10/100Mbps Power Over Ethernet Splitter, IEEE802.3af/at POE to DC Power Supply for Security Cameras, Speaker, Wireless AP, VoIP Phone.
Outstanding Feature
DC Output with DC Connector
Comes with a DC12V connectors for connecting devices of different DC port.
DC Connector can also power 2 DC12V devices at the same time
Compatible with more POE Supply Devices
This PoE Splitter uses all 8 pins to transmit PoE Power, so it is compatible to both PoE Mode A and PoE Mode B, while some PoE Splitter are working with one mode of PoE Power Supply Devices.
Plug & Play
Plug-n-Play, there is no configuration is required, easy to use.
No local power adapter is required.
Run your DC devices more stable and safer
4KV surge protection, Support short circuit, over current and over temperature protectio, 3500V high-voltage isolation, the splitters could run your devices more stable and safer.
Specifications
| Model | POE-SP01 |
|---|---|
| Input | IEEE 802.3af/at PoE, 44-57VDC |
| Output | 1x 10/100BASE-T Ethernet and 1 DC 12V 2A Output |
| Output Voltage | Default 12VDC± 1.5V, 2A |
| Power Pin Assignment | 1/2 (+), 3/6 (-) & 4/5 (+), 7/8 (-) |
| Power Consumption | Standby<1W, Full Load<30W |
| Temperature | -4? to 131? or -20? to 55? |
| Humidity | 5~90%, (non-condensing) |
Selection Guide of Linovision POE Splitter
POE-SP01(2 pack) | POE-SP01P(2 pack) | POE-SP01C | POE-SP30 | POE-SP1224POE |  POE-SP02BT-POE | POE-USBC01 |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Price | ||||||
| — | — | — | — | — | — | — |
| PoE Input | ||||||
| IEEE 802.3af/at, Max 30W | IEEE 802.3af/at, Max 30W | IEEE 802.3af, Max 15W | IEEE 802.3af/at, Max 30W | IEEE 802.3af/at, Max 30W | IEEE802.3af/at/bt, Max 90W | IEEE 802.3af/at, Max 30W |
| PoE Output | ||||||
| / | / | / | / | Passive PoE 12V/24V | IEEE802.3bt/at/af PoE | / |
| DC Output | ||||||
| DC12V 2A | DC12V 1A | DC5V 2.4A | DC 5/9/12/18V | DC12/24V | DC 5/9/12/24V | 9V/2.22A or 5V/2A |
| DC Output Interface | ||||||
| DC Jack | DC Jack | USB C | DC Jack | DC Jack/Terminal blocks | Terminal blocks | 2-in-1 USB C |
| Network Speed | ||||||
| 10/100Mbps | 10/100Mbps | 10/100Mbps | Gigabit | Gigabit | Gigabit | 10/100Mbps |
| Waterproof | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| Installation Method | ||||||
| Desktop | Desktop | Desktop | Wall Mount | DIN-Rail | DIN Rail | Desktop |
