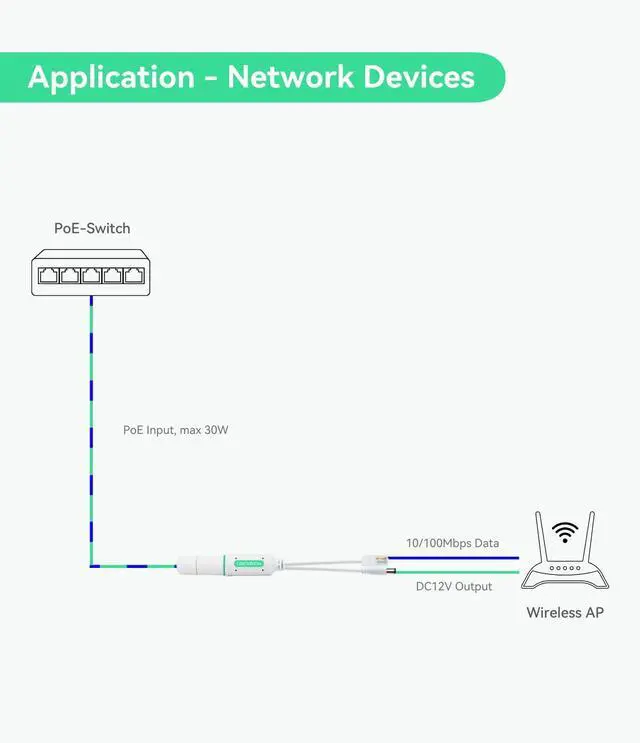

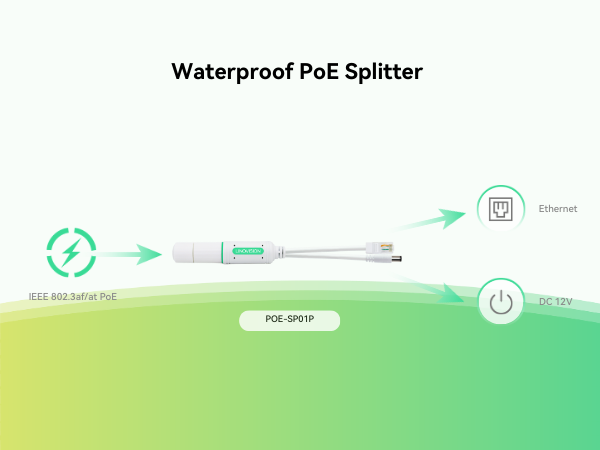

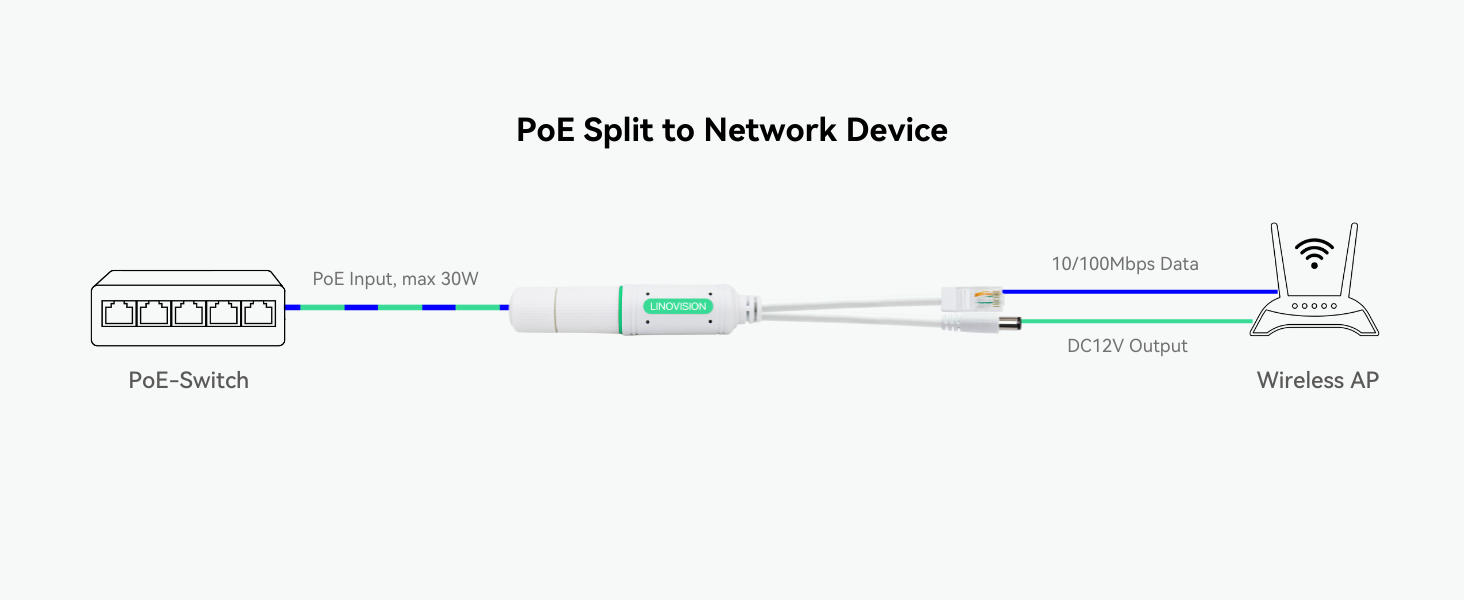

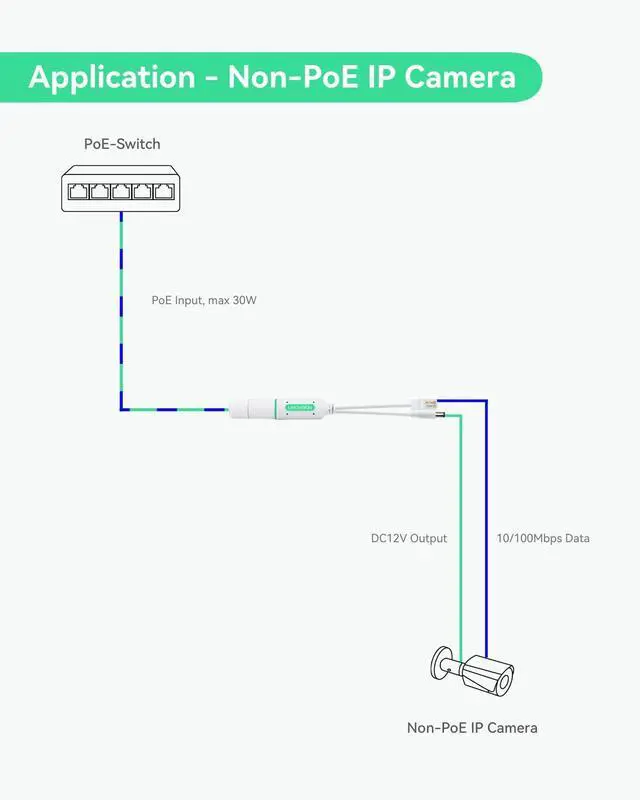

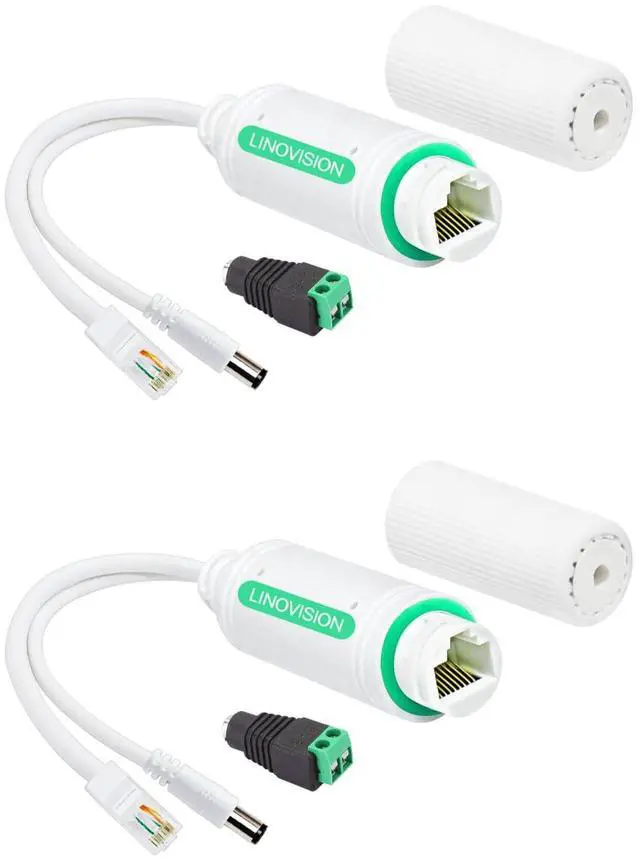

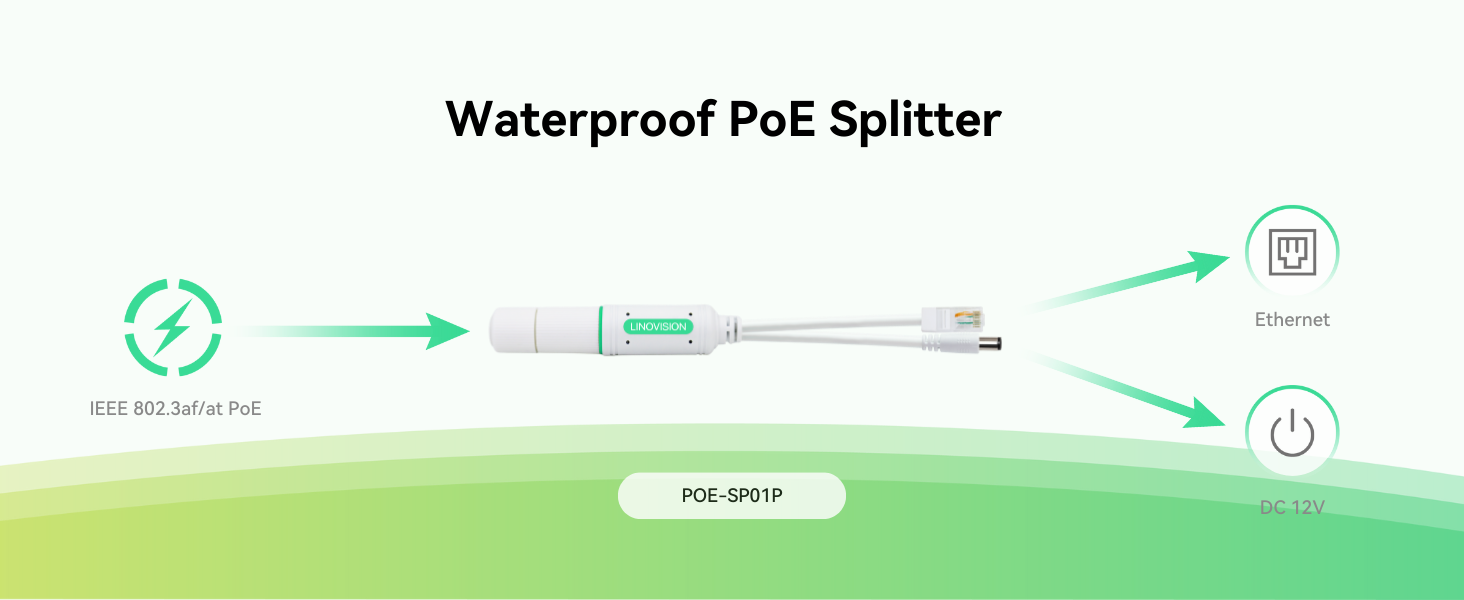

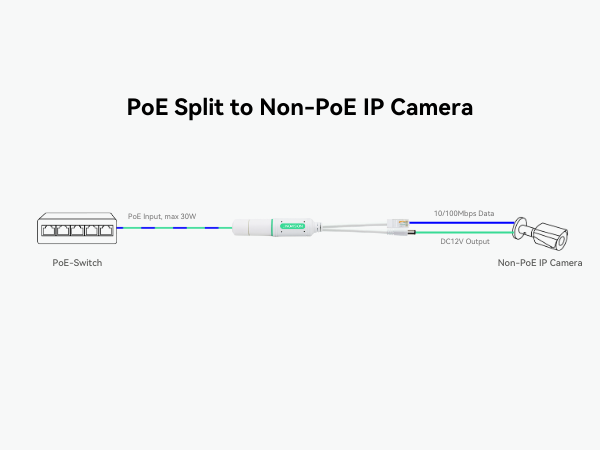

LINOVISION DC12V Waterproof POE Splitter, 10/100Mbps Outdoor Power Over Ethernet Splitter, IEEE802.3af/at POE to DC Power Supply for Security Cameras, AP, VoIP Phone
Outstanding Feature

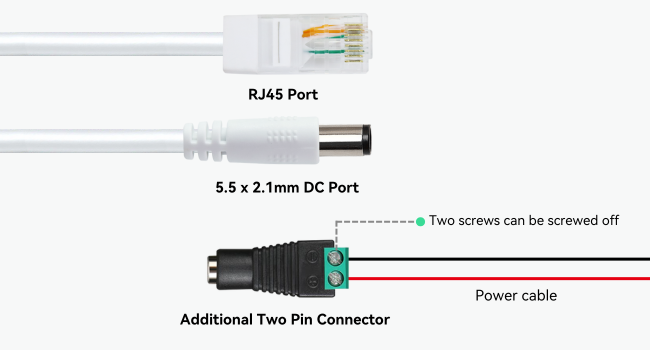

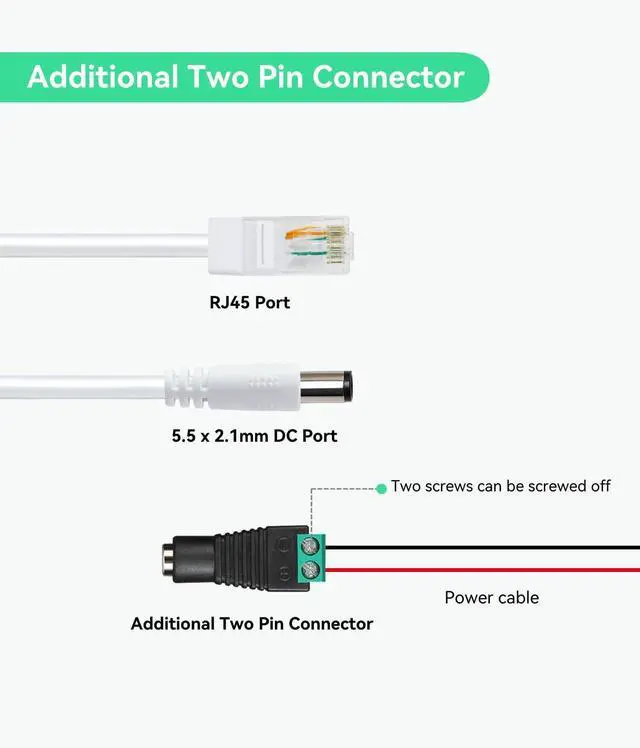

DC Output with DC Connector
Comes with a DC12V connectors for connecting devices of different DC port.

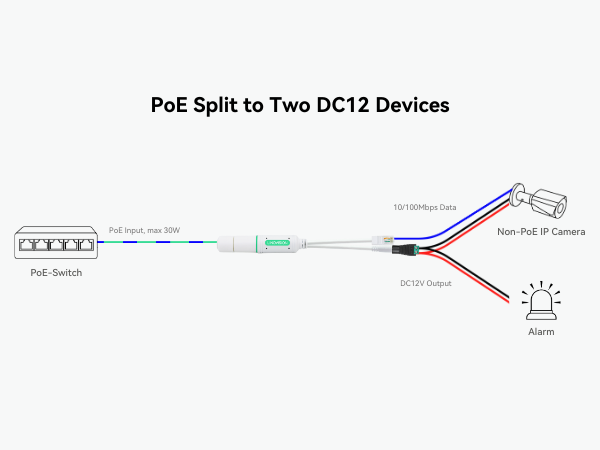

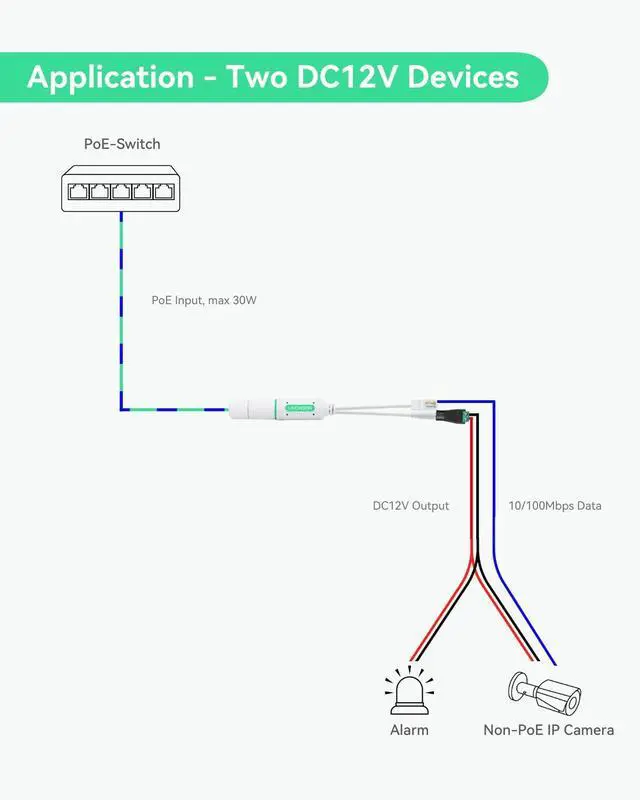

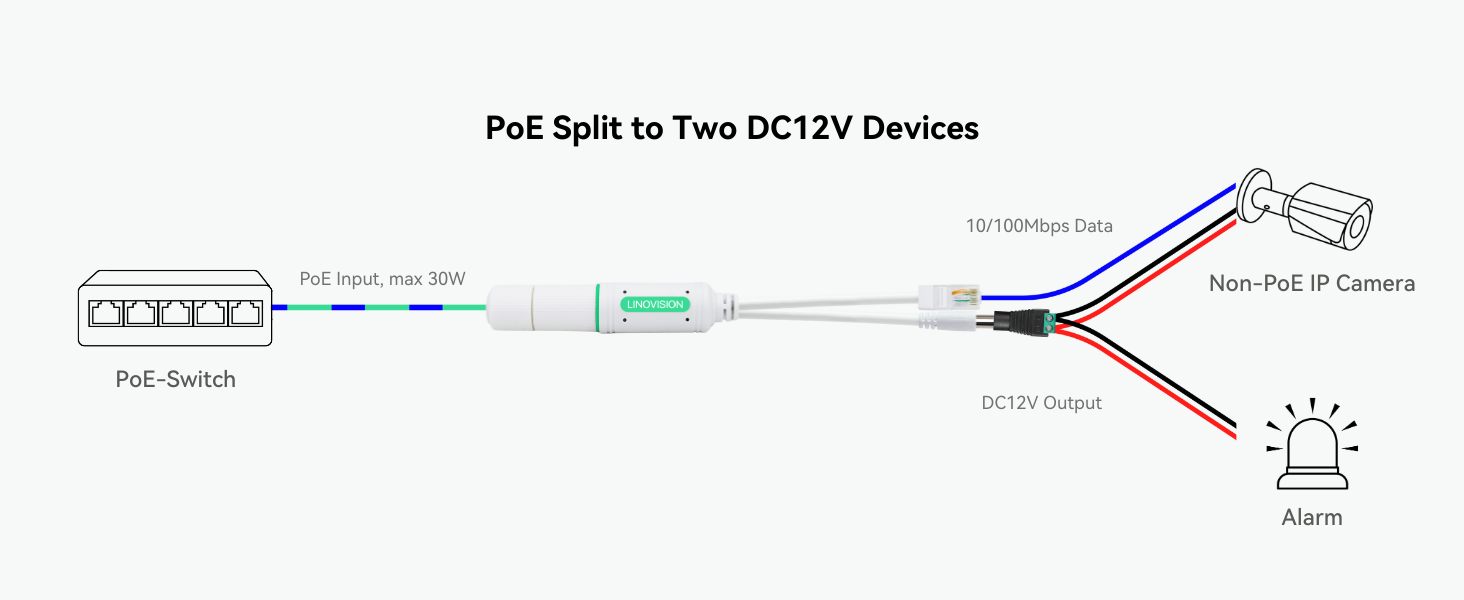

DC Connector can also power 2 DC12V devices at the same time

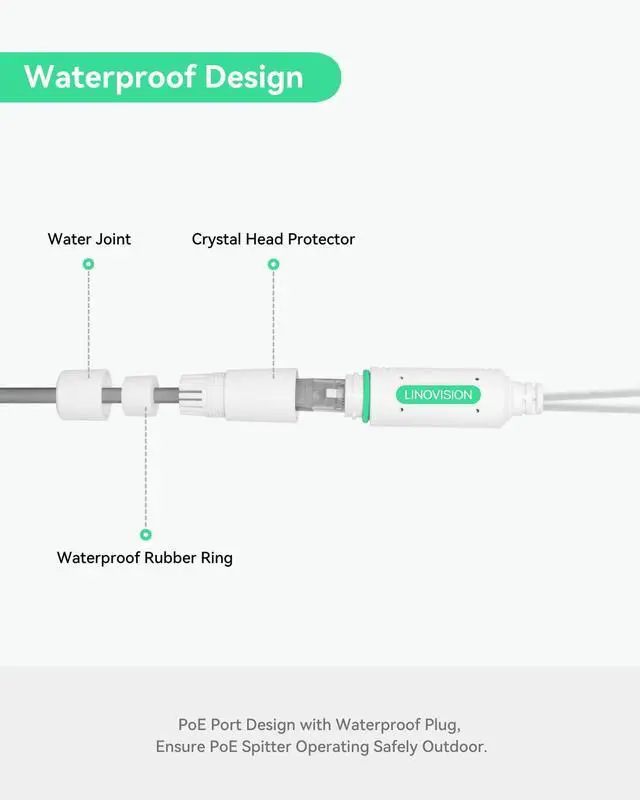

Waterproof Design
POE port design with waterproof plug, ensure POE Spitter operating safely outdoor.
Compatible with More PoE Supply Devices

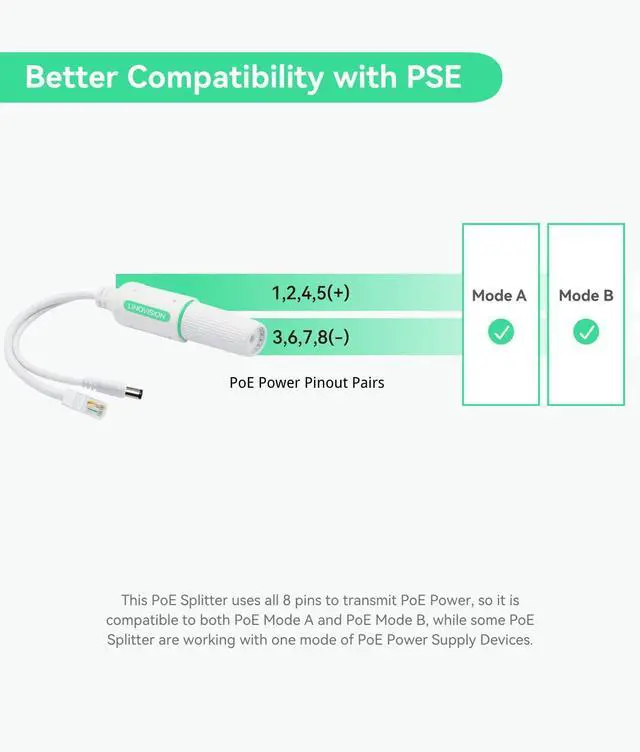

This PoE Splitter uses all 8 pins to transmit PoE Power, so it is compatible to both PoE Mode A and PoE Mode B, while some PoE Splitter are working with one mode of PoE Power Supply Devices.
Run DC Devices More Stable and Safer
4KV surge protection, Support short circuit, over current and over temperature protectio, 3500V high-voltage isolation, the splitters could run your devices more stable and safer.
Specifications
Selection Guide of Linovision POE Splitter
 POE-SP01P |  POE-SP01 |  POE-SP01C |  POE-SP30 |  POE-SP1224POE |  POE-SP02BT-POE |  POE-USBC01 | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
PoE Input | IEEE 802.3af/at | IEEE 802.3af/at, Max 30W | IEEE 802.3af, Max 15W | IEEE 802.3af/at | IEEE 802.3af/at | IEEE802.3af/at/bt | IEEE 802.3af/at |
PoE Output | / | / | / | / | Passive PoE 12V/24V | IEEE802.3bt/at/af PoE | / |
DC Output | DC12V 1A Output | DC12V 2A Output | DC5V 2.4A | DC 5/9/12/18V | DC 12/24V | DC 5/9/12/24V | 9V/2.22A or 5V/2A, Max19.98W |
DC Output Interface | DC Jack | DC Jack | USB C | DC Jack | DC Jack/Terminal blocks | Terminal blocks | 2-in-1 USB C |
Data Speed | 10/100Mbps | 10/100Mbps | 10/100Mbps | Gigabit | Gigabit | Gigabit | 10/100Mbps |
Waterproof | ? | ? | ? | ? | ? | ? | ? |
Installation Method | Desktop | Desktop | Desktop | Wall-Mount | DIN-Rail | DIN Rail | Desktop |
LINOVISION DC12V Waterproof POE Splitter, 10/100Mbps Outdoor Power Over Ethernet Splitter, IEEE802.3af/at POE to DC Power Supply for Security Cameras, AP, VoIP Phone
Outstanding Feature
DC Output with DC Connector
Comes with a DC12V connectors for connecting devices of different DC port.
DC Connector can also power 2 DC12V devices at the same time

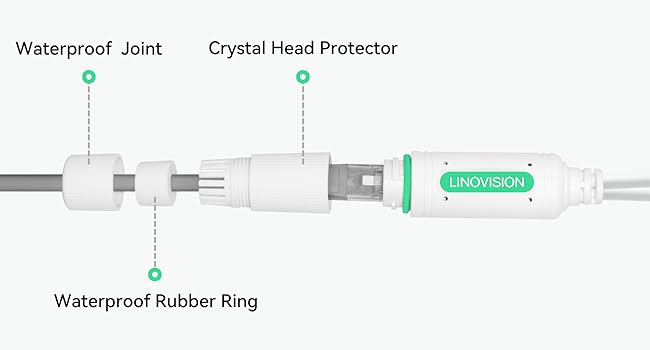

Waterproof Design
POE port design with waterproof plug, ensure POE Spitter operating safely outdoor.

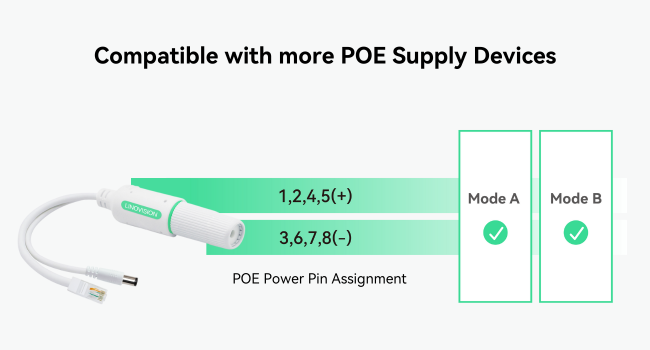

Compatible with More PoE Supply Devices
This PoE Splitter uses all 8 pins to transmit PoE Power, so it is compatible to both PoE Mode A and PoE Mode B, while some PoE Splitter are working with one mode of PoE Power Supply Devices.
Run DC Devices More Stable and Safer
4KV surge protection, Support short circuit, over current and over temperature protectio, 3500V high-voltage isolation, the splitters could run your devices more stable and safer.
Specifications
| Model | POE-SP01P |
|---|---|
| Input | IEEE 802.3af/at PoE, 44-57VDC |
| Output | 1 x 10/100BASE-T Ethernet , 1 x DC 12V 2A Output with additional two pin DC Connector |
| Output Voltage | Default 12VDC± 1.5V, 1A |
| Power Pin Assignment | 1/2 (+), 3/6 (-) & 4/5 (+), 7/8 (-) |
| Power Consumption | Standby<1W, Full Load<15W |
| Temperature | -4? to 131? or -20? to 55? |
| Humidity | 5~90%, (non-condensing) |
Selection Guide of Linovision POE Splitter
POE-SP01P | POE-SP01 | POE-SP01C | POE-SP30 | POE-SP1224POE |  POE-SP02BT-POE | POE-USBC01 |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Price | ||||||
| — | — | — | — | — | — | — |
| PoE Input | ||||||
| IEEE 802.3af/at | IEEE 802.3af/at, Max 30W | IEEE 802.3af, Max 15W | IEEE 802.3af/at | IEEE 802.3af/at | IEEE802.3af/at/bt | IEEE 802.3af/at |
| PoE Output | ||||||
| / | / | / | / | Passive PoE 12V/24V | IEEE802.3bt/at/af PoE | / |
| DC Output | ||||||
| DC12V 1A Output | DC12V 2A Output | DC5V 2.4A | DC 5/9/12/18V | DC 12/24V | DC 5/9/12/24V | 9V/2.22A or 5V/2A, Max19.98W |
| DC Output Interface | ||||||
| DC Jack | DC Jack | USB C | DC Jack | DC Jack/Terminal blocks | Terminal blocks | 2-in-1 USB C |
| Data Speed | ||||||
| 10/100Mbps | 10/100Mbps | 10/100Mbps | Gigabit | Gigabit | Gigabit | 10/100Mbps |
| Waterproof | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| Installation Method | ||||||
| Desktop | Desktop | Desktop | Wall-Mount | DIN-Rail | DIN Rail | Desktop |
