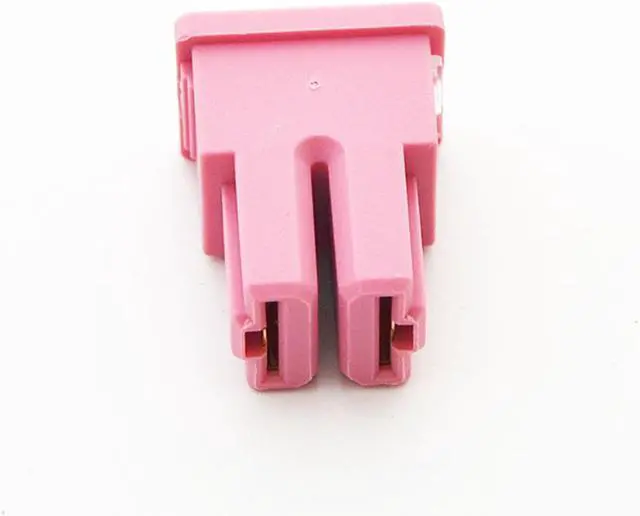

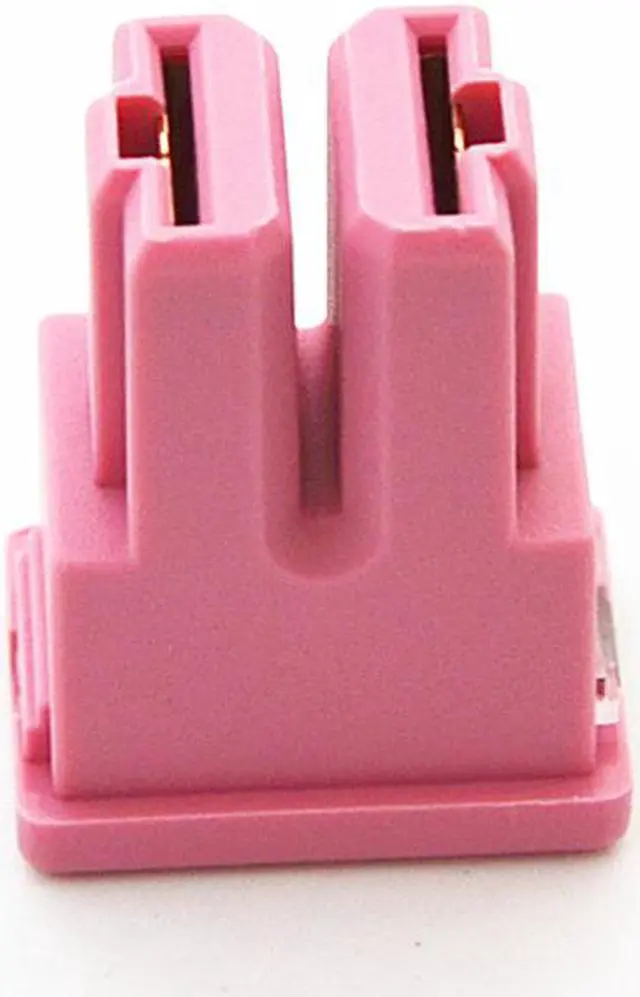

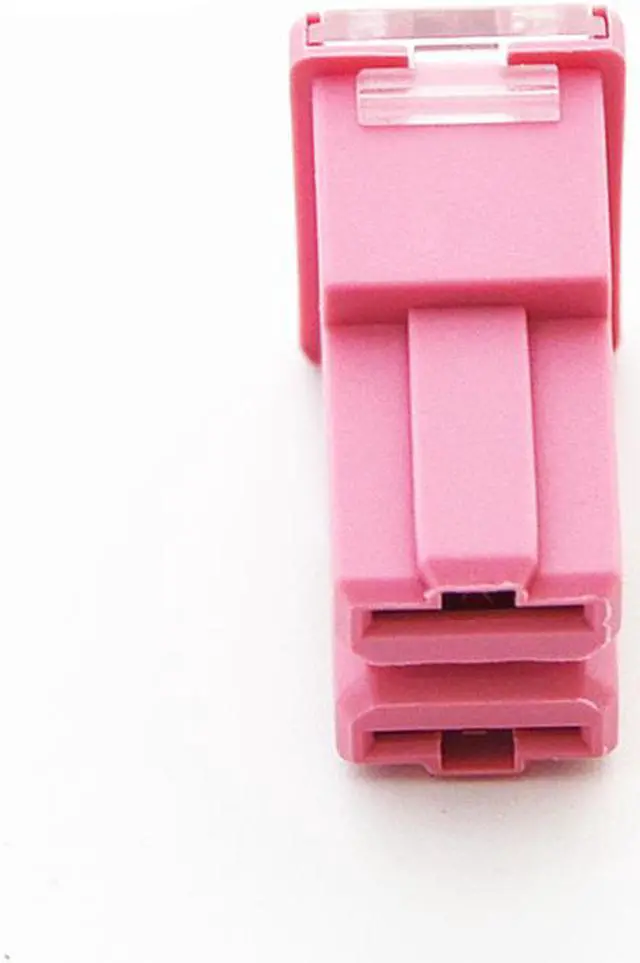

Littelfuse 0293030 293 Square Car Fuse 30A Auto Link PAL Fuses 32VDC
- Test Equipment
+
+
Overview
Specs
Reviews
Littelfuse 0293030 293 Square Car Fuse 30A Auto Link PAL Fuses 32VDC

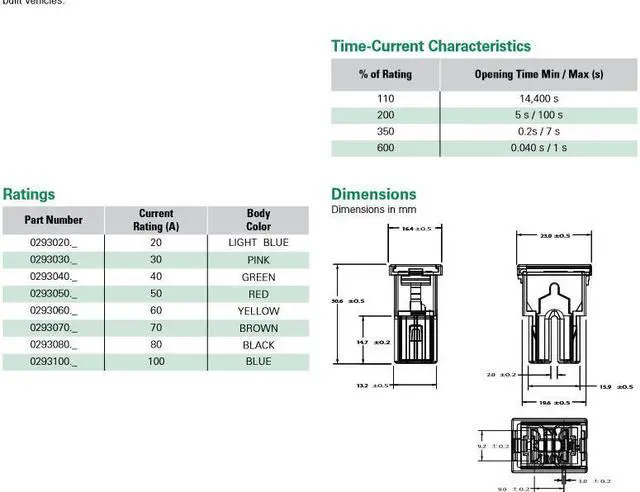

Specifications Amperage Rating: 30A
Voltage Rating: 32 VDC
Current Cycling: 24°C The fuses satisfy the performance requirements after 50% of the rated current is applied for 10, 000 cycles. Each cycle consists of an interrupted current with the pattern of 5 minutes ON and 10 minutes OFF.
Operating Temperature Range: -40°C to +125°C Complies with JASO 0612
Specifications Amperage Rating: 30A
Voltage Rating: 32 VDC
Current Cycling: 24°C The fuses satisfy the performance requirements after 50% of the rated current is applied for 10, 000 cycles. Each cycle consists of an interrupted current with the pattern of 5 minutes ON and 10 minutes OFF.
Operating Temperature Range: -40°C to +125°C Complies with JASO 0612
