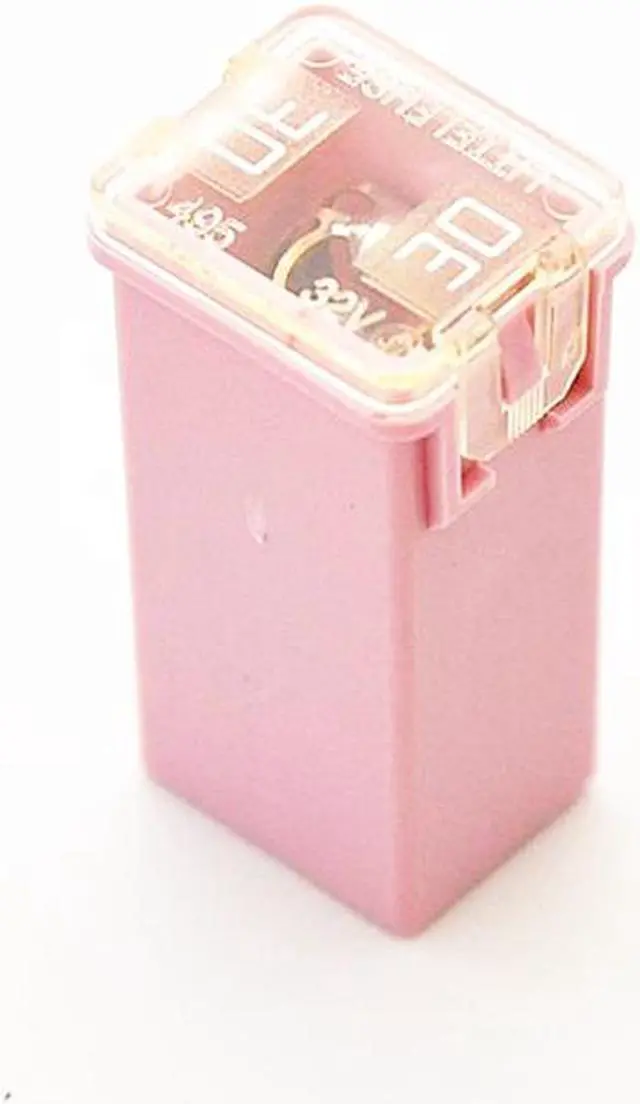

Littelfuse 0495030 495 Square Car Fuse 30A JCASE Cartridge Fuses Rated 32V

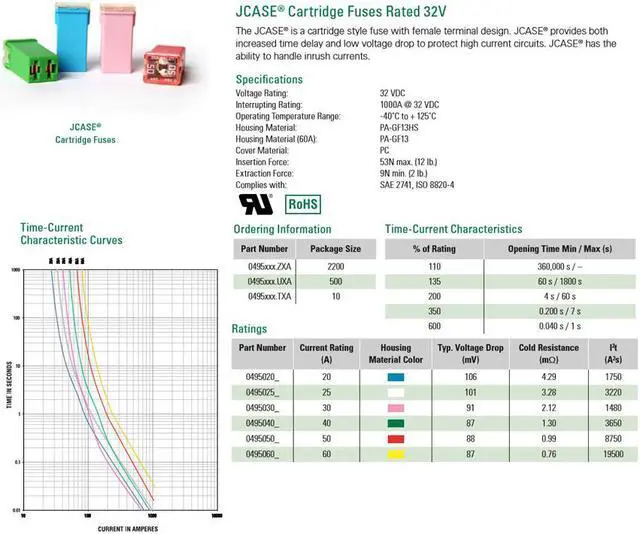

Specifications Amperage Rating: 30A
Voltage Rating: 32
VDC Interrupting Rating: 1000A @ 32 VDC
Operating Temperature Range: -40°C to + 125°C
Housing Material: PA-GF13HS
Housing Material (60A): PA-GF13
Cover Material: PC
Insertion Force: 53N max. (12 lb.
) Extraction Force: 9N min. (2 lb.
) Complies with: SAE 2741, ISO 8820-4
Specifications Amperage Rating: 30A
Voltage Rating: 32
VDC Interrupting Rating: 1000A @ 32 VDC
Operating Temperature Range: -40°C to + 125°C
Housing Material: PA-GF13HS
Housing Material (60A): PA-GF13
Cover Material: PC
Insertion Force: 53N max. (12 lb.
) Extraction Force: 9N min. (2 lb.
) Complies with: SAE 2741, ISO 8820-4
