Logitech CC3500E Medium to Large Video Conferencing System Webcam, Large Meeting Room Equipment, Video Conferencing, 1080p 30fps, camera, tilt and zoom, remotely or via console control, Black

Logitech CC3500e Camera for Medium to Large Video Conferencing Systems
Cost-effective videoconferencing system for medium to large meeting rooms


(1)

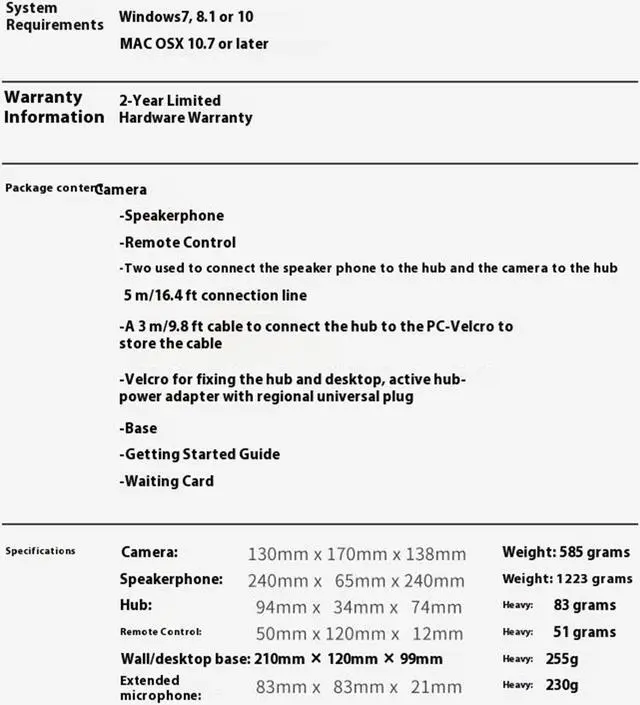

Specifications

and

Details

Size
Camera
Height: 130 mm
Width: 170 mm
Depth: 138 mm
Weight: 585 grams
Speaker Microphone
Height: 240 mm
Width: 65 mm
Depth: 240 mm
Weight: 1223 grams

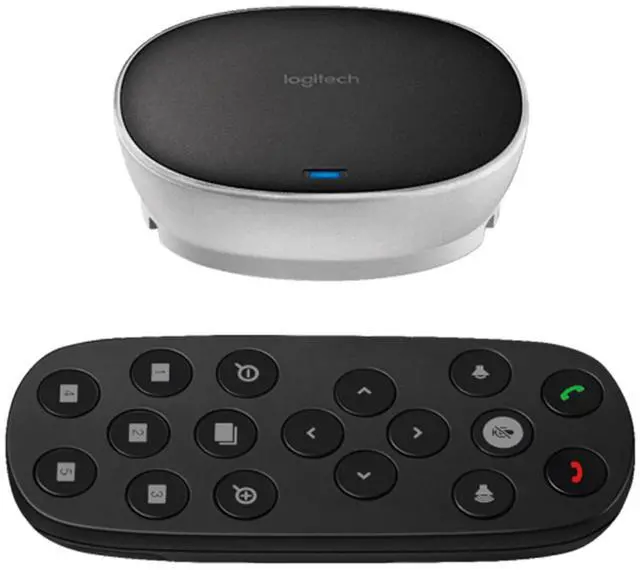

Hub
Height: 94 mm
Width: 34 mm
Depth: 74 mm
Weight: 83 grams
Remote Control
Height: approx. 50 mm
Width: 120 mm
Depth: 12 mm
Weight: 51 grams
Wall/Desktop Mounting Kit
Height: 210 mm
Width: 120 mm
Depth: 99 mm
Weight: 255 grams
Extended Microphone (Optional)
Height: 83 mm
Width: 83 mm
Depth: 21 mm
Weight: 230 grams

(2) Compatibility
Windows® 7, 8.1 or 10
macOS 10.10 or higher

(3) Technical

Specifications

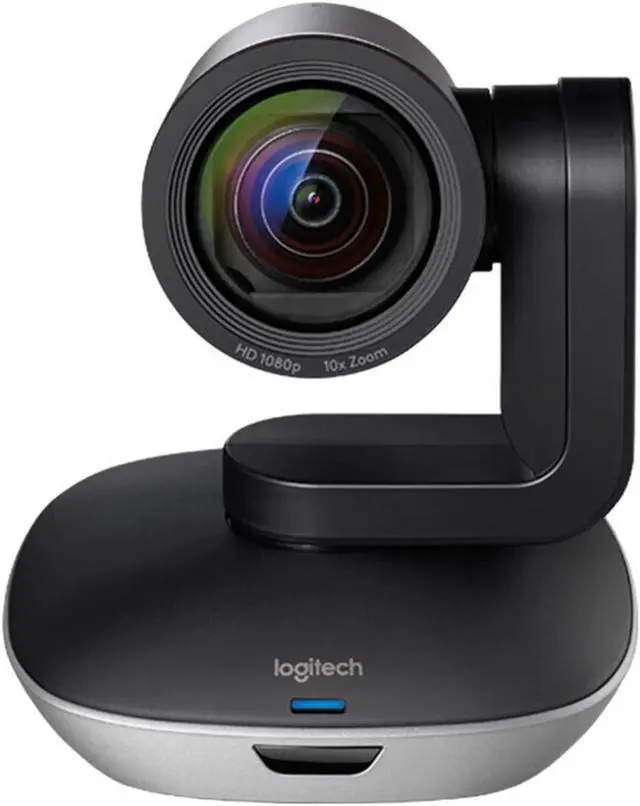

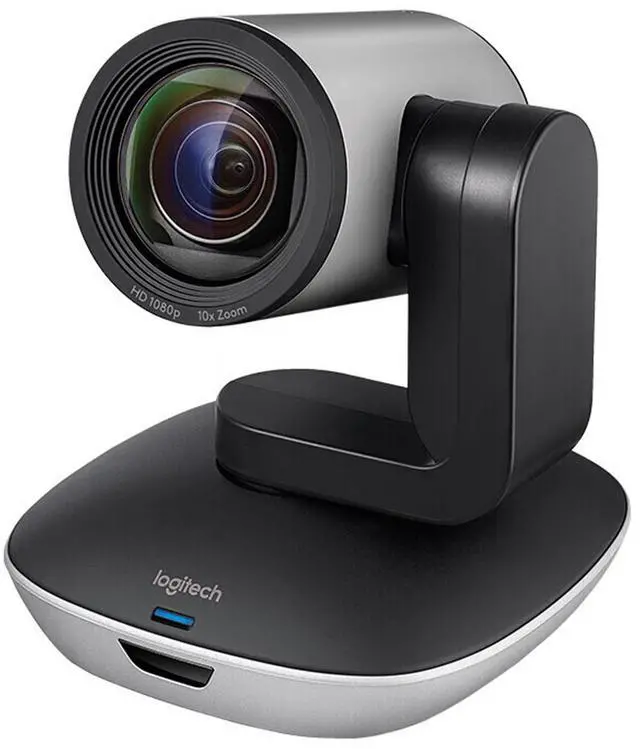

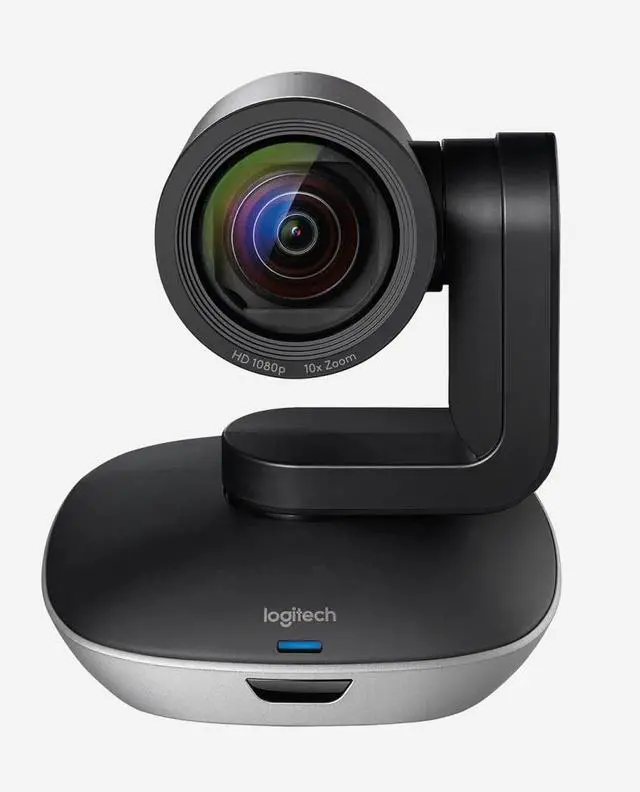

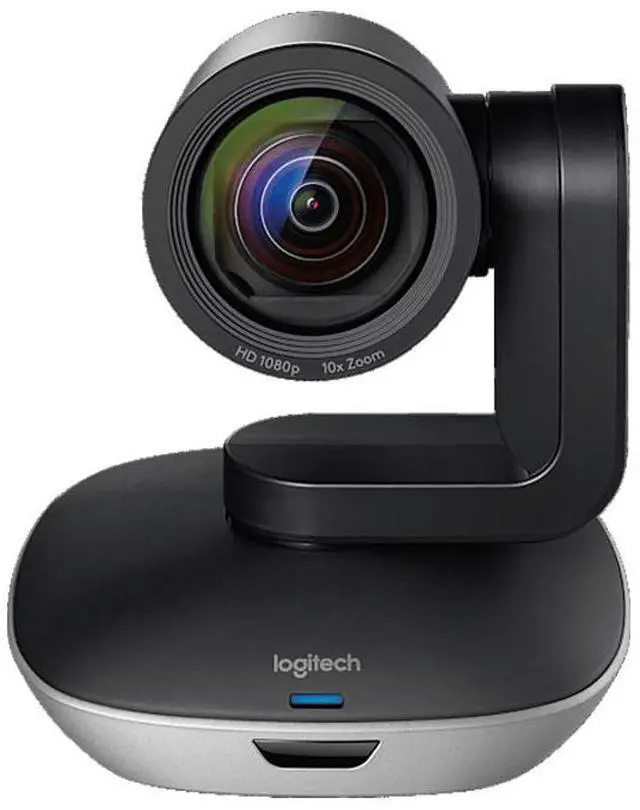

Camera

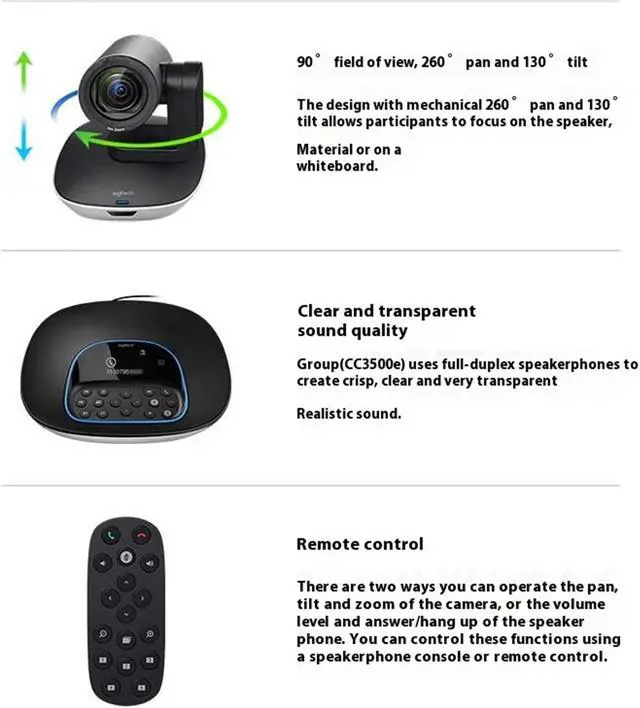

Smooth mechanical pan, tilt and zoom, remotely or via console control
Pan +/- 90°
Tilt +35°/-45
10x lossless HD zoom

(4) Field of view
Diagonal: 90°
Horizontal: 82.1 °
Vertical: 52.2 °
Full HD 1080p 30fps
H. 264 UVC 1.5 with Scalable Video Coding (SVC)
Auto Focus
5 camera presets
Telepresence (PTZ) video collaboration product (via supported services)
Kensington Anti-theft lock jack
Video Mute/Unmute LEDs
Standard tripod mounting threads

(5) Remote Controls
Camera, speaker microphone and call controls
5 camera presets
Speaker microphone with docking station
IR remote control range: 8.5 meters
CR2032 battery (included)

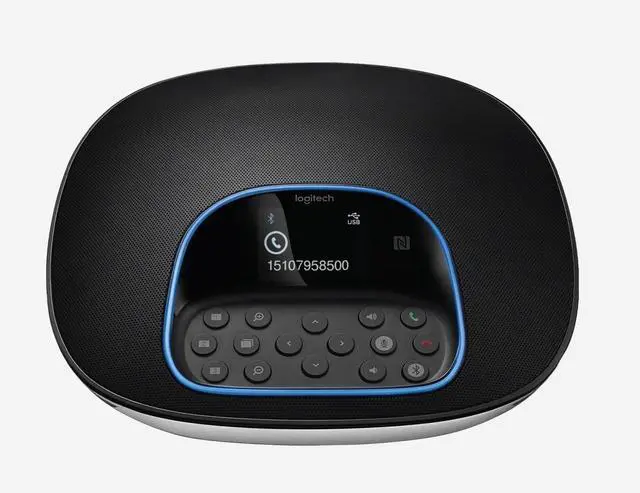

(6) Speaker microphone
Full-duplex performance
Echo Cancellation
Noise reduction technology
Ultra-wideband audio
Pairing with mobile devices via Bluetooth and NFC
LCD display showing caller ID, call duration and other feature responses
LED indicators for speaker microphone play, mute, lock and Bluetooth status
Touch buttons for answering/ending calls, volume adjustment and mute, Bluetooth and camera control
5 camera presets for storing pan, tilt and zoom settings
Kensington anti-theft lock jack

(7) Microphone
Pickup range: 6 meters
Pickup range (with extended microphone): 8.5 meters
Four beamforming omnidirectional microphones
Frequency Response: 100Hz - 11KHz
Sensitivity: -28 dB +/-3dB
Distortion: <5% at 200Hz

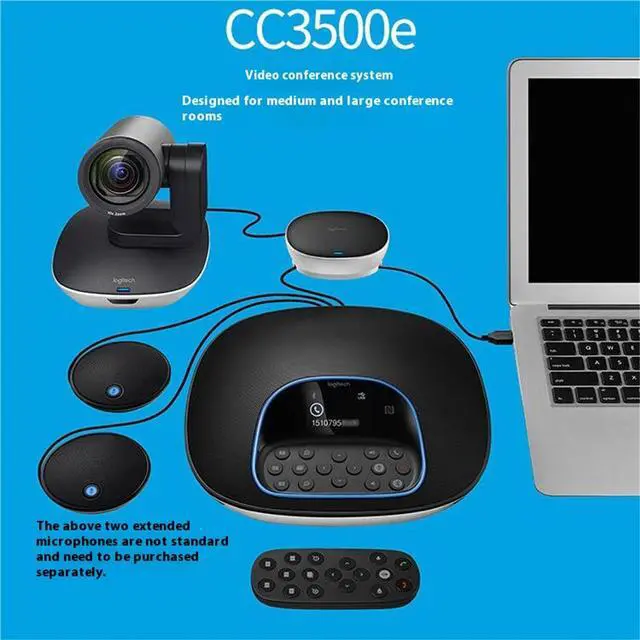

Hub/Cable/Power Supply
Central hub to connect and power all components
Under-desk mounting adhesive included
One camera cable: 5 meters
One speaker microphone cable: 5 meters
Optional extension cables: 10 and 15 meters
One USB cable for PC/Mac connection: approx. 2 meters
AC power adapter with multi-zone replacement plugs
Power cable: 3 meters

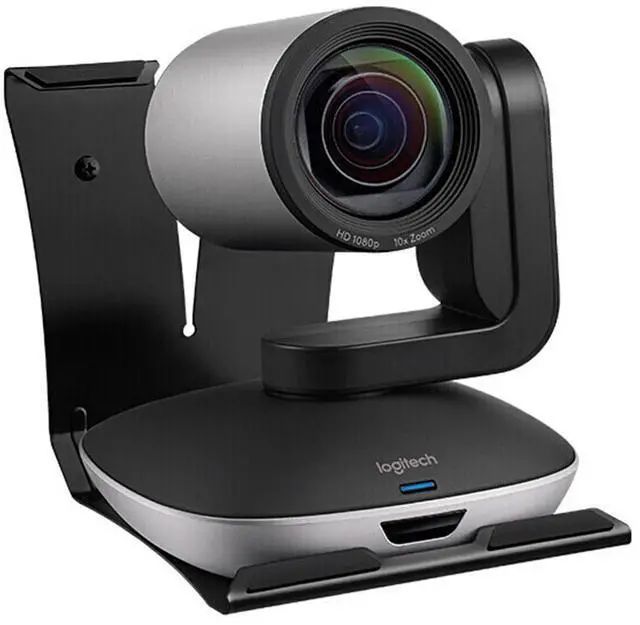

(8) Mounting
Dual-purpose bracket for wall mounting or as a desktop stand

(9) Compatibility and Certification

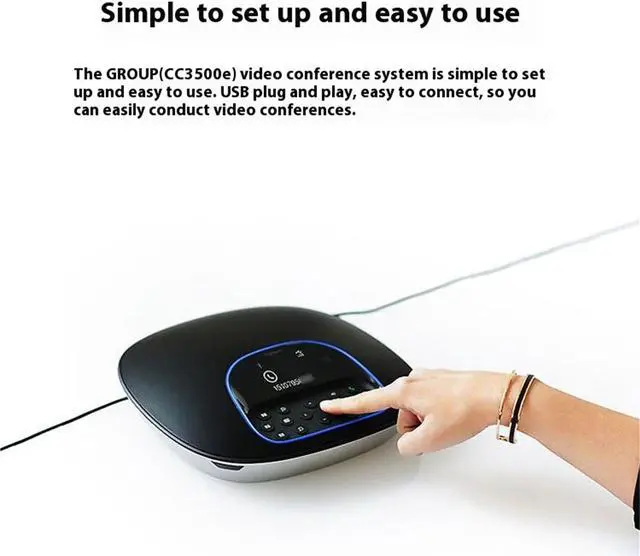

Plug-and-play USB connectivity
Skype for Business certified, supports Microsoft Teams, Tencent Meetings, Flybook Meetings, Nail Meetings, and Zoom Certified.
Zoom Certified
Fuze® Certified
Microsoft Cortana® certified
Cisco Jabber
Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other USB camera-enabled video conferencing, recording, and broadcasting applications.

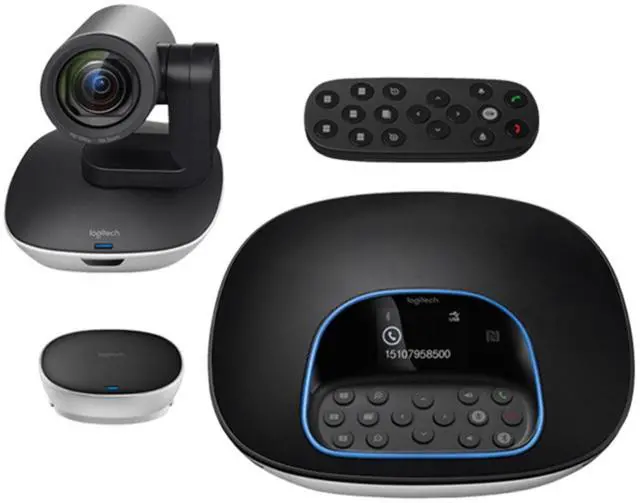

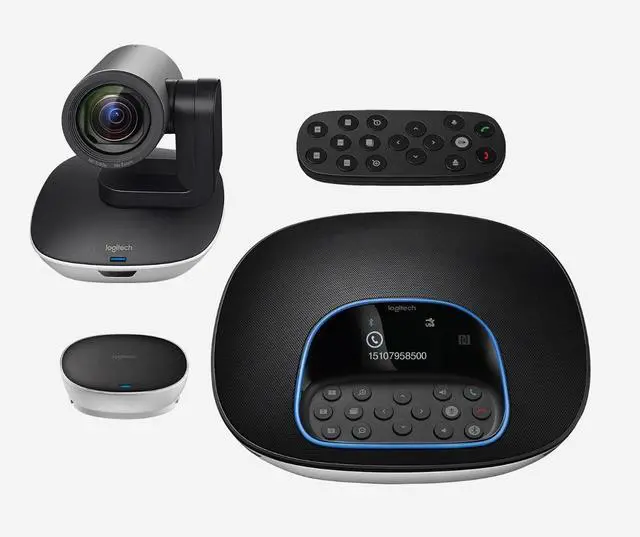

(10) Package Contents
Webcam
Speaker Microphone
Remote control
Two 5-meter cables to connect the speaker microphone to the hub and the camera to the hub
One 2 meter cable to connect the hub to the PC
Velcro for Cable Storage
Velcro for securing the hub to the desktop
Active hub
Power adapter with multi-zone replacement plugs 3 meter cable
Installation
Warranty Card
