CC4000e
Dimension
Height: 83 mm
Width: 83 mm
Depth: 10 mm
Height: 104 mm
Width: 400 mm
Depth: 85 mm
Weight: 1.04 kg
Bluetooth wireless technology
RF remote control
Integrated desktop/wall mounting accessory; optional TV mounting accessory
Kensington anti-theft lock jack
Adjustable volume up to 95 dB SPL @ 1/2 meter peak
Speaker sensitivity: 86.5 +/-3dB SPL at 1/2 meter
Distortion: 200-300 Hz < 3%, 3000 Hz -10KHz < 1%
Exclusive vibration-resistant enclosure enhances sound clarity while reducing sound interference
Integrated microphone with 3 beamforming elements
Pickup range
CC4000e: 4 meters
With optional extension microphone: 5 meters
Sensitivity: -27 dB
Microphone Frequency Response: 90Hz - 16KHz Full speech reproduction, high definition, no noise
Beamforming performance: Factory-matched, low-distortion lateral beamforming algorithm directs the microphone directly to the speaker for superior pickup and noise reduction
AEC (echo cancellation)
VAD (Voice Activation Detection)
Microphone background noise suppression
Microphone data rate: 32KHz sampling rate
Recommended number of people: 6
Recommended number of users with extended microphone: 8
4K Ultra HD video calling (up to 3840 x 2160 pixels @ 30 fps with user-supplied USB 3.0 cable)
1080p Full HD video calling (up to 1920 x 1080 pixels @ 30 fps)
720p HD video calling (up to 1280 x 720 pixels @ 30 fps)
Custom Logitech lens with 5x HD zoom and motorized pan (+/- 25°) and tilt (+/- 15°)
Field of View:
Diagonal: 120°, Horizontal: 113°, Vertical: 80.7
Total room coverage (FOV + pan & tilt): 163° horizontal x 110° vertical
3 camera presets
RightSight autoframing: Requires 64-bit Windows 10 or macOS 10.14 or higher
Package Contents

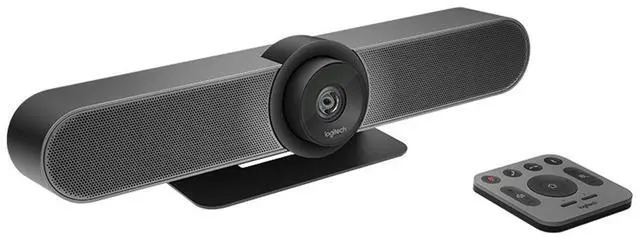

CC4000e Conference Camera
Remote control
USB 2.0 cable: 5 meters
Power supply
Wall mounting bracket and parts
User Documentation
