What are the microphone specifications included in the Logitech Rally Video Conferencing Kit?

The microphone is omni-directional with a frequency response of 90 - 16000 hertz, and the total harmonic distortion (THD) is 2.5%.

What is the video resolution capability of the Logitech Rally Video Conferencing Kit?

The Logitech Rally Video Conferencing Kit supports video capture resolutions of 3840 x 2160, as well as video modes including 1080p, 1440p, 4K, 720p, and 900p.

$2,299^.00

Free 30-day Returns

Limit 99999 per customer.

Sold by IPC Store

4.4 (3,115 seller ratings)

Shipped by IPC Store

Price alert

Add to Wish List

Best Sellers

Technology Galaxy

Top Rated

4.1 (2,357 total ratings)

$2,085^.39
+ FREE SHIPPING

Newegg

$2,299^.00
+ FREE SHIPPING

Hot Deals 4 Less

Hot Seller

4 (3,719 total ratings)

$2,439^.38
+ FREE SHIPPING

Meet Your Seller

IPC Store

See Seller Store

Main image of Logitech Rally Video Conferencing Kit with White Mic Pod | 960-001397

Alt view image 2 of 5 - Logitech Rally Video Conferencing Kit with White Mic Pod | 960-001397

Alt view image 3 of 5 - Logitech Rally Video Conferencing Kit with White Mic Pod | 960-001397

Alt view image 4 of 5 - Logitech Rally Video Conferencing Kit with White Mic Pod | 960-001397

Alt view image 5 of 5 - Logitech Rally Video Conferencing Kit with White Mic Pod | 960-001397

Shop All Logitech Products | Visit IPC Store

Logitech Rally Video Conferencing Kit with White Mic Pod | 960-001397

Be the first to review this product...

For Small to Medium Conference Rooms
PTZ Camera with up to UHD 4K Resolution
Rally Speaker, White Mic Pod
Display Hub and Table Hub

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI mode will help you find out quickly.

Try me now

Logitech Rally Video Conference Equipment

3840 x 2160 Video (Content) - 4K UHD - USB - External Microphone(s) - Desktop

General
Brand	Logitech

Model
Part Number	960-001397

General
Type	Video Conference Device

Phone Features
Camera	Rally Camera Zoom: 15x HD zoom (5x optical + 3x digital) Pan: 180° (±90°) Tilt: 140° (+50° / -90°) Field of View Diagonal: 90° Horizontal: 82° Vertical: 52° Total Room Coverage: 262° wide x 192° tall (field of view + pan and tilt) Resolutions @ 30fps: 4K Ultra HD, 1440p, 1080p, 900p, 720p, and SD Resolutions @ 60fps: 1080p, 720p RightLight Technologies: Wide Dynamic Range (WDR), low-light compensation, video noise reduction, low-light saturation optimization Privacy: Lens parks at -90° in sleep mode for assured privacy

Additional Features

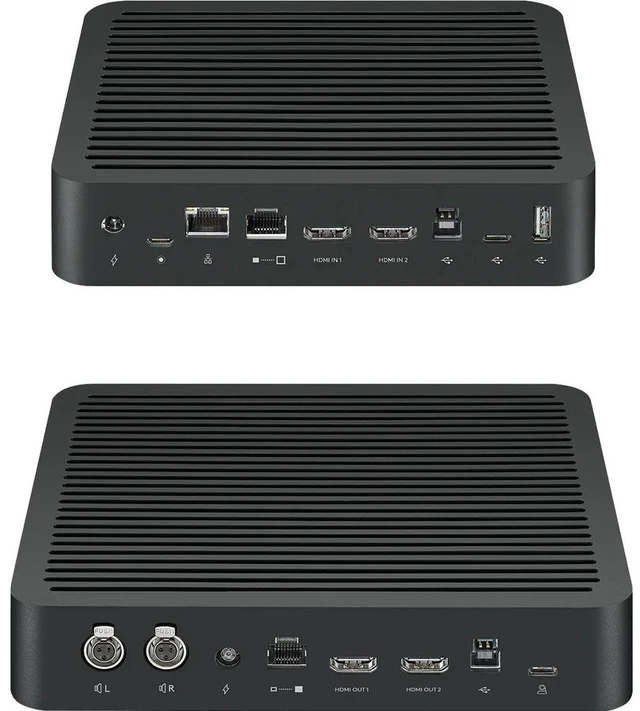

Additional Features	Rally Table Hub Single CAT6A cable connection to Rally Display Hub (16.4 ft / 5m cable included, supports customer-supplied cables up to 164 ft (50 m) Hub 5 m cable included, supports customer-supplied cables up to 50 m Active speaker detection: analyzes audio from up to 7 Mic Pods and 56 beams every 8 ms 12 Pin connector for Rally Mic Pod HDMI Type A passthrough to Display Hub (x2) USB Type C USB Type A (reserved for future capability) USB Type B (connects to meeting room computer) RJ45 (reserved for future capability) Power input Rally Display Hub HDMI Type A: (x2) (connects to displays) USB C (connects to Rally Camera) USB Type B (connects to meeting room computer) RJ45: connects to Table Hub Mini XLR: x2 Powers one or two Rally Speakers Power input
Specification	Operating Systems Windows 7, 8.1 or Windows 10 macOS®: 10.10 or higher ChromeOS Resolutions higher than 1080p Windows 8.1 or higher or macOS 10.10 or higher USB 3.0 port Compatible software

Audio

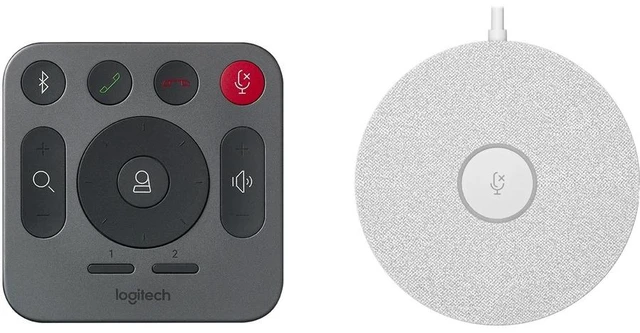

Microphone	Rally Mic Pod Pickup Range: 23 ft (7m) diameter Four omnidirectional microphones forming eight acoustic beams AEC: Acoustic Echo Cancellation VAD: Voice Activity Detector Background noise suppression Mute button with LED status indicator Captive 9.6 ft (2.95m) 12-pin cable Daisy chain up to 7 Rally Mic Pods Frequency Response: 90Hz – 16kHz Sensitivity: >-27 dB +/-1dB @ 1Pa Microphone data rate: 48 kHz Recommended # of participants Rally (one Mic Pod): 16

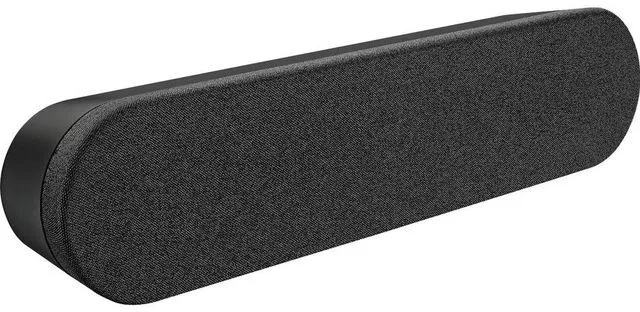

Speakerphone	Rally Speaker High-performance 3" (76mm) driver with rare-earth magnet Patent-pending suspension system eliminates vibration-induced camera shake and audio interference Mini XLR cable connects to Rally Display Hub for both signal and power Speaker volume 95dB SPL @1W, 100dB SPL @7.5W, both +/-2dB at ½ meter Sensitivity: 95+/-2 dB SPL at ½ meter Distortion: 200Hz–300Hz <2.5%, 300Hz–10kHz < 1%@7.5W Sampling rate: 48 kHz

Power
Power	Cables / Power Camera to Display Hub 6.5 ft (2m) USB 3.1 Type C to USB Type C 3.1 Conference Room Computer to Display or Table Hub 6.5 ft (2m) USB 3.1 Type A to USB Type B Display Hub to Table Hub 16.4 ft (5 m) CAT6A Ethernet cable (supports customer-supplied cables up to 164 ft (50 m) Display Hub to Speaker (x2) 9.6 ft (2.95 m) Mini XLR (supports customer-supplied extension cables up to 9.8 ft (3 m) Conference Room Computer to Displays (x2) 6.5 ft (2m) HDMI A Mic Pod 9.6 ft (2.95m): Hardwired with 12 pin connector Power Outlets to Power Supplies (x2): 4.9 ft (1 m) 3.2 ft (1 m) Power Supplies to Table Hub / Display Hub (x2) 4.9 ft (1.5 m)

Spec
Dimensions	Rally Camera Height: 7.19 in (182.5 mm) Width: 5.98 in (152 mm) Depth: 5.98 in (152 mm) Rally Speaker Height: 4.06 in (103 mm) Width: 17.68 in (449 mm) Depth: 3.15 in (80 mm) Rally Mic Pod Height: 0.83 in (21 mm) Width: 4.02 in (102 mm) Depth: 4.02 in (102 mm) Rally Display Hub Height: 1.57 in (40 mm) Width: 8.11 in (206 mm) Depth: 7.05 in (179 mm) Rally Table Hub Height: 1.57 in (40 mm) Width: 6.93 in (176 mm) Depth: 5.43 in (138 mm)

Additional Information
First Listed on Newegg	April 26, 2024

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
Read full details
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by IPC Store Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

Item#: 9SIA25VKAM5111
