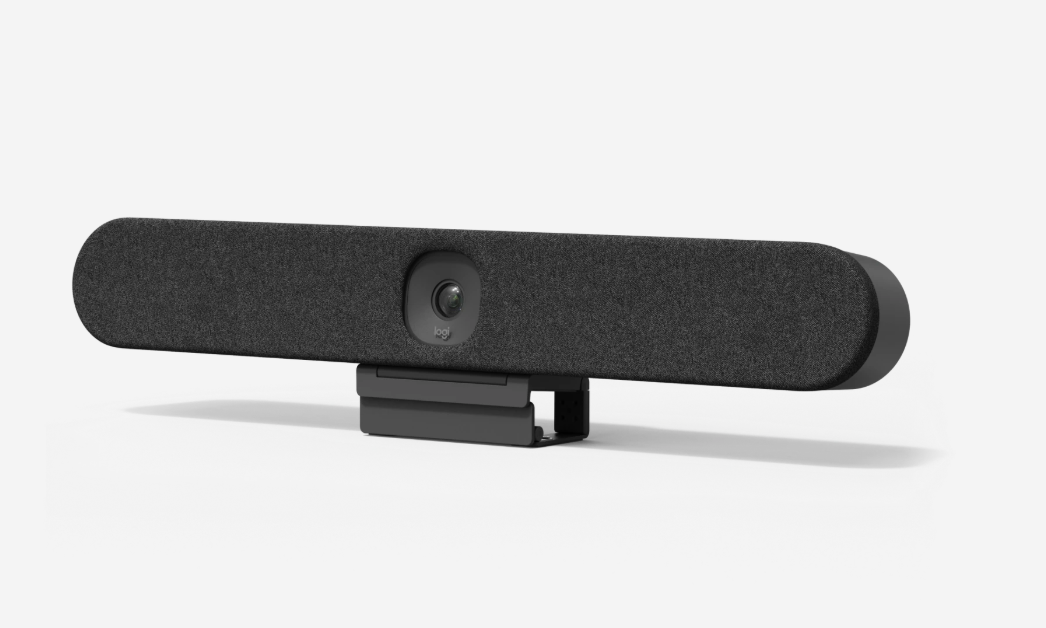

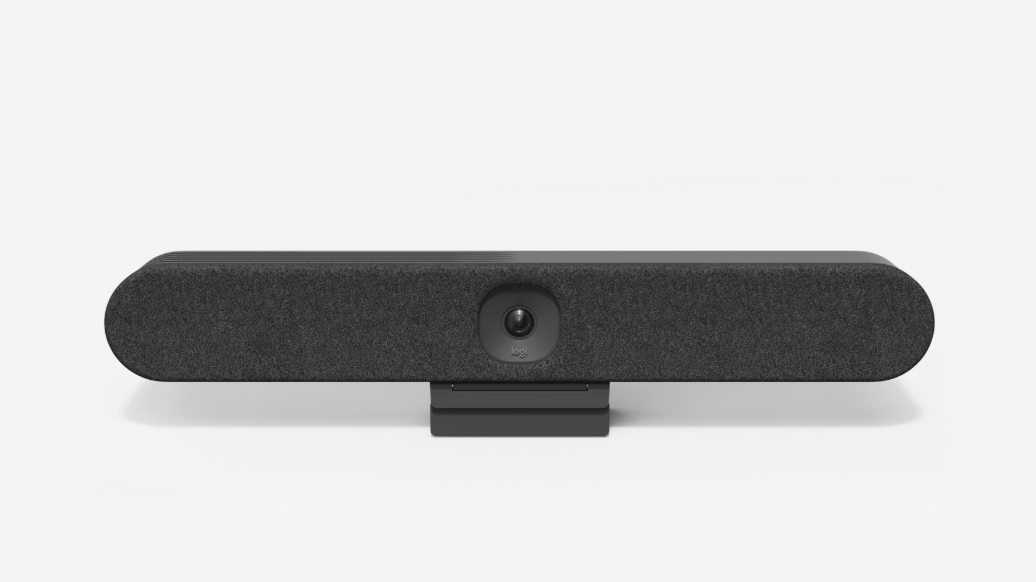

Logitech 4K CC4300e Webcam, Mobile Office Video conferencing Camera, Large Meeting Room Equipment, Wired, Tilt, and Zoom, IR Remote Control or Control via Console, Black

Specifications and Details

Part Number

960-001502

Specifications

Width: Approx. 549.6 mm

Height: Approx. 78.9 mm

Depth: Approx. 76.0 mm

Weight: Approx. 1.8 kg

Technical Specifications

Certifications and Compatibility

For the latest information on certifications and compatibility, please visit www.logitech.com/support/vc-certifications.

General Specifications

Built-in Components: 6-microphone DMIC array, digital PTZ camera, 1 full-range portable speaker, cable management and mounting system, multi-purpose mounting accessories, integrated motorized privacy lens cover, Logitech Collab OS platform

Enclosure: One-piece enclosure with field-replaceable front cover

Device Management: Logitech Sync device management software

Supported Displays: 1 (support for a second display coming soon)

Display Resolution: 1080p

Network Protocol Support: IPv4, IPv6

Proxy Support: IP-based proxy, FQDN-based proxy, proxy using PAC files

Camera

Digital Pan: ±48° with 4x zoom support

Digital Tilt: ±32° with 4x zoom support

Zoom: 4x HD digital zoom

Diagonal Field of View: 120°

Horizontal Field of View: 113°

Vertical Field of View: 80°

Resolution: 4K

Speaker

Driver: 55 mm, featuring a bass-reflex enclosure and patented suspension design

Sensitivity: 83 dB SPL @1W ±2dB @ 1 meter

Rated Power: 8W

Total Harmonic Distortion at 1W, 1kHz: <2%

Speaker Sampling Rate: 48 kHz

Impedance: 4 ohms

Microphone

Frequency Response: 90 Hz 16 kHz

Sensitivity: -36 dBFS ±1 dB @ 1 Pa

Microphone Data Rate Output: 48 kHz

Pickup Range: Up to 7 meters

Beamforming Principle: Six omnidirectional digital MEMS microphones forming five adaptive acoustic wide-beam patterns

Audio Processing: AEC (Echo Cancellation), VAD (Voice Activity Detection)

Noise Suppression: AI-based noise cancellation algorithm

Interfaces

HDMI Output: 1

HDMI Input: 1

USB: 1 Type-A USB 3.1 port, 1 Type-C USB 3.1 port

Network: 10/100/1G Ethernet

Wi-Fi: 802.11a/b/g/n/ac

Bluetooth: Bluetooth Low Energy

Power and Cables

Power: Auto-sensing

Operating Voltage/Power: 100240 V, 19 V, 2.1 A

Power Supply Dimensions: Approx. 114 mm x 47 mm x 32.3 mm

DC Cable: 1.5 meters

AC Cable: Approx. 1 meter

HDMI 1.4 Cable: Approx. 2 meters

USB A to USB C 3.0 Cable: Approx. 2.2 meters

Environment

Operating Temperature: 0 to 40°C

Storage Temperature: -25 to 70°C

Humidity: 10% to 90%

Security

File-based encryption: Requirement: Available USB port

Data encryption: Symmetric key, PKI

Device identification: Protected by device authentication

Device access: Authentication via API

Key protection: Arm TrustZone, RPMP

Accessories

Cover: Logitech CC4300e front cover washable, off-white fabric

Mounting accessories: All-in-one video conferencing wall mount kit, All-in-one video conferencing TV mount kit

Touchscreen: Logitech TP100 and TP100 wireless touchscreens

Compatibility

Internet Connection: Wired or wireless

USB Mode: The two latest versions of Windows 11, Windows 10, and macOS

All-in-One Mode: Meeting Room Solution software license (sold separately)

Product List

Logitech CC4300e

Multi-purpose mounting kit

Power supply

AC power cord

HDMI cable

USB cable
