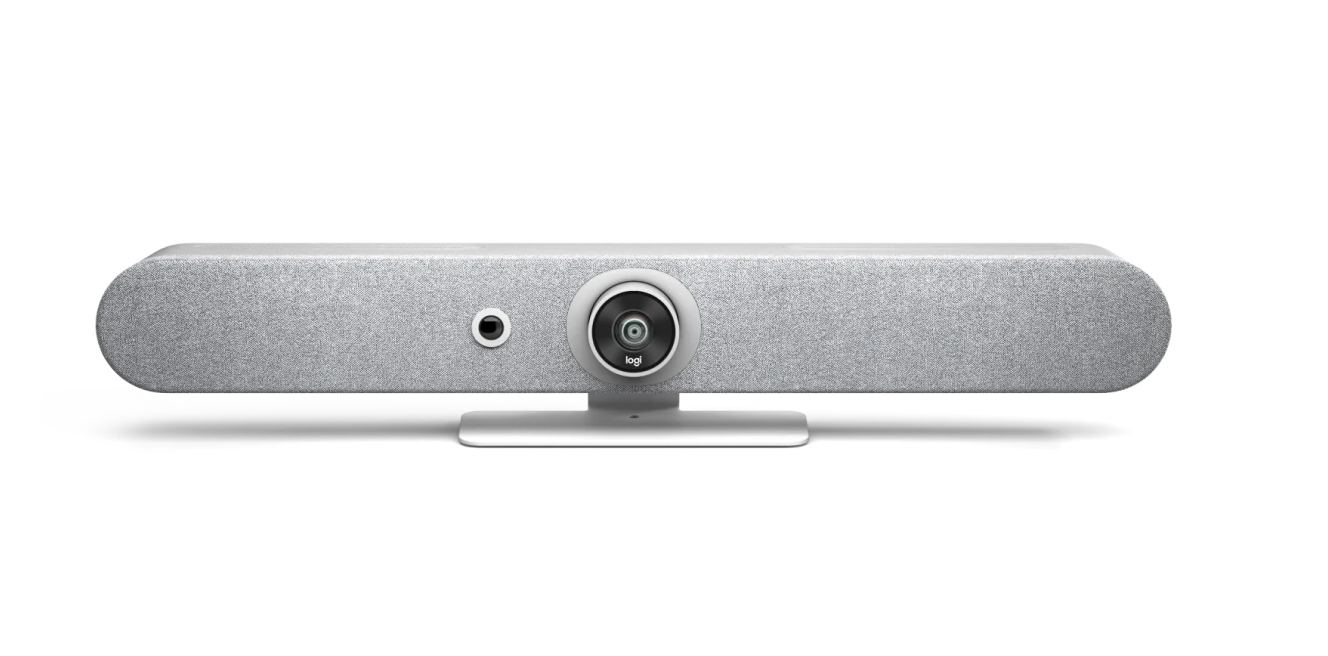

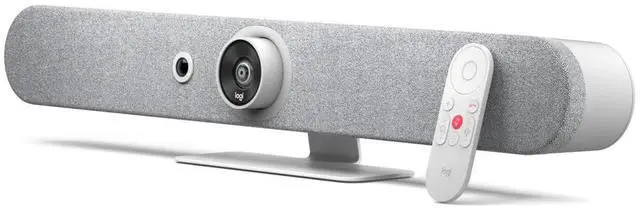

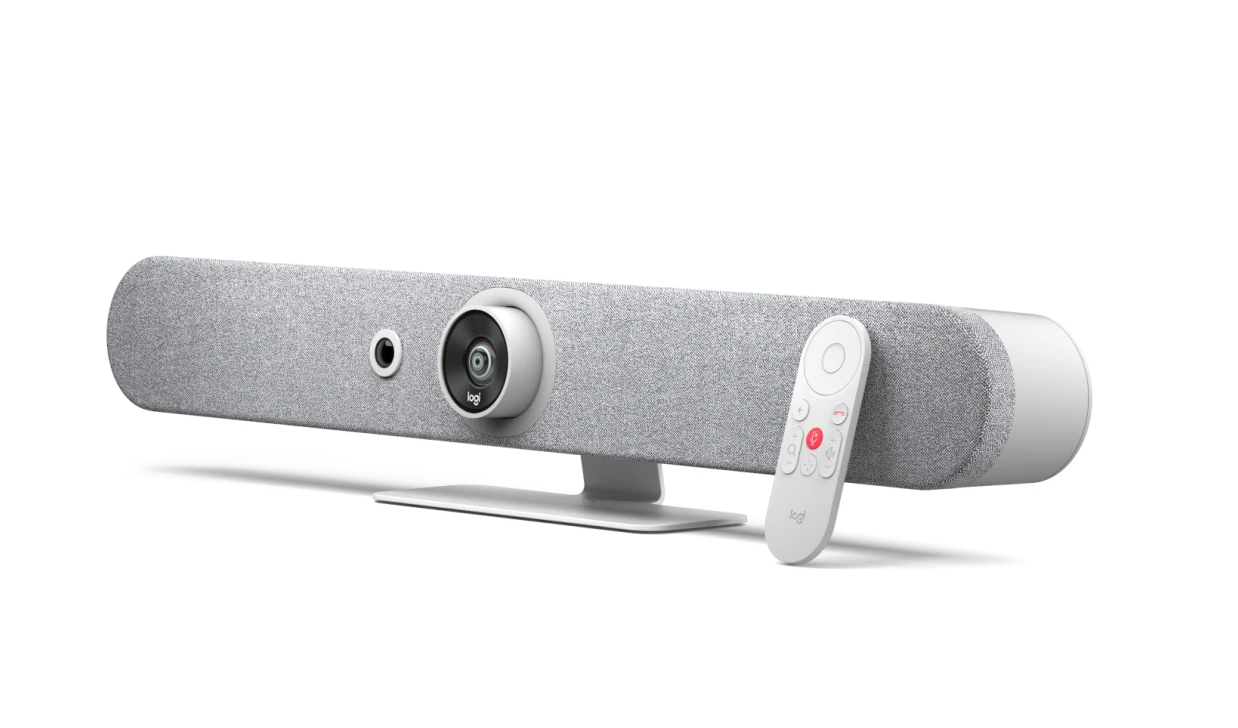

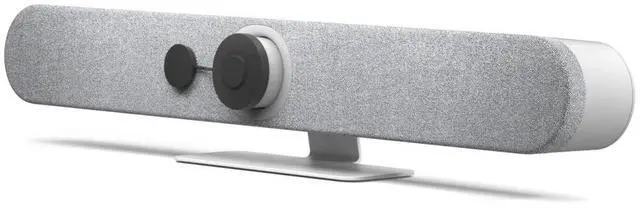

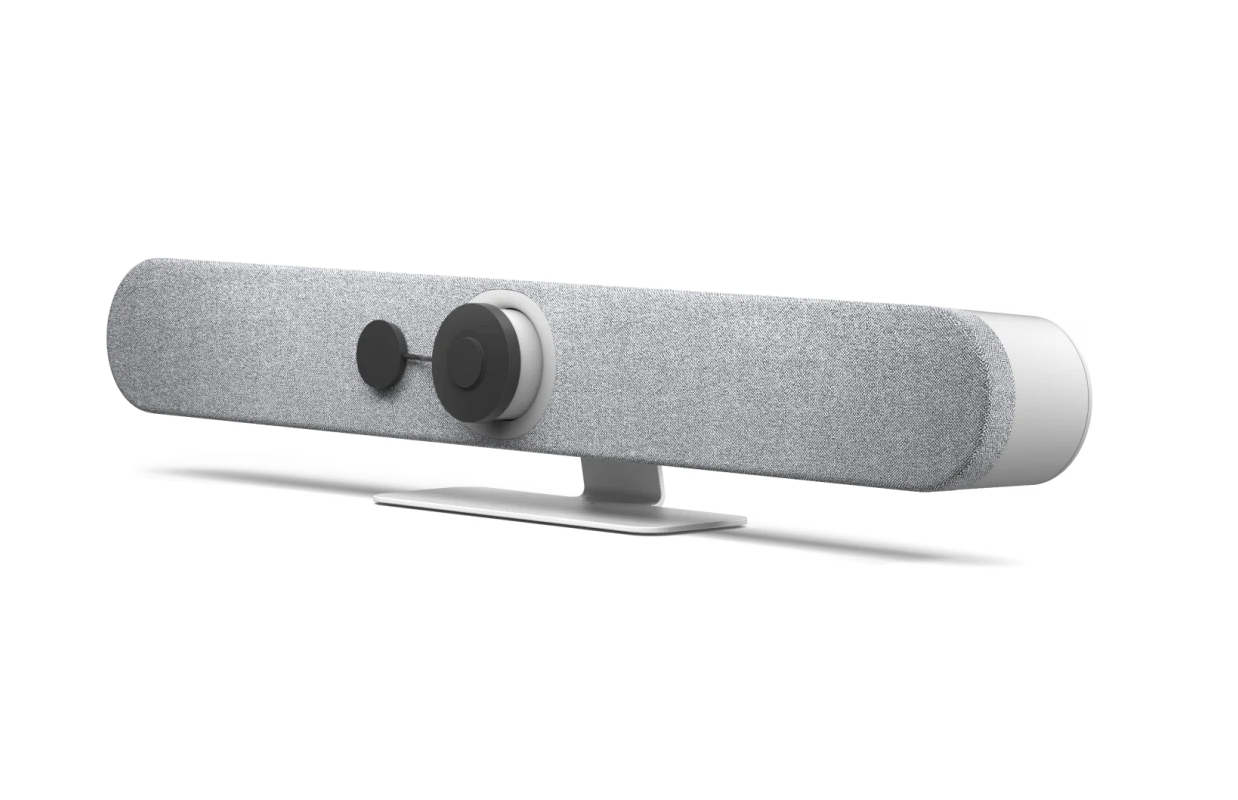

Logitech 4K CC4500e Webcam, Commercial Conference Room Video Camera: Rally Bar MINI Office 4K Ultra HD 120° Wide-Angle Camera with Expandable Microphone for Teams/Zoom in Medium to Large Rooms, white

Logitech CC4500e Business HD Video Conferencing All-in-One System

An all-in-one video conferencing system for small to medium-sized meeting rooms

The Logitech CC4500e is an all-in-one video conferencing system designed for small to medium-sized meeting rooms. It delivers a seamless video conferencing experience through built-in AI technology, exceptional optics, and powerful audio.

Specifications and Details

Part Number

Graphite Gray: 960-001347

White: 960-001359

Dimensions

Height: 91.4 mm

Width: 719 mm

Depth: 101 mm

Lens Depth: Approx. 18.5 mm

Weight: 4.03 kg

Technical Specifications

Certifications and Compatibility

For the latest information on certifications and compatibility, visit https://support.logi.com/hc/zh-cn

Microsoft Teams Rooms (Android) 1 for small meeting rooms

Microsoft Teams Rooms (Windows) 2 for small meeting rooms

General Specifications

Built-in Components: 6 beamforming microphones, PTZ camera, 3 speakers, AI framer, cable management and mounting system, desktop stand, Logitech CollabOS platform

Enclosure: All-in-one enclosure with integrated desktop stand and patented speaker suspension system to eliminate camera shake and audio interference caused by vibrations

Device Management: Logitech Sync

Display Support: 2

Display Resolution: Up to 1080p

Network Protocol Support: IPv4, IPv6

Proxy Support: IP-based proxy, FQDN-based proxy, PAC file-based proxy

Camera

Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD, 30fps

Pan: Motorized ±25°

Tilt: Motorized ±15°

Zoom: 4x HD digital zoom

Diagonal Field of View: 120°

Horizontal Field of View: 113°

Vertical Field of View: 80.7°

Total Room Coverage (Field of View + Pan and Tilt): Horizontal 163° x Vertical 110°

Woofer

Driver: 70 mm

Sensitivity: 92 dB SPL @ 1W, 99 dB SPL @ 8.0W, at 0.5 m, ±2 dB

Rated Power: 8W

Total Harmonic Distortion: 1 kHz < 2% @ 1W

Speaker Sampling Rate: 48 kHz

Impedance: 4 ohms

Midrange Speaker

Driver: 2 x 43 mm

Sensitivity: 84 dB SPL @ 1W/1M

Rated Power: 4W

Total Harmonic Distortion: 1kHz < 2% @ 1W

Speaker Sampling Rate: 48 kHz

Impedance: 4 ohms

Microphone

Frequency Response: 90 Hz 16 kHz

Sensitivity: >-36 dBFS ±1 dB @ 1 Pa

Microphone Data Rate Output: 48 kHz

Pickup Range: Up to 7 meters

Beamforming Principle: 6 omnidirectional digital MEMS microphones form 5 adaptive acoustic wide-beam patterns

Audio Processing: AEC (Echo Cancellation), VAD (Voice Activity Detection)

Noise Suppression: AI-based noise cancellation algorithm

Additional Microphones: Supports up to 3 additional CC5000e microphones and 2 CC5000e microphone hubs for larger conference rooms

RightSense Technology

RightLight: Delivers natural skin tones for every participant

RightSight: The main camera frames the active speaker, while the AI viewfinder captures everyone in the room

RightSound: Distinguishes speech from other sounds and automatically adjusts speech volume while suppressing background noise and echoes

Grid View: Detects and frames all meeting participants to create an equitable hybrid meeting experience. For more information, visit logitech.com/prosupport/gridview

Interfaces

HDMI Output: 2 (up to 1080p)

HDMI Input: 1

USB: 3 x Type A, 1 x Type C

Ethernet: 10/100/1
