ESP32-S3 N16R8 PinPulse Shield GPIO LED 16MB C++ Ready | 16MB Flash, 8MB PSRAM, WiFi & Bluetooth 5.0 LE Development Board. Programmable in C++, MicroPython, ESP-IDF

"

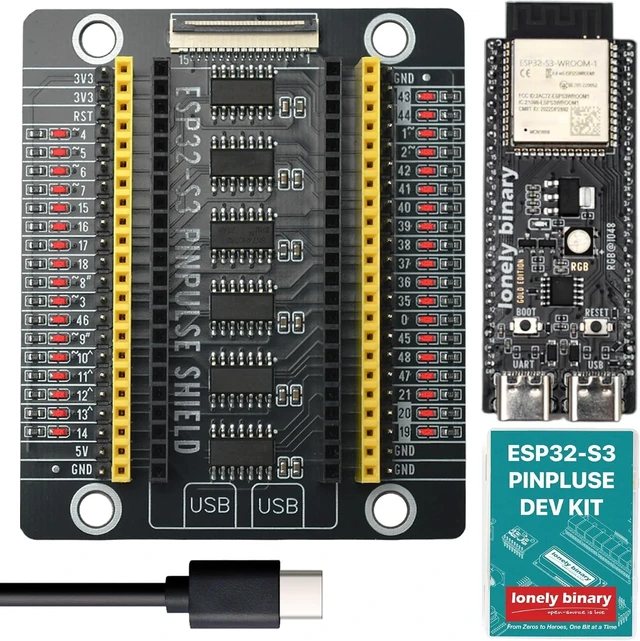

Lonely Binary ESP32-S3 N16R8 Gold Edition Kit with PinPulse Shield

TheLonely Binary ESP32-S3 N16R8 Gold Edition PinPulse Kitpairs the ESP32-S3 N16R8 board with the PinPulse Shield. The board has alead-free ENIG (Electroless Nickel Immersion Gold) finishfor good durability, oxidation resistance, and signal integrity.

ESP32-S3 with AI Acceleration

Powered by theESP32-S3-WROOM-1module with dual-core 240MHz Xtensa LX7 CPU andAI vector instructions for on-device machine learning and neural network acceleration:

• 16MB Flash holds large programs, web servers, OTA partitions, and asset libraries
• 8MB PSRAM enables graphics-intensive applications: LVGL touch UIs, ESP32-CAM streaming, audio playback with decoding, AI/ML inference, and complex IoT systems
• WiFi 802.11 b/g/n+Bluetooth 5.0 LE(Low Energy only the ESP32-S3 does not support Bluetooth Classic)
• Dual USB-C ports one for native USB OTG (HID, MSC, CDC) and one for UART programming/debugging

PinPulse Shield

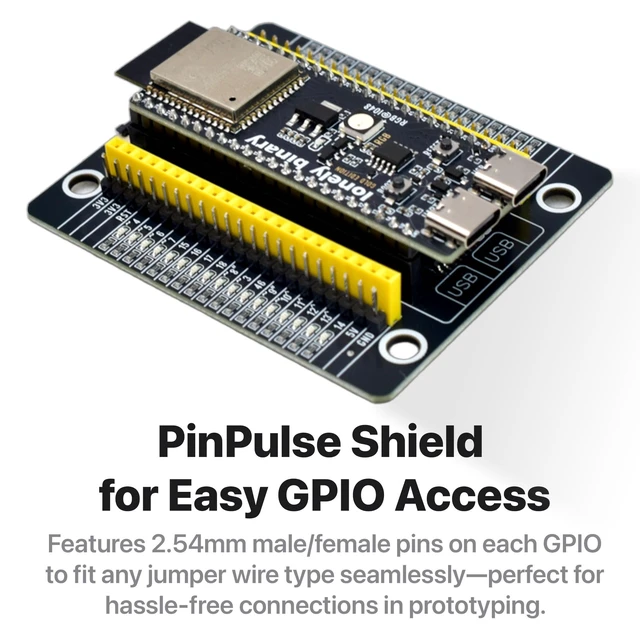

• Dual male & female 2.54mm headerson every GPIO accept any jumper wire type (M-M, M-F, F-F)

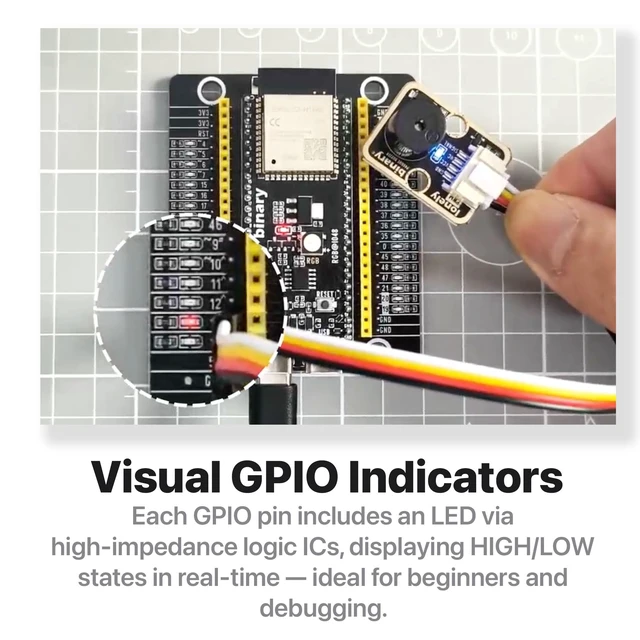

• GPIO indicator LEDsvia 74HC14D high-impedance buffered logic ICs see HIGH/LOW states without a multimeter
• Non-intrusive design LEDs do not load the bus, so SPI, I2C, UART, and PWM signals stay clean

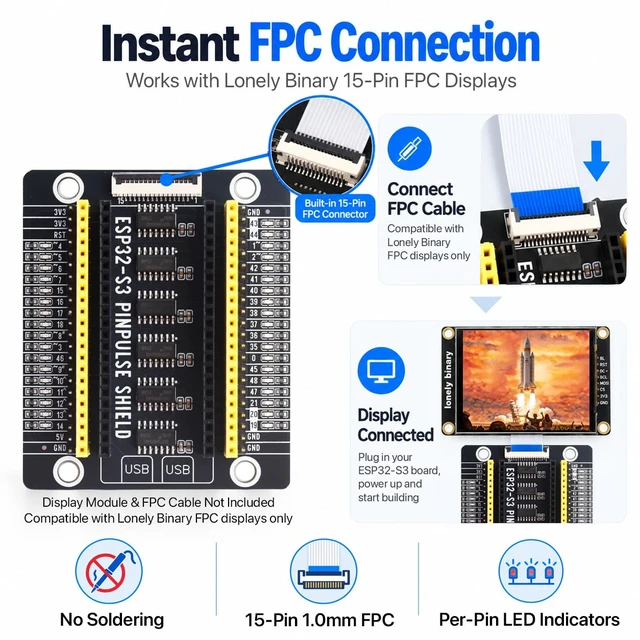

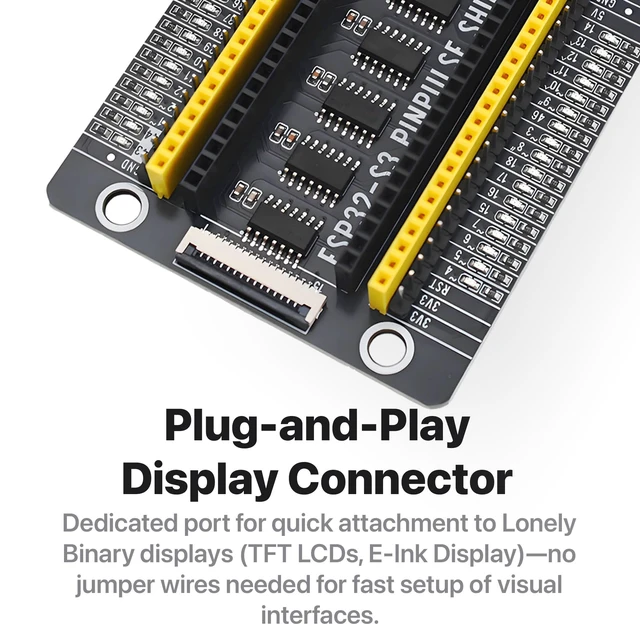

• 15-pin FPC Display Connector connects to Lonely Binary TFT, E-Ink, and touch displays via a single ribbon cable (display sold separately)

Technical Specifications

• MCU Module:ESP32-S3-WROOM-1 (Dual-core Xtensa LX7 @ 240MHz with AI vector instructions)
• Flash Memory:16MB
• PSRAM:8MB (dedicated, for graphics & AI workloads)
• SRAM:512KB on-chip
• Wireless:WiFi 802.11 b/g/n (2.4GHz), Bluetooth 5.0 LE
• USB:Dual USB-C (1× native OTG + 1× UART for programming)
• GPIO:30+ usable pins supporting UART, SPI, I2C, PWM, ADC, DAC, I2S, RMT, LCD, Camera
• LED Buffer:74HC14D high-impedance logic ICs (no signal loading)
• PCB Finish:Lead-free ENIG (Electroless Nickel Immersion Gold)
• Software:C++, ESP-IDF, MicroPython, C/C++, PlatformIO

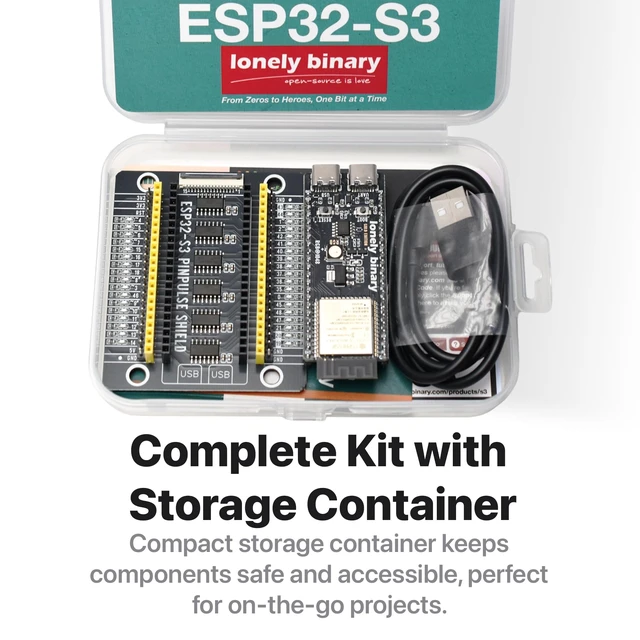

What's in the Box

• 1× Lonely Binary ESP32-S3 N16R8 Gold Edition Board (16MB Flash, 8MB PSRAM)
• 1× Lonely Binary PinPulse Shield Expansion Board
• 1× USB-A to USB-C Cable

Note: Displays, jumper cables, sensors, and additional accessories sold separately.

Applications

AI/ML on the edge, ESP32-CAM video streaming, LVGL touch interfaces, audio player projects, smart home automation, sensor networks, robotics with WiFi telemetry, and educational labs teaching embedded systems.

"
