| Products | ||||||
|---|---|---|---|---|---|---|
| Controller | Intel 82599EN | Intel 82599EN | Intel 82599ES | Intel X710BM2 | Mellanox ConnectX-3 | Intel XL710BM1 |
| Port Comfigure | 1xSFP+ | 1xSFP+ | 2xSFP+ | 2xSFP+ | 2xSFP+ | 4xSFP+ |
| PCIE | PCIE 2.0X4 | PCIE 2.0X8 | PCIE 2.0X8 | PCIE 3.0X8 | PCIE 3.0X8 | PCIE 3.0X8 |
| Data Rate/Port | 10Gb/s | 10Gb/s | 10Gb/s | 10Gb/s | 10Gb/s | 10Gb/s |
| Jumbo frames | ||||||
| Operating Systems | Windows7~10 Windows Server2008~2022 Linux RHEL/CentOS Ubuntu FreeBSD VMware ESX/ESXi | Windows7~10 Windows Server2008~2022 Linux RHEL/CentOS Ubuntu FreeBSD VMware ESX/ESXi | Windows7~10 Windows Server2008~2022 Linux RHEL/CentOS Ubuntu FreeBSD VMware ESX/ESXi | Windows7~10 Windows Server2008~2022 Linux RHEL/CentOS Ubuntu FreeBSD VMware ESX/ESXi | Windows7~10 Windows Server2008~2022 Linux RHEL/CentOS Ubuntu FreeBSD VMware ESX/ESXi | Windows7~10 Windows Server2008~2022 Linux RHEL/CentOS Ubuntu FreeBSD VMware ESX/ESXi |
| DPDK | ||||||
| PXE | ||||||
| SR-IOV |
Based in Shenzhen and facing the whole world, LR-LINK has been deeply engaged in segmented market and committed to delivering high-performance Ethernet card products and perfect Ethernet card solutions to global customers.

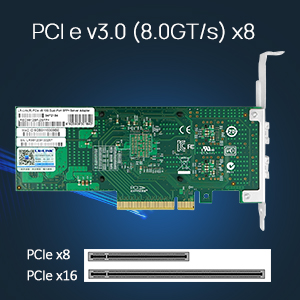

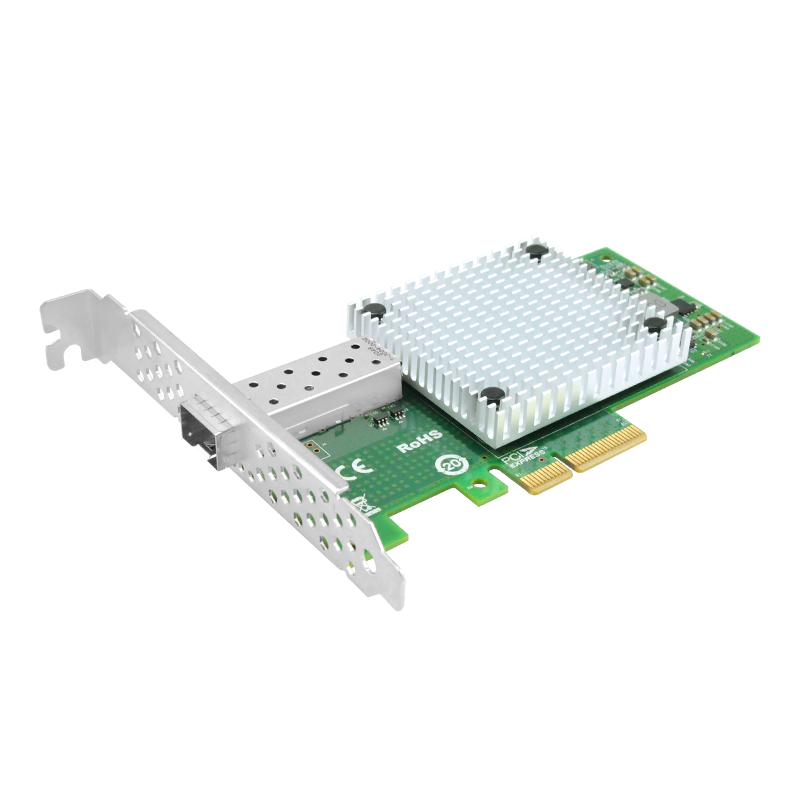

Compatible with x4, x8 andx16,including Low Profile and Full Height Bracket.
Windows 7/8/8.1/10;
Windows Server 2008 R2/2012 R2/2016 R2/2019 /2019 R2;
Linux Stable Kernel version 3.x/4.x or later;
Linux CentOS/RHEL 6.5 / 7.x or later;
Ubuntu 14.x/15.x/16.x or later;
VMware ESX/ESXi 4.x/5.x/6.x or later.
Support for technologies such as multiple queues, receive-side scaling, multiple MSI-X vectors, and Low Latency Interrupts allow the The 10Gb server adapter to provide high-performance10 Gigabit connectivity in multi-core server blades. These technologies distribute network processing across multiple CPU cores, improving overall performance.
The explosive growth in virtualization is leading to an increasing demand for network performance. With more Virtual Machines (VMs) running on each multi-core server, networking traffic isdramatically increased with each VM competing for available I/O bandwidth. The 10Gb Server Adapters address networking bottlenecks in virtualized environments. These adapters enable network-intensive applications to achieve the performance expected in a virtualized environment.

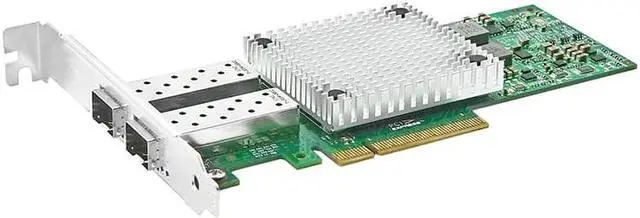

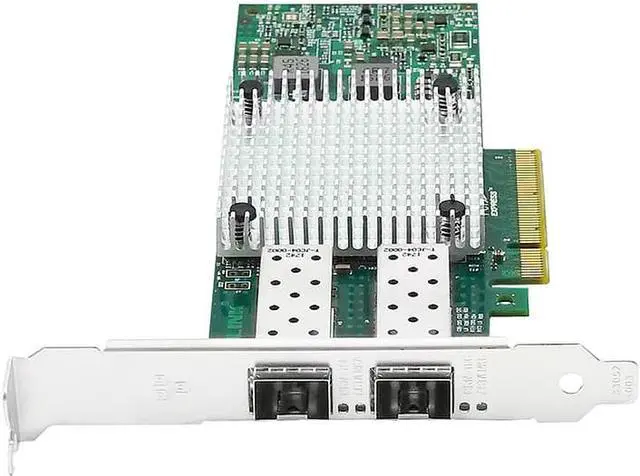

The 10Gb Server Adapters with SFP+ connectivity are the most flexible and scalable ethernet adapters to meet the demands of today's data center environments. Data center networks are being pushed to their limits. The escalating deployments of servers with multi-core processors and demanding applications such as High Performance Computing (HPC), database clusters, and video-on-demand are driving the need for 10 Gigabit connections. Customers require flexible and scalable I/O solutions to meet the rigorous requirements of running mission-critical applications in virtualized and unified storage environments.
