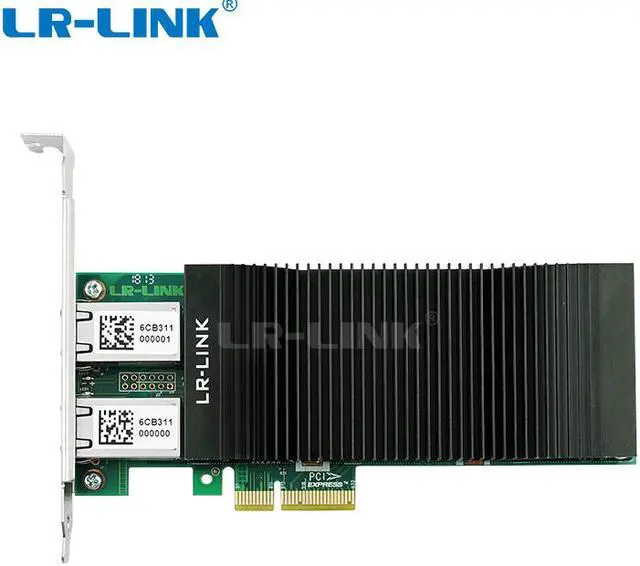

PCI Express x4 Dual Port 802.3at PoE+ Gigabit Vision Frame Grabber Card On Intel I350 Chipset
- LR-LINK has made a unique design for the adapter:
- 1. Single Port PoE output power maximum 30W
- 2. Support External Access Equipment output power: Class
- 0,Class 1,Class 2,Class 3

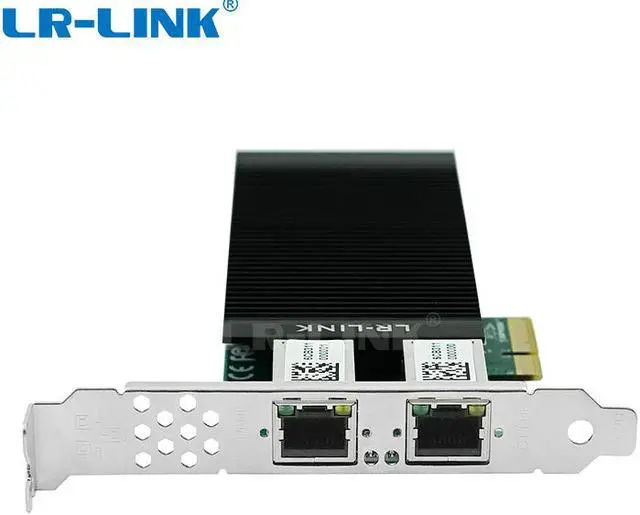

- 3. The Adapter adopt RJ45 spacing design;
- 4. The interface designed for industrial cable access, with
- the LR-LINK customized industrial Ethernet cable, can lock
- copper cable and RJ45 more stably, effectively solve the
- problem of the instability of industrial sites RJ45 connection
- copper cable, and be compatible with standard cable access;

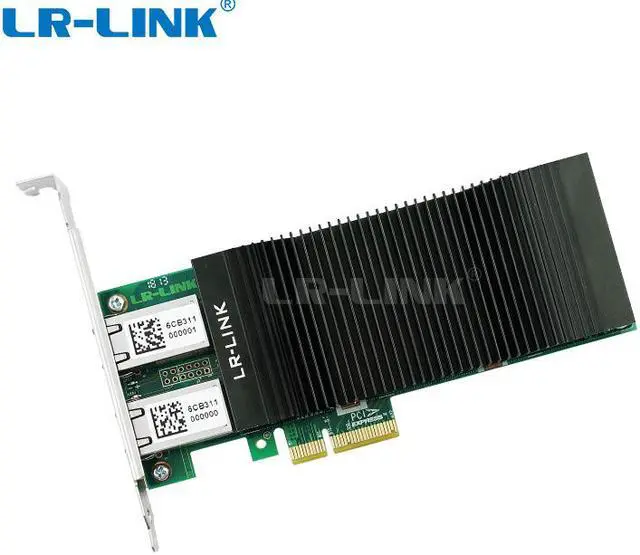

- 5. The larger heat sink can effectively solve the problem of
- heat dissipation of the PoE card under the condition of poor
- heat dissipation, and effectively ensure the stable
- operation of the PoE adapter card for a long time.
- 6. Carefully selected RJ45 connector with thickened and
- deep gold to ensure more solid and reliable connectivity;
- 7. 2 RJ45 port designed can be better save PCIe slot
- resources of the main board.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
LRES2002PT is a PCIe x4 PoE Gigabit Quad Port Copper industrial Ethernet Server Adapter based on the Intel I350 chipset, be developed independently by Shenzhen Lianrui Electronics Co., Ltd and is compatible with x8, x16 lanes. The PoE adapter is designed mainly used on industrial? eld vision inspection server and equipment, vision? eld client, fast moving Ethernet data transmission equipment etc. It's also suitable for ordinary servers. The Adapter controller has integrated hardware acceleration capability to perform TCP/UDP/IP checksum and load sharing and TCP segmentation task. Host processing technology can be divided into accelerators and release CPU resources to handle with other applications.
The adapter is based on Intel I350 Dual Gigabit Ethernet MAC+PHY (media access controller and physical interface transceiver) dual port controller
The adapter is based on Intel I350 Dual Gigabit Ethernet MAC+PHY (media access controller and physical interface transceiver) dual port controller
