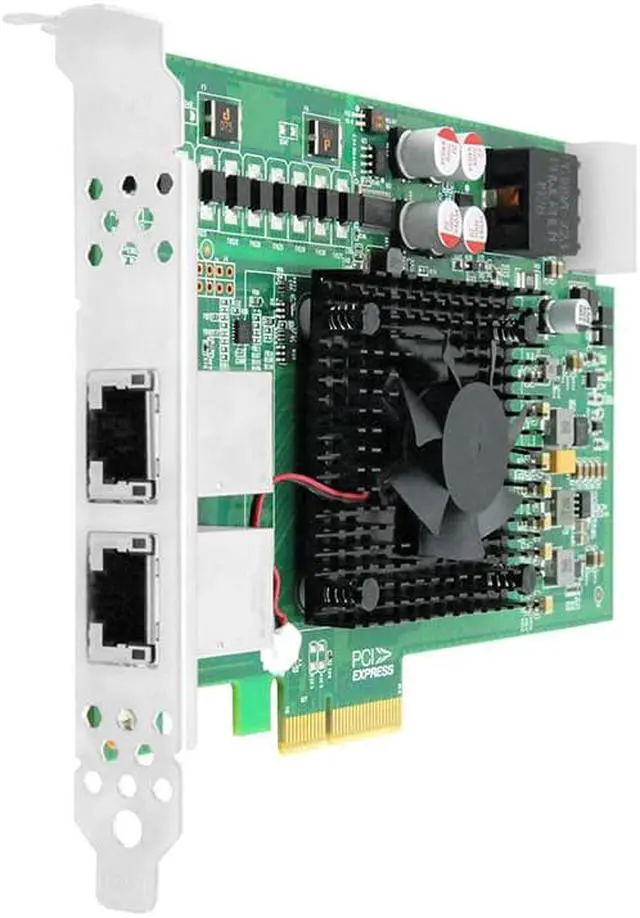

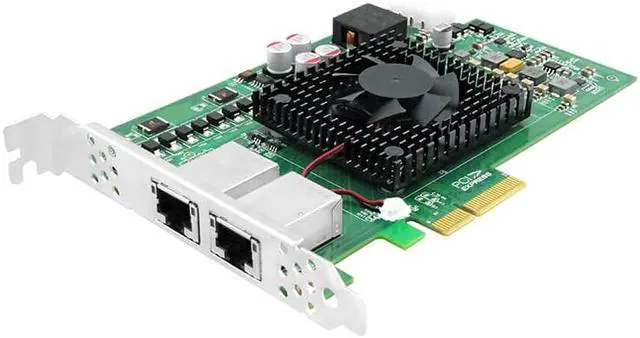

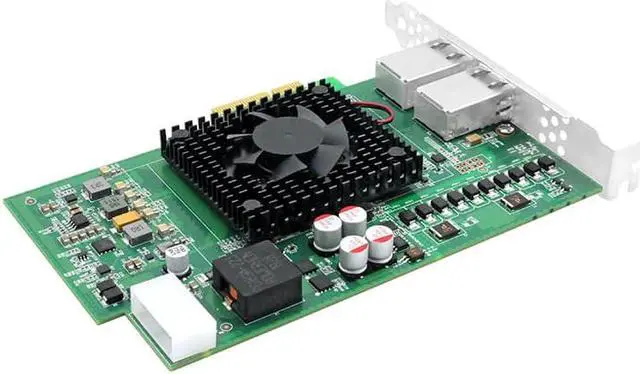

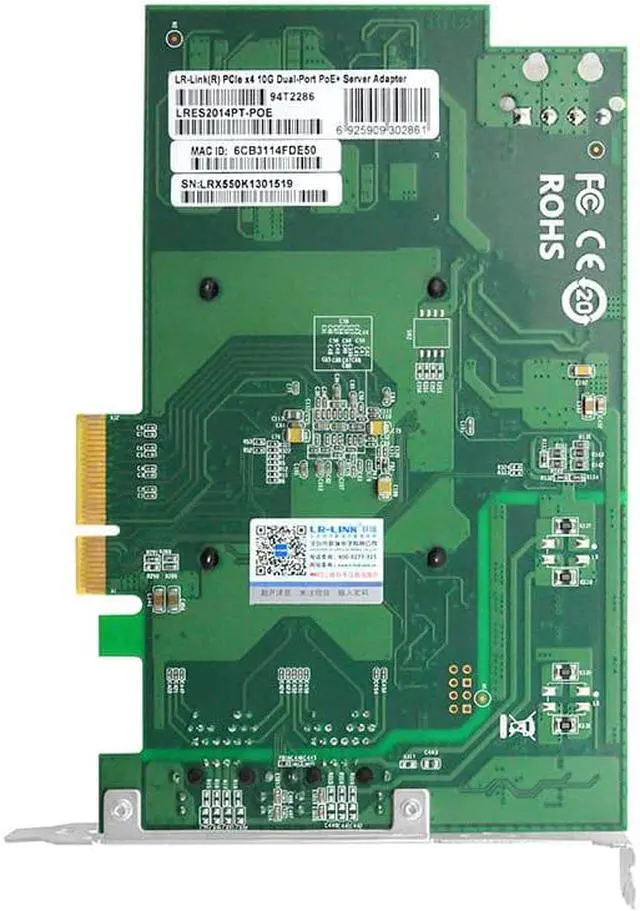

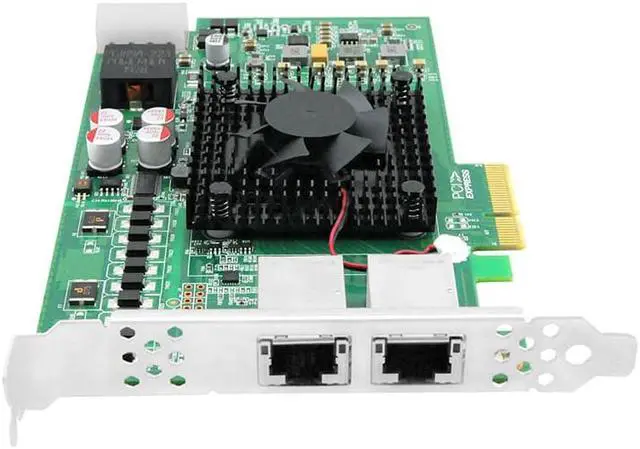

LR-LINK 2014PT-POE PCIe x4 Dual-port 10G POE+ Ethernet Frame Grabber (Intel X550 Chip Based)
- 1, Single port POE output power up to 30W.
- 2, Adaptive to external device required power output: Class 0, Class 1, Class 2, Class 3, Class 4;
- 3, The adapter card adopts wider RJ45 spacing design;
- 4, Added independent POE switch, and each port is equipped with surge protection;
- 5, Added efficient cooling fan, fan speed 4000PRM, life up to 50,000 hours;
- 6, Bigger heat sink can effectively solve the problem of heat dissipation of the adapter in the case of poor heat dissipation environment, and effectively guarantee the stable operation of the adapter card for a long time;
- 7, carefully selected thickened gold RJ5 connector to ensure more solid and reliable connectivity;
- 8, 2 8-PIN RJ45 connector design can better save the motherboard valuable PCIe slot resources;
- 9, Separate PoE switch.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
LRES2014PT-POE is a dual-port copper cable 10G Ethernet PCIe X4 PoE+ Ethernet image acquisition card independently developed by Shenzhen Liangrui Electronics Co., Ltd. based on Intel master control scheme, compatible with PCIe X8 and X16 channels at the same time. The acquisition card is mainly used in industrial field visual inspection servers and equipment, visual field clients, fast mobile Ethernet data transmission equipment, etc., and is also applicable to ordinary servers.
