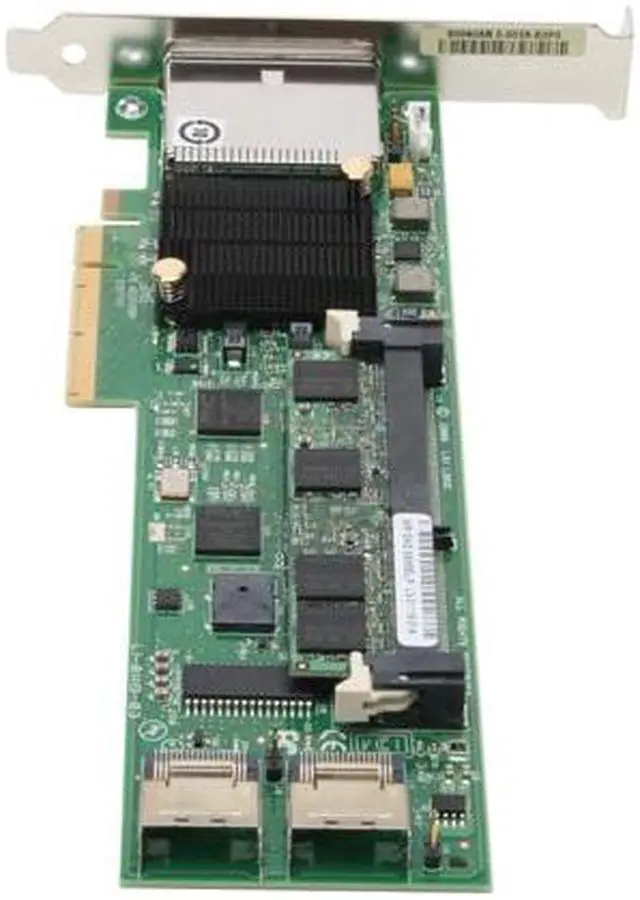

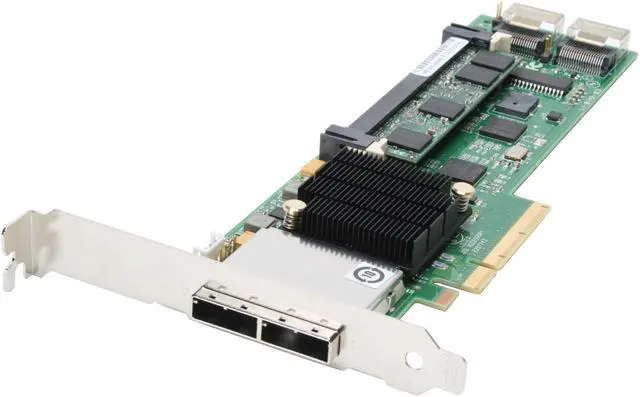

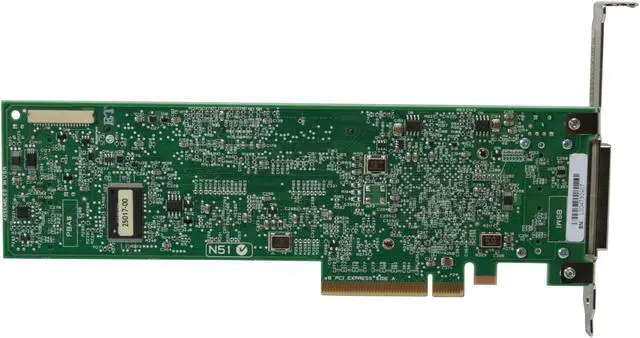

LSI MegaRAID SATA/SAS 8888ELP 3Gb/s PCI-Express w/ 512MB onboard memory RAID Controller Card, Kit
- RAID levels 0, 1, 5, and 6
- RAID spans 10, 50 and 60
- Two SAS SFF8087 x4 internal connectors Internal Connectors
- Two SAS SFF8088 x4 external connectors External Ports
Overview
Specs
Reviews (7)
Any questions? Our AI beta will help you find out quickly.
Try me now
The LSI MegaRAID SATA/SAS 8888ELP provides a new level of system reliability, availability, and performance for businesses that are facing storage challenges driven by unprecedented data growth. Offering data transfer rates of up to 3Gb/s per port, this controller card ensures complete investment protection for existing SATA and SAS implementations.
Support Up to 240 SATA and/or SAS DevicesThe LSI LSI00142 Supports up to 240 SAS or SATA devices for maximum design flexibility.
RAID SupportThe LSI LSI00142 supports multi-level RAID configuration including RAID 0, 1, 5, 6, 10,50 and 60 for better performance, enhanced data security and flexible capacity upgrades. Plus, battery backup and advanced error detection and correction capabilities deliver outstanding RAID availability.
512MB On-board MemoryThe LSI LSI00142 features 512MB on-board DDR2 Cache (667MHz) for maximum data integrity.
PCI Express x8 InterfaceThe LSI LSI00142 features the PCI Express x8 interface which provides sufficient throughput and full-duplex operation for enhanced performance.
Support Up to 240 SATA and/or SAS DevicesThe LSI LSI00142 Supports up to 240 SAS or SATA devices for maximum design flexibility.
RAID SupportThe LSI LSI00142 supports multi-level RAID configuration including RAID 0, 1, 5, 6, 10,50 and 60 for better performance, enhanced data security and flexible capacity upgrades. Plus, battery backup and advanced error detection and correction capabilities deliver outstanding RAID availability.
512MB On-board MemoryThe LSI LSI00142 features 512MB on-board DDR2 Cache (667MHz) for maximum data integrity.
PCI Express x8 InterfaceThe LSI LSI00142 features the PCI Express x8 interface which provides sufficient throughput and full-duplex operation for enhanced performance.Warranty & Returns
