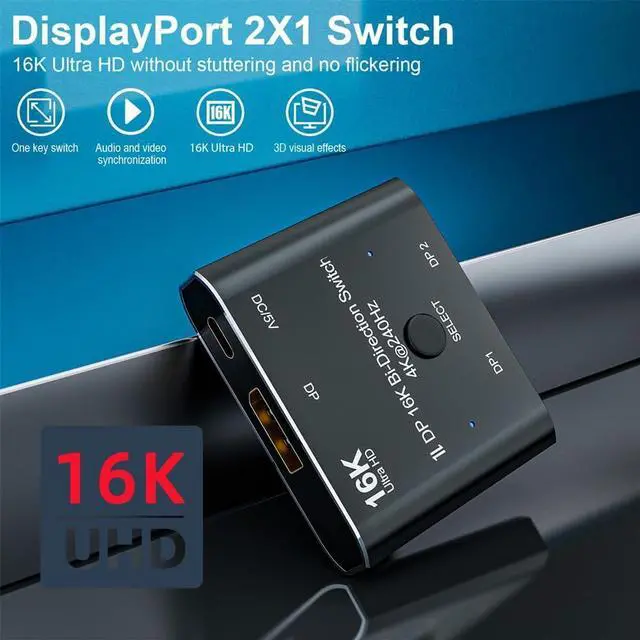

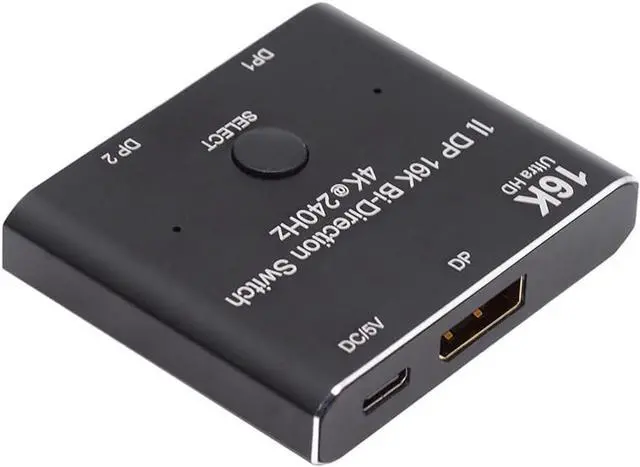

This DP 16K Switch's main function is to transmit the video or picture from your Personal Computer or Laptop to your large external displays,so you can achieve Ultra HD resolution and High Refresh Rate in your big Screens.
- A:Take out the Switch from the Package Bag.
- B:Prepare for your Computers,Monitors and Three Display Port Cables,and one USB A -C 5V Power Cable.With this switch,you can achieve two connection Ways.
(1):Two Computers to one Monitors,connecting two display port cables from switch's DP1 DP2 Female port to your PC,then connecting one Display Port cable from switch's DP to your monitor
(2) :One Computers to two Displays,connecting one display port cable from switch's DP female port to your PC,then connecting two Display Port Cables from switch's DP1,DP2 Female Port to your monitor.Two monitors can not display simultaneously.
(3):While connecting from your Computer to the switch's DP female Port,you can also use mini dp to dp cable/usb c to dp cable/hdmi to dp cable,While connecting from our switch's dp female port to your monitors,you can also use dp to hdmi cables.

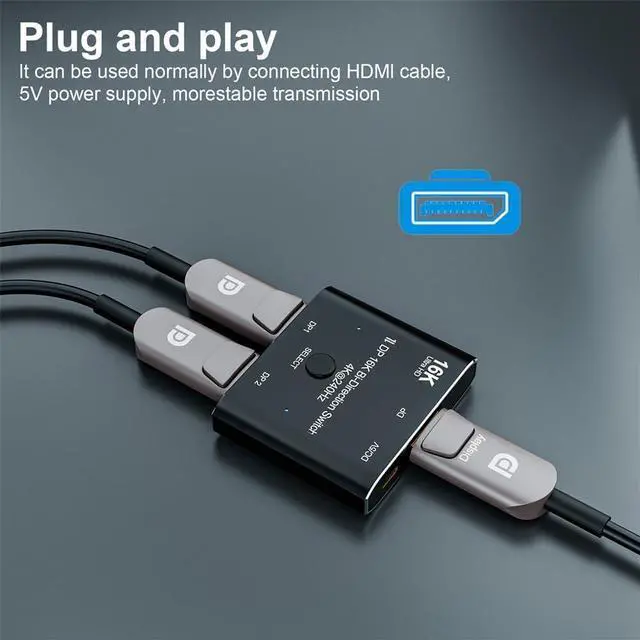

Plug and Play

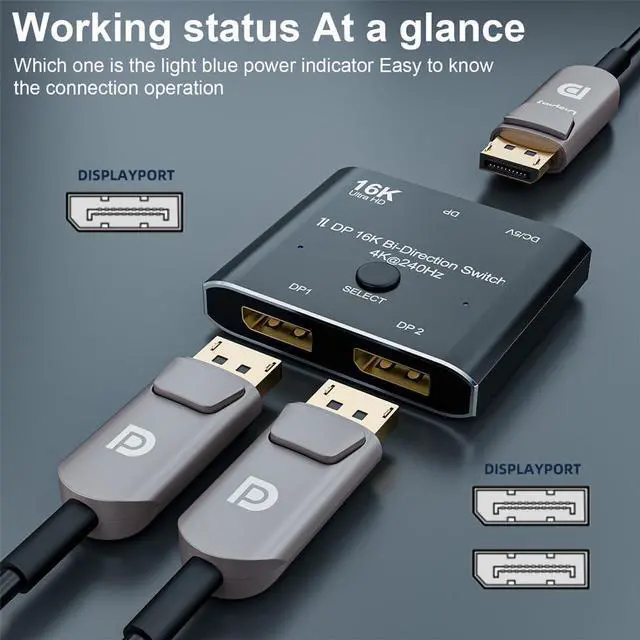

it's not a USB-C and HDMI switch/splitter: external power supply required, the DP select box is easy to install and use. Note:During use, press the "select" button to switch the signal between two sources or screens, the LEDs indicate the operating status, two screens cannot be displayed at the same time.
The DisplayPort Switcher allow you to connect two DP source to one DP display or connect one DisplayPort source to toggle between two displays. (Two displays CANNOT display simultaneously,Press"Select"button to switch between two displays. )(While connecting to Source or Display,you must use the usb cable to power the splitter,or your display can not show anything).Do not use too long cable(total 3m) for connection between the switcher and your devices.

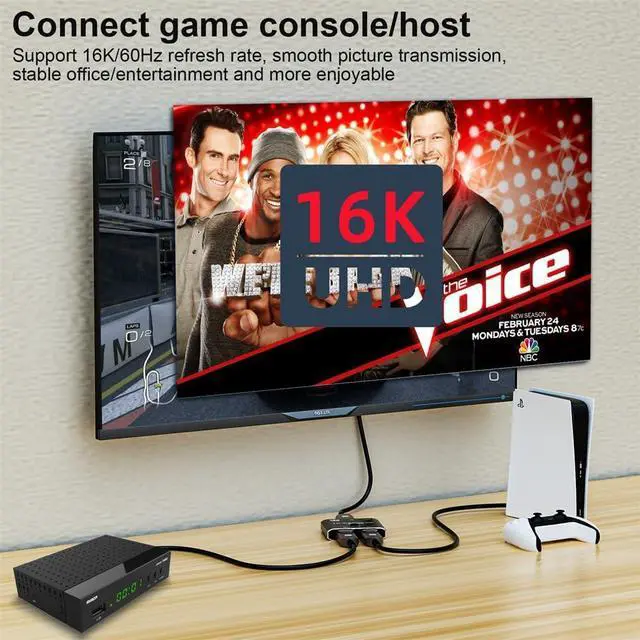

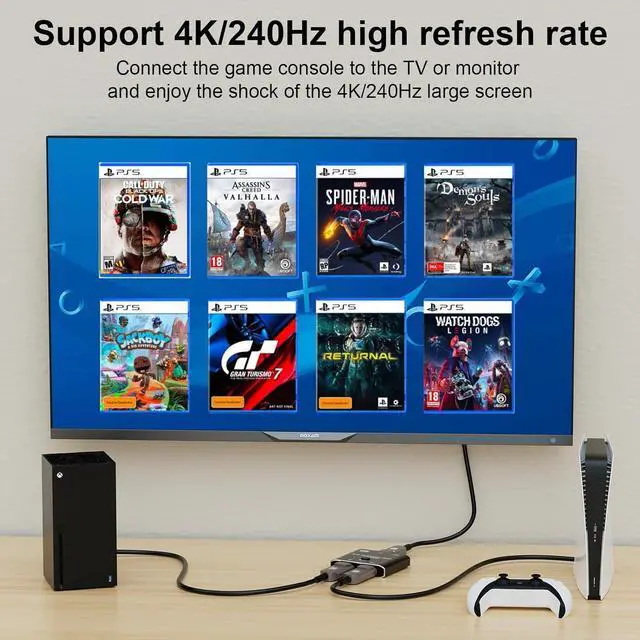

Support 16K@60Hz,8K@60Hz,4K@240Hz,1080P@240Hz, provide you with transfer rates up to 40Gbps and backward compatible with all previous DP standards. (You need connect standard DP 2.0 cable to enjoy visual effects. )If the screen flickers during use, please try to plug it in again and use a shorter cable connection.
Support 16K@60Hz,8K@60Hz,4K@240Hz,1080P@240Hz resolution, provide you with transfer rates up to 48Gbps and backward compatible with all previous DP standards. (You need connect standard DP 2.0 cable to enjoy visual effects. )Note:We recommend that the wires at both ends, that is, the sum of the input and output wires should not exceed 3 meters. If it exceeds 3 meters, the signal may be shielded.
