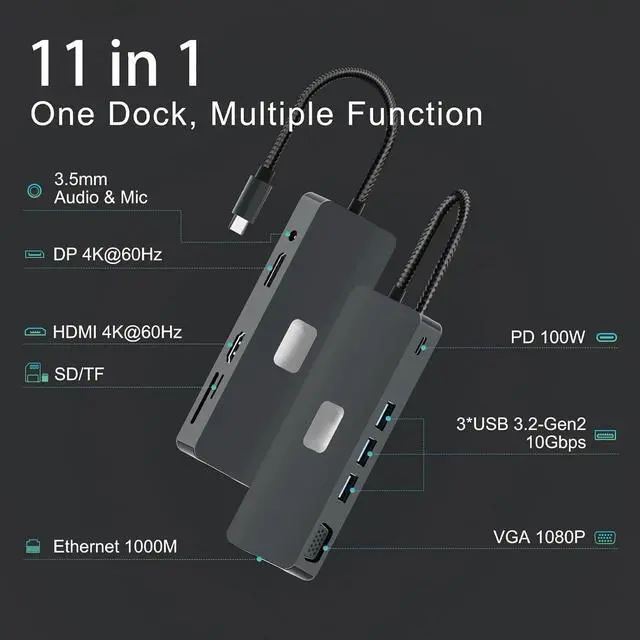

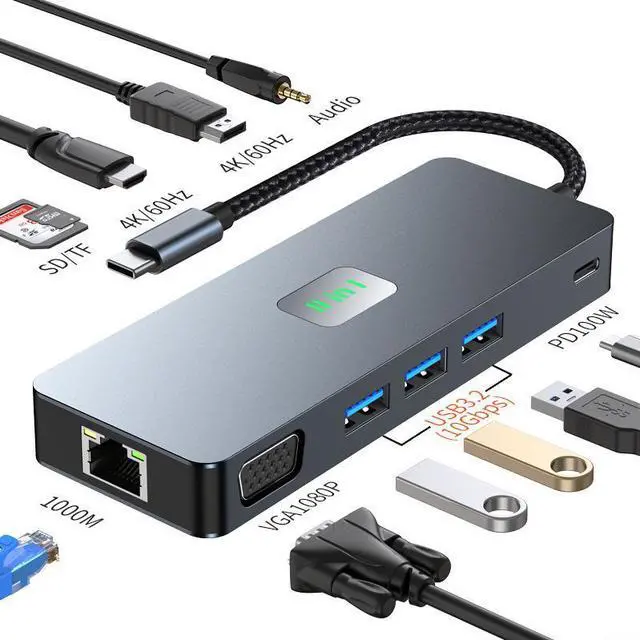

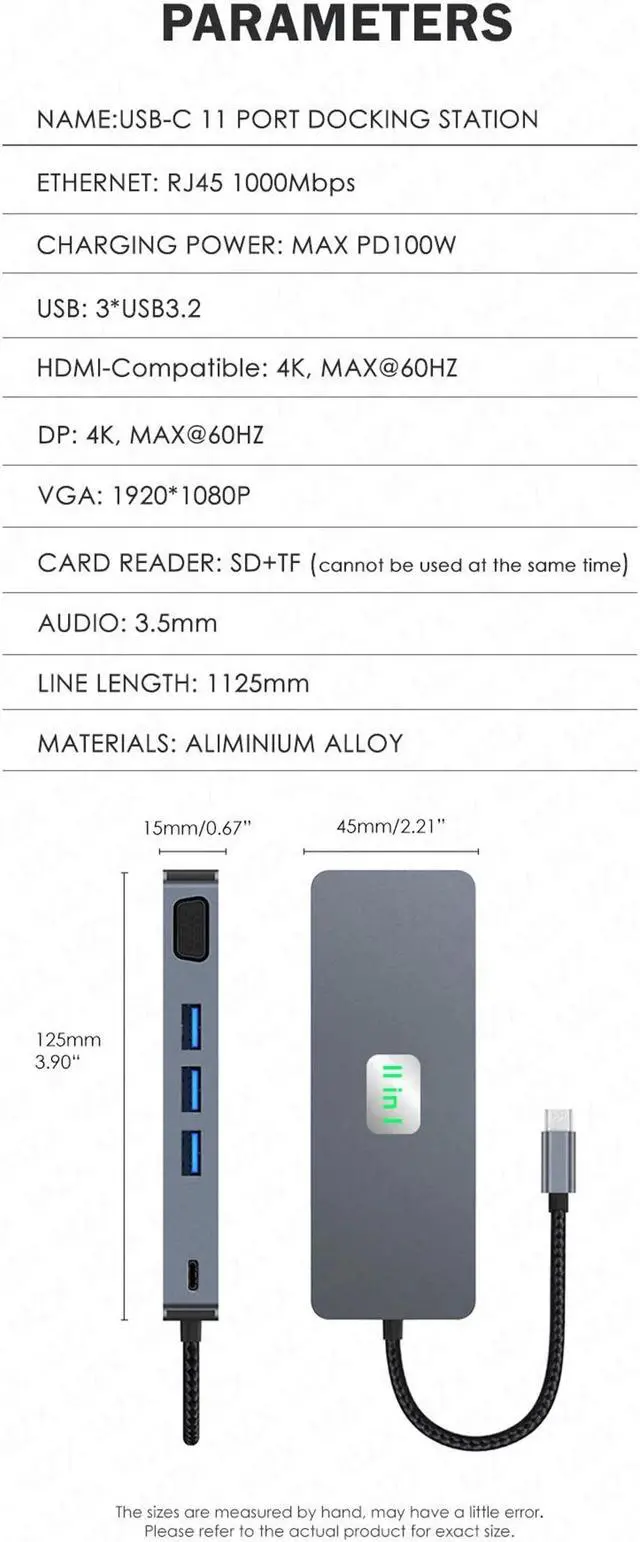

11in1 Ports technical parameter:
- HDM: 4K@60Hz Max;
- DisplayPort: 4K@60Hz Max;
- VGA: 1080P@60Hz Max;
- Rj45: Gigabit Ethernet ports;
- 3*USB 3.2 Gen 2: 10Gbps transfer speed Max;
- USB-C: Providing 5V/2A 100W(MAX) power supply
- SD/TF:The card slots can access files from SD/TF cards at speeds up to 104Mbp/s
- Mic/Audio Ports: The 3.5mm Audio and Mic ports are for you to put in wired headset or microphone.
[Super Speed 10Gbps USB 3.2 Data Transfer]
Equipped with 3 USB 3.2 ports at a whooping 10Gbps data transfer, 20 times faster than USB 2.0, this USB C docking station allows you to effortlessly transfer large files and videos and connect multiple devices like a keyboard or mouse without lag.
[Docking Station Dual Monitor/Triple Monitor]
With its HDMI (4K@60Hz), DP (4K@60Hz), and VGA (1080P 60Hz)ports, this USB C dock can connect up to three external displays simultaneously at the maximum output resolution of 1080P/60Hz. Whether you need to mirror your screen or extend your desktop, this laptop docking station has got you covered. Please note: Windows supports MST mode when you mirror or extend your screen, but Mac OS only supports SST mode due to its system limit.
Docking Station for Windows Laptops (Support Triple Display)
Windows supports triple display. But Please Note: When three monitors are connected, the four screens including the host will only display three screens, and the remaining one will be black screen
Note: For Window laptop, support HDMI display up to 3840*2160@60Hz. Once using the VGA port, the resolution will be limited to Max 1920x1080 displays @60Hz
Docking Station for MacBook (Does NOT support triple display)
MAC OS system does not support triple display. It only supports mirror mode and extend mode ( extend mode means all the external monitors show the same, but different from the host). It is the OS system restriction
Multiple Display USB C Docking Station Video Resolution Configurations:
Single Monitor: 1*4K@60Hz(3840x2160) (HDMI)
Single Monitor: 1*1080P@60Hz(1920x1080) (VGA)
Dual Monitors: 2*4K@60Hz (HDMI + DisplayPort),2*1080P@60Hz (HDMI/DisplayPort + VGA)
Triple Monitors: 3*1080P@60Hz (HDMI + DisplayPort + VGA)
(To achieve optimal 3840 x 2160 resolution, please use it with a 4K screen display monitor)
[Powerful 100W PD Charging]
Our MacBook Pro docking station supports up to 100W charging for your laptop via the USB-C upstream port. The USB C charging hub's power delivery is ideal for any Thunderbolt or USB-C host device, including larger screen laptops that require more power. Laptop dock will charge your laptop and provide sufficient power for your connected 11 devices at the same time.
[1000M Ethernet]
USB C to 1000M Ethernet adapter provides you with fast and stable wired network, allowing you to say goodbye to WiFi's instability and have a enjoyable online surfing experience;
[SD/TF card slots]
Our versatile and sleek docking station is a must-have laptop accessory for all your multimedia needs. The built-in SD/TF card slots makes you easily access and play your digital media files.
[3.5mm Audio and Mic]
Our versatile and sleek docking station is a must-have laptop accessory for all your multimedia needs. With its 3. 5mm audio and mic port, you can listen to your favorite music and enjoy crystal-clear stereo sound.
[Read before Purchase]
- Please make sure your device has a Thunderbolt 3/4 / USB-C 3.1 Gen 2 or above that supports "Power Delivery & DisplayPort Alt Mode". These ports support video output, charging and data transfer so that our hub can work with it. HDMI functionality requires confirmation that your laptop's USB c port supports DisplayPort Alternate Mode. If you are not sure, please contact seller via amazon or leave "customer Question&Answer.
- The resolution output is related to your laptop. When your laptop support 4K@60HZ resolution, please use HDMI 2.0 or higher cable and the video output will be 4K. When your laptop support DP1.4 output, in single display, the resolution can up to 4K@60HZ
When it connects to multiple devices, please use the Power Charger (65W or above) for stable and fast charging, make sure it works well.
| Important Notice1 | Please make sure your laptop's USB C Port with a fully function(support charging, data transfer and video output) USB-C port or Thunderbolt 3 port. If not sure please check with us. |
|---|---|
| Important Notice2 | Not all laptop's USB-C port support video output. Only USB-C port that support the DP protocol can support external displays, the DP1.4 protocol support resolution up to 4K 30Hz. If you have any confusion about this, be free to reach our support team by providing your laptop's brand and model so that we could help you out. |
| For Apple | iPhone 15 Series / MacBook / MacBook Pro(2021/2020/2019/2018); Macbook Air 2018-2020, Mac mini 2018-2020, iPad Pro/ Air 2018/2020, iPad mini 6; (won't support dual monbitor/triple display monitors) |
| For Dell Laptop | Dell XPS 13/15/17, Dell Precision 5510,Dell Vostro 5515/Dell Latitude E7470/5290 2 in 1/5285/5480/7280/3520/5300/5410 |
| For HP Laptop | HP Spectre xps13/xps 13 9365/xps 13 9300/xps15/xps 15 2018/xps 9380/5590; latitude 3500/7490/7280/7300/7370/7390/7480/7400/5400/5500/5490/5310 2-in-1/5310 2-in-1; Inspiron 14 7000 series 2-in-1(7405)/15 7000 series 2-in-1/Inspiron 7373; precision 7730/7750/7520/5550/5540 |
| For Lenovo Laptop | Lenovo Yoga 720-13IKB/ Yoga 730/ Yoga 900-13ISK/ Yoga 910/ Yoga 920/ Yoga 930/ Yoga 940-14IIL; 3rd generation Thinkpad Yoga; Yoga15 Thinkpad Ultrabook Pro; Thinkpad E590/ Thinkpad P72/ Thinkpad T470/ Thinkpad X1 Carbon (2019 model); Lenovo C930/ T480s/ X390/ 81N8, Lenovo Thinkpad T490s; X280; Lenovo T570; Lenovo T14; |
| For Microsoft Laptop | Microsoft surface Book 2/surface go/surface laptop 3/surface laptop 4 / Microsoft surface pro 7/surface x pro |
| For Samsung | Samsung Galaxy S10+/S10/S9+ /S9 /S8+ /S8 Plus; Note 10/9/8; Galaxy Book Flex Alpha 2-in-1 13.3" QLED Touch-Screen Laptop; Galaxy Tab S5e/ Galaxy Tab S4; Galaxy S20 Ultra |
| For Asus | Ling Yao 3, Ling Yao 3PRO, Ling Yao X Series, U306/U321 Series, U4100ROG, U5100UQ Series zenbook flip ux370u/TUF Gaming A15 Laptop/Zephyrus G14/rog GX501/zenbook ux434f/zenBook 14 UX433FA |
| For Raze/ Google | Blade stealth Spirit Blade, Spirit Blade Sneak Edition/ ChromeBook Pixels, PixelBook Pen |
| For Huawei | MateBook X Pro 13.9/MateBook 13/MateBook E/MateBook X/Macbook Mate10/Mate10 pro/Mate20/Mate20pro/Mate30/Mate30Pro/P20/P20 pro/P30 pro |
| For Phones Devices | Galaxy S10+/S10/S9+/S9/S8+/S8 plus, note 10/ 9/ 8; galaxy tab s4/S5e/galaxy s20 ultra/galaxy chromebook/galaxy book flex alpha 2-in-1 13.3" QLED Touch-Screen Laptop/T5 hard drive/new S7 tablet, Huawei Mate10/Mate10pro/Mate20/Mate20 X/Mate20 Pro/Mate30/Mate30 Pro/Mate30 RS/P20/P20 Pro/P30/P30 Pro/Honor Note10/Honor V20/Honor Note10;Samsung S8/S8+/S9/S9+/S10/S10+/Note8/Note9/Samsung tablet S4 |
