HDMI to SDI to HDMI SDI Adapter Video Converter, 1080P HDMI-compatible to 2CH SDI converter HDMI-compatible to Sdi 3G-SDI/HD-SDI broadcast HD Adapter for Camera Television
Limited time offer, ends 09/12 By Luom Electronics Store
HDMI Input ,2 SDI Outputs ,HDMI Type A input,Convert high definition 1080P HDMI signal to broadcast quality SDI display(Note: When using ATEM with this device, please forcibly set the resolution of ATEM to 720P@60Hz)
Auto format detection for 3G-SDI, HD-SDI and SD-SDI,NOTE: This is not a bi-directional converter. DO NOT use for SDI HDMI conversion(Note: It is best not to connect in series with other converters of the same type. )
Converts 3G/HD/SD-SDI signal to HDMI with resolution up to 1080p 60Hz,Software Control,no need driver, plug and play
Broadcast Grade Quality:Durable Metal body, anti-corrosion and rust-proof, no static noise issue. Excellent heat radiation keeps favorable working temperature. Bolts and buckles design makes it ideal for industrial utilization
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
HDMI Input, 2 SDI Outputs, HDMI Type A input, Convert high definition 1080P HDMI signal to broadcast quality SDIdisplay(Note: When using ATEM with this device, please forcibly set the resolution of ATEM to 720P@60Hz) Auto format detection for 3G-SDI, HD-SDI and SD-SDI, NOTE: This is not a bi-directional converter. DO NOT use for SDIHDMIconversion(Note: It is best not to connect in series with other converters of the same type.) HDMIinput: 720P@60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz. SDIoutput: 720P@60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz Converts 3G/HD/SD-SDI signal to HDMI with resolution up to 1080p 60Hz, Software Control, no need driver, plug and play Broadcast GradeQuality: Durable Metal body, anti-corrosion and rust-proof, no static noise issue. Excellent heat radiation keeps favorable working temperature. Bolts and buckles design makes it ideal for industrial utilization

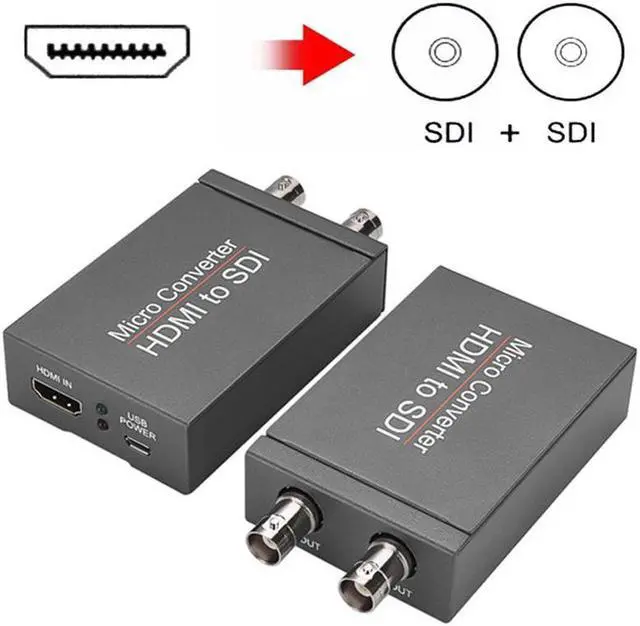

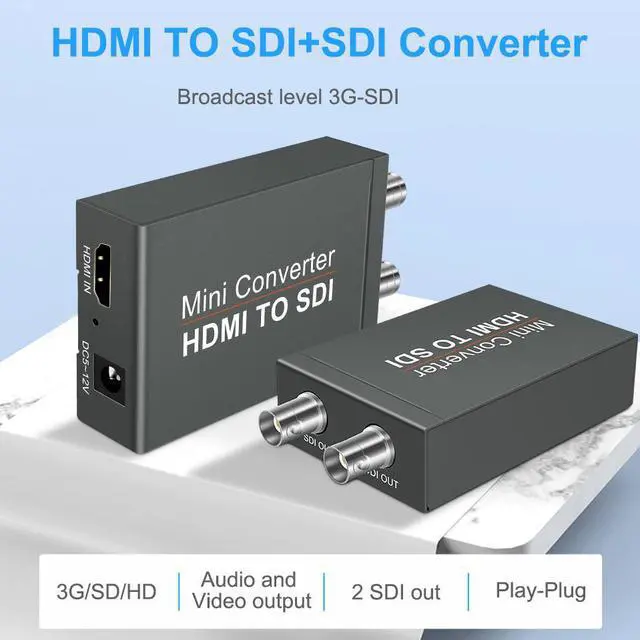

HDMI to SDI Converter Dual SDI adapter video converter with automatic audio format detection function, suitable for cameras
Introduction
Mini HDMI to SDI Converter allows HDMI signals to be shown on two SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on two SDI display.
Features
Shows HDMI source on two SDI display. SDI interface operates at bitrates of 2.970 Gbit/s, 1.485 Gbit/s. Supports HDMI input timings: 480i, 576i, 720p, 1080i, 1080p. Converts HDMI signal to SDI: 720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s) 1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s) Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
This HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.97 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display
Compatibility
System Requirements
Windows / Android / MacOS/ Linux ect.
Power
Power Supply
NO need external power supply
Feature
Feature

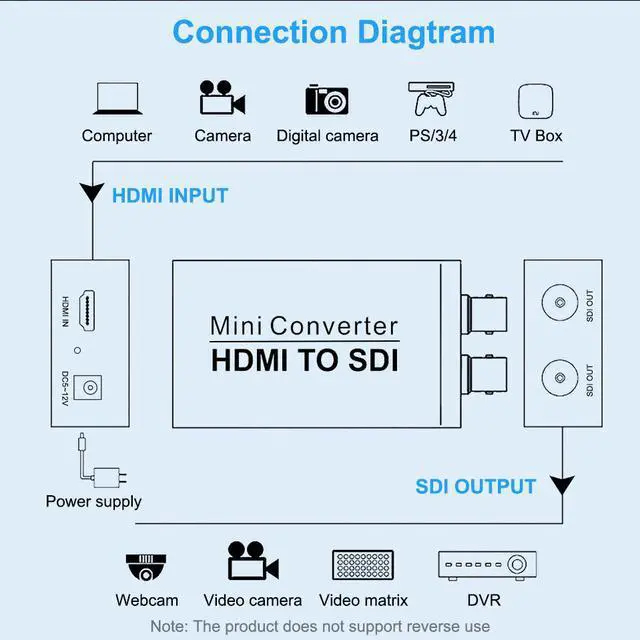

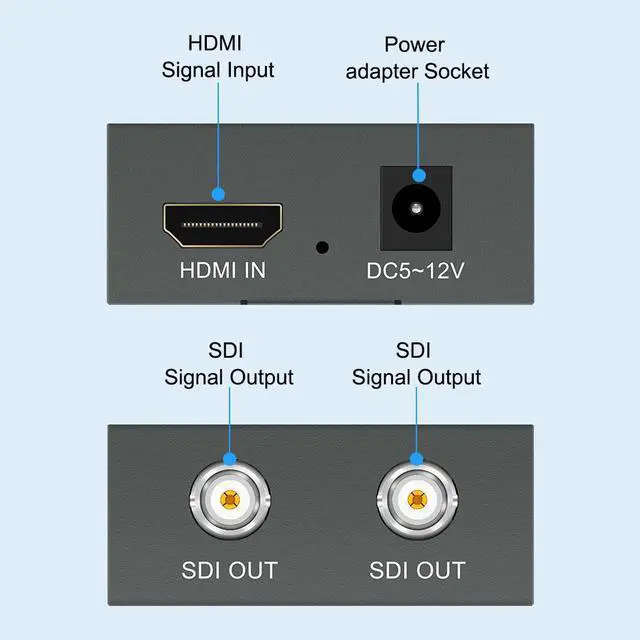

1.Supports 1ch HDMI input, 2ch SDI output
2.Embedded audio and image synchronization output
3.Support HDMI 1.3, HDCP1.3
4.Built-in ESD protection circuitry can effectively prevent electrostatic damage
Dimensions & Weight
Dimensions
5.83 x 4.49 x 2.44 inches
Weight
7.8 ounces
Package Contents
Package Content
1 x HDMI to SDI Converter
1 x Power Adapter
1 x Uuse Manual
