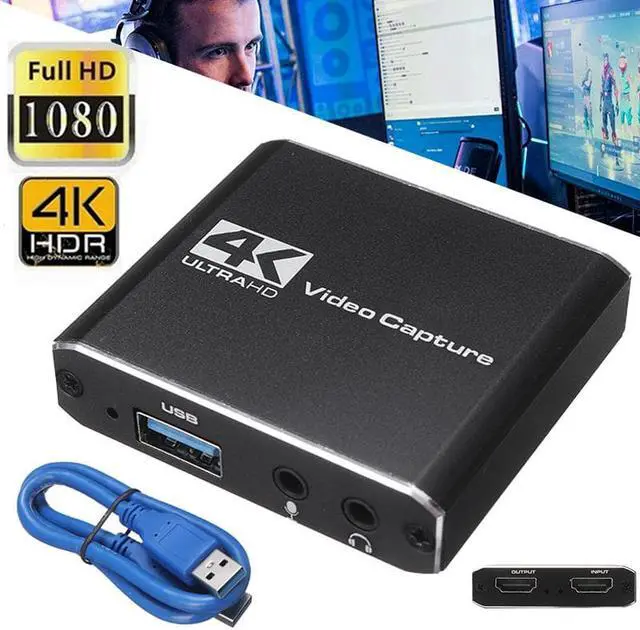

HDMI Game Capture: Based on the high-speed USB 3.0 technology, it can capture one signal channel HD HDMI video signal. Suitable for devices with HDMI output, such as Blu-ray Player, PS3/PS4, Xbox one, Wii Nintendo Switch, DVD, Camera, ZOSI security camera, DSLR and Set Top Box etc.
HDMI Video Capture: NO driver, and it is truly PnP. Low latency for game recording, meeting recording, live streaming. Share to YouTube, Facebook and twitter. Let more gamers know you. Compatible with Windows, Linux, Mac OS X.
1080P 60fps Video Capture: Capture resolutions up to 1080p at 60fps for 1080P video source with hardware accelerated up-scaling/down-scaling. The recorded video resolution depends on the original video, which is not changeable by capture. Capture card with 3.5 mm Mic Input, support Mic-in for commentary.

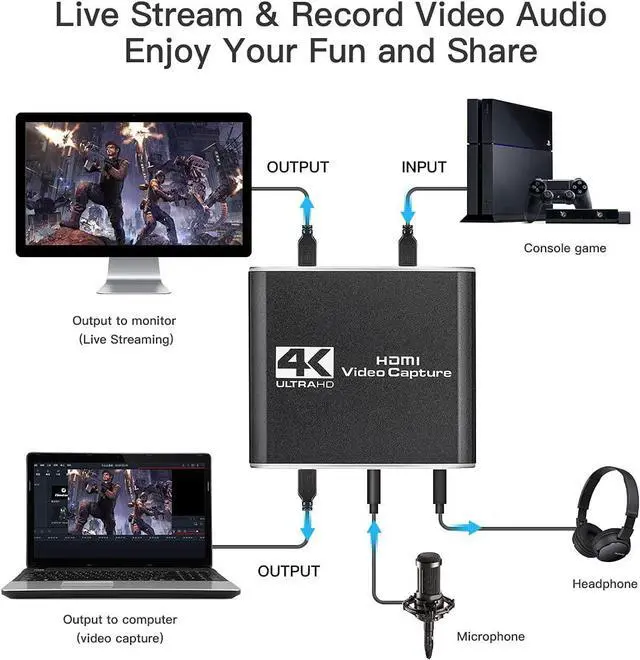

Game Live Stream: Audio and Video Record ability from external devices via HDMI port, easy File Save and Share via Computer, Support live RTMP video streamin, compatible with popular streaming software and services like OBS Studio, VLC, Pot Player, Vmix etc.
Screen Share for Meeting: Capture Card Support 4K 30P HDMI Input/Output. A fast, familiar, and affordable way to share content in the conference room and into online meetings. Connect to present, no software required, simply connect a laptop or tablet via HDMI to start sharing.

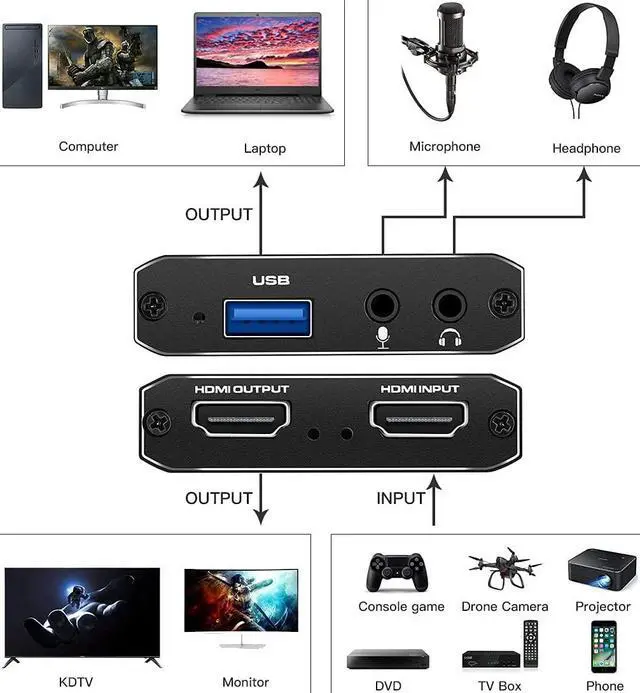

| HDMI Input Resolution | 3840x2160(30p), 1920x1080(60p), 1920x1080(30p), 1280x720(60p), 720x576(50p), 720x480(60p) |
|---|---|
| HDMI Loop-out Resolution | 3840x2160(30p), 1920x1080(60p), 1920x1080(30p), 1280x720(60p), 720x576(50p), 720x480(60p) |
| USB 1080p 60fps Record | 1920x1080(60p), 1920x1080(50p), 1920x1080(30p), 1280x720(60p), 720x576(50p), 720x480(60p) |
| 3.5mm Microphone Audio in | Allows game lovers to stream voice, record voice and add your own voice into the gameplay in time. |
| 3.5mm Jack Audio out | Make it easier to master the audio of the video by plugging in the headphones and enjoy the game |
| Support Software Supply | OBS Studio (window,OS X), VLC (Windows,OS X),QuickTime Broadcaster (OS X),Wirecast (Windows,OS X) |
| Support Wide HDMI Device | PlayStation 3 / 4,XBOX One,Wii U,Camera,Laptop,Webcame,Gaming console,Xbox 360,Nintendo Switch |
Super Performance Chip makes video conferencing, game live broadcasting, etc. clearer and smoother. No delay, no blue screen
It is suitable for you to capture high-definition video at any time, with 4K 60FPS input and 1080P output, which is much clearer than 720P products, and the colors are more delicate and elegant.
Based on the high-speed USB 3.0 technology, it can capture one single channel HD HDMI video signal. Video live broadcast without delay, no lag, professional-level video capture solution.
Select the Capture Card 1-1
In the red arrow column, select "USB Video" and the current audio and video capture. As shown in Figure 1-1
Select the Capture Card 2-1
- Custom Resolution: The Resolution/FPS Type column is set to custom. As shown by the white arrow in Figure 2-1.
- Set Resolution: Select the appropriate resolution at the up and down arrows on the far right of this column. As shown by the yellow arrow in Figure 2-1.
- Set FPS : Select the appropriate frame rate at the up and down arrows on the far right of this column. As shown by the red arrow in Figure 2-1.
Drag the drop-down bar on the far right to set the desktop audio and MIC mixing. 3-1
- Select the [Output Desktop Audio] item at the up and down arrows on the far right of the [Audio Output Mode] column.As shown by the red arrow in Figure 3-1.
- Mark the [tick] in the red box. As shown below:
- Select the MIC input of the collector at the up and down arrows on the far right of the [Audio Device] column. As shown by the yellow arrow in Figure 3-1.
The OBS is set up and it can be used normally.
