The 4x1 video capture card supports 4K@30fps pass through for HDMI 1.4 input and output. The USB 3.0 output is maximum to 1080@60fps, the max HDMI input and output is up 4K@30Hz. four HDMI input interfaces,which can be inserted in to HDMI video sources individually or at the same time,without mutual influence,video capture is very smooth and no delay.

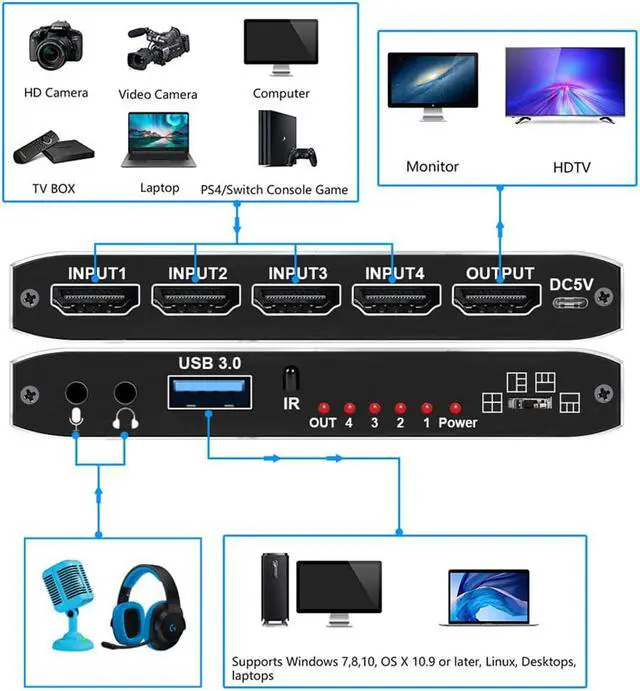

Input: HDMI Port x 4, Mic Port x 1
Output: USB3.0 Port x 1, HDMI x 1, Audio x 1

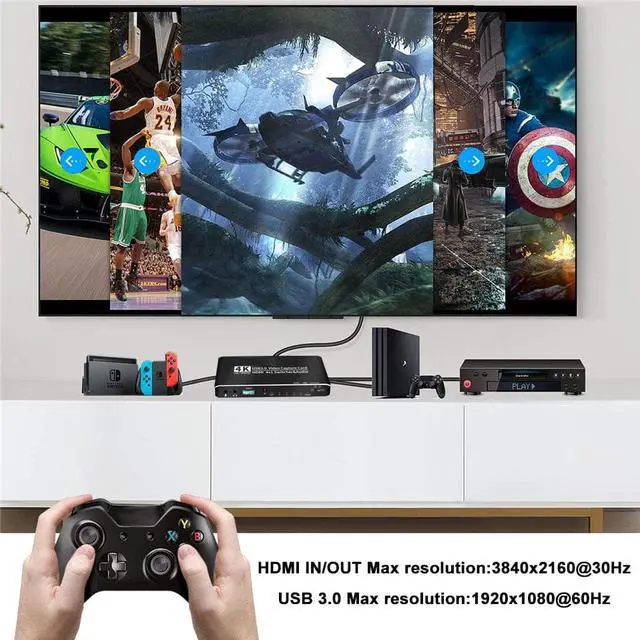

HDMI Video Input: 4K@30Hz HDMI HD interface
HDMI Audio Input: LPCM
Audio Signal Output Color Space: YUY2, RGB24,MJPEG
With ultra HD(4K) game capture, you can record the game more easily.
No need to install any driver, you can use any 3rd party software to capture or stream your HD game , or other HD video source.
The video capture card switcher can be used for video conference, game collection, multimedia teaching scenario etc, it has superior performance and compatibility than the previous versions.
Support 1080P/60FPS for USB3.0 Output.
FEATURE:

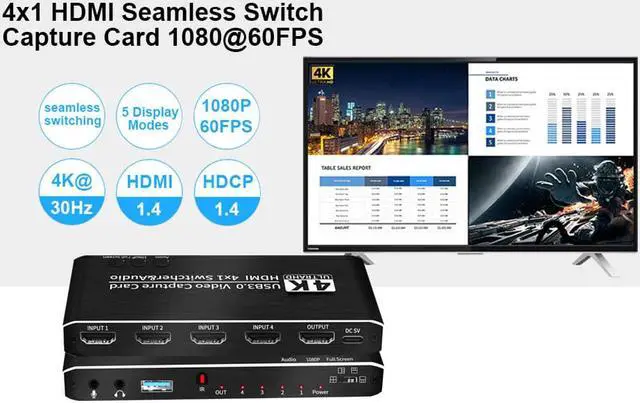

4K Ultra Game Capture Card: The 4x1 video capture card supports 4K@30fps pass through for HDMI 1.4 input and output. The USB 3.0 output is maximum to 1080@60fps, the max HDMI input and output is up 4K@30Hz. four HDMI input interfaces,which can be inserted in to HDMI video sources individually or at the same time,without mutual influence,video capture is very smooth and no delay.

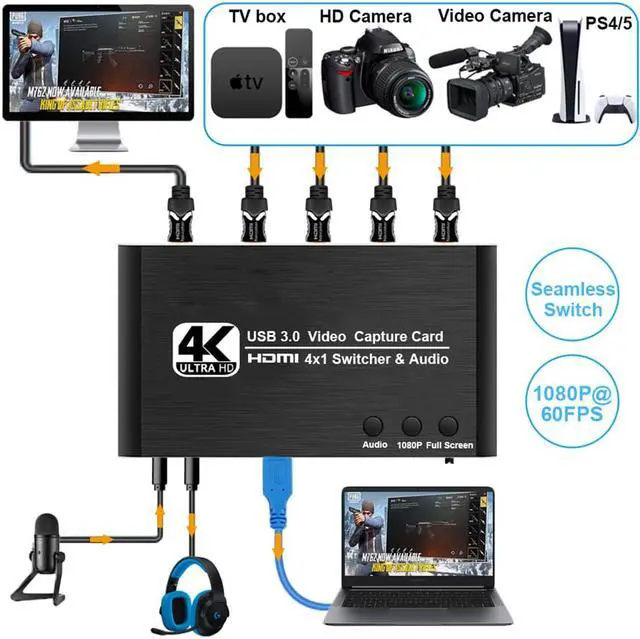

4 IN 1 Seamless HDMI Switch: 4 Port Video Capture Card/ HDMI Switch allows up to 4input devices to be connected, and it is equipped with a wireless remote control to seamlessly switch, avoiding continuous unplugging and damaging the devices when changing to another input device. Note: When HDMI Switch connected to Sources , the priority level is: Input 1 > Input 2 > Input 3> Input 4 to Sources.

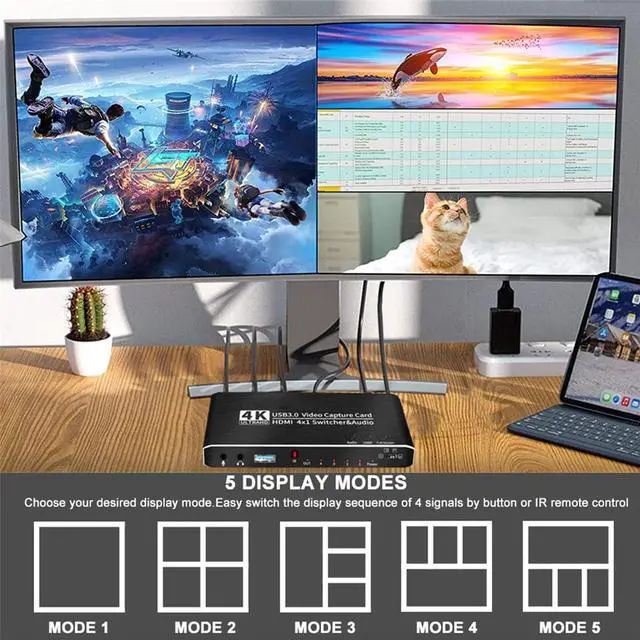

5 Ways Viewing Screen:The 4X1 Quad MultiView Selector support 5 viewing modes. You could see 4 HDMI input sources screen on one monitor by 4 ways, also can only see only one HDMI input source by full screen;
IR Remote Control: 4 port capture card is equipped with a wireless remote control,which allows you to use this device from a long distance(Max:16ft),with a variety of functions combined together,fully functional,this is equipped with the upgraded model,which can remotely control video playback,pause,switch input functions;
Extreme Audio Effects: Select "Output Desktop Audio" in "Audio Output Mode". And then tick the box below "Using Custom Audio Devices". Select "USB Digital Audio" in "Audio Device". When there is noise or sound delay, please first try to plug in the earphone or update your sound driver. Note: The video capture card do not support 5.1 channels.
With 4 HDMI input ports,there is no need to cycle plug and unplug the device, extending the service life of the device.
Superior PerformanceSuperior No latency, full screen recording, HD 1080P resolution, no flash and delicate pictures. You can use this HDMI capture card for live streaming, recording operation demonstration and game clearance tutorial.
Realize Online Live Streaming Audio&Video RecordingThe 4X1 video capture card switcher can realize online live streaming and audio & video recording, with the port of MIC, you can streaming your voice easily, so that you can make the online comments or introduction and make the live streaming more impressive and easy to understand.
1080P/60FPSHDMI game capture switcher with 1080P/60 frames per second ensures more delicate colors and realistic picture quality and makes you enjoy it.
Wide Compatibility: This 4 port HDMI capture card takes USB 3.0 channel recording of high-speed full HD screens, video recording, meeting recording, game recording and others on the computer. Compatible with many systems, such as Windows 7, 8, 10, Mac OS X 10.9 or later, Linux. And it supports software such as: Potplayer, AMCap, VLC, Skype, Google Hangouts, WebEx and so on.
Remote Control Switching: Press the button on the video capture card switcher to choose whichever input you want.
Manual Switching: Allow you freely switch the source you want by using the handy remote without leaving your seat.
