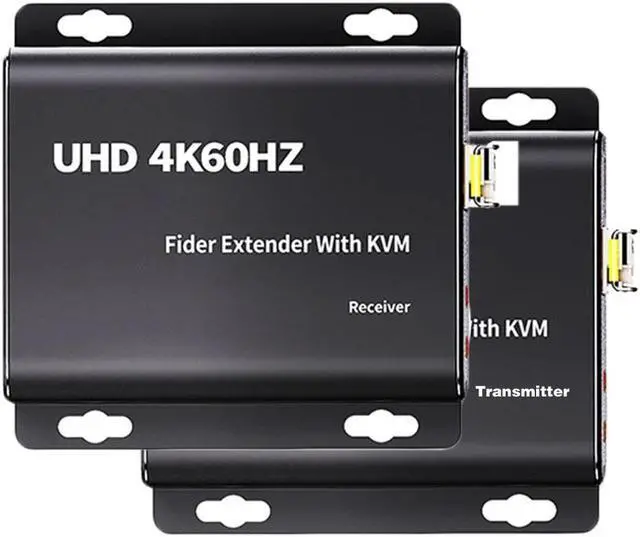

    LUOM HDMI Extender, Uncompressed 4K 60hz HDMI Over Fiber Optic Singlemode up 20Km(12.4mi) and Multimode up 500m(0.31mi) (Transmitter and Receiver)

    Limited time offer, ends 09/12 By Luom Electronics Store

    • This HDMI optical transceiver is capable of supporting resolutions up to 4K at 60 Hz while also being compatible with lower resolutions.

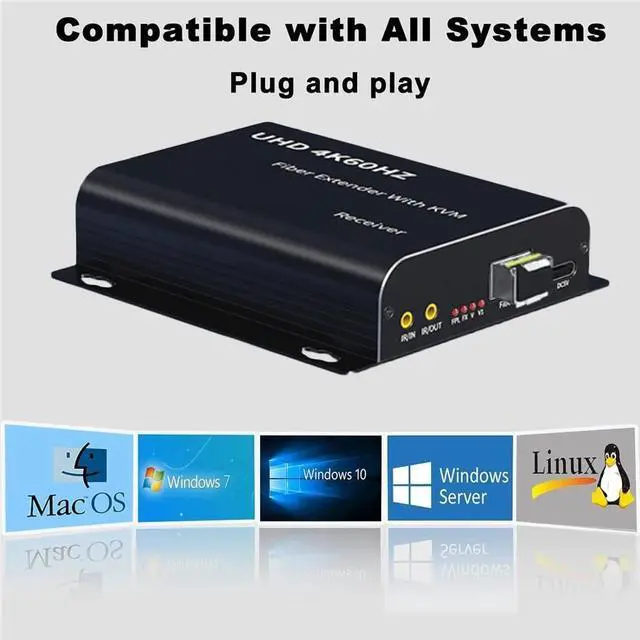

    • It facilitates remote PC control using a keyboard and mouse, enabling interactive display operation, data transmission, and Single-mode fiber cable up to 12.5miles(20Km) with zero latency and signal degradation.. No additional drivers are required; it's a straightforward plug-and-play solution.

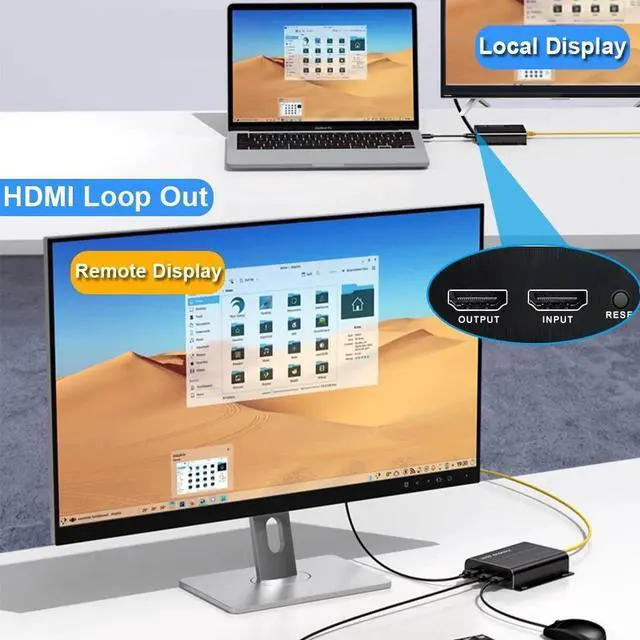

    • Designed with dual monitor funtionality, it features an HDMI OUT port on the transmitter (TX) for connecting to a local monitor and an HDMI OUT port on the receiver (RX) for remote monitor connectivity.
    • Incorporating a built-in automatic adjustment system, this device ensures a smooth, clear, and stable image output. It can intelligently match the source and display device for optimal performance.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    4K 60hz HDMI KVM Extender Over Fiber
    4K@60Hz HDMI Extender over Fiber 20KM

    Description:

    HDMI Fiber optic extender provides extension of HDMI video audio signal long distances over one LC  fiber optic cable, it support high resolution up to 3840x2160@60Hz,1080P@120Hz . It also supports Remote KVM Control,Bi-directional IR control and HDMI loop out function.The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

    4K 60hz HDMI KVM Extender Over Fiber
    HDMI Extension Adapter Repeater

    Installation Steps:

    Make sure you have all the cables needed, power off the all connected devices including your HDMI video source and HDMI display. Then install in the following order:



    1. Connect your HDMI source to the Sender's "HDMI IN" connector with an HDMI cable.
    2. Connect an SM/MM fiber cable to the OPT connector on the Sender unit. Plug one of the included power adapters into the DC power jack of the Sender, then plug the power adapter into any reliable power sources.
    3. Connect your HDMI display to the Receiver's "HDMI OUT" connector with an HDMI cable.
    4. Connect the other end of the fiber cable to the OPT connector on the Receiver Unit. Plug the second power adapter into the DC power jack of the receiver, then plug the power adapter into any reliable power sources.
    5. Power on all the connected devices. Now, the HDMI extender is ready to use.
    4K 60hz HDMI KVM Extender Over Fiber

    Built-in ESD protection system:

    Make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;

    4K 60hz HDMI KVM Extender Over Fiber

    Package:

    • HDMI extender Fiber transmitter: 1 pcs
    • HDMI extender Fiber receiver: 1 pcs
    • LC SFP Module: 2 pcs
    • USB data cable: 1 pcs
    • Power adapter: 2 pcs
    • User manual: 1 pcs
    Specifications
    Long range transmission: up to 20 km over a single-mode/Multi-mode LC fiber optic cable
    Video resolution: 480P,720P,720i,1080i,1920*1080P@60/120Hz,4K@30/60Hz

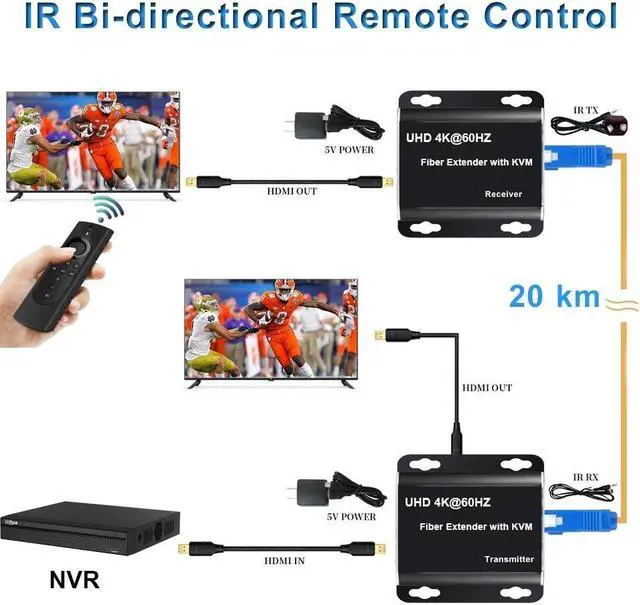

    Infrared control: Bi-directional 20~60 KHz IR romote control
    HDMI Loop Out: The transmitter with one HDMI loop output
    Temperature: Operating:-5 centigrade ~ +70 centigrade
    Power dissipation: MAX 3W
    Humidity: Operating: 5% ~ 90%
    Maximum pixel clock: 600MHz
    Standards: HDMI 2.0b; HDCP 2.2
    Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD

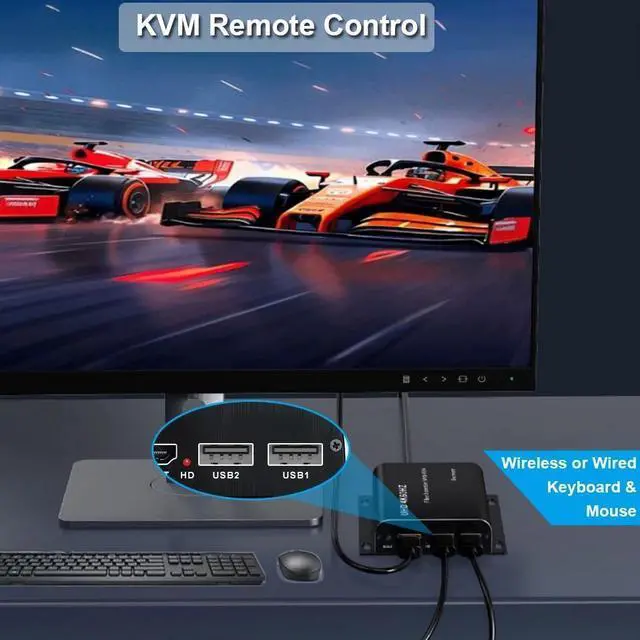

    KVM Control: supports remote USB KVM control by keyboard & mouse
    Video standard: compliance with HDMI 2.0b and HDCP 2.2 standard
    Power supply: The power adapter: DC 5V/2A

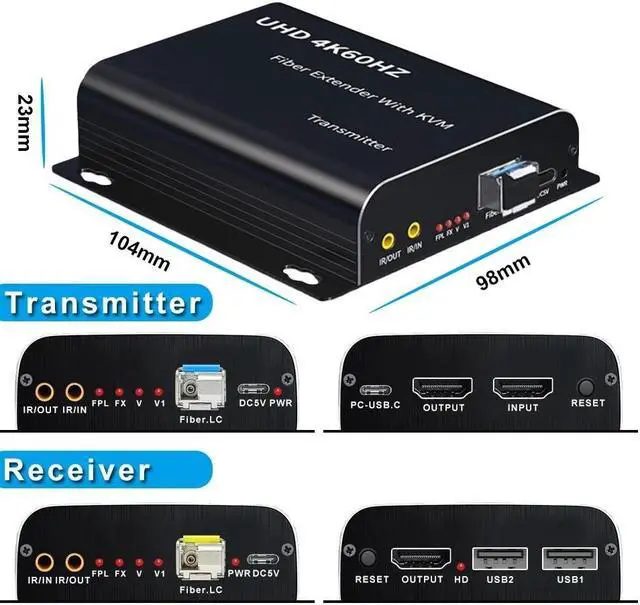

    Dimension: 104*98*23mm
    Maximum data rate: 18Gbps
    Connector: HDMI-A
    This HDMI optical transceiver is capable of supporting resolutions up to 4K at 60 Hz while also being compatible with lower resolutions.
    It facilitates remote PC control using a keyboard and mouse, enabling interactive display operation, data transmission, and Single-mode fiber cable up to 12.5 miles (20Km) with zero latency and signal degradation.. No additional drivers are required; it's a straightforward plug-and-play solution.
    Designed with dual monitor funtionality, it features an HDMI OUT port on the transmitter (TX) for connecting to a local monitor and an HDMI OUT port on the receiver (RX) for remote monitor connectivity.
    Incorporating a built-in automatic adjustment system, this device ensures a smooth, clear, and stable image output. It can intelligently match the source and display device for optimal performance.
