- 1080P HDMI Extender -- This HDMI extender supports 1080P HD, HD Audio, 3D; It extends HDMI 1080P AV signal to at least 190ft/60m via single cat6 or higher level cables following standard IEEE-568B, For better performance, we suggest to use cable longer than 45ft/15m
- HDMI Lossless transmission -- It extends HDMI AV signal to synchronous output Video display is as fluent as direct connection,Adjust the specification automatically for different cable lengths 1-60m to achieve the best display
- Pure Hardware Transmission-- It is pure hardware design,No driver needed, plug and play. Adopt full HD transmission technology to make the video image more vivid

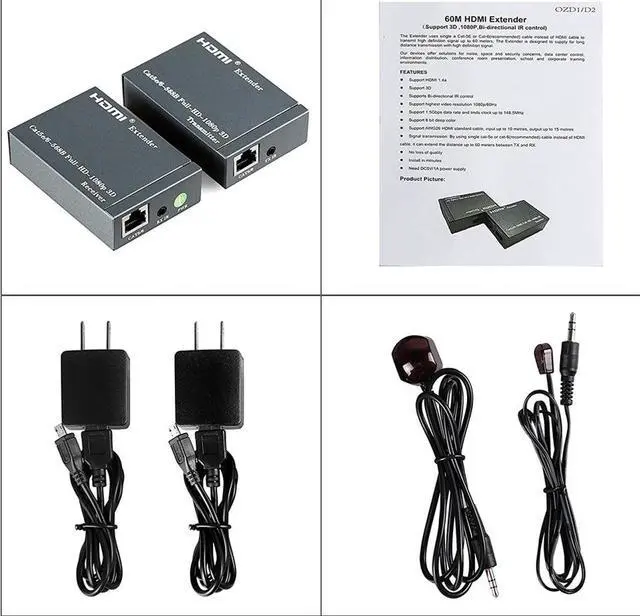

- IR Remote Control-- Support 20~60KHz wide Frequency IR signal transmission for controlling the source device, IR Emitter Cable and IR Receiver Cable are included

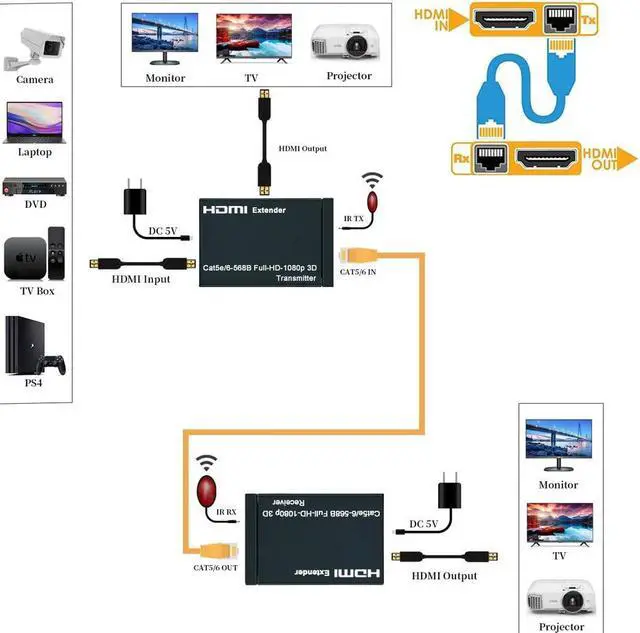

- Installation Requirements -- Requires one single cat5e/6 cable to connect TX and RX side. Suitable for HDMI source device(computer graphics card, DVD,PS3, HD monitoring equipment etc); HDMI display device like SDTV, HDTV, sony/Epson/samsung projector with HDMI port; DON'T work for cable box
Specifications:
Video
Standards: HDMI 1.3; HDCP 1.2
Maximum pixel clock: 165MHz
Maximum data rate: 6.75Gbps
Resolution: 1920X1080P@60Hz
Connector: HDMI-A
IR
Interface: 3.5mm seat
Signal direction: directional
Signal type: Digital
IR frequency: 20~60 KHz ;
UTP
Interface: RJ45/IEEE-568B

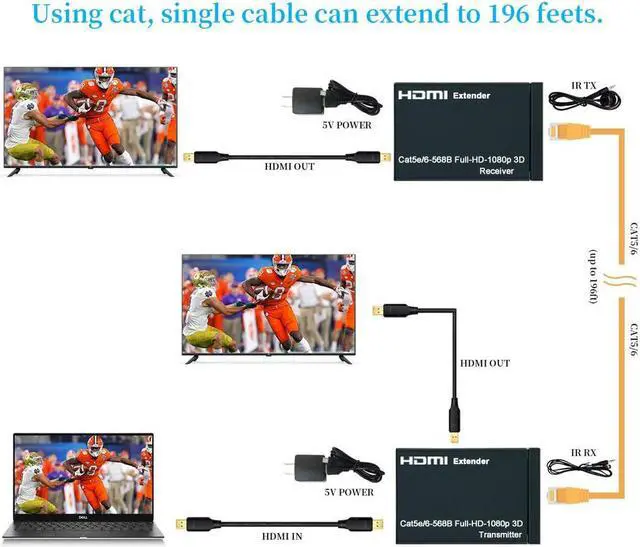

Transmission distance: CAT5e:50m/164ft,CAT6:60m/196ft
Other
Power supply: The power adapter: DC 5V/1A
Power dissipation: MAX 3W
Dimension: 94*71*25mm
Features:

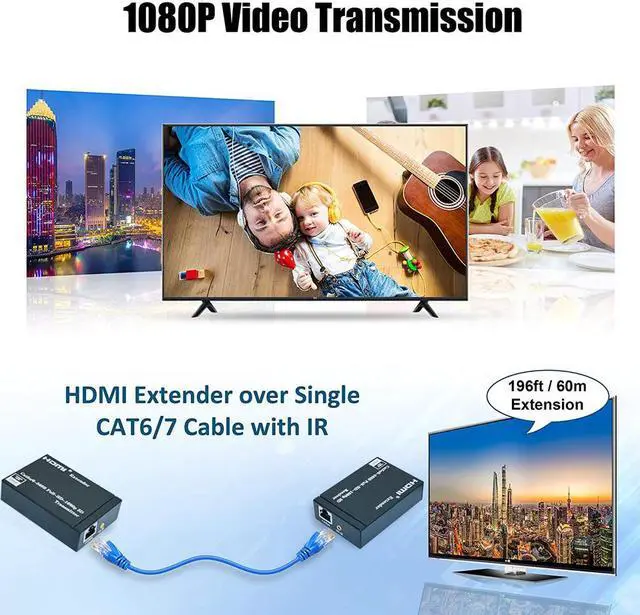

Long range transmission:up to 60m/196ft over a single CAT6 cable

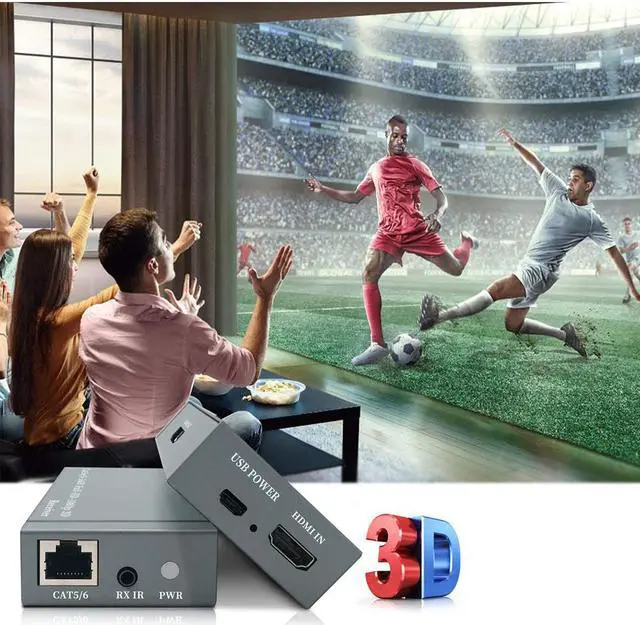

Video resolution:Up to 480P,720P,1920x1080@60Hz,3D
Audio sampling rate:32kHz, 44.1kHz and 48kHz
Audio Format:DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD
HDMI loop out function:The transmitter with one HDMI local loop out;
Uncompressed mode:NO Delay,No loss
Male to male:one TX to one RX applicataion
Copy EDID:It is extended display identification data , Press the button 3seconds, the TX will copy the signal data, like auto-match.They remember the EDID information if you plug them off the power adapter and them turn them back again
Infrared control:Bi-directional 20~60 KHz IR romote control;
Video standard:compliance with HDMI 1.3 and HDCP 1.2 standard;
Built-in automatic adjustment system:make the image smooth, clear and stable
Built-in ESD protection system: make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc
Simple to install, plug and play
